Gable End North Details

Property	Value
Rupture Count	285
Ruptures Above Sect Min Mag	267
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.50, 7.69]
Length Range	[15, 220] km
Total Rate	6.823053E-4 /yr
Multi-Fault Rate	6.823053E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

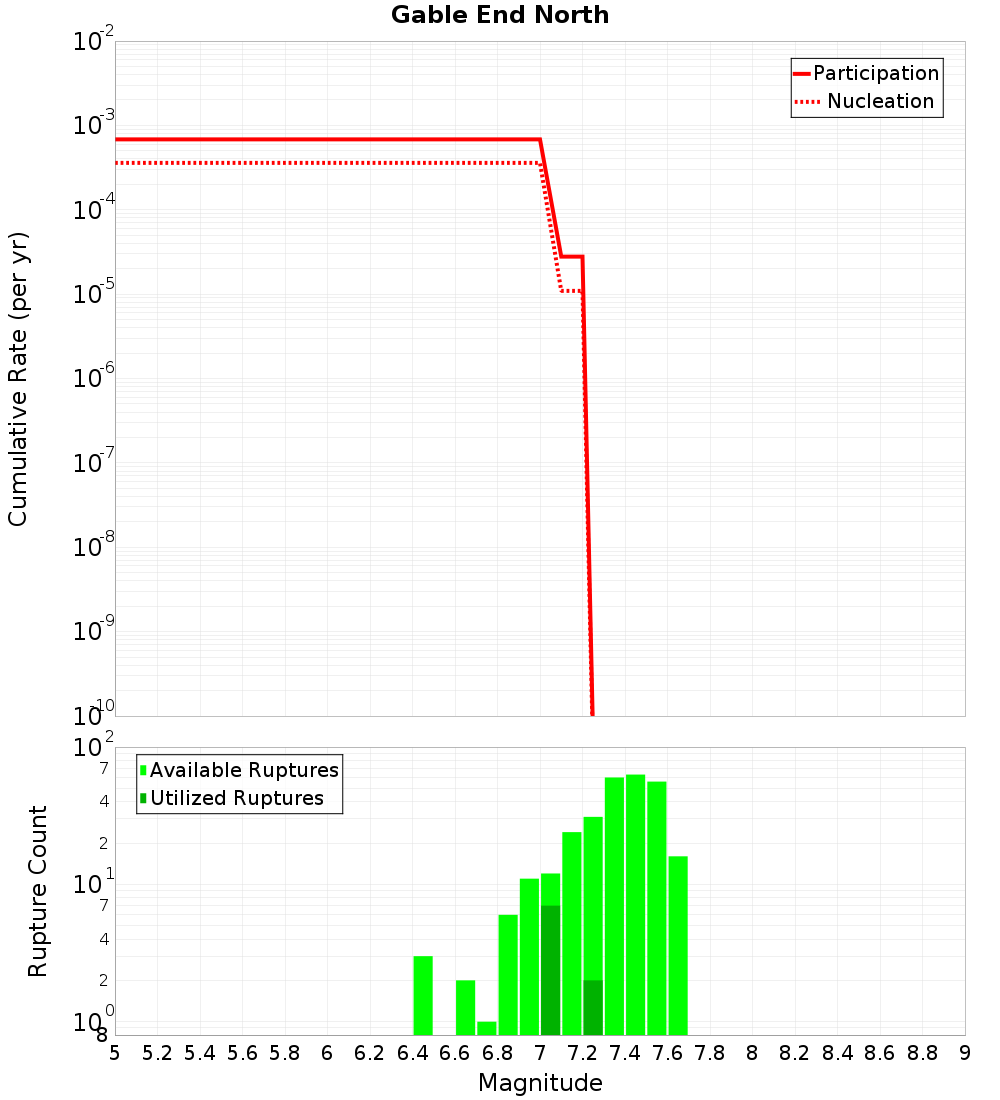

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

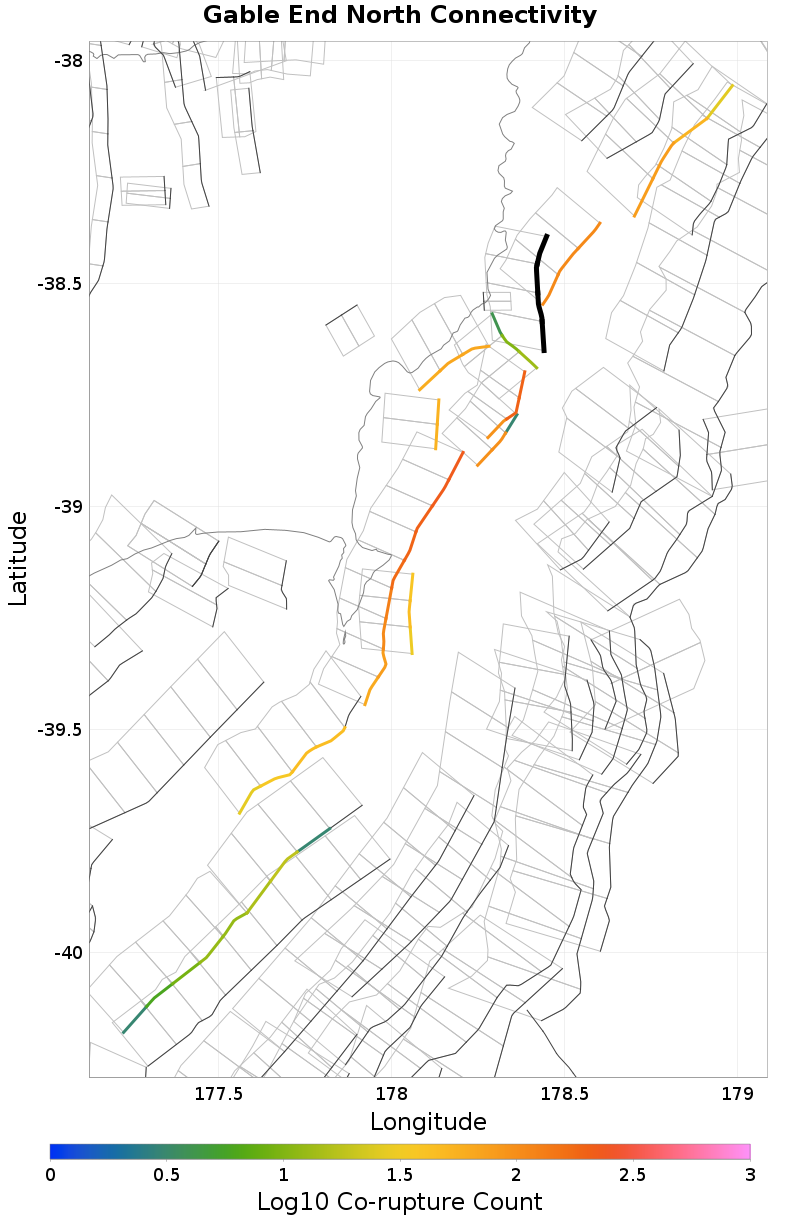

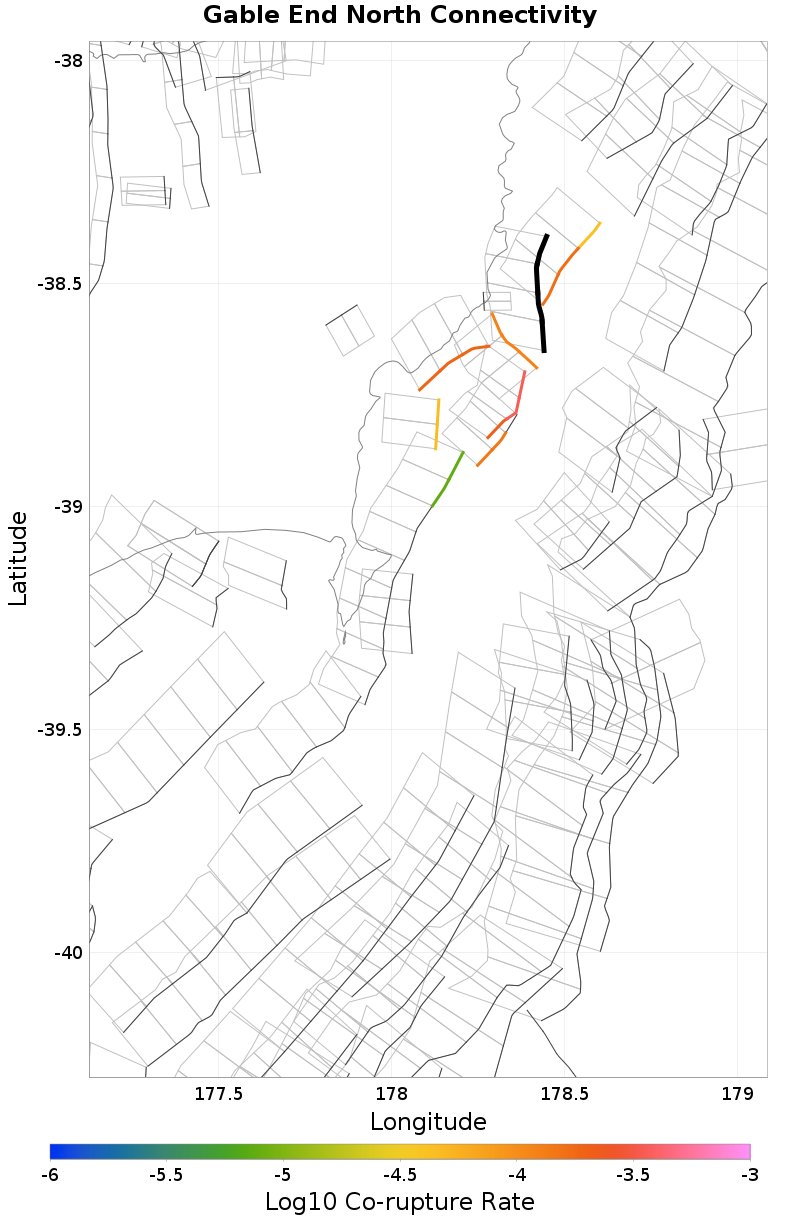

Connectivity

Nearby Sections

Fault Section
Pakarae, 0.43 km away
Ariel Bank 2, 0.91 km away
Ariel Bank, 2.16 km away
Te Ikaarongamai, 3.76 km away
Gable End South, 5.88 km away
Ariel East, 11.01 km away

Pakarae, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ariel Bank 2, 0.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	109
Co-rupture Rate	1.6285994E-4

Ariel Bank, 2.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	197
Co-rupture Rate	3.5942954E-4

Te Ikaarongamai, 3.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	1.214037E-4

Gable End South, 5.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	66
Co-rupture Rate	1.878842E-4

Ariel East, 11.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	false
Co-rupture Count	98
Co-rupture Rate	1.4342148E-4
