Totara Saddle Details
| Property | Value |
|---|---|
| Rupture Count | 6,051 |
| Ruptures Above Sect Min Mag | 6,050 |
| Ruptures w/ Nonzero Rates | 45 |
| Magnitude Range | [6.68, 8.47] |
| Length Range | [19, 948] km |
| Total Rate | 2.566906E-4 /yr |
| Multi-Fault Rate | 2.566906E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 87 |
Table Of Contents

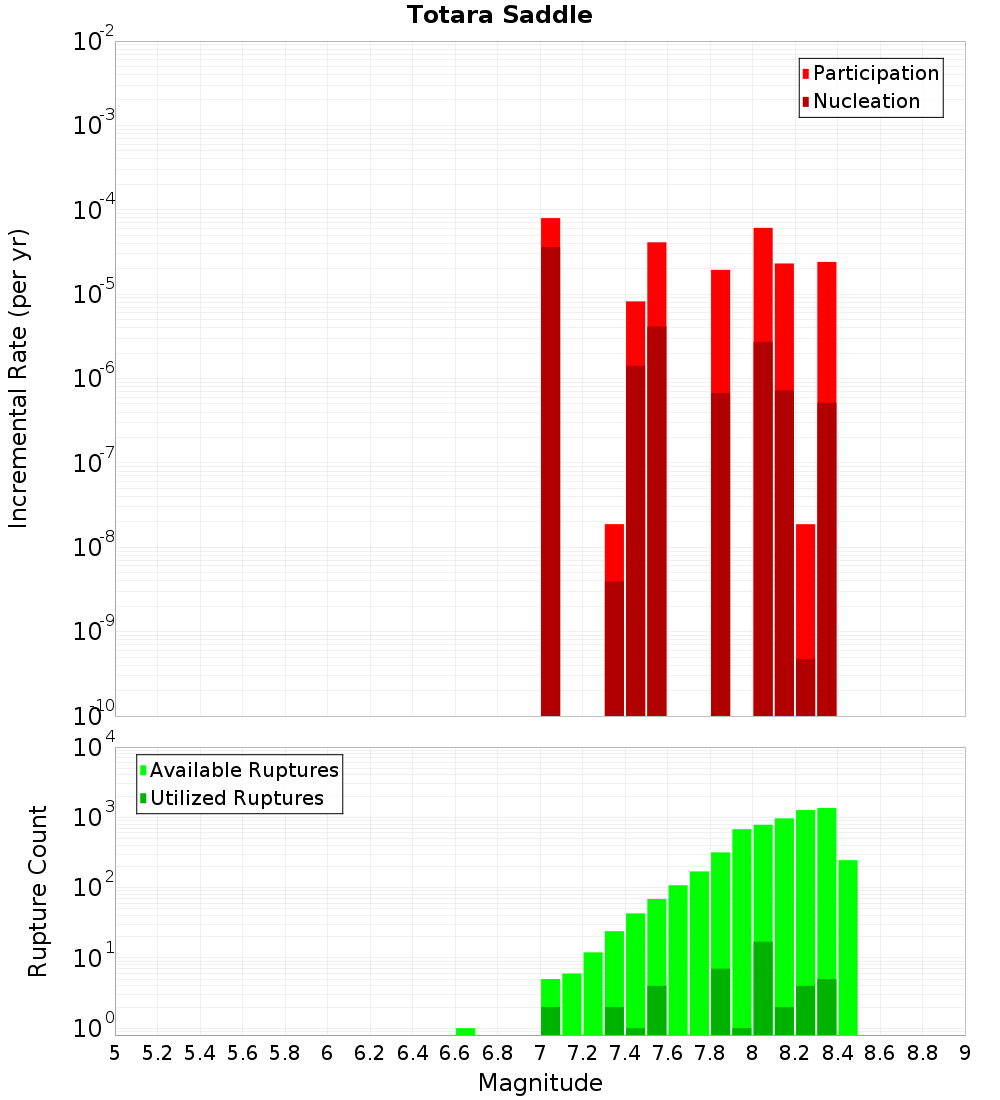

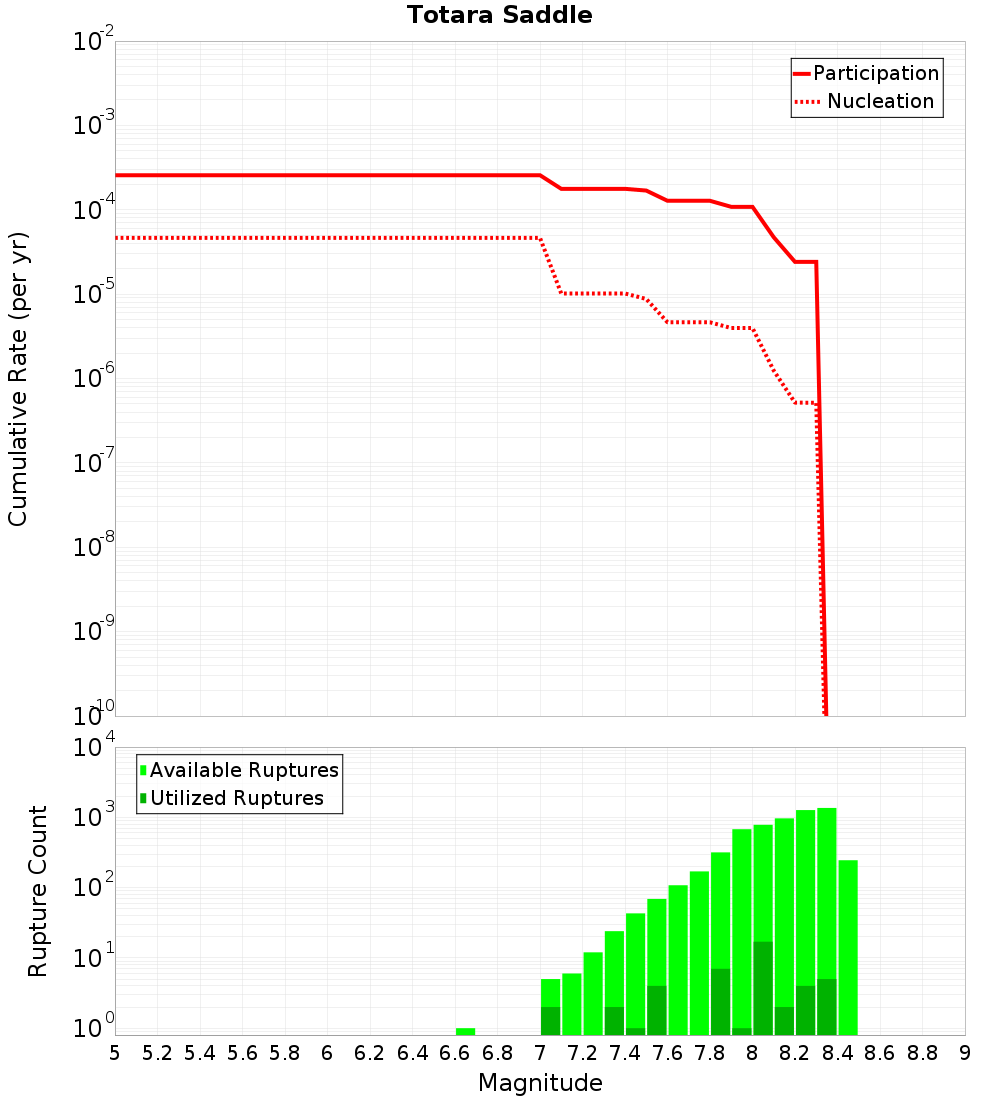

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

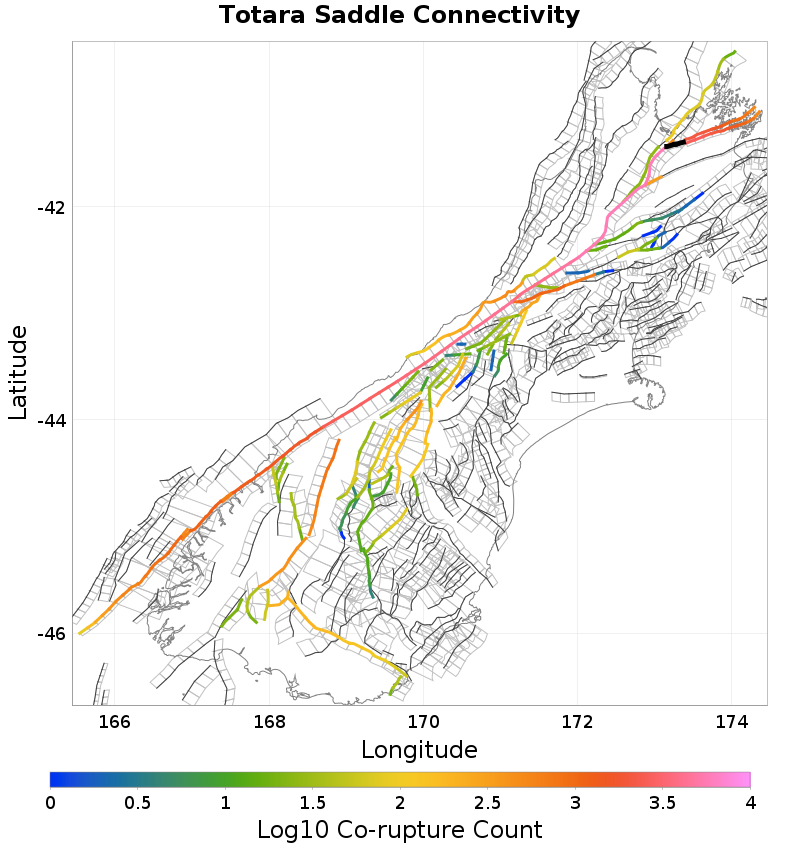

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamoa, 0.19 km away |
| Flaxmore - Waimea - Tahunanui, 0.2 km away |
| Kenepuru, 3.23 km away |
| Queen Charlotte, 3.33 km away |
| Ruby Bay - Moutere, 9.52 km away |
Whangamoa, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,944 |
| Co-rupture Rate | 1.08264896E-4 |
Flaxmore - Waimea - Tahunanui, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 116 |
| Co-rupture Rate | 4.1712396E-5 |
Kenepuru, 3.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,316 |
| Co-rupture Rate | 2.4423903E-4 |
Queen Charlotte, 3.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,623 |
| Co-rupture Rate | 1.2181172E-4 |
Ruby Bay - Moutere, 9.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
