Whangamoa Details

Property	Value
Rupture Count	49,332
Ruptures Above Sect Min Mag	49,324
Ruptures w/ Nonzero Rates	123
Magnitude Range	[6.87, 8.51]
Length Range	[23, 1,002] km
Total Rate	3.5595082E-4 /yr
Multi-Fault Rate	3.2410657E-4 /yr (91.05%)
Directly-Connected Faults	8
All Co-Rupturing Faults	136

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

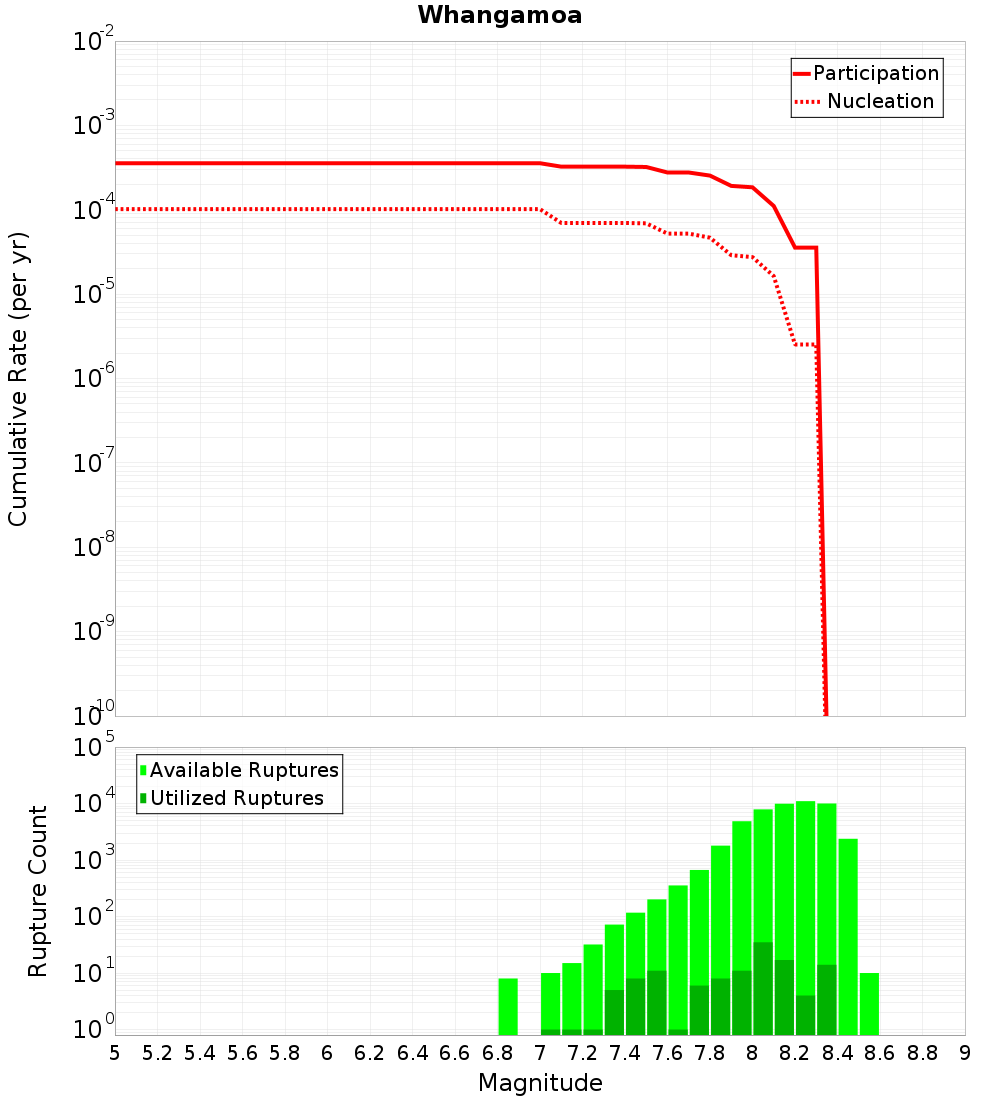

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

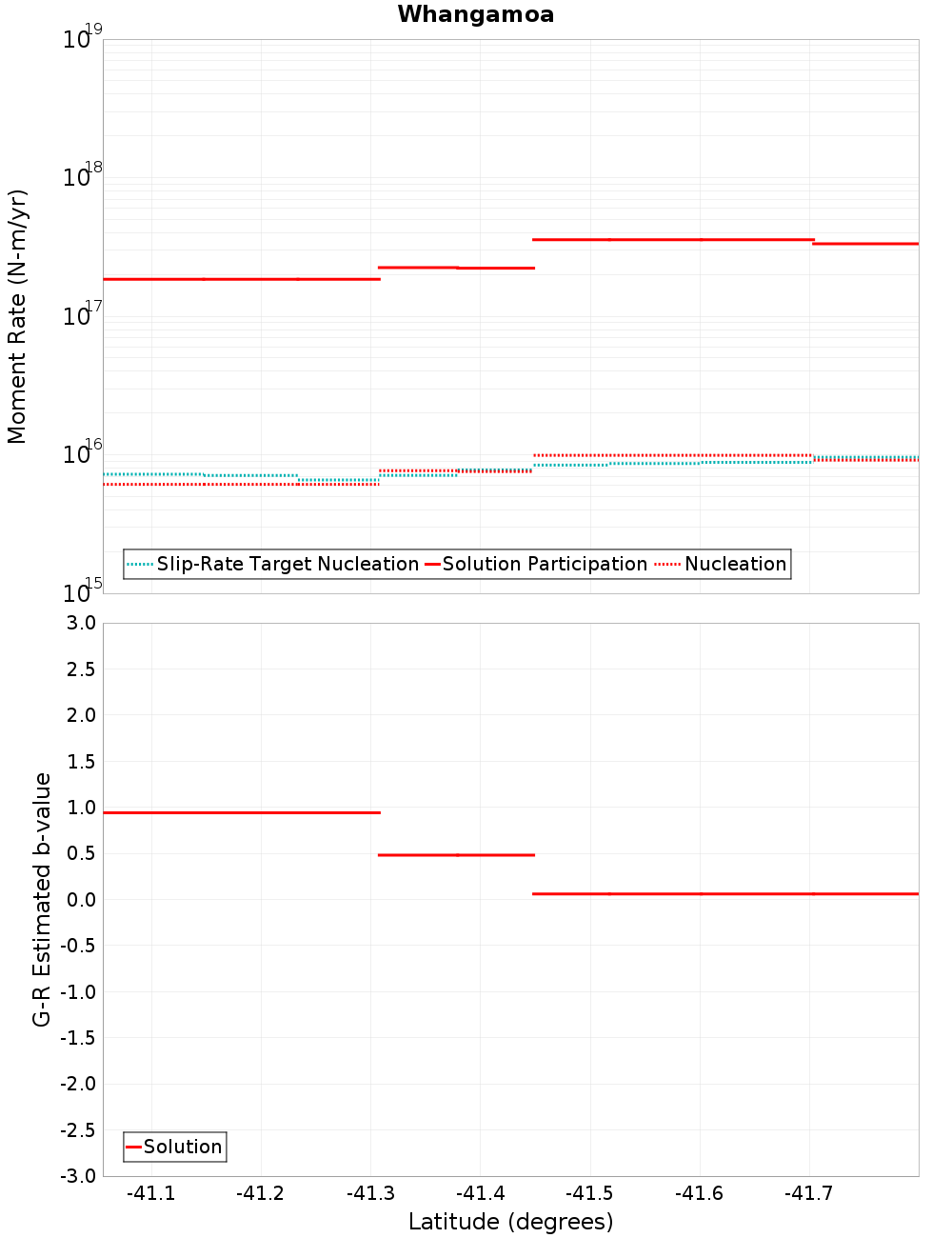

Moment-Rates and b-Values

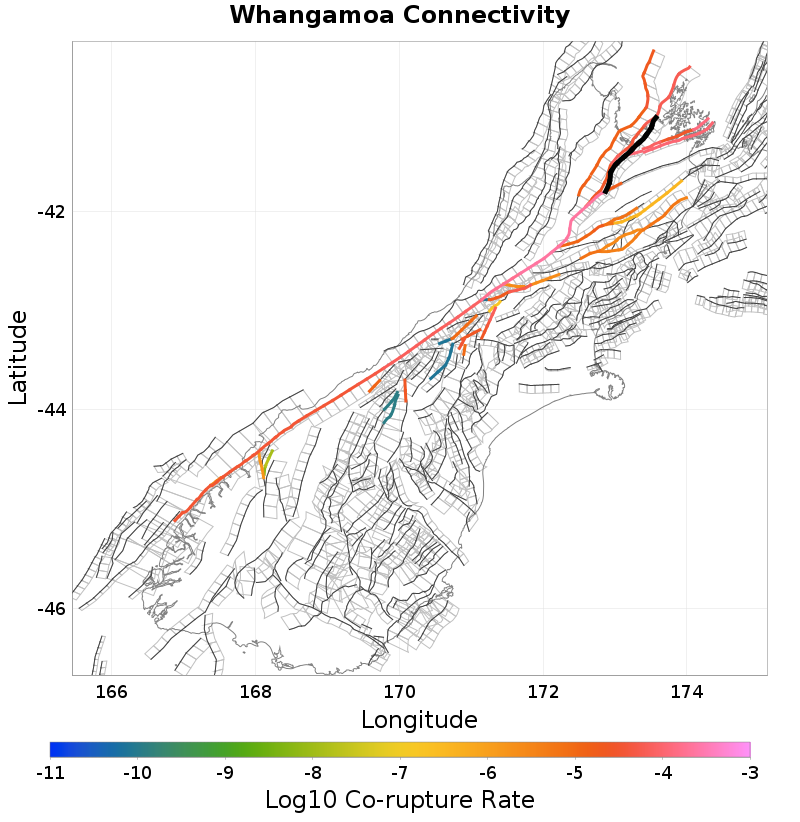

Connectivity

Nearby Sections

Fault Section
Alpine: Springs Junction to Tophouse, 0 km away
Wairau, 0 km away
Totara Saddle, 0.19 km away
Kenepuru, 0.43 km away
Waimea Offshore, 0.81 km away
Flaxmore - Waimea - Tahunanui, 2.28 km away
Queen Charlotte, 3.21 km away
Waihopai, 13.04 km away
Surville, 13.9 km away
Tutaki, 14.85 km away

Alpine: Springs Junction to Tophouse, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	47,509
Co-rupture Rate	2.2565117E-4

Wairau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	5,287
Co-rupture Rate	1.7163586E-5

Totara Saddle, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	5,944
Co-rupture Rate	1.08264896E-4

Kenepuru, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	5,907
Co-rupture Rate	1.8033662E-4

Waimea Offshore, 0.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	13,044
Co-rupture Rate	6.0449984E-5

Flaxmore - Waimea - Tahunanui, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	5,700
Co-rupture Rate	7.21619E-5

Queen Charlotte, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	5,517
Co-rupture Rate	1.0417108E-4

Waihopai, 13.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Surville, 13.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	true
Co-rupture Count	3,162
Co-rupture Rate	3.4518253E-5

Tutaki, 14.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3ODYuMDZVS3c2
Connected?	true
Directly Connected?	false
Co-rupture Count	9
Co-rupture Rate	1.4232161E-5
