Livingstone Details
| Property | Value |
|---|---|
| Rupture Count | 600 |
| Ruptures Above Sect Min Mag | 597 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [7.08, 8.48] |
| Length Range | [26, 776] km |
| Total Rate | 6.5708265E-4 /yr |
| Multi-Fault Rate | 3.991597E-4 /yr (60.75%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 56 |
Table Of Contents

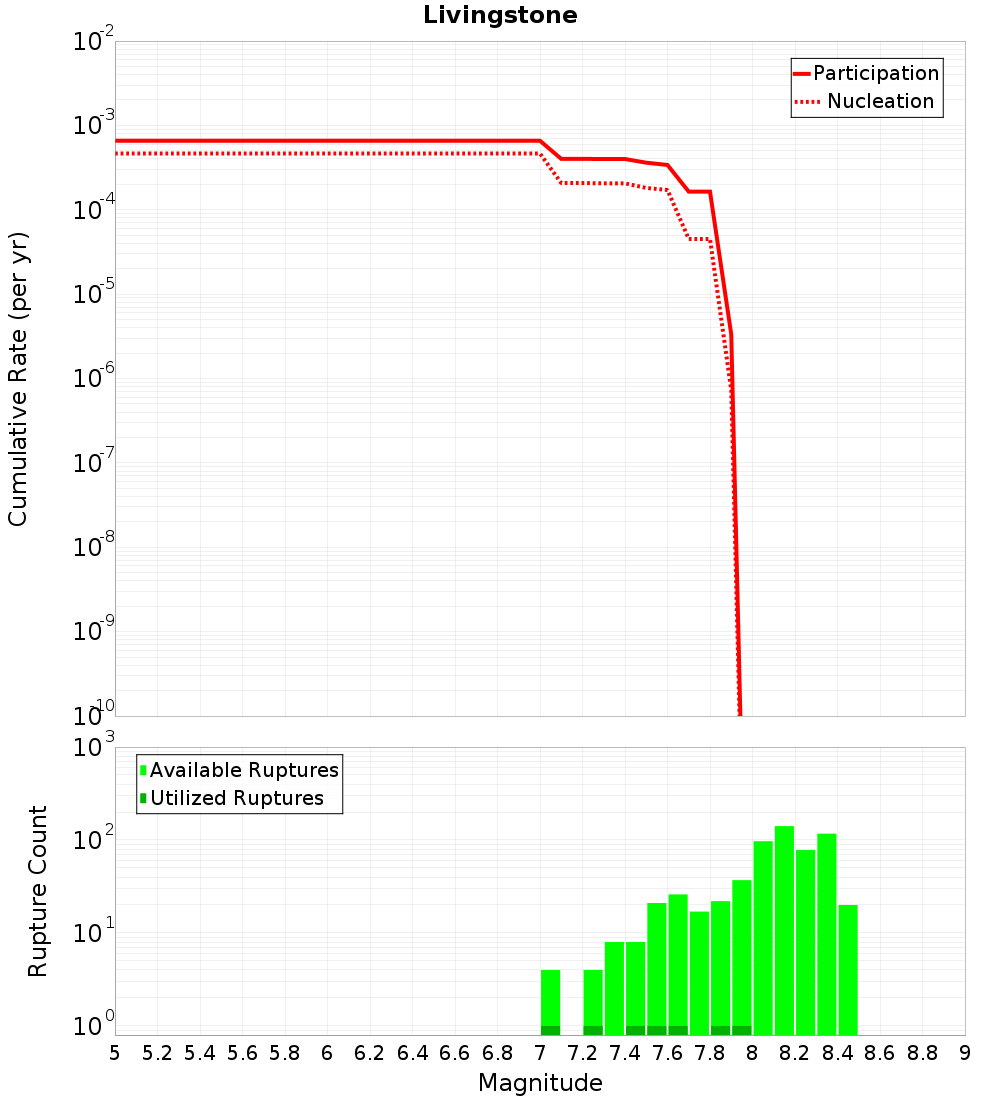

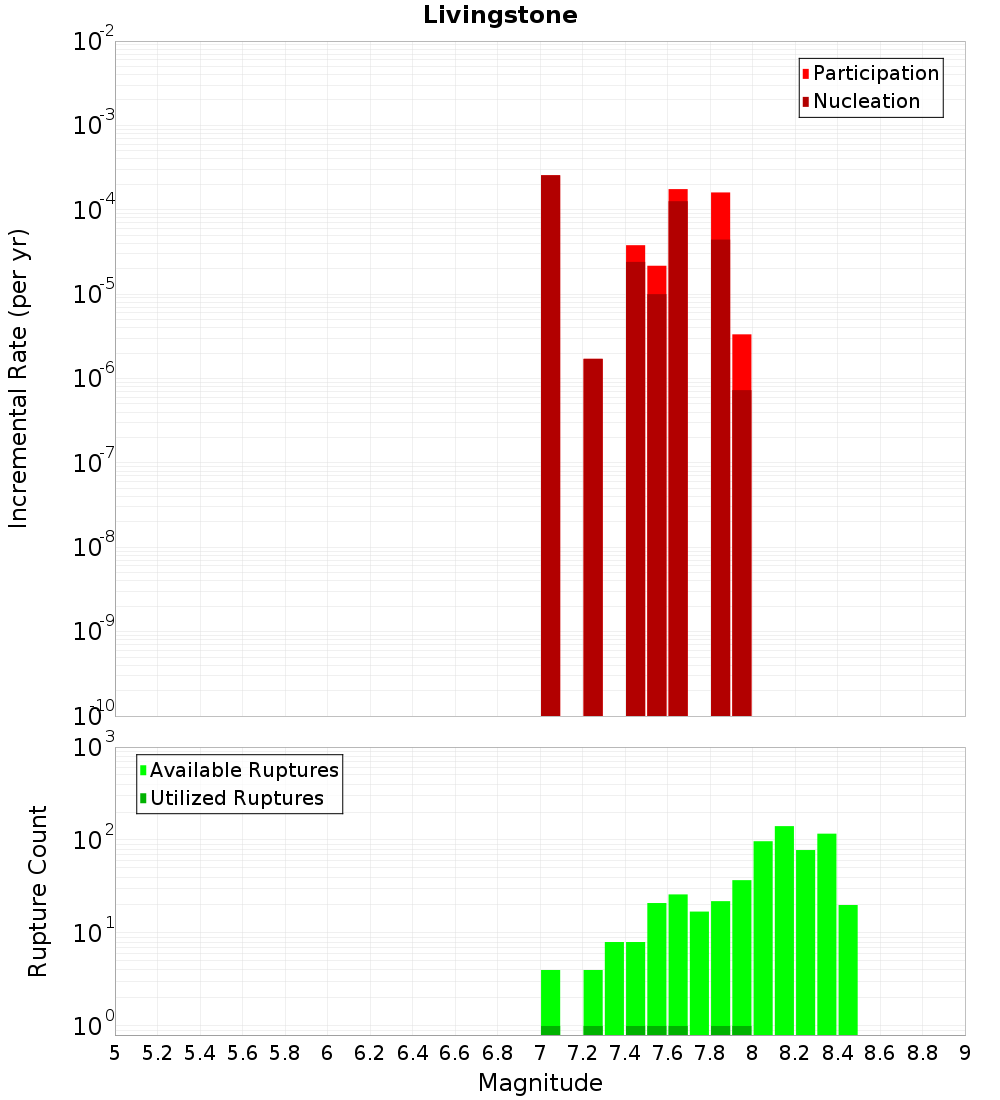

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

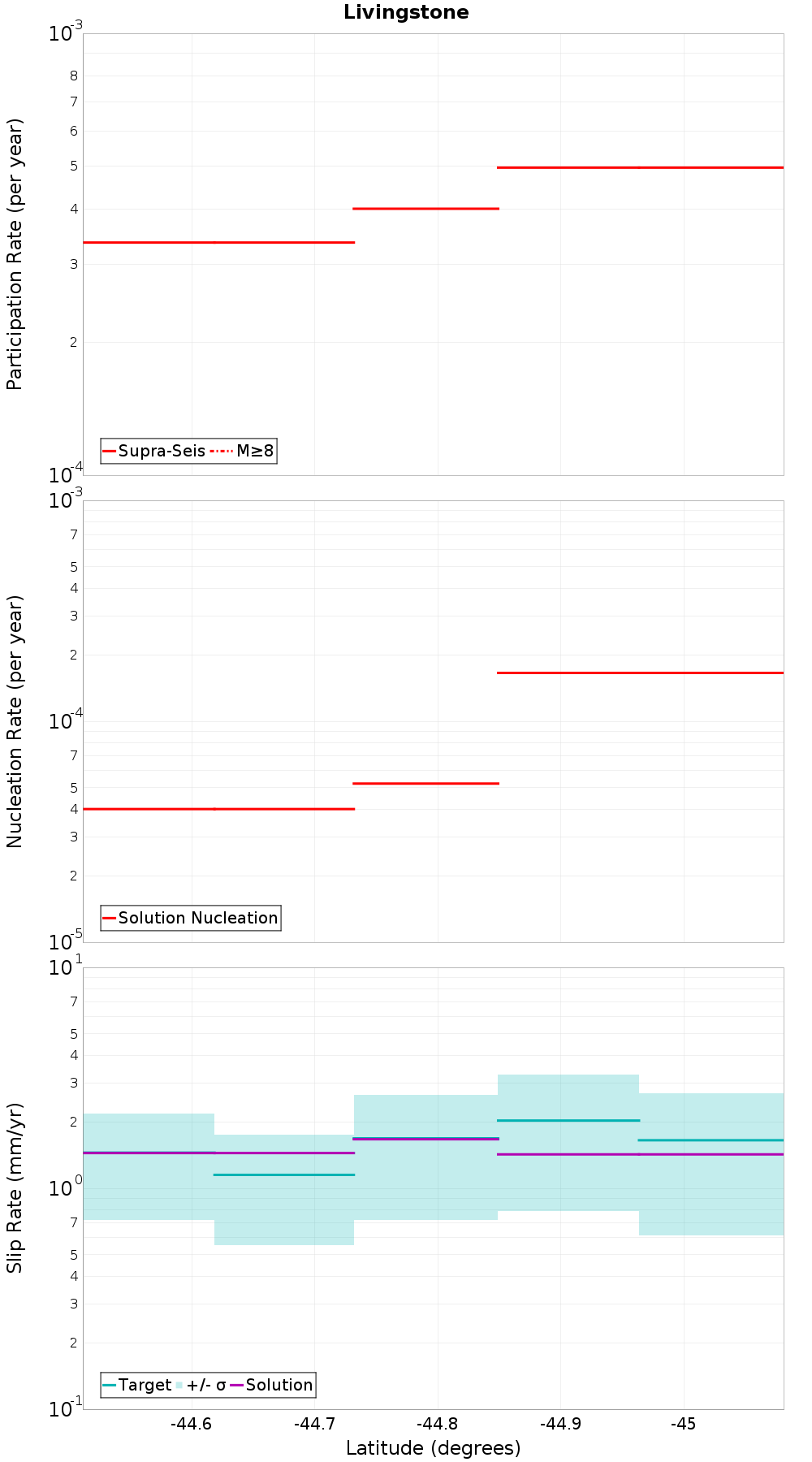

Along-Strike Values

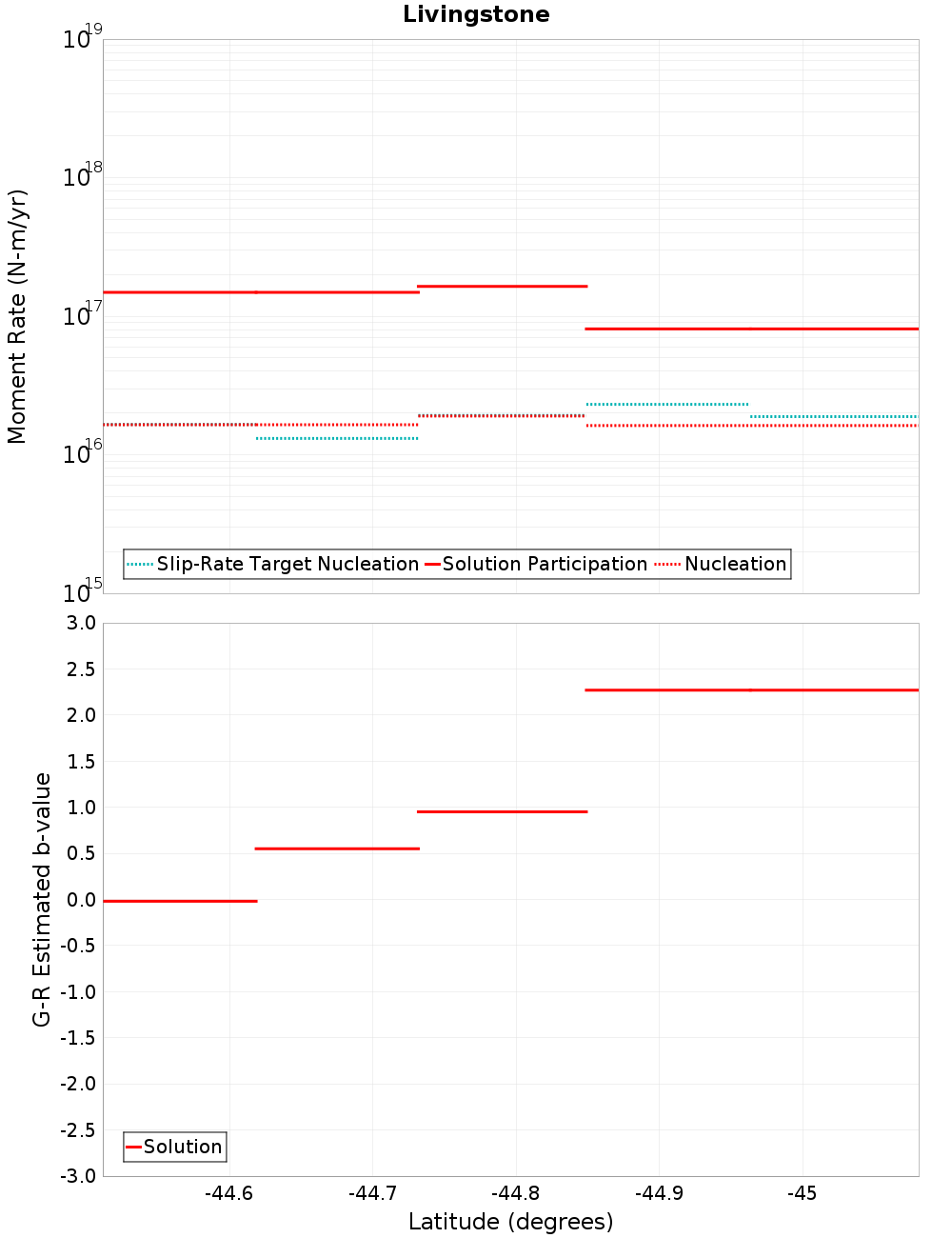

Moment-Rates and b-Values

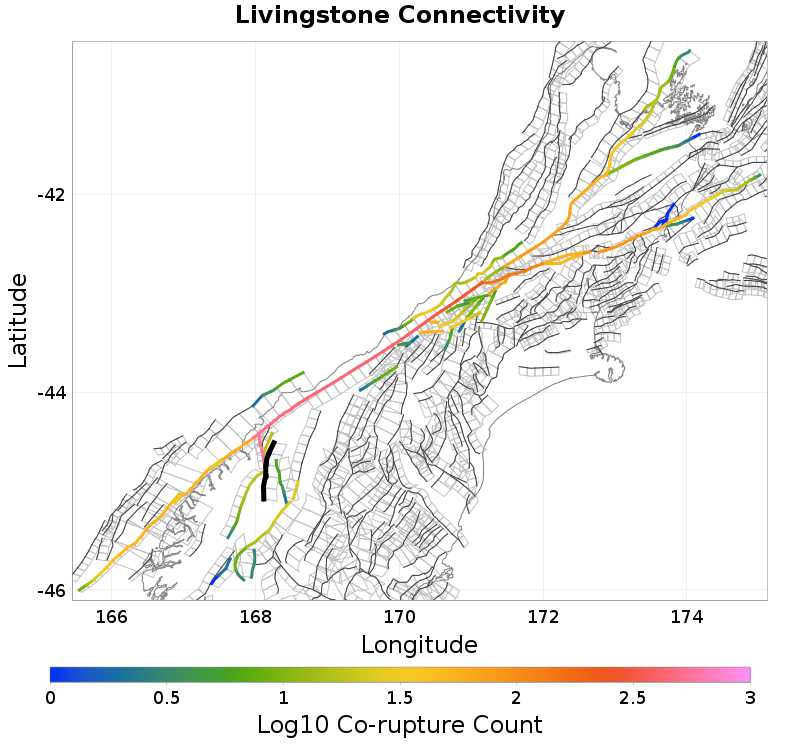

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Darran, 0.78 km away |
| Hollyford, 3.63 km away |
| Te Anau, 3.81 km away |
| West Wakatipu, 6.89 km away |
| Skippers, 9.56 km away |
| Moonlight North, 9.78 km away |
Darran, 0.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTMuMGUzZlho | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 536 |
| Co-rupture Rate | 3.801857E-5 |
Hollyford, 3.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTMuMGUzZlho | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 3.360996E-4 |
Te Anau, 3.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTMuMGUzZlho | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 1.6042884E-4 |
West Wakatipu, 6.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTMuMGUzZlho | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Skippers, 9.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTMuMGUzZlho | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight North, 9.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTMuMGUzZlho | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 2.5041541E-5 |
