Alpine: George to Jacksons Details

PropertyValue
Rupture Count118,125
Ruptures Above Sect Min Mag118,115
Ruptures w/ Nonzero Rates596
Magnitude Range[6.86, 8.58]
Length Range[21, 1,083] km
Total Rate0.004530305 /yr
Multi-Fault Rate0.0040800082 /yr (90.06%)
Directly-Connected Faults7
All Co-Rupturing Faults211

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

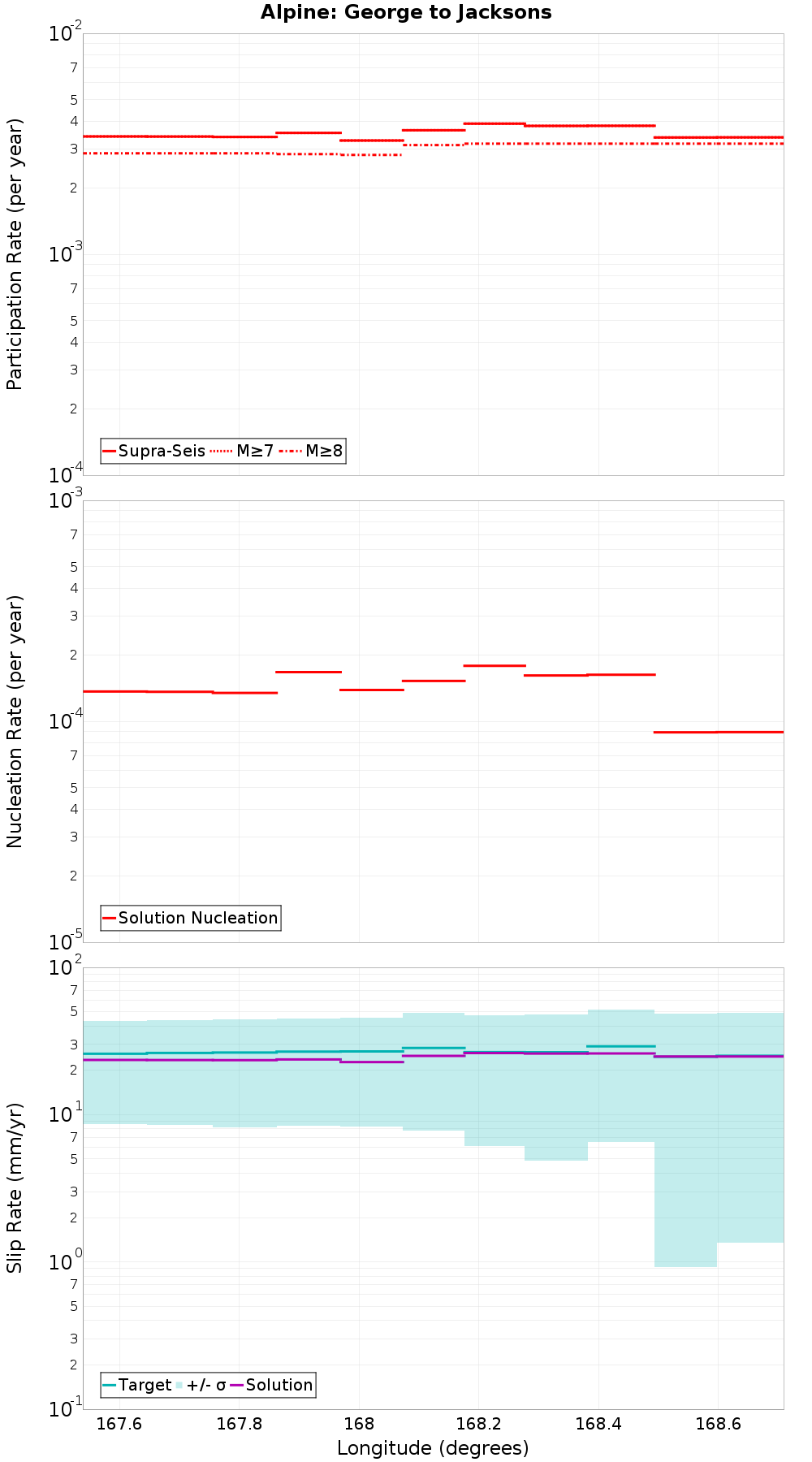

Along-Strike Values

(top)

Along-strike plot

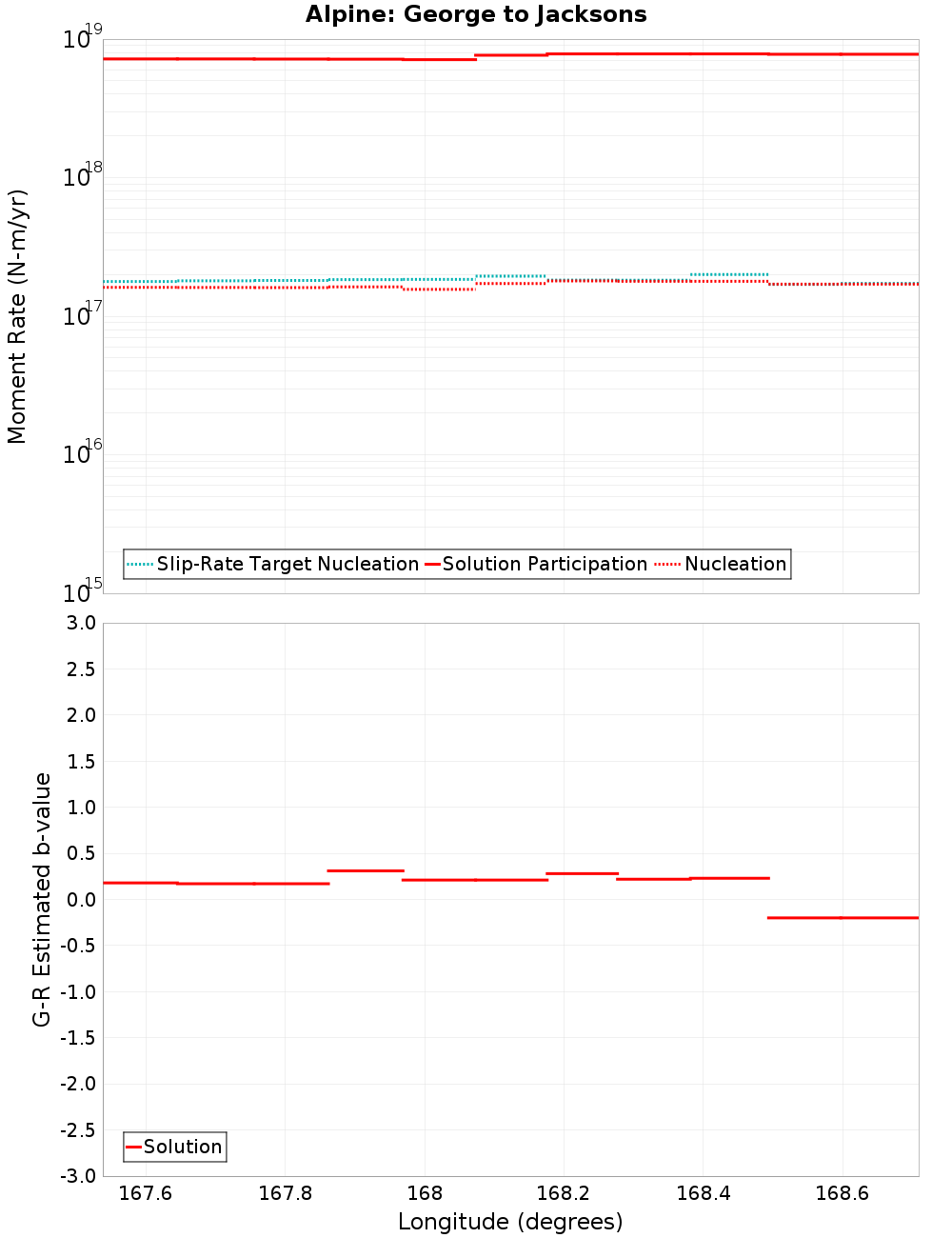

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George seaward, 0 km away
Alpine: Jacksons to Kaniere, 0 km away
Alpine: George landward, 0 km away
Hollyford, 0.11 km away
Skippers, 0.12 km away
Madagascar, 0.19 km away
Darran, 0.27 km away
Barn, 0.78 km away
Moonlight North, 9.42 km away

Alpine: George seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?true
Directly Connected?true
Co-rupture Count40,145
Co-rupture Rate0.0023543437

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?true
Directly Connected?true
Co-rupture Count115,597
Co-rupture Rate0.0033040198

Alpine: George landward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?true
Directly Connected?true
Co-rupture Count41,451
Co-rupture Rate0.0011081803

Hollyford, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?true
Directly Connected?true
Co-rupture Count1,257
Co-rupture Rate1.9061091E-4

Skippers, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?true
Directly Connected?true
Co-rupture Count1,683
Co-rupture Rate2.8530296E-4

Madagascar, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?true
Directly Connected?false
Co-rupture Count236
Co-rupture Rate2.1188973E-5

Darran, 0.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?true
Directly Connected?true
Co-rupture Count9,073
Co-rupture Rate1.7134053E-5

Barn, 0.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?true
Directly Connected?true
Co-rupture Count687
Co-rupture Rate4.548282E-5

Moonlight North, 9.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
