Ranfurly Details

Property	Value
Rupture Count	320
Ruptures Above Sect Min Mag	320
Ruptures w/ Nonzero Rates	23
Magnitude Range	[7.04, 8.26]
Length Range	[24, 368] km
Total Rate	1.1812495E-4 /yr
Multi-Fault Rate	1.18124946E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

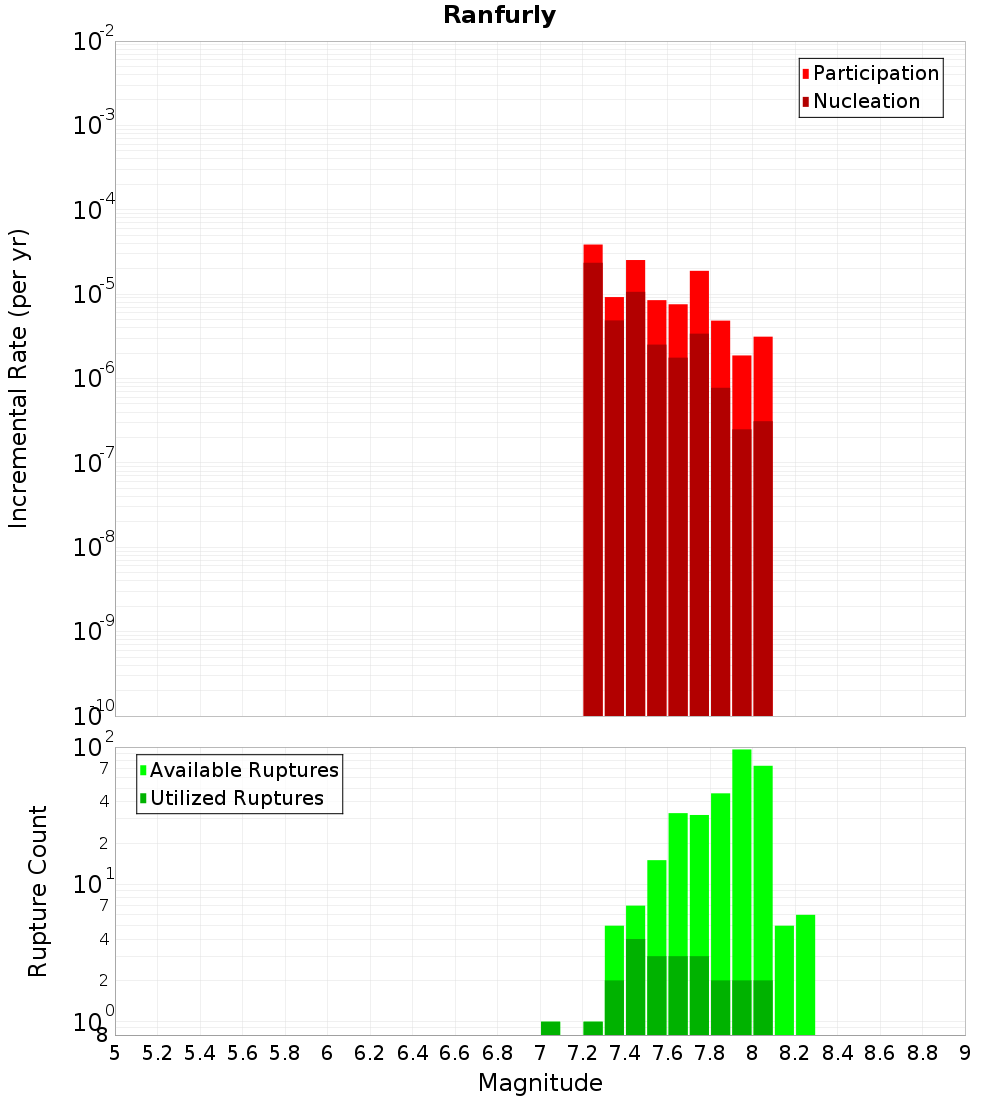

Magnitude-Frequency Distribution

Incremental	Cumulative

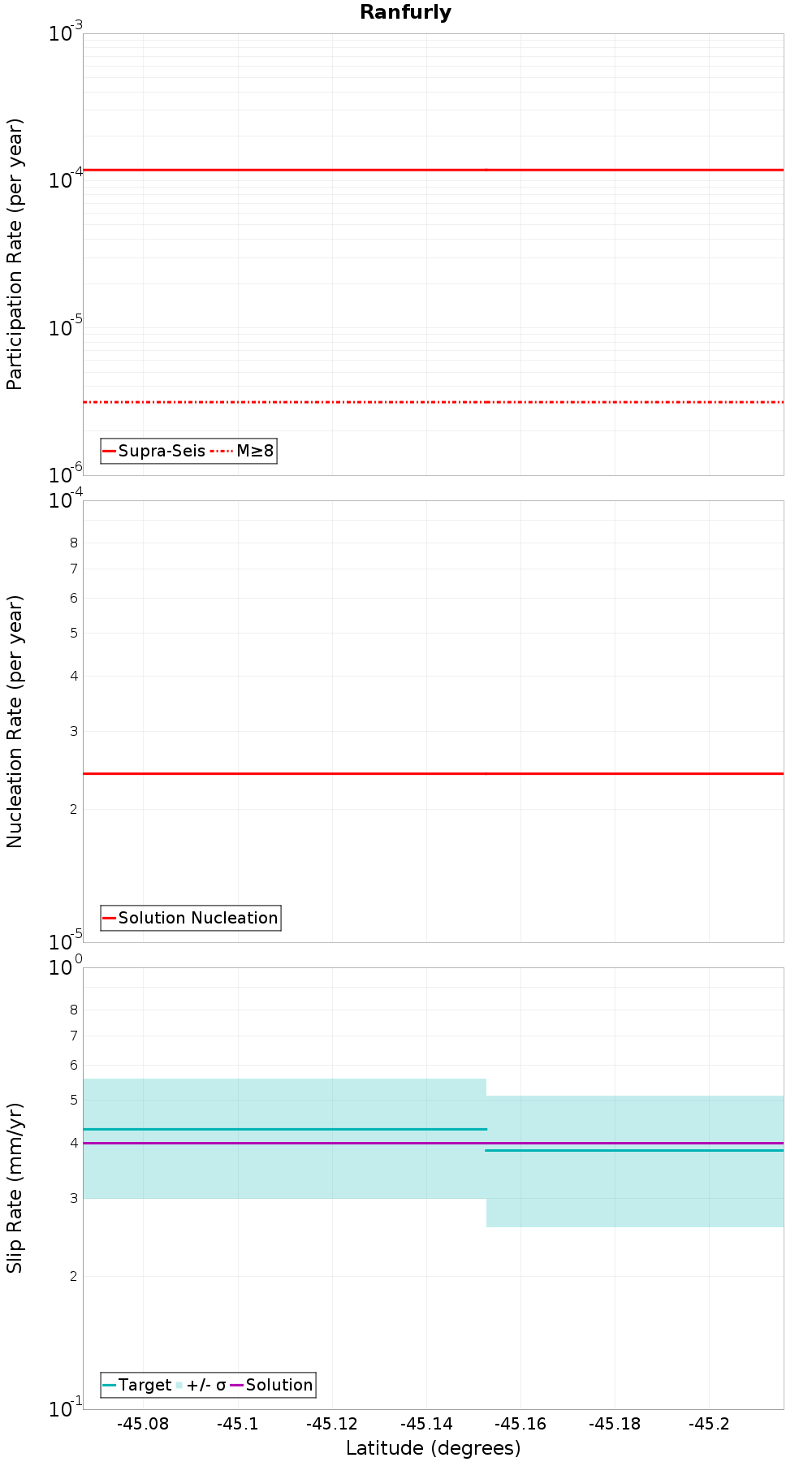

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hyde North, 0.11 km away
Horse Flat, 0.11 km away
Billys Ridge, 0.11 km away
Murphys Creek, 0.34 km away
Waipiata, 2.8 km away
Cross Eden, 4.41 km away
Dunback Hill, 4.82 km away
Gimmerburn, 4.96 km away
Waihemo, 5.63 km away
Hawkdun, 10.99 km away
Garibaldi, 12.32 km away
Pylap, 12.92 km away
Flat Stream - Glenpark, 13.08 km away

Hyde North, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	true
Directly Connected?	true
Co-rupture Count	153
Co-rupture Rate	3.0764174E-6

Horse Flat, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	true
Directly Connected?	true
Co-rupture Count	91
Co-rupture Rate	6.426933E-5

Billys Ridge, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	true
Directly Connected?	true
Co-rupture Count	66
Co-rupture Rate	8.828672E-7

Murphys Creek, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	1.1181427E-5

Waipiata, 2.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	true
Directly Connected?	true
Co-rupture Count	58
Co-rupture Rate	3.0764284E-6

Cross Eden, 4.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	true
Directly Connected?	true
Co-rupture Count	35
Co-rupture Rate	3.8714898E-5

Dunback Hill, 4.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gimmerburn, 4.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waihemo, 5.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hawkdun, 10.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garibaldi, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pylap, 12.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	true
Directly Connected?	false
Co-rupture Count	82
Co-rupture Rate	2.7578993E-5

Flat Stream - Glenpark, 13.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuME1XZGY5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
