Fern Gully Details

PropertyValue
Rupture Count935
Ruptures Above Sect Min Mag930
Ruptures w/ Nonzero Rates46
Magnitude Range[6.76, 8.16]
Length Range[18, 351] km
Total Rate1.906559E-4 /yr
Multi-Fault Rate1.6977092E-4 /yr (89.05%)
Directly-Connected Faults5
All Co-Rupturing Faults53

Table Of Contents

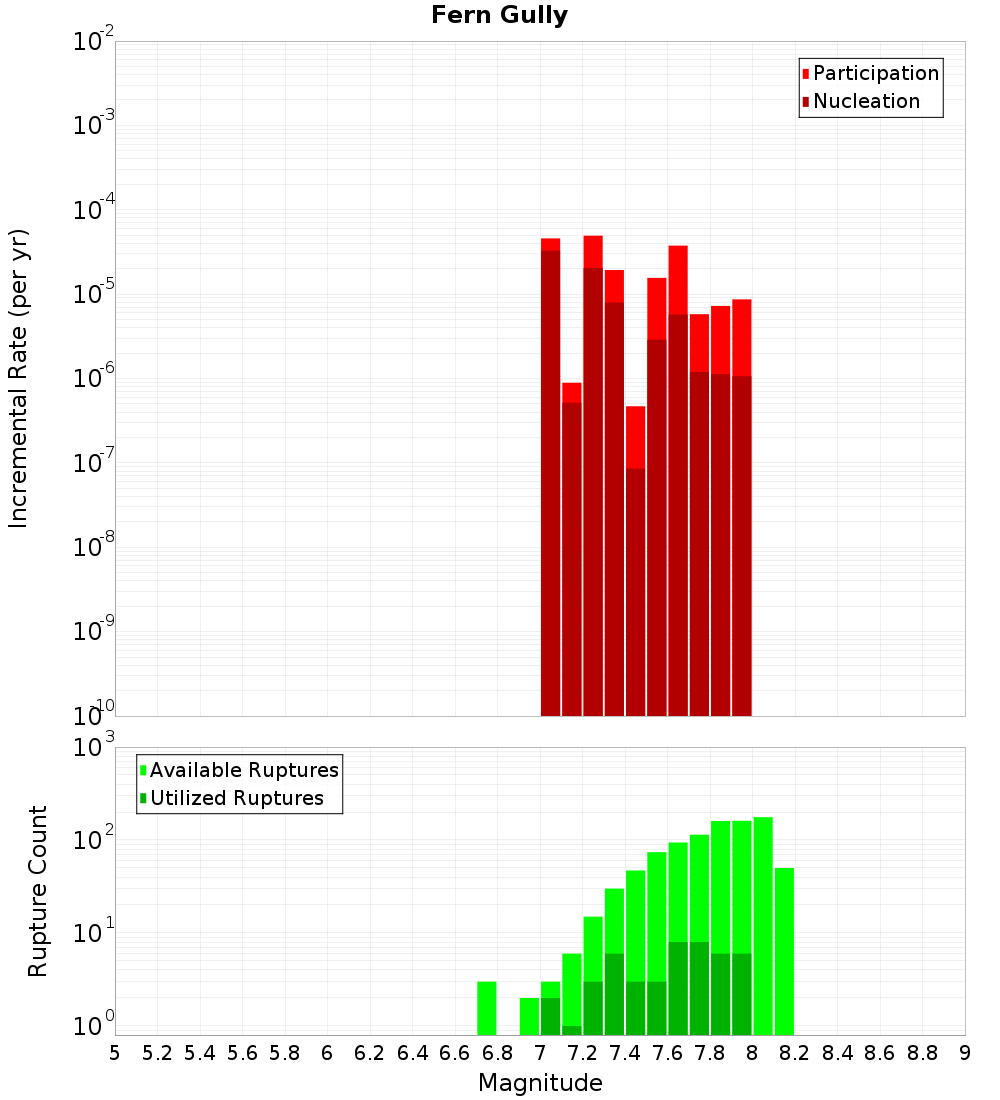

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

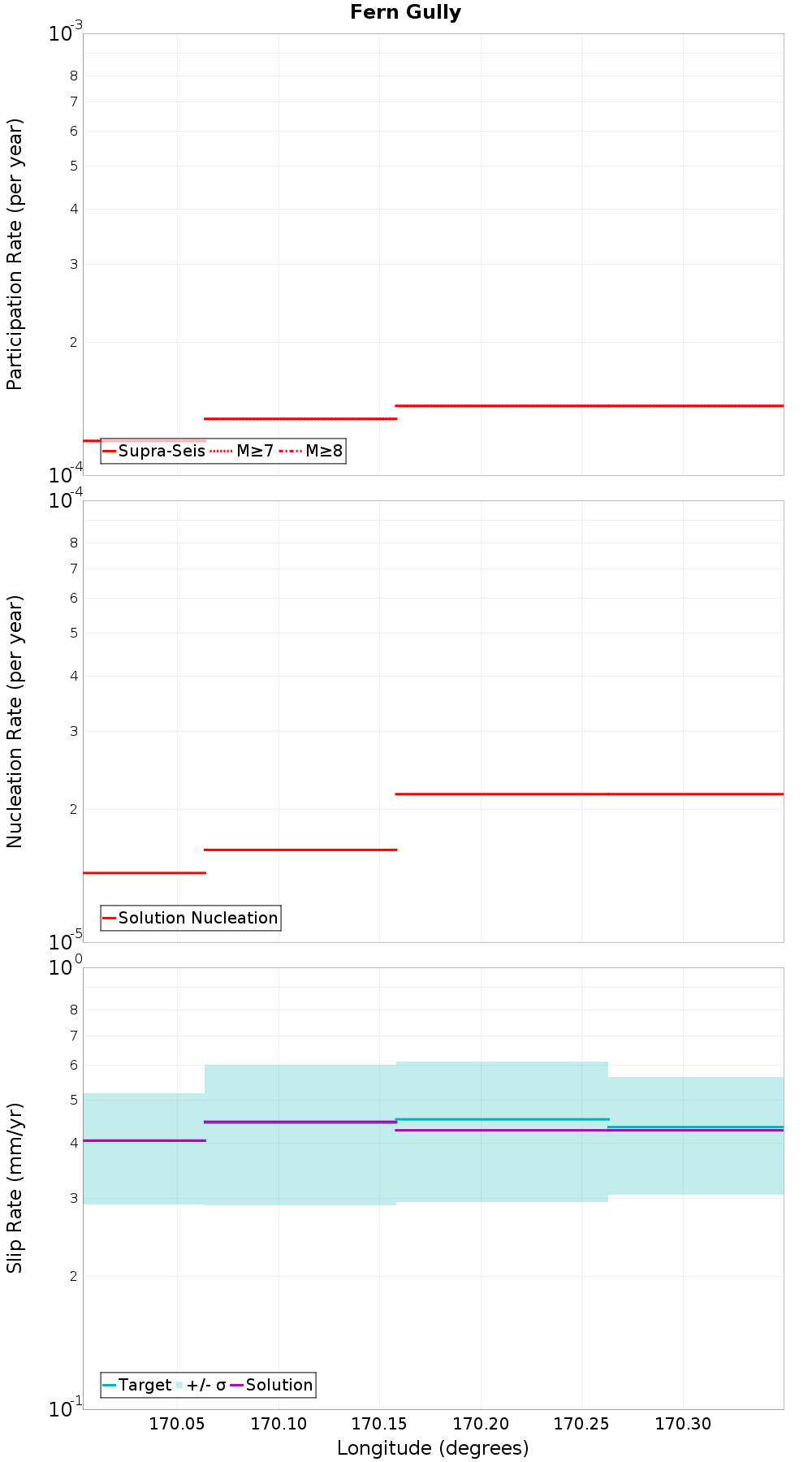

Along-Strike Values

(top)

Along-strike plot

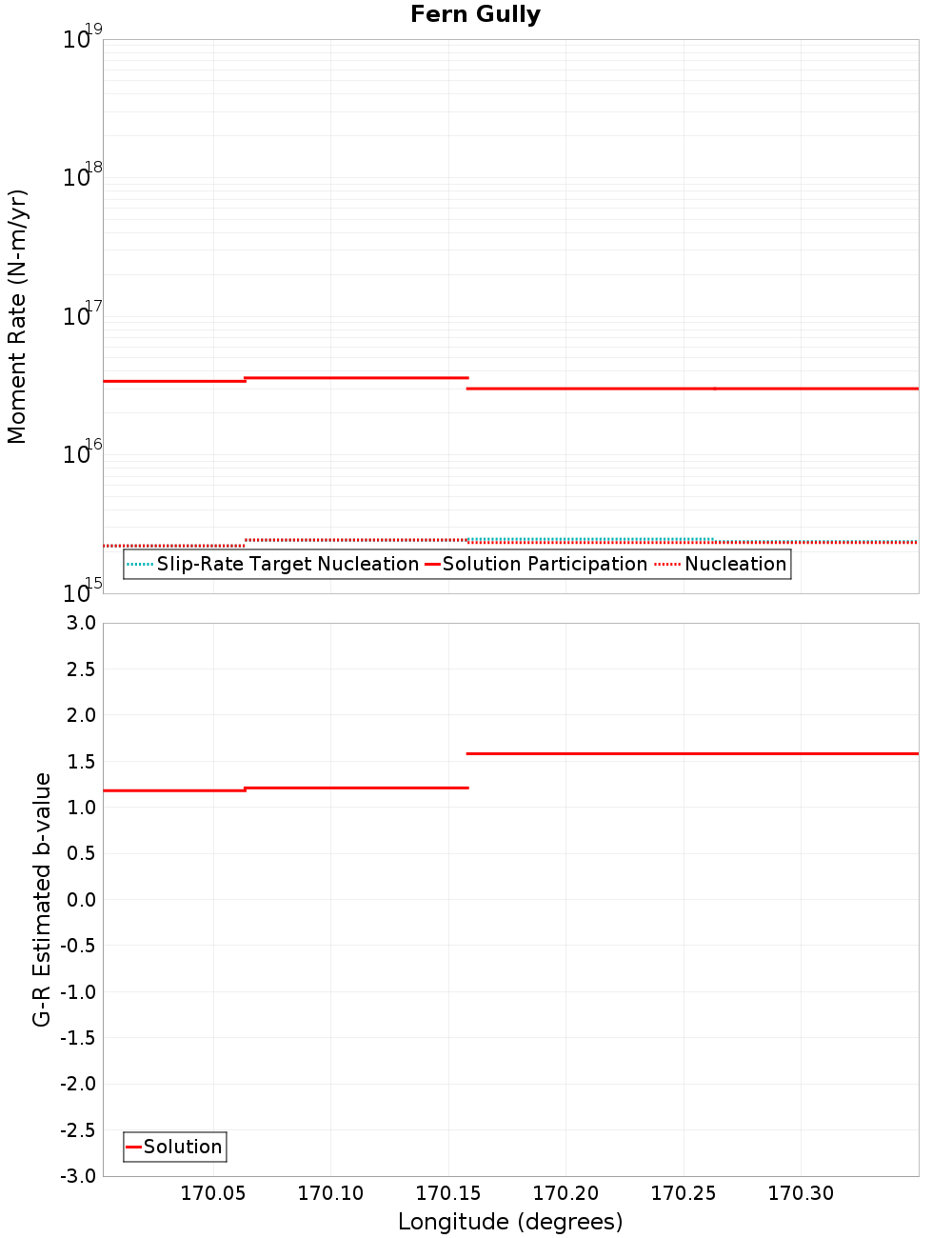

Moment-Rates and b-Values

(top)

Along-strike plot

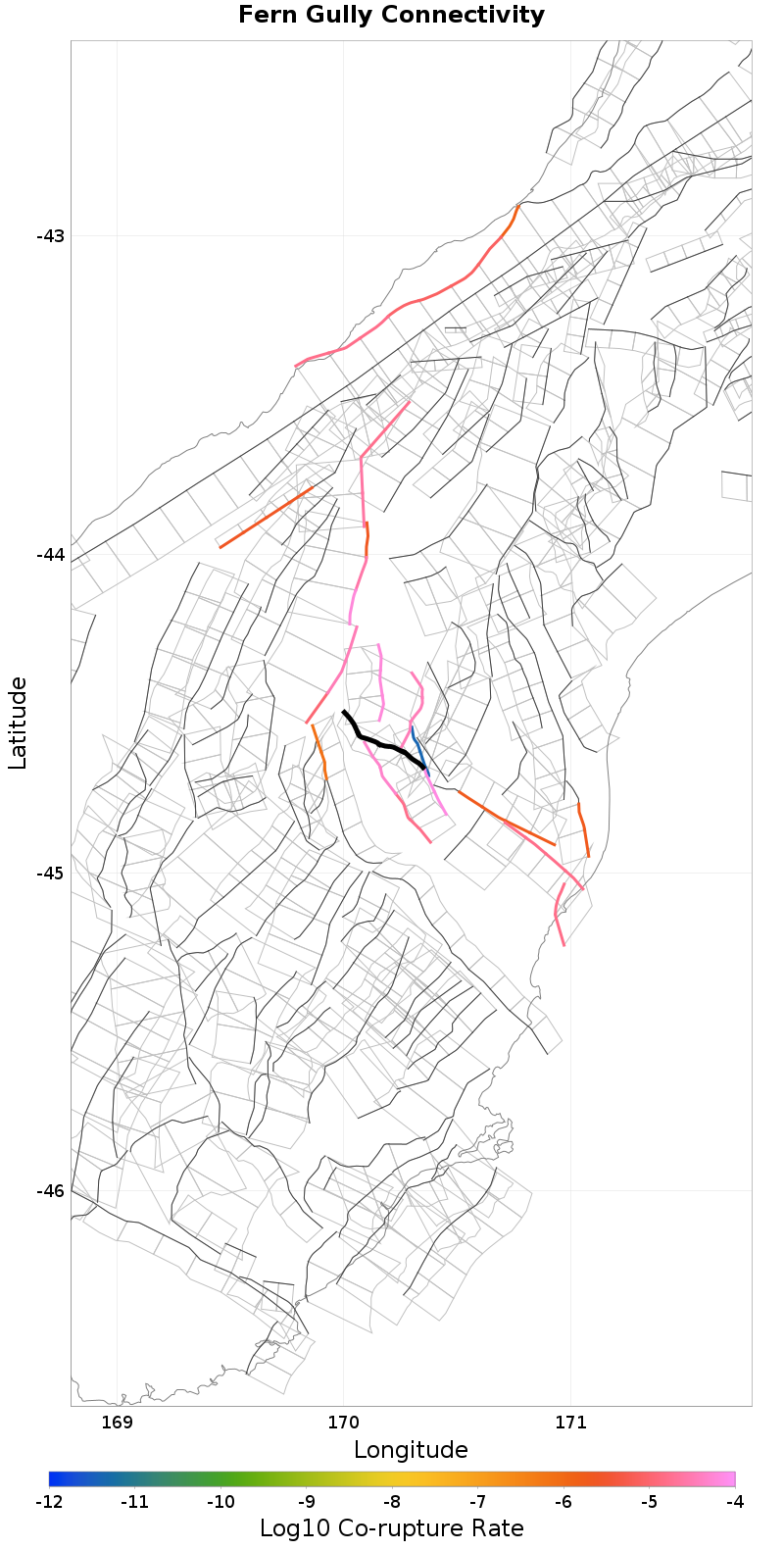

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Middle Range, 0.08 km away
Waitangi, 0.28 km away
Mt Sutton, 0.33 km away
Awahokomo, 0.47 km away
Hawkdun, 1.01 km away
Gibson, 1.22 km away
Omarama Saddle, 2.14 km away
Falstone, 2.55 km away
Kirkliston, 3.42 km away
Dryburgh, 4.21 km away
Stonewall, 6.14 km away
Ostler South, 8.7 km away
Grampian, 11.8 km away
Blue Lake, 11.88 km away

Middle Range, 0.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?true
Directly Connected?true
Co-rupture Count151
Co-rupture Rate6.290848E-5

Waitangi, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?true
Directly Connected?false
Co-rupture Count10
Co-rupture Rate4.1329904E-12

Mt Sutton, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awahokomo, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?true
Directly Connected?true
Co-rupture Count174
Co-rupture Rate6.822239E-5

Hawkdun, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?true
Directly Connected?true
Co-rupture Count556
Co-rupture Rate7.416365E-7

Gibson, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate3.4376328E-5

Omarama Saddle, 2.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 2.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?true
Directly Connected?true
Co-rupture Count566
Co-rupture Rate5.9312835E-5

Kirkliston, 3.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate0.0

Dryburgh, 4.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?true
Directly Connected?false
Co-rupture Count81
Co-rupture Rate1.8629703E-6

Ostler South, 8.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?true
Directly Connected?false
Co-rupture Count43
Co-rupture Rate3.3148255E-5

Grampian, 11.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Blue Lake, 11.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE3OTcuMFE0RWh1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
