Puke Ridge Details

Property	Value
Rupture Count	20,179
Ruptures Above Sect Min Mag	20,173
Ruptures w/ Nonzero Rates	68
Magnitude Range	[7.05, 8.56]
Length Range	[25, 855] km
Total Rate	3.9516385E-6 /yr
Multi-Fault Rate	3.943998E-6 /yr (99.81%)
Directly-Connected Faults	8
All Co-Rupturing Faults	57

Table Of Contents

Magnitude-Frequency Distribution

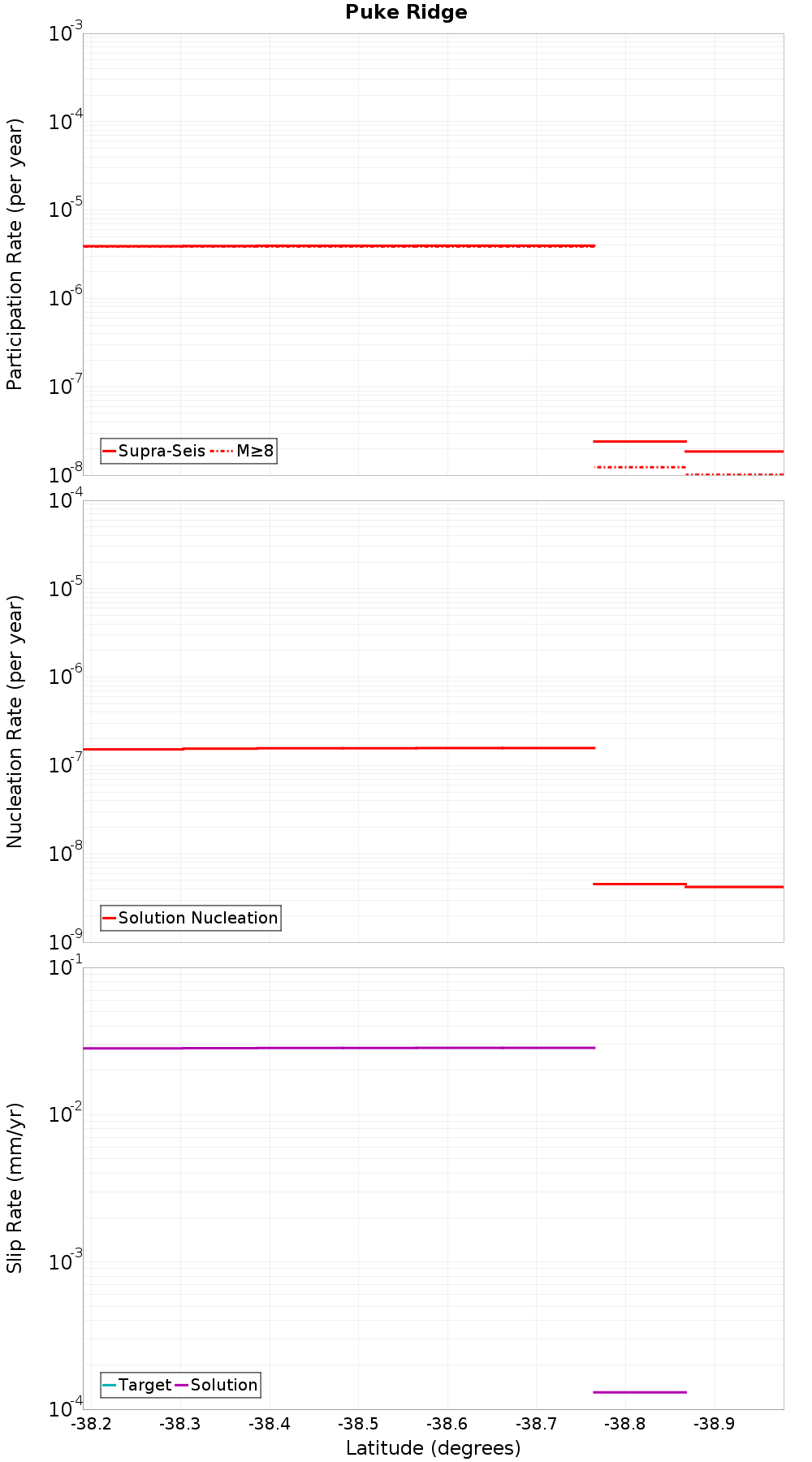

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

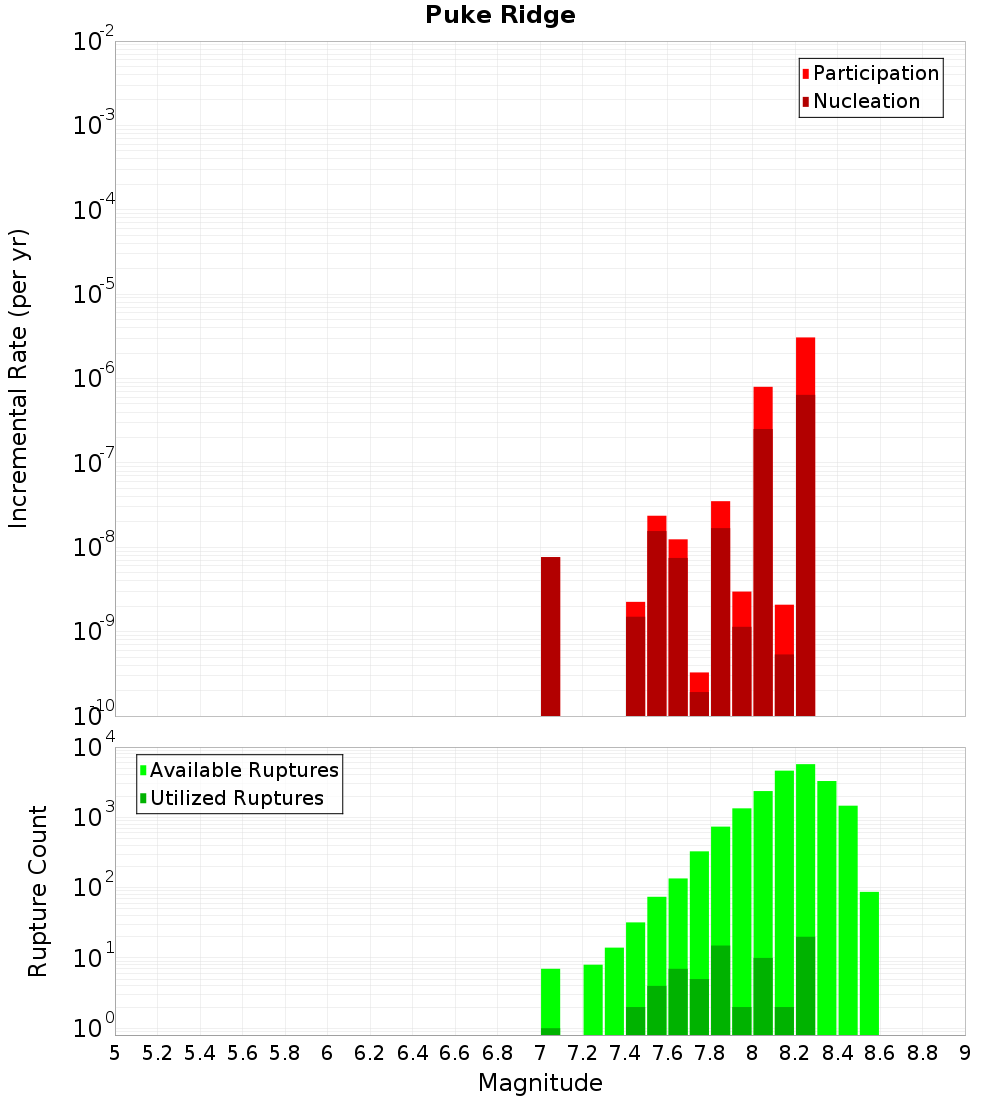

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

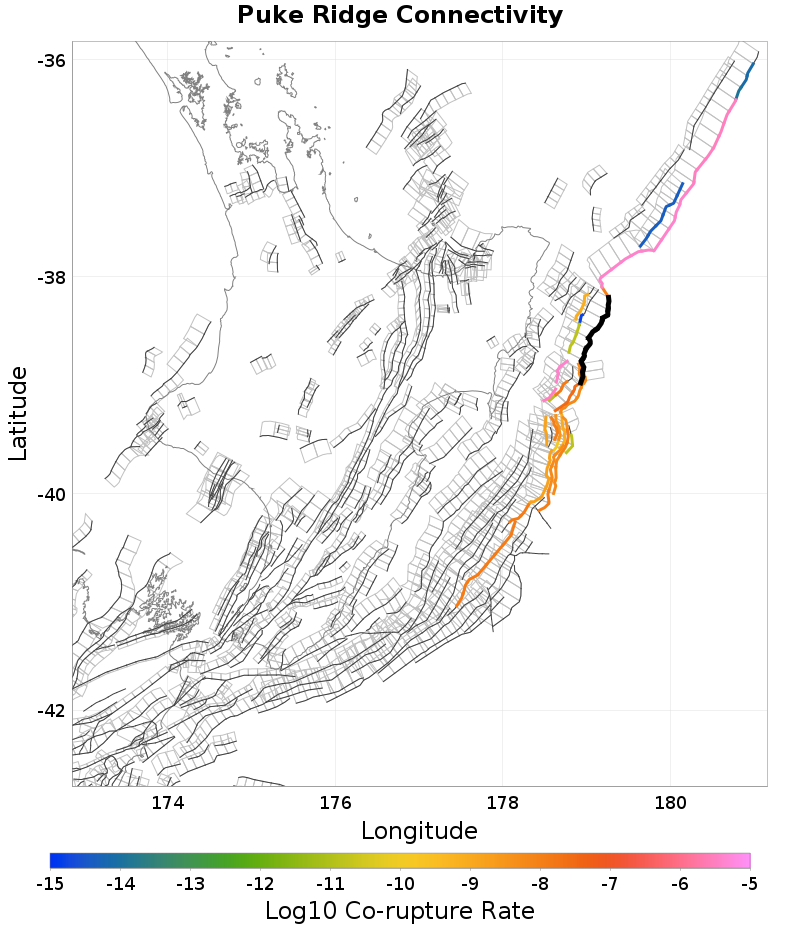

Connectivity

Nearby Sections

Fault Section
Riwha, 0 km away
Ruatoria, 0 km away
Papaku, 0.12 km away
Paritu Ridge, 0.73 km away
Puke Knoll, 1.13 km away
Ruatoria South 1, 3.68 km away
Tuaheni Ridge, 5.23 km away
Ruatoria South 2, 6.99 km away
Ruatoria South 3, 13.37 km away

Riwha, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMGtjQ0F6
Connected?	true
Directly Connected?	true
Co-rupture Count	11,357
Co-rupture Rate	3.0078485E-8

Ruatoria, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMGtjQ0F6
Connected?	true
Directly Connected?	true
Co-rupture Count	6,309
Co-rupture Rate	3.8889493E-6

Papaku, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMGtjQ0F6
Connected?	true
Directly Connected?	true
Co-rupture Count	4,847
Co-rupture Rate	5.486277E-9

Paritu Ridge, 0.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMGtjQ0F6
Connected?	true
Directly Connected?	true
Co-rupture Count	81
Co-rupture Rate	1.3373923E-8

Puke Knoll, 1.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMGtjQ0F6
Connected?	true
Directly Connected?	true
Co-rupture Count	8,408
Co-rupture Rate	6.216024E-9

Ruatoria South 1, 3.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMGtjQ0F6
Connected?	true
Directly Connected?	true
Co-rupture Count	4,873
Co-rupture Rate	1.4135652E-11

Tuaheni Ridge, 5.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMGtjQ0F6
Connected?	true
Directly Connected?	true
Co-rupture Count	141
Co-rupture Rate	3.92765E-6

Ruatoria South 2, 6.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMGtjQ0F6
Connected?	true
Directly Connected?	true
Co-rupture Count	396
Co-rupture Rate	7.572731E-10

Ruatoria South 3, 13.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMGtjQ0F6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
