BKSmt-West Details

PropertyValue
Rupture Count13,803
Ruptures Above Sect Min Mag13,788
Ruptures w/ Nonzero Rates47
Magnitude Range[6.56, 8.60]
Length Range[13, 727] km
Total Rate5.8978907E-4 /yr
Multi-Fault Rate5.8666023E-4 /yr (99.47%)
Directly-Connected Faults7
All Co-Rupturing Faults63

Table Of Contents

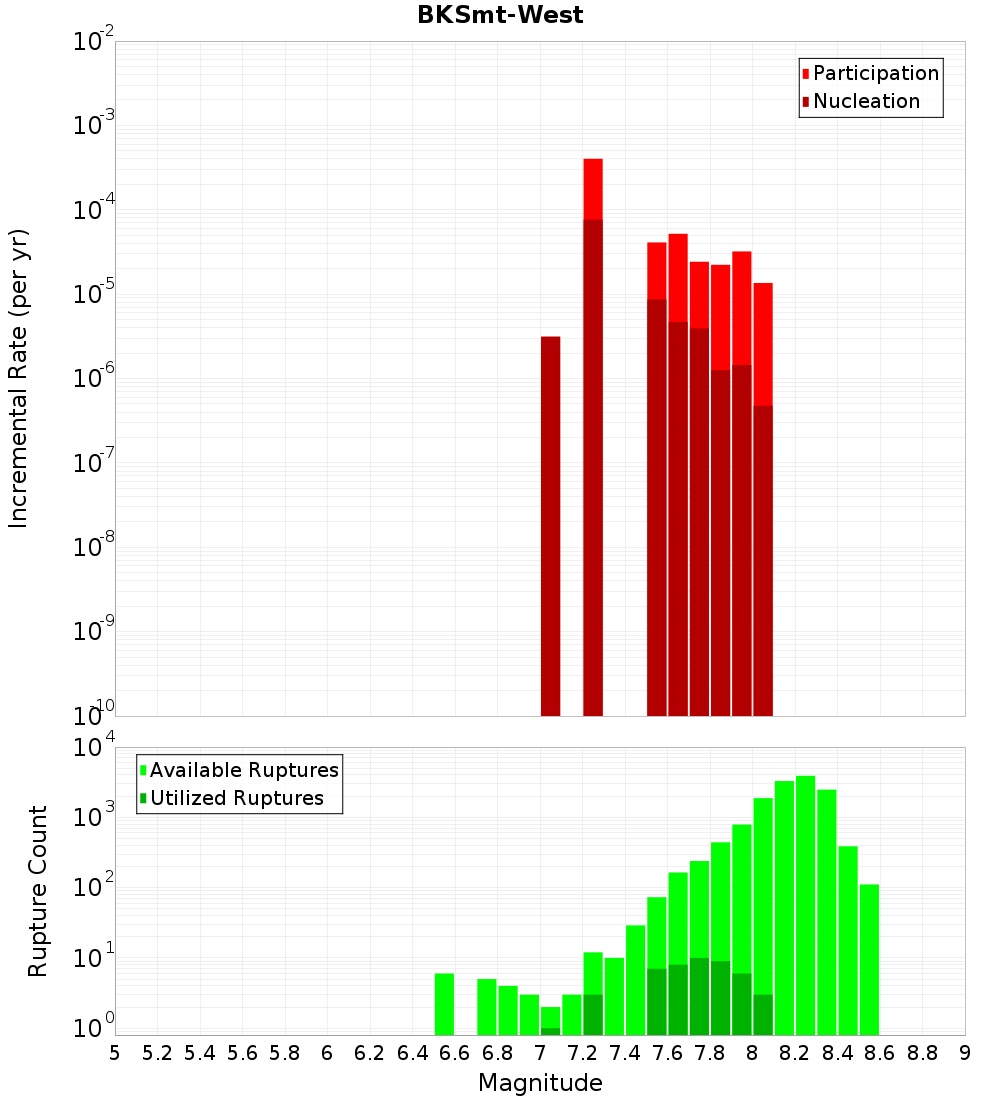

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

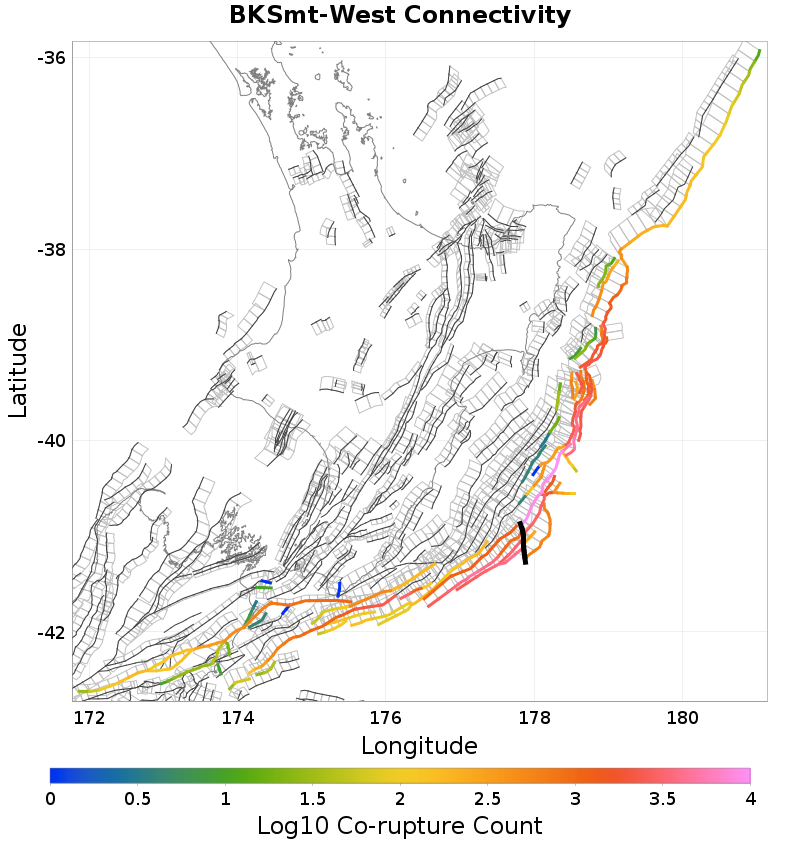

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
F17 - Central, 0.12 km away
F16 - Central, 0.19 km away
Bennett Knoll, 0.21 km away
F17 - South, 0.41 km away
Akitio Ridge, 0.5 km away
Aorangi Ridge, 0.57 km away
F16 - South, 0.87 km away
Aorangi Trough, 5.26 km away

F17 - Central, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count267
Co-rupture Rate1.2470937E-5

F16 - Central, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count3,044
Co-rupture Rate6.5412256E-5

Bennett Knoll, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count713
Co-rupture Rate7.219887E-5

F17 - South, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count4,158
Co-rupture Rate1.2751409E-5

Akitio Ridge, 0.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count12,668
Co-rupture Rate1.9466443E-5

Aorangi Ridge, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count5,120
Co-rupture Rate4.3873975E-4

F16 - South, 0.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count3,131
Co-rupture Rate5.966124E-5

Aorangi Trough, 5.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count1,247
Co-rupture Rate1.2097533E-5
