Roaring Meg Details

PropertyValue
Rupture Count5,721
Ruptures Above Sect Min Mag5,720
Ruptures w/ Nonzero Rates46
Magnitude Range[7.03, 8.55]
Length Range[20, 711] km
Total Rate4.2821062E-5 /yr
Multi-Fault Rate4.2821062E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults78

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

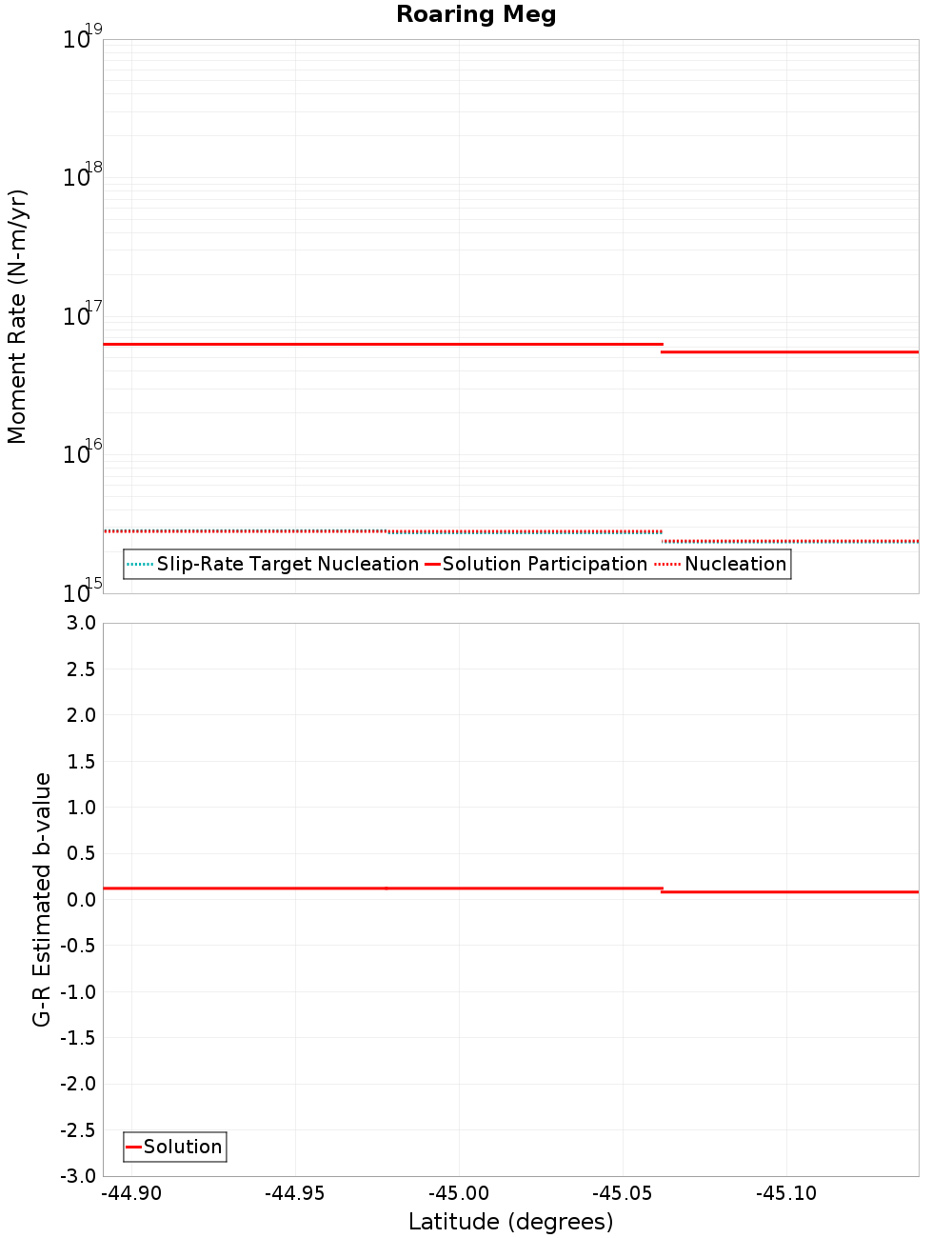

Moment-Rates and b-Values

(top)

Along-strike plot

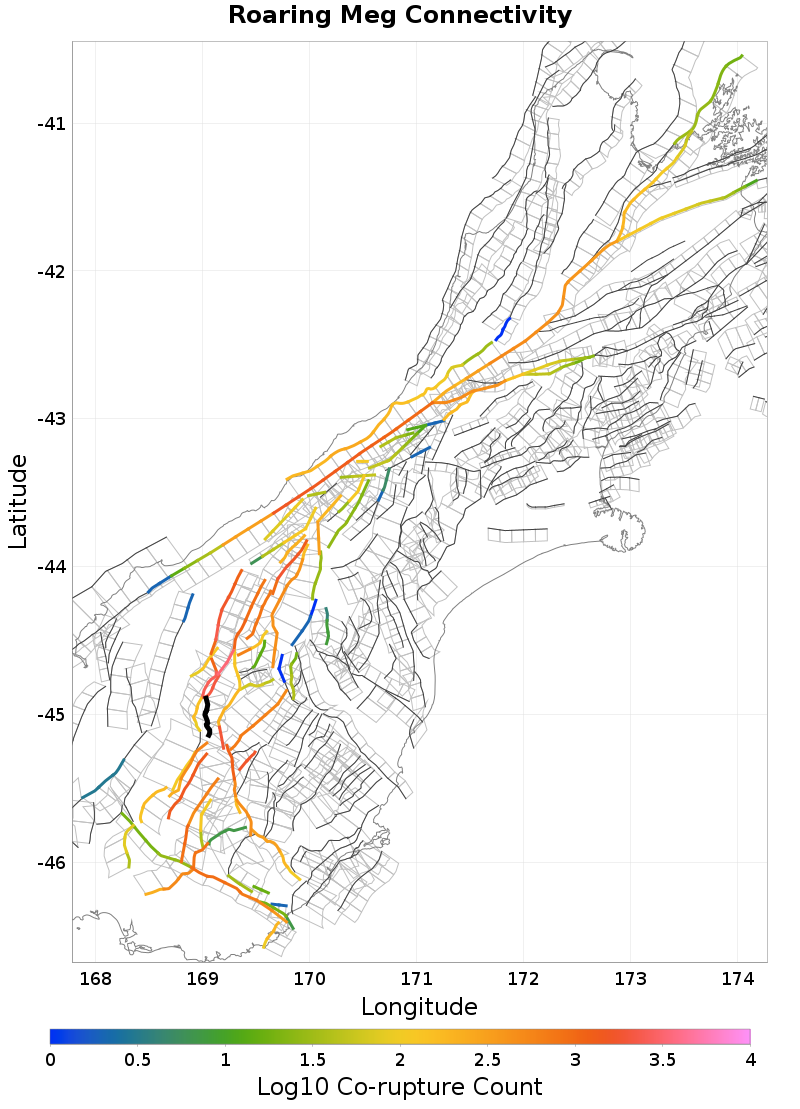

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pisa, 0.11 km away
Paddys Ridge, 0.24 km away
Dunstan, 0.3 km away
NW Cardrona South, 3.03 km away
NW Cardrona North, 3.33 km away
Galloway Shanty, 5.23 km away
Roaring Lion, 6.16 km away
Nevis, 6.29 km away
Old Man, 10.4 km away
Motatapu, 11.22 km away
Garvie, 14.32 km away
Raggedy - Blackstone, 14.37 km away

Pisa, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count1,922
Co-rupture Rate6.8984973E-6

Paddys Ridge, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count2,116
Co-rupture Rate1.1405895E-5

Dunstan, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count689
Co-rupture Rate0.0

NW Cardrona South, 3.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count162
Co-rupture Rate3.2199002E-6

NW Cardrona North, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count2,656
Co-rupture Rate3.151483E-5

Galloway Shanty, 5.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count1,679
Co-rupture Rate3.5922567E-5

Roaring Lion, 6.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count582
Co-rupture Rate6.8984973E-6

Nevis, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count108
Co-rupture Rate0.0

Old Man, 10.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count1,237
Co-rupture Rate0.0

Motatapu, 11.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count138
Co-rupture Rate1.3454255E-5

Garvie, 14.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count1,499
Co-rupture Rate3.5922567E-5

Raggedy - Blackstone, 14.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
