Saunders Road Details

Property	Value
Rupture Count	3,004
Ruptures Above Sect Min Mag	2,998
Ruptures w/ Nonzero Rates	30
Magnitude Range	[6.70, 8.51]
Length Range	[14, 764] km
Total Rate	2.5931917E-4 /yr
Multi-Fault Rate	2.5931917E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	75

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

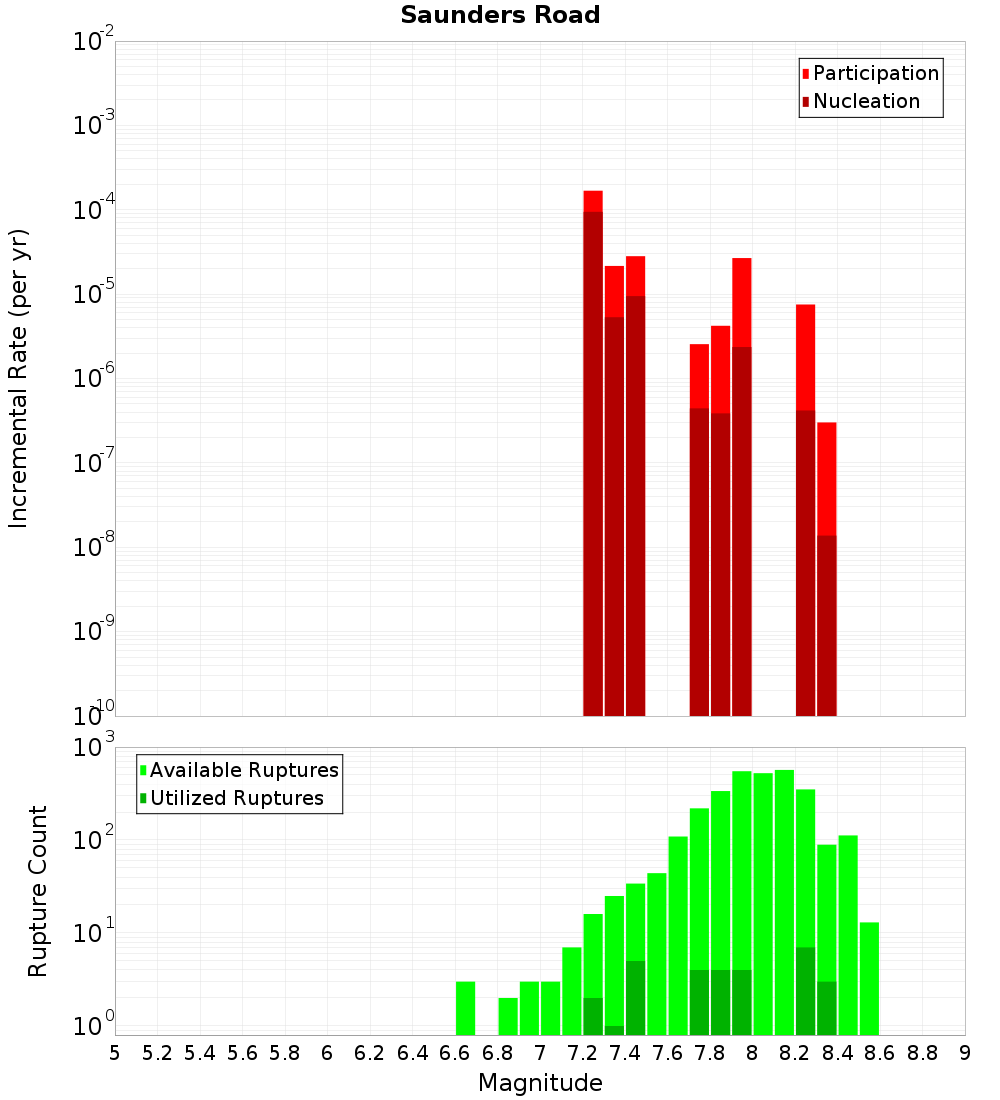

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

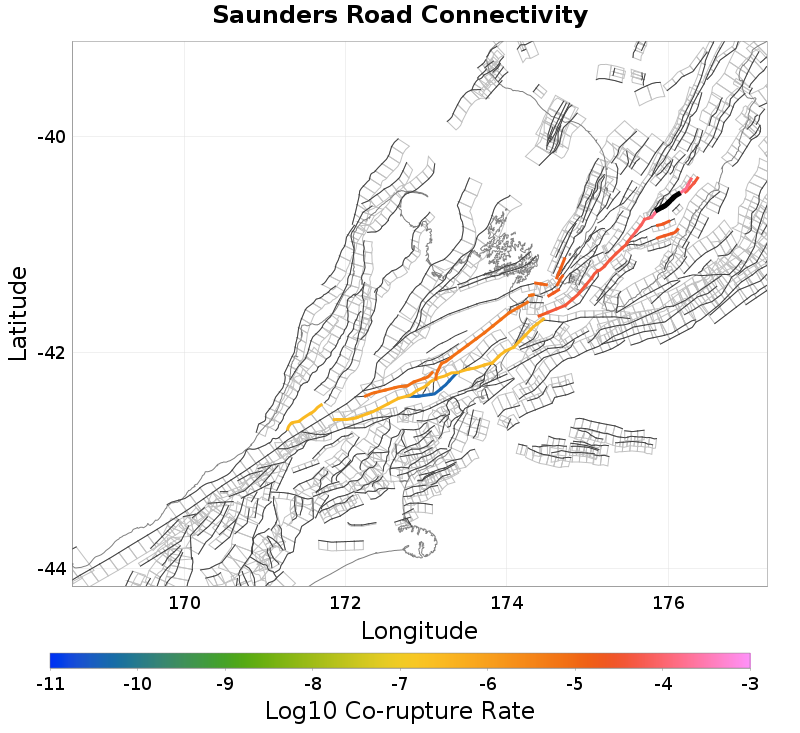

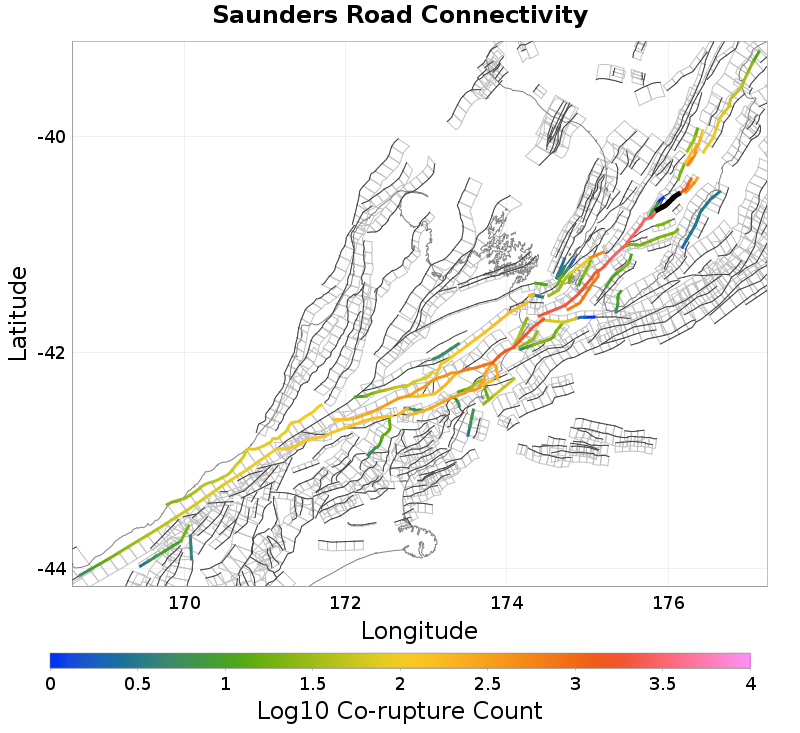

Connectivity

Nearby Sections

Fault Section
Alfredton South, 0 km away
Alfredton North, 0 km away
Waipukaka, 0.32 km away
Pa Valley, 0.64 km away
Makuri - Waewaepa, 6 km away
Pongaroa - Weber, 6.75 km away
Dreyers Rock, 7.87 km away
Waitawhiti, 9.29 km away
Waewaepa, 12.74 km away

Alfredton South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,970
Co-rupture Rate	1.6197562E-4

Alfredton North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waipukaka, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,283
Co-rupture Rate	1.6910498E-4

Pa Valley, 0.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	0.0

Makuri - Waewaepa, 6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pongaroa - Weber, 6.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?	true
Directly Connected?	true
Co-rupture Count	479
Co-rupture Rate	4.9417144E-5

Dreyers Rock, 7.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?	true
Directly Connected?	false
Co-rupture Count	2,935
Co-rupture Rate	6.953155E-5

Waitawhiti, 9.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waewaepa, 12.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	0.0
