Waiotahi: North Details

PropertyValue
Rupture Count3,801
Ruptures Above Sect Min Mag3,796
Ruptures w/ Nonzero Rates32
Magnitude Range[7.01, 8.43]
Length Range[22, 599] km
Total Rate3.432758E-4 /yr
Multi-Fault Rate3.432758E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults54

Table Of Contents

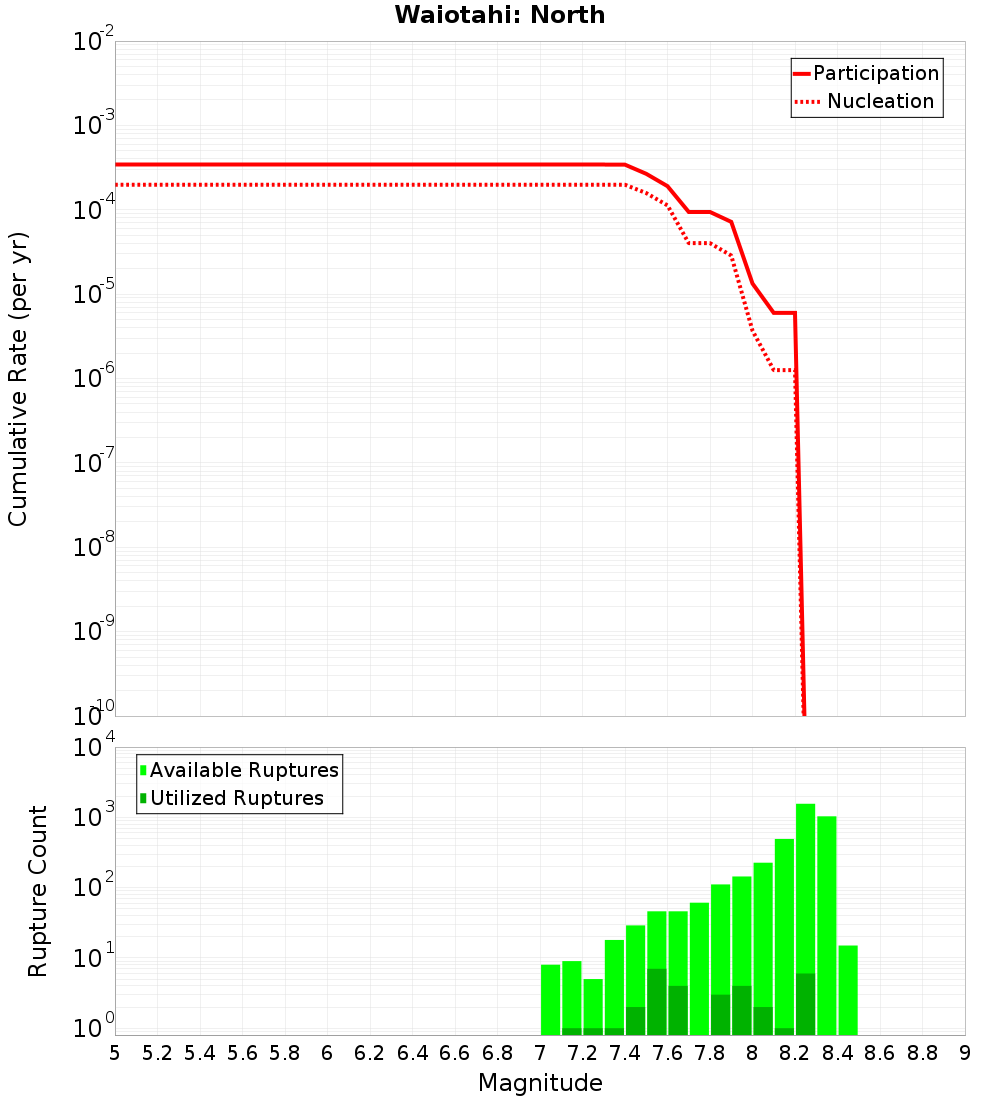

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

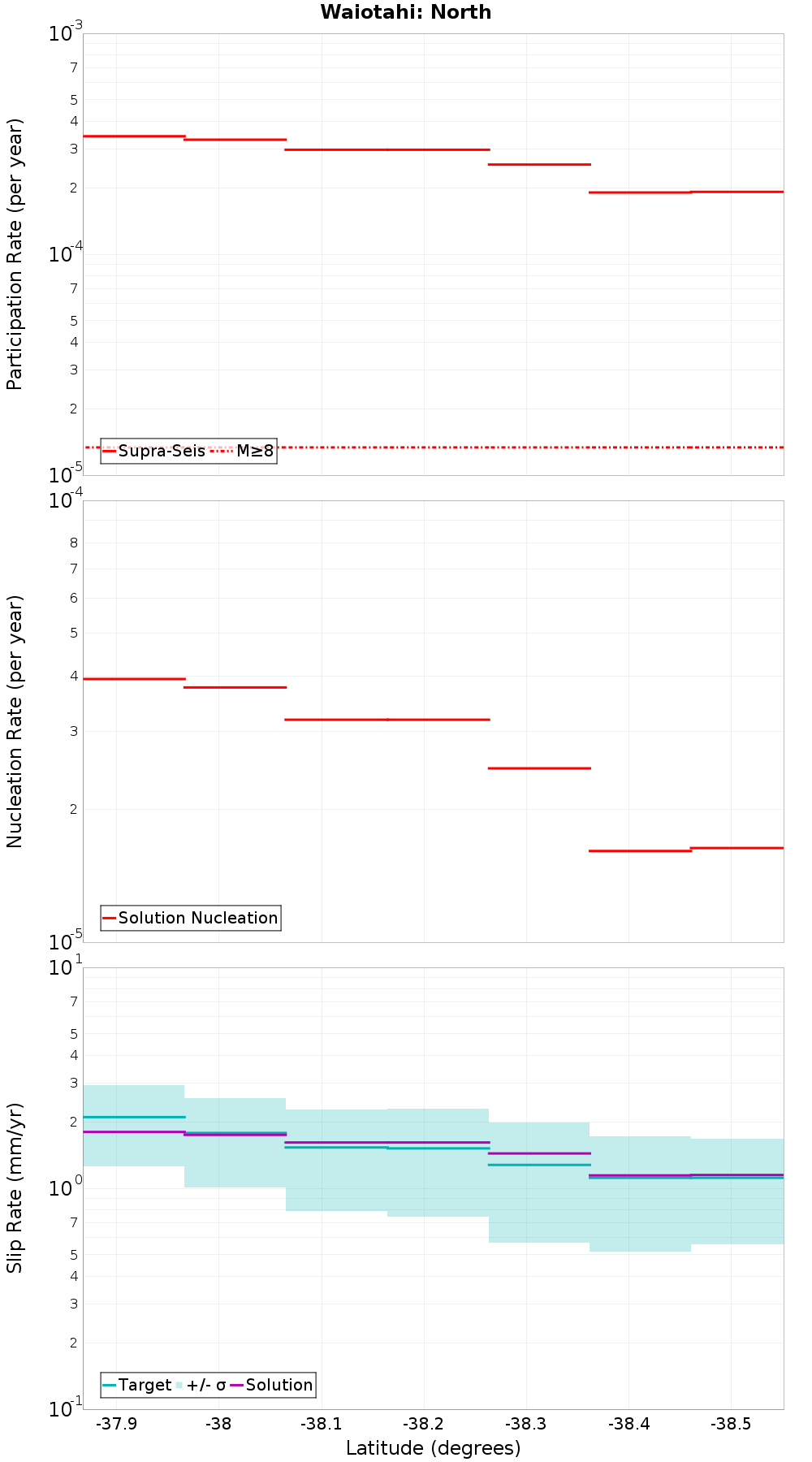

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiotahi: South, 0 km awayWhakatane: South, 10.06 km away
Waimanawa - Waikaremoana, 0.38 km awayOpotiki 2, 10.14 km away
Waimana: North, 1.8 km awayKeepa, 11.27 km away
Waimana: South, 2.37 km awayOhae 2, 12.25 km away
Opotiki 3, 3.92 km awayWhite Island 2, 12.85 km away
Wairata, 5.23 km awayTirohanga, 13.3 km away
Raukumara 9, 6.8 km awayRangitaiki 1, 13.7 km away
Ohae 1, 8.76 km awayOtakiri, 13.81 km away
White Island 1, 9.77 km awayOhiwa 1, 14.51 km away
Whakatane: North, 9.89 km awayRangitaiki 2, 14.86 km away

Waiotahi: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count2,696
Co-rupture Rate9.5287745E-5

Waimanawa - Waikaremoana, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count412
Co-rupture Rate9.580732E-5

Waimana: North, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count151
Co-rupture Rate1.2826972E-4

Waimana: South, 2.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count1,562
Co-rupture Rate0.0

Opotiki 3, 3.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count371
Co-rupture Rate1.3592816E-4

Wairata, 5.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count205
Co-rupture Rate1.5236115E-5

Raukumara 9, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count180
Co-rupture Rate0.0

Ohae 1, 8.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 9.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: North, 9.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate9.733878E-5

Whakatane: South, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Opotiki 2, 10.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Keepa, 11.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count30
Co-rupture Rate4.374853E-5

Ohae 2, 12.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate2.260227E-5

White Island 2, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tirohanga, 13.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otakiri, 13.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 14.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 14.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDAuMHVZVVhz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
