Clifton Details
| Property | Value |
|---|---|
| Rupture Count | 664 |
| Ruptures Above Sect Min Mag | 663 |
| Ruptures w/ Nonzero Rates | 13 |
| Magnitude Range | [6.62, 8.17] |
| Length Range | [11, 400] km |
| Total Rate | 1.2538204E-4 /yr |
| Multi-Fault Rate | 1.2538204E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 59 |
Table Of Contents

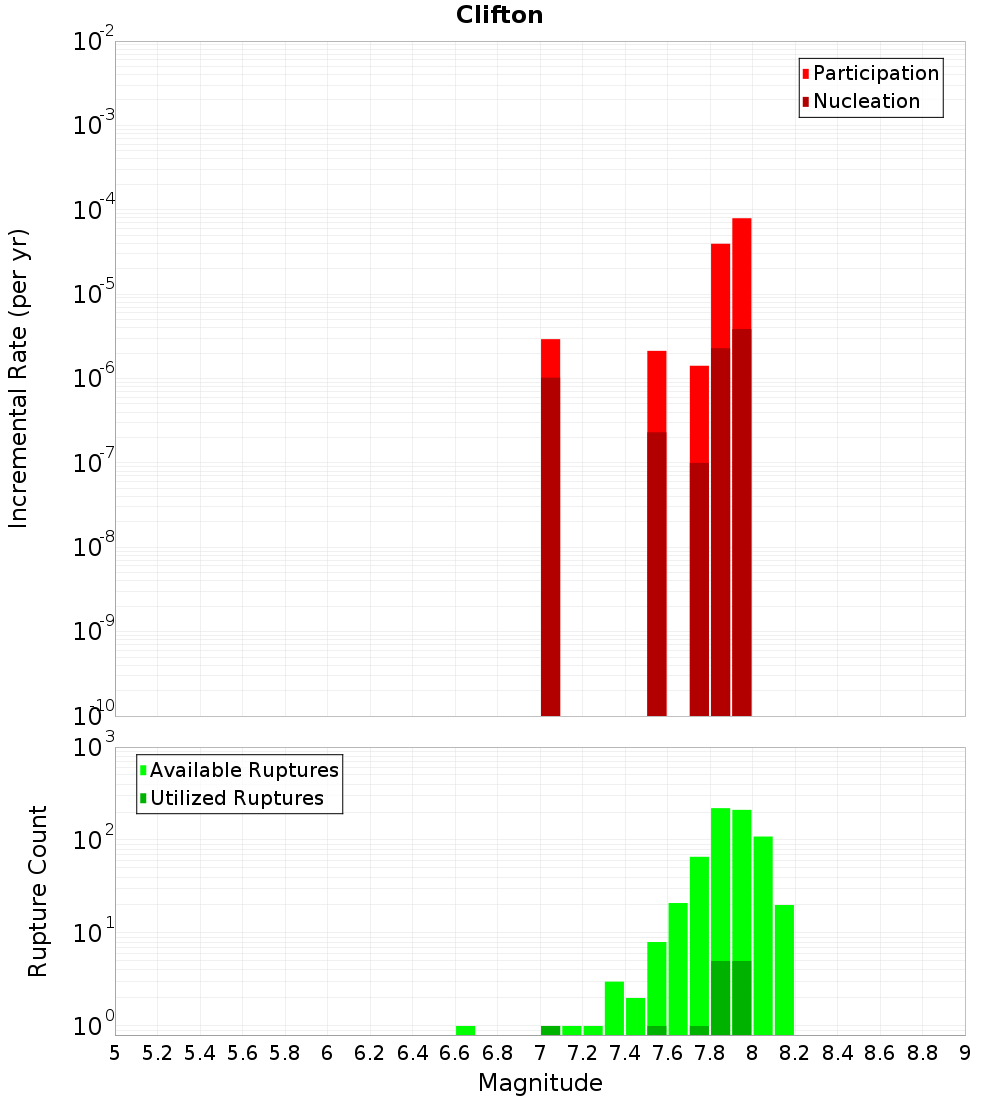

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Beacon Hill, 0.16 km away |
| Blue Mountain, 4.87 km away |
| Little Hillfoot, 4.95 km away |
| Hillfoot, 5.72 km away |
| Otanomomo, 8.54 km away |
Beacon Hill, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 557 |
| Co-rupture Rate | 1.2538204E-4 |
Blue Mountain, 4.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Little Hillfoot, 4.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 46 |
| Co-rupture Rate | 0.0 |
Hillfoot, 5.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 503 |
| Co-rupture Rate | 2.275499E-5 |
Otanomomo, 8.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
