Hauroko: South Details
| Property | Value |
|---|---|
| Rupture Count | 857 |
| Ruptures Above Sect Min Mag | 852 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [6.94, 8.48] |
| Length Range | [26, 964] km |
| Total Rate | 8.2078576E-4 /yr |
| Multi-Fault Rate | 8.2078576E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 26 |
Table Of Contents

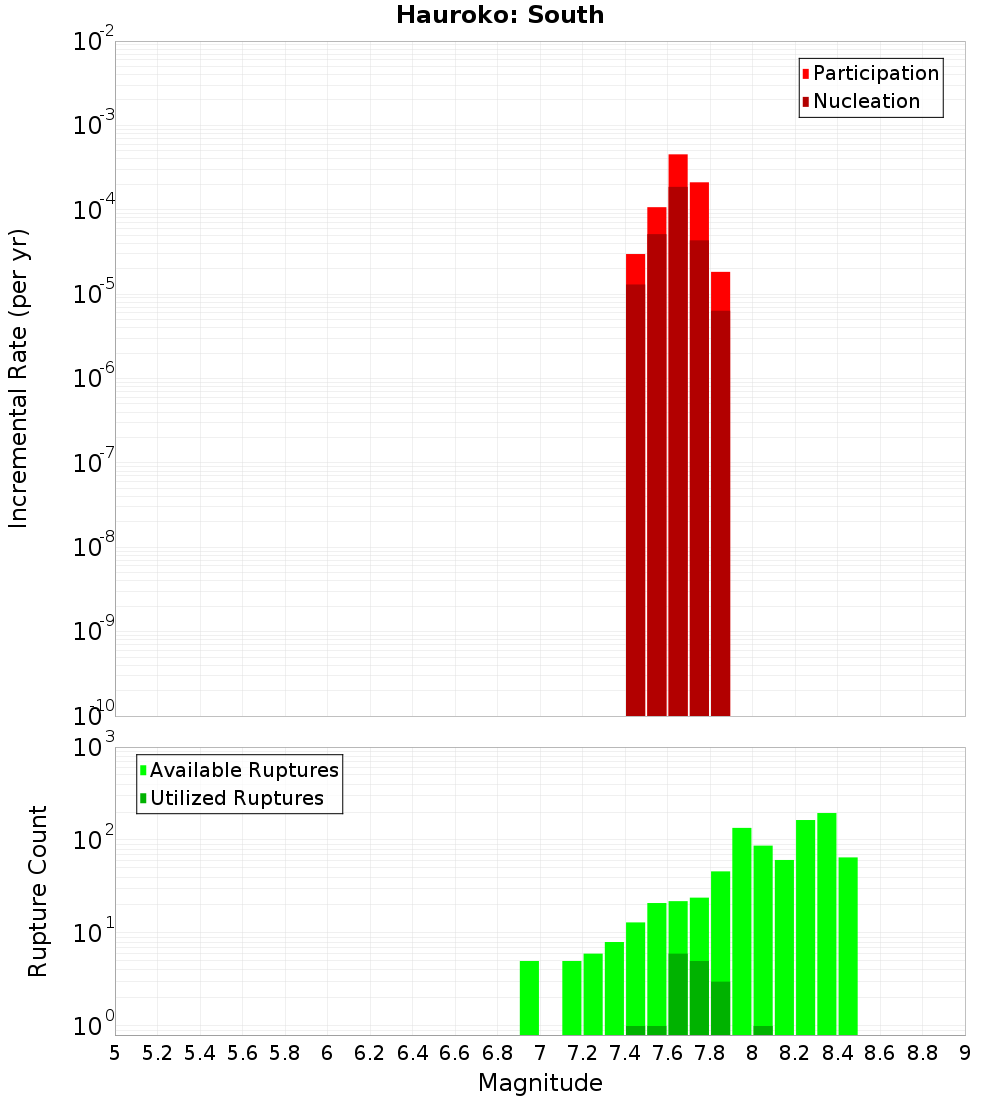

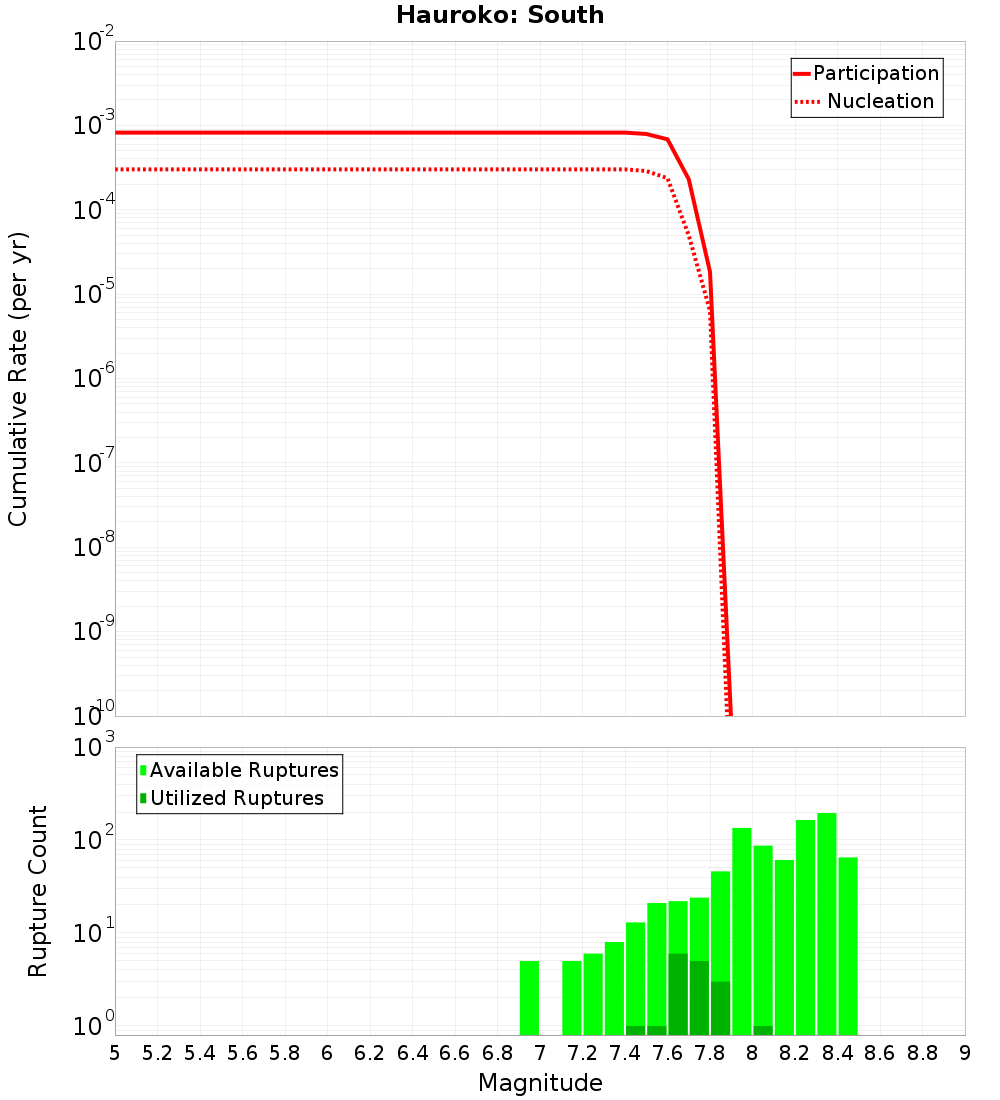

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

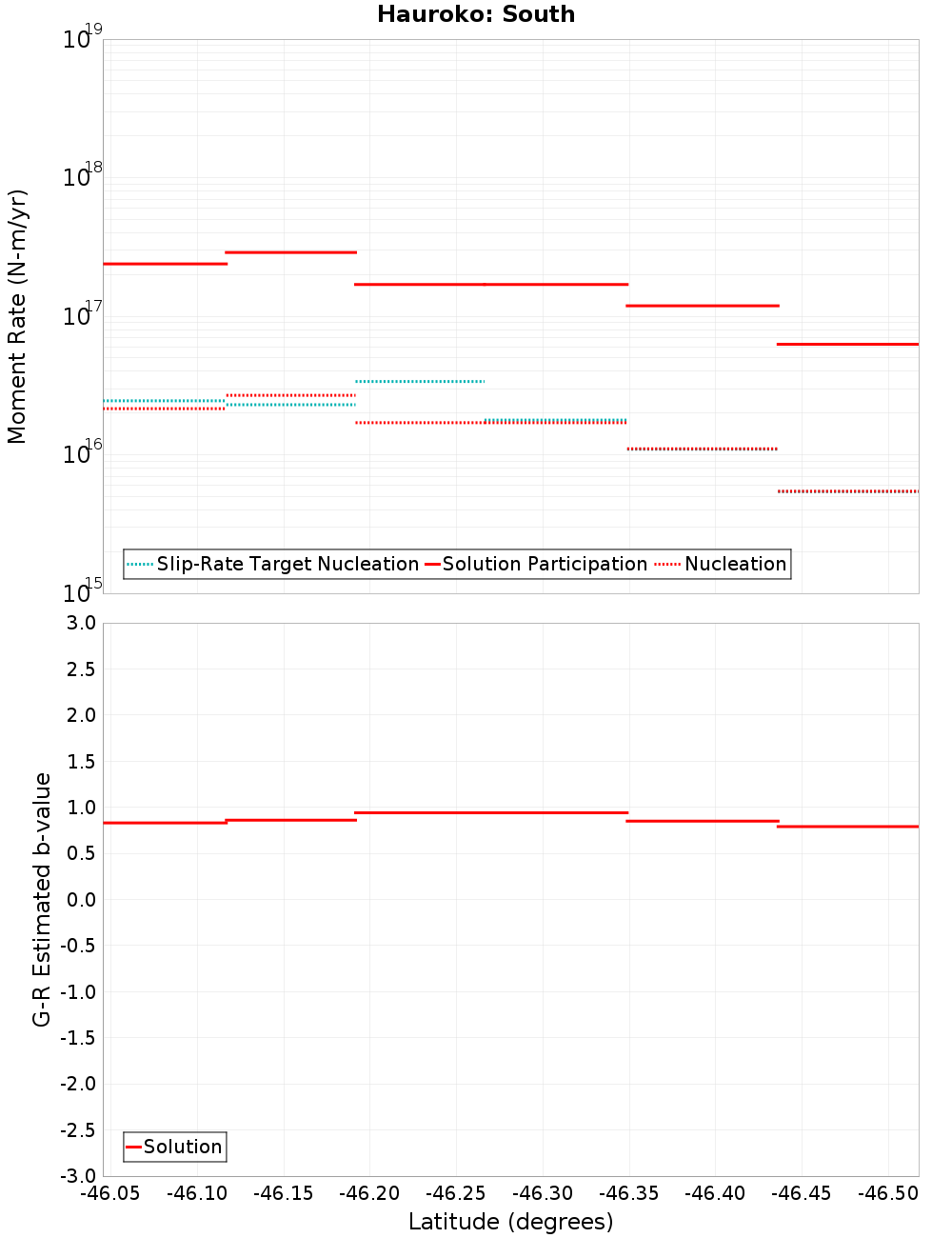

Moment-Rates and b-Values

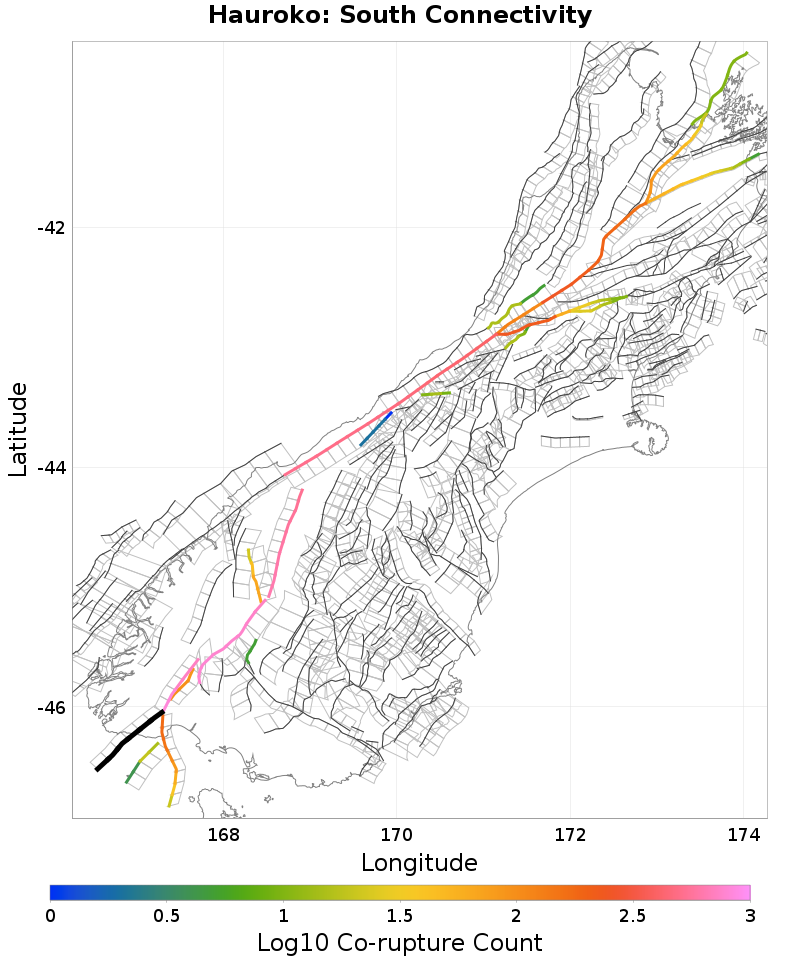

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hauroko: North, 0.32 km away |
| Hump Ridge, 3.03 km away |
| Monowai, 14.37 km away |
Hauroko: North, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 825 |
| Co-rupture Rate | 6.4687233E-4 |
Hump Ridge, 3.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 171 |
| Co-rupture Rate | 4.5474272E-4 |
Monowai, 14.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 97 |
| Co-rupture Rate | 1.987715E-4 |
