Hokonui Details

Property	Value
Rupture Count	7,204
Ruptures Above Sect Min Mag	7,202
Ruptures w/ Nonzero Rates	32
Magnitude Range	[6.99, 8.51]
Length Range	[27, 1,002] km
Total Rate	1.509E-4 /yr
Multi-Fault Rate	1.509E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	137

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

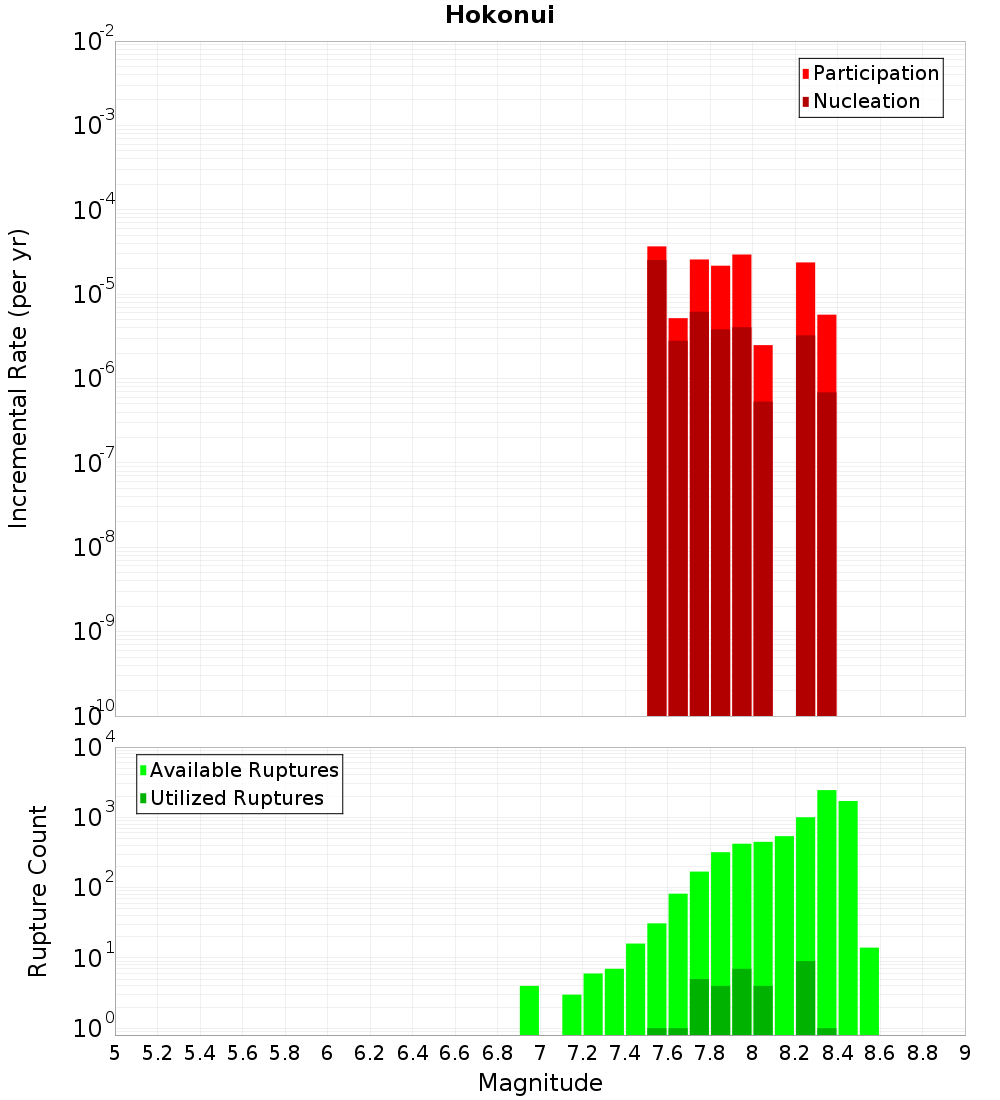

Magnitude-Frequency Distribution

Incremental	Cumulative

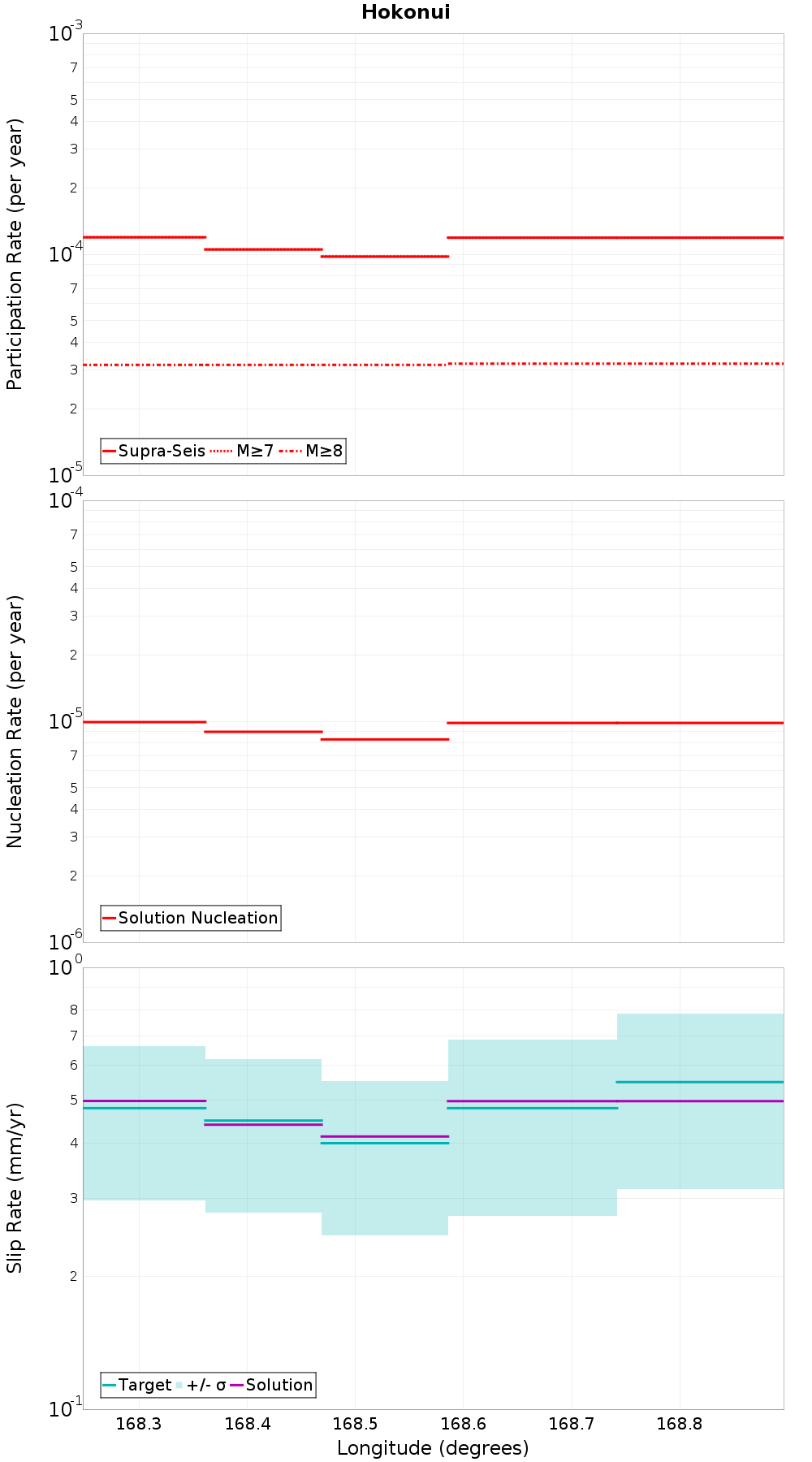

Along-Strike Values

Moment-Rates and b-Values

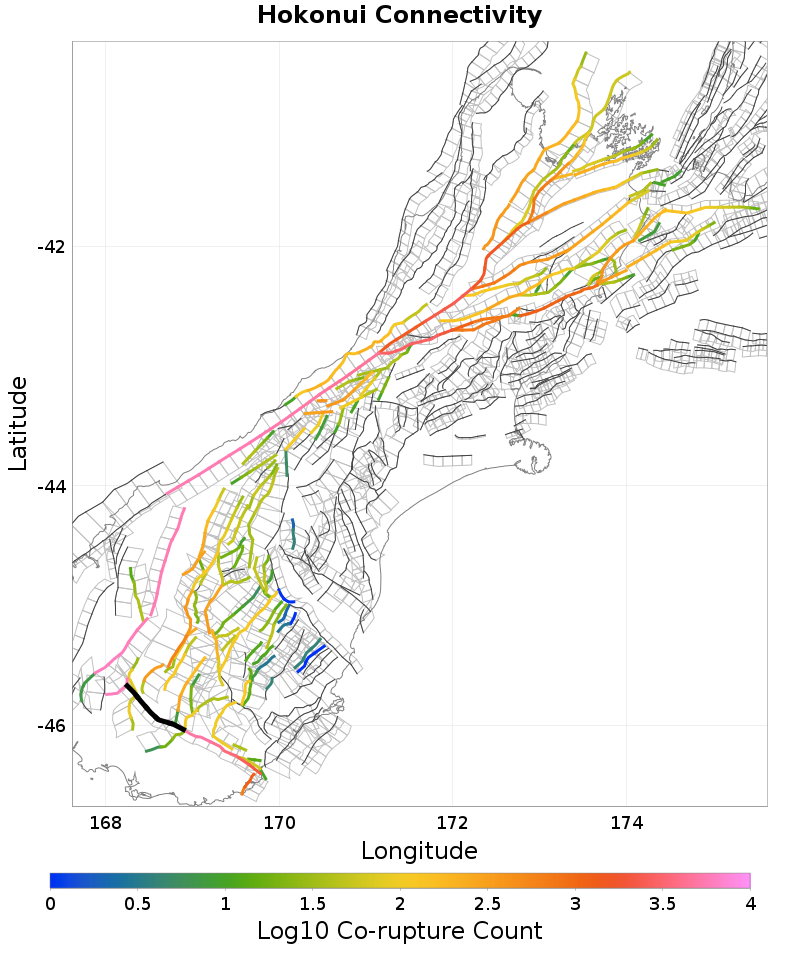

Connectivity

Nearby Sections

Fault Section
Hillfoot, 0 km away
Hedgehope, 0.08 km away
White Hill, 0.25 km away
Waikaia, 0.29 km away
Mossburn, 1.17 km away
Waikaka, 1.34 km away
Acton, 1.83 km away
Mid Dome, 6.47 km away
Moonlight South, 12.76 km away

Hillfoot, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	5,036
Co-rupture Rate	6.305721E-5

Hedgehope, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	26
Co-rupture Rate	7.0156325E-6

White Hill, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	90
Co-rupture Rate	3.2015418E-5

Waikaia, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	269
Co-rupture Rate	0.0

Mossburn, 1.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	6,163
Co-rupture Rate	1.080488E-4

Waikaka, 1.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	102
Co-rupture Rate	2.6588936E-5

Acton, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	83
Co-rupture Rate	8.500872E-6

Mid Dome, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	358
Co-rupture Rate	7.5256767E-6

Moonlight South, 12.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	6,170
Co-rupture Rate	6.605221E-5
