Hope: Te Rapa Details

PropertyValue
Rupture Count78,756
Ruptures Above Sect Min Mag78,732
Ruptures w/ Nonzero Rates57
Magnitude Range[6.52, 8.46]
Length Range[16, 1,076] km
Total Rate0.0012070899 /yr
Multi-Fault Rate0.0012070899 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults200

Table Of Contents

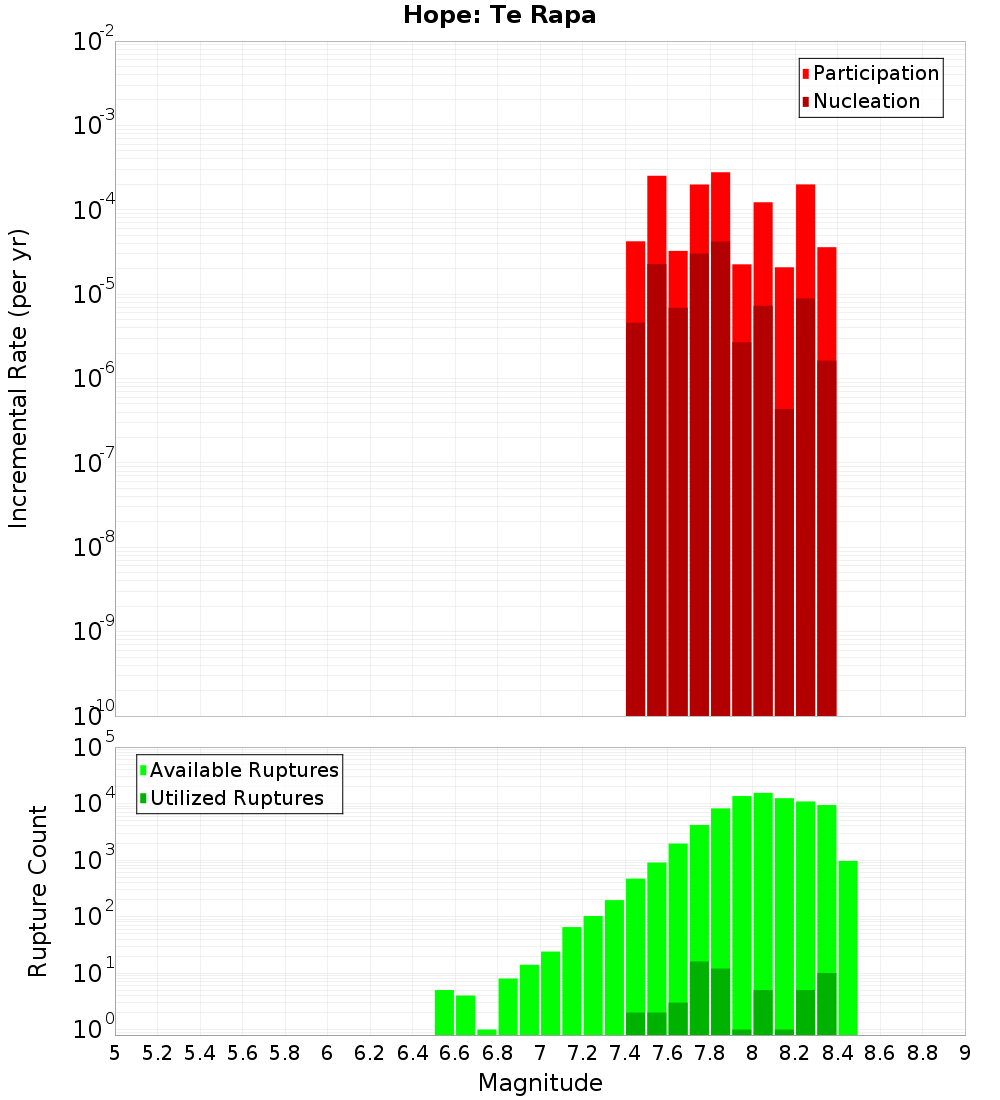

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

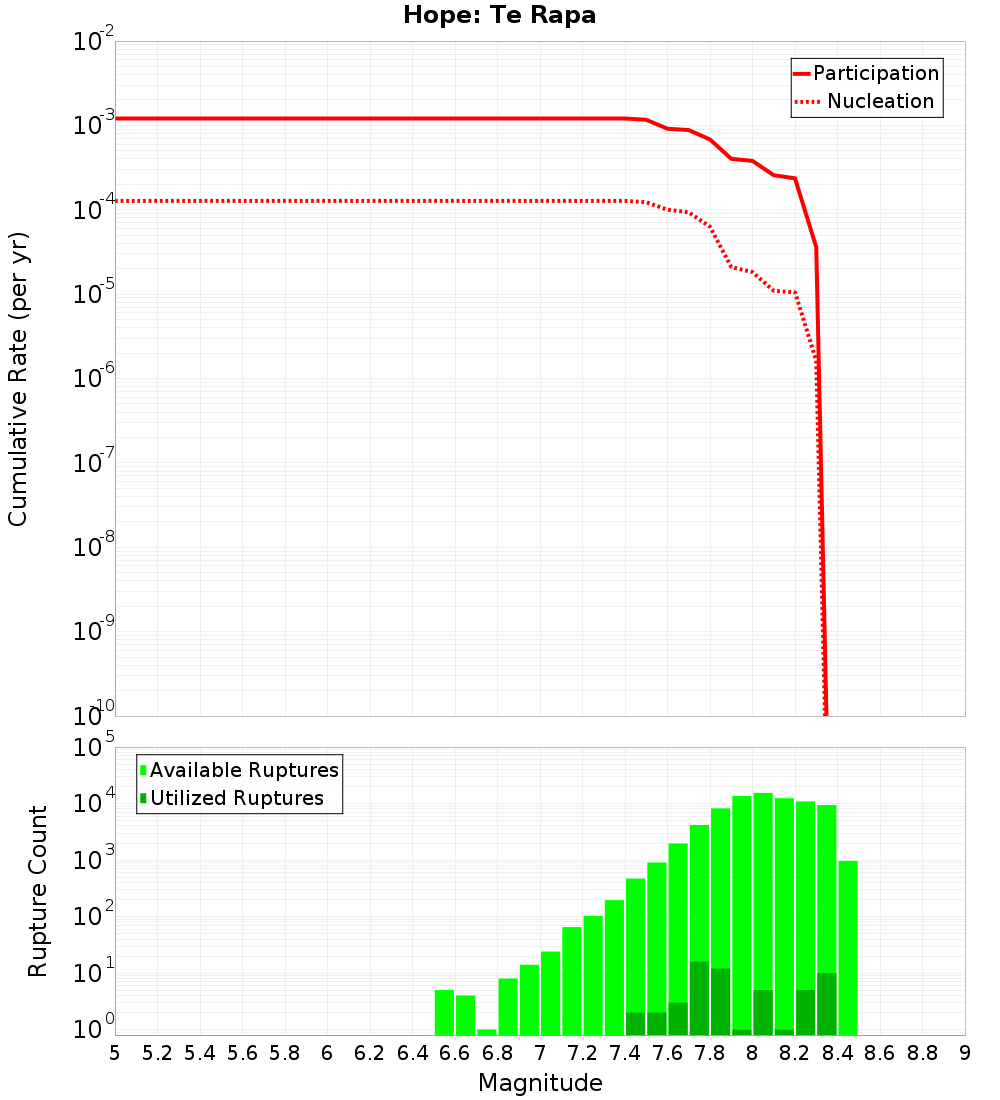

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

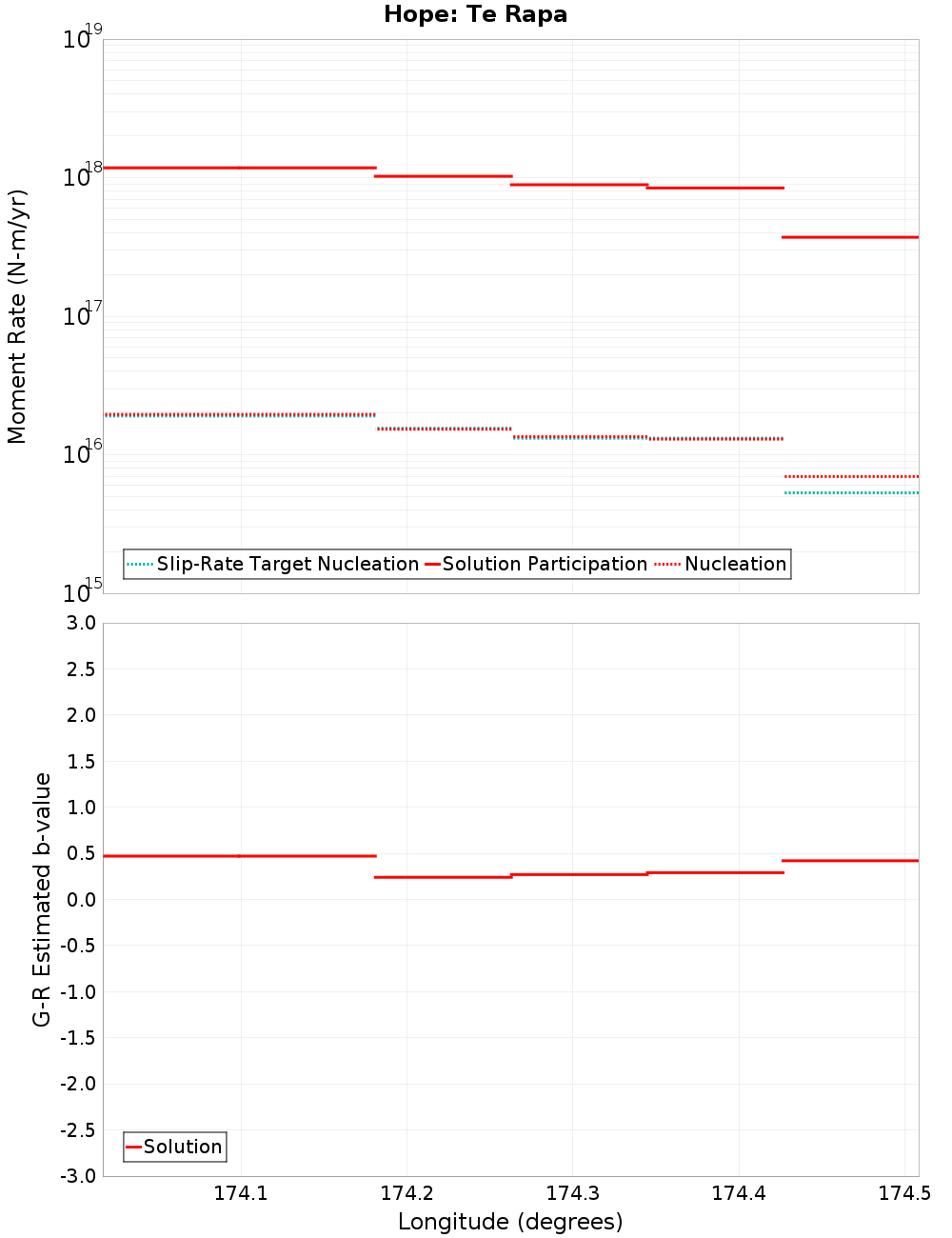

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Rapa 1, 0 km away
Upper Slope, 0.1 km away
Offshore Splay Thrust, 0.86 km away
Hope: Seaward, 3.47 km away
London Hill, 4.43 km away
Wharanui, 4.7 km away
Chancet, 8.16 km away
Kaikoura - Mangamaunu, 8.9 km away
Kekerengu Bank, 8.98 km away
Papatea, 11.56 km away
Campbell Bank, 12.48 km away
Te Rapa 2, 14.01 km away

Te Rapa 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count52,761
Co-rupture Rate3.67035E-4

Upper Slope, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count7,422
Co-rupture Rate2.3102923E-5

Offshore Splay Thrust, 0.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count14,389
Co-rupture Rate3.1633E-5

Hope: Seaward, 3.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count60,726
Co-rupture Rate0.0012070899

London Hill, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count1,377
Co-rupture Rate0.0

Wharanui, 4.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 8.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count2,311
Co-rupture Rate4.6910332E-5

Kaikoura - Mangamaunu, 8.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count107
Co-rupture Rate2.9240205E-4

Kekerengu Bank, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count300
Co-rupture Rate0.0

Papatea, 11.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Bank, 12.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count2,071
Co-rupture Rate4.6910332E-5

Te Rapa 2, 14.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count50,286
Co-rupture Rate2.0285878E-4
