Kaikoura 2 Details

Property	Value
Rupture Count	2,392
Ruptures Above Sect Min Mag	2,384
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.39, 8.35]
Length Range	[11, 803] km
Total Rate	3.349656E-4 /yr
Multi-Fault Rate	3.349656E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	169

Table Of Contents

Magnitude-Frequency Distribution

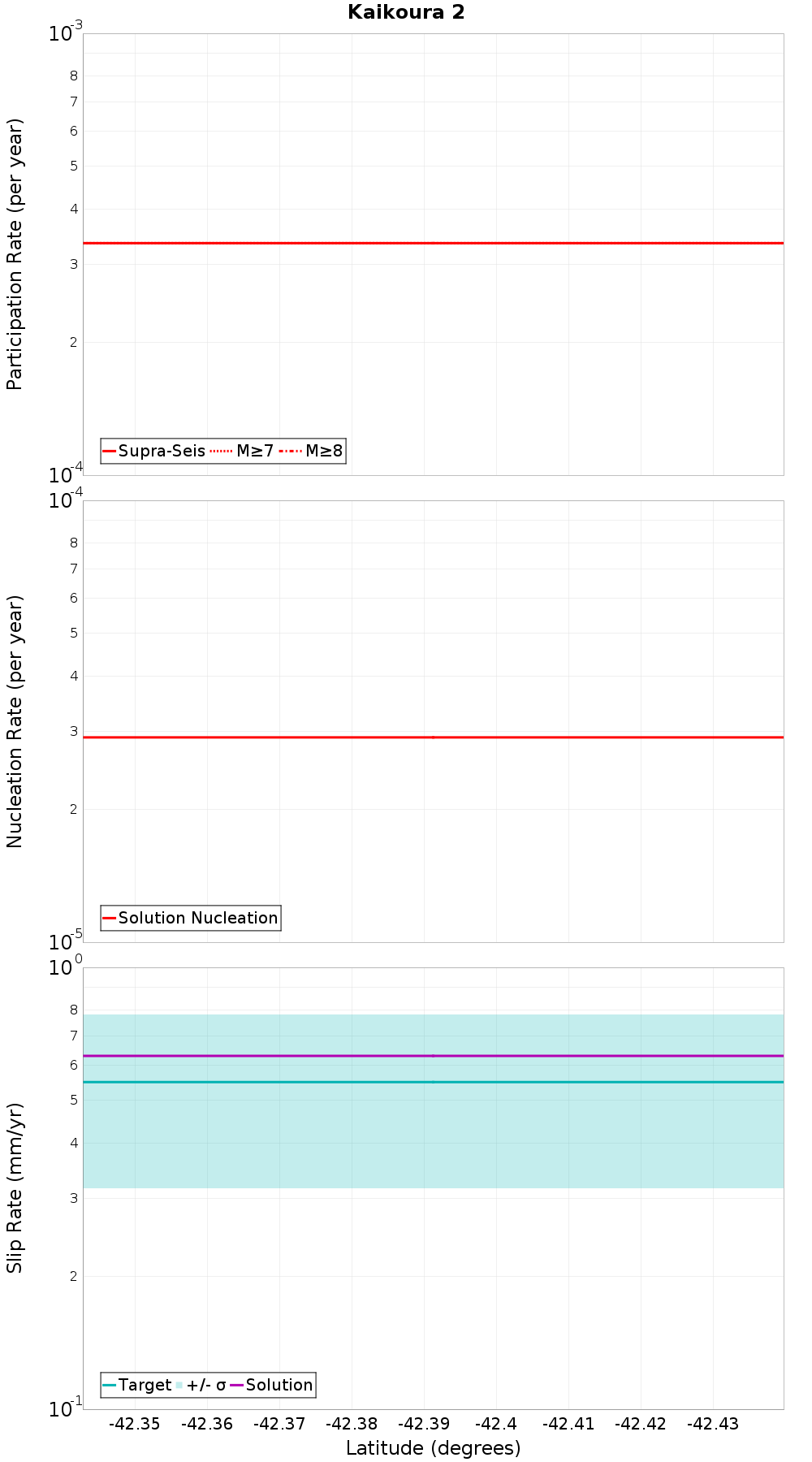

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

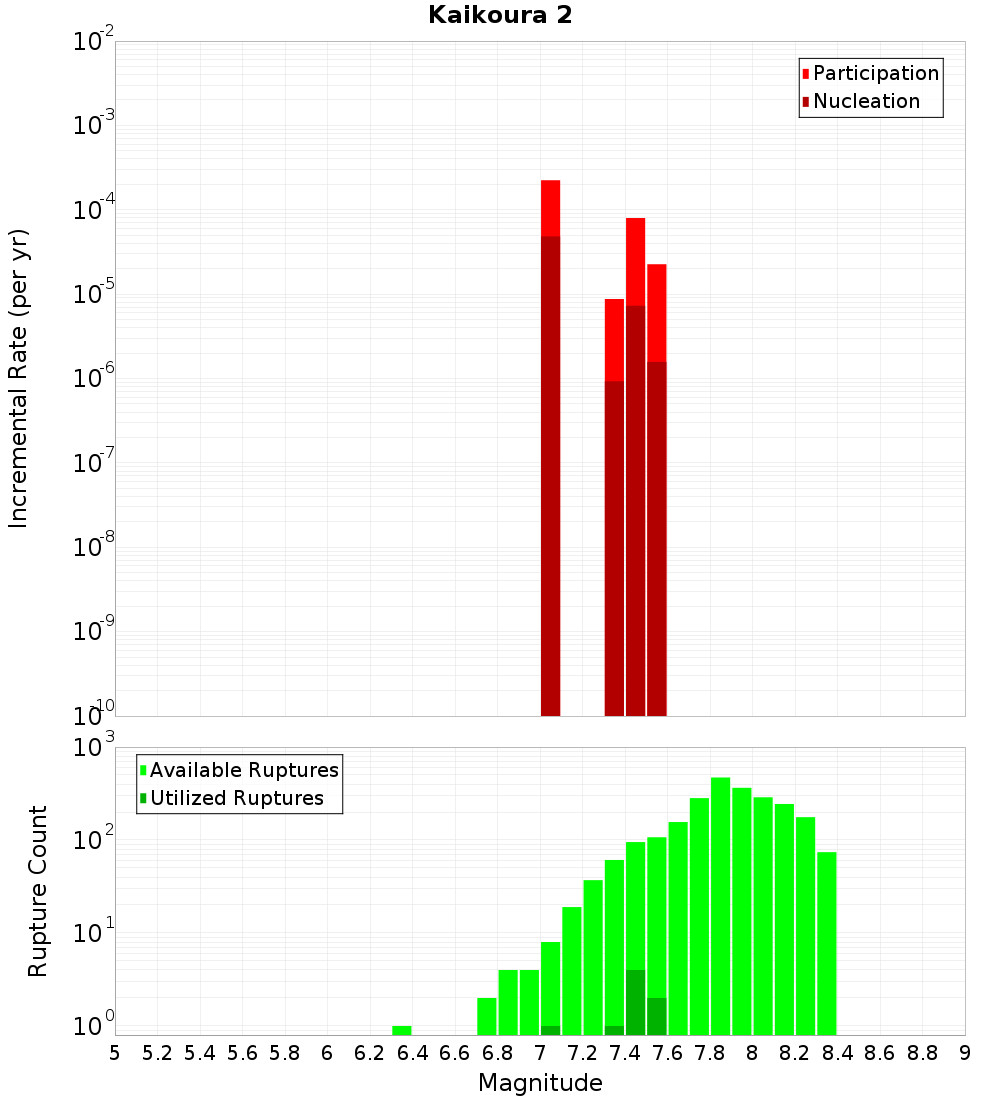

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

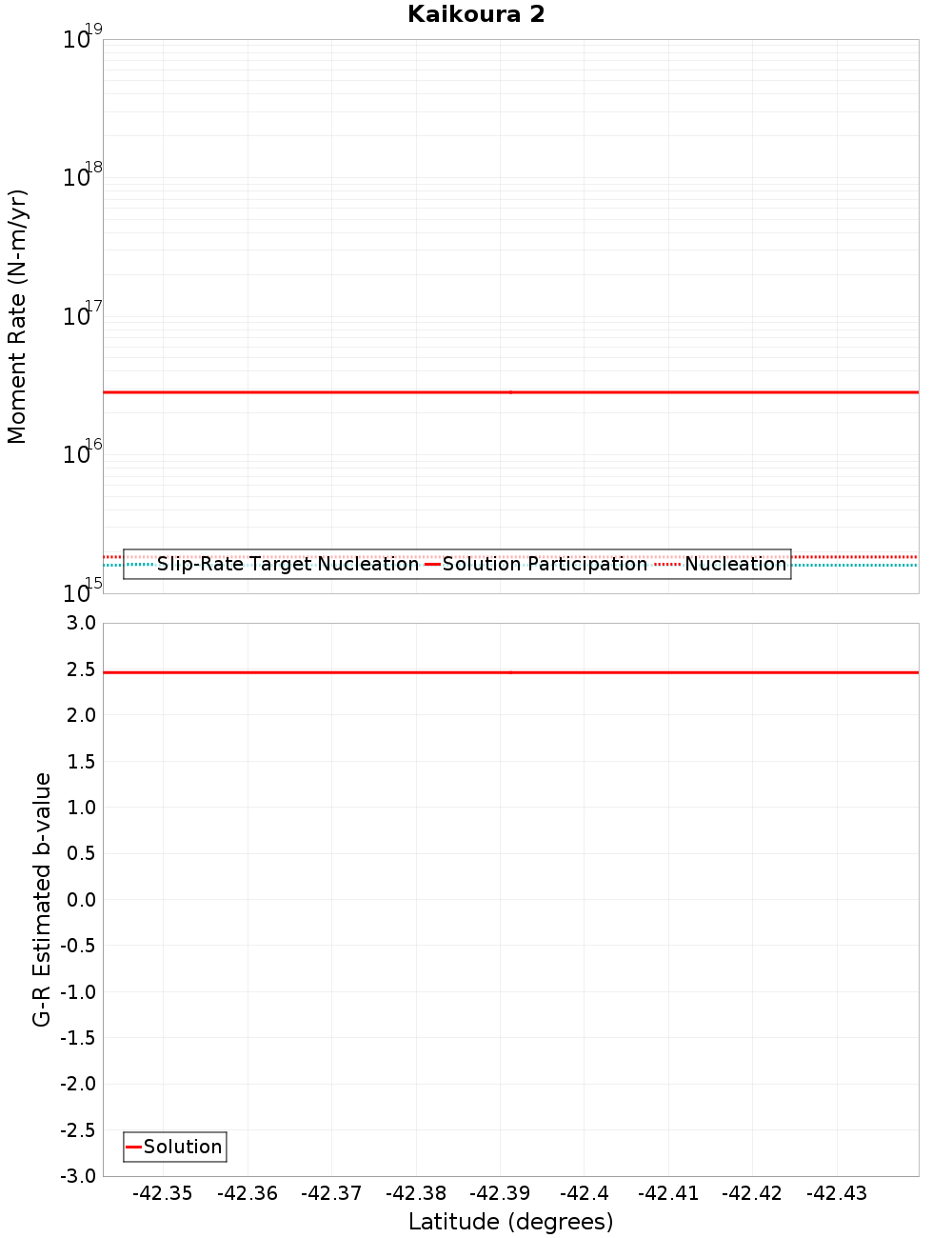

Moment-Rates and b-Values

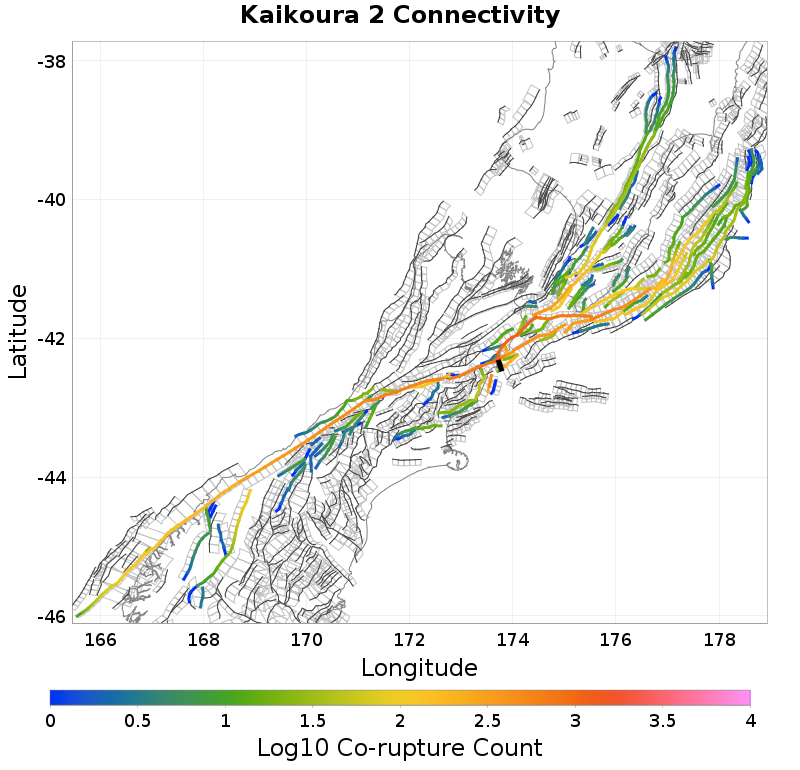

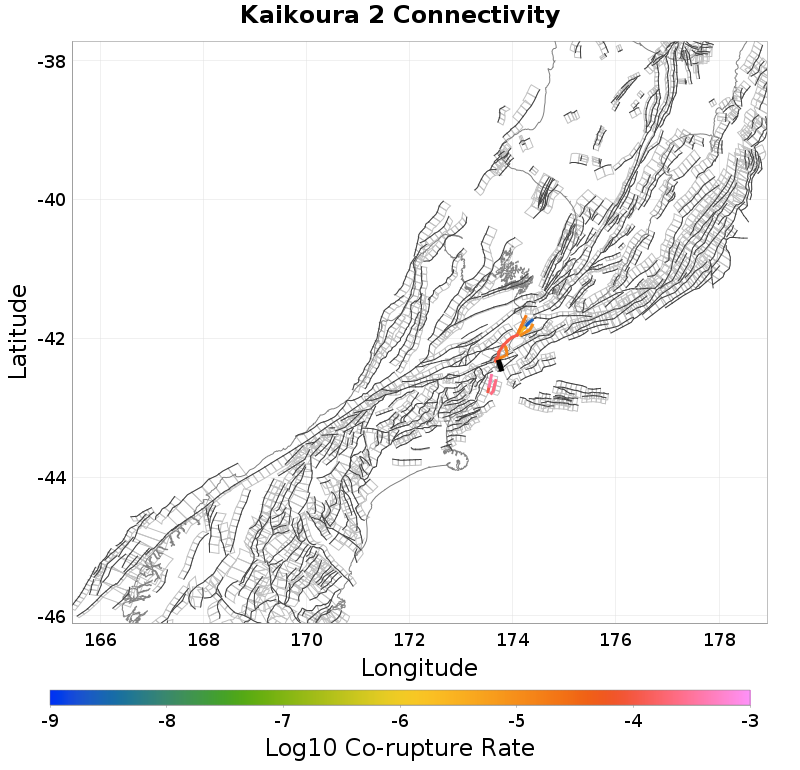

Connectivity

Nearby Sections

Fault Section
Offshore Splay Thrust, 0.24 km away
Upper Kowhai - Manakau, 2.18 km away
Kaikoura - Mangamaunu, 3.59 km away
Hope: Conway, 4.74 km away
Hope: Seaward, 4.74 km away
Jordan, 5.37 km away
Kowhai, 7.44 km away
Hundalee, 9.44 km away
Conway Trough West, 10 km away
Marlborough Slope 2, 10.44 km away
Papatea, 14.68 km away

Offshore Splay Thrust, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	211
Co-rupture Rate	0.0

Upper Kowhai - Manakau, 2.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaikoura - Mangamaunu, 3.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	150
Co-rupture Rate	0.0

Hope: Conway, 4.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	720
Co-rupture Rate	0.0

Hope: Seaward, 4.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	965
Co-rupture Rate	1.3853131E-5

Jordan, 5.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,072
Co-rupture Rate	9.731483E-5

Kowhai, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Hundalee, 9.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Conway Trough West, 10 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	498
Co-rupture Rate	3.349656E-4

Marlborough Slope 2, 10.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Papatea, 14.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	303
Co-rupture Rate	1.3853131E-5
