Karamea South Details
| Property | Value |
|---|---|
| Rupture Count | 721 |
| Ruptures Above Sect Min Mag | 720 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [6.78, 8.37] |
| Length Range | [18, 813] km |
| Total Rate | 9.910213E-5 /yr |
| Multi-Fault Rate | 9.910213E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 79 |
Table Of Contents

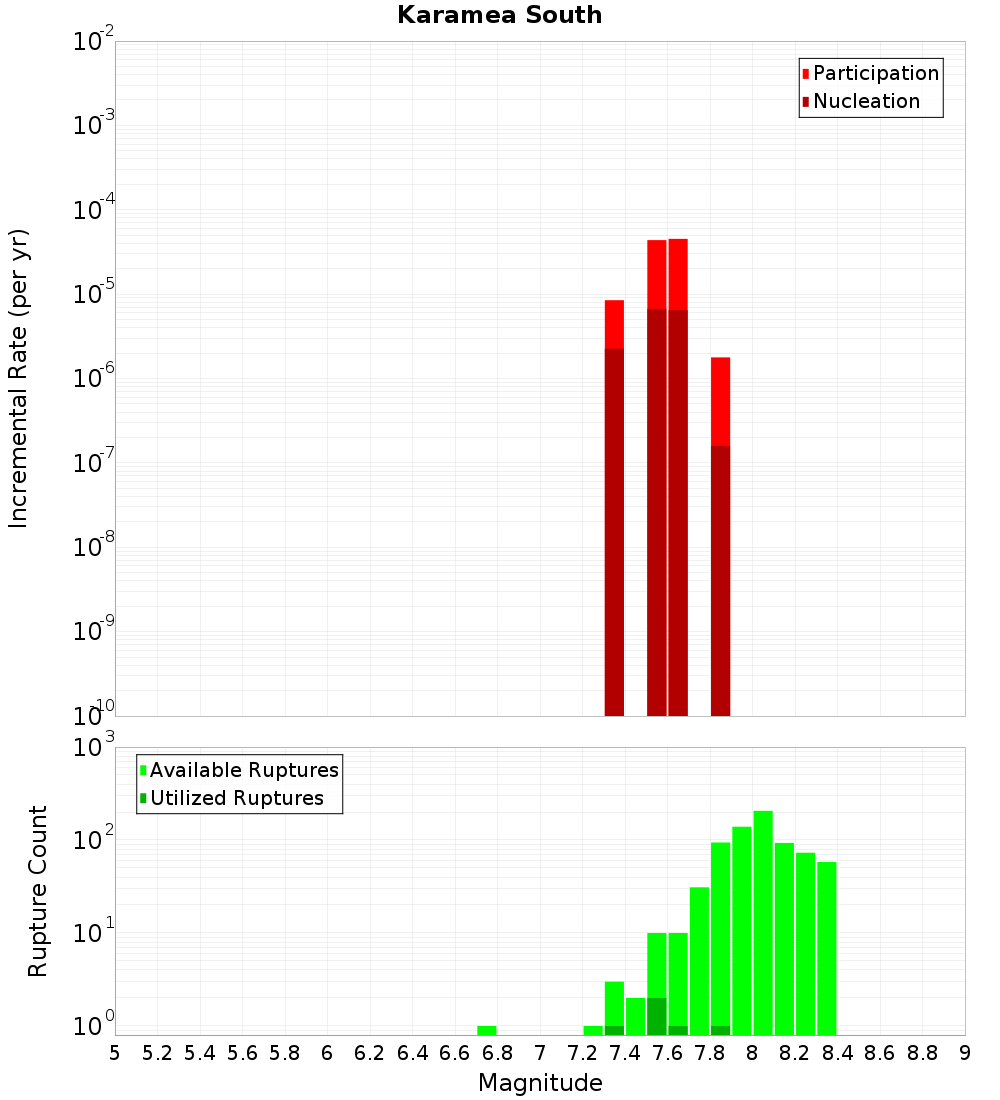

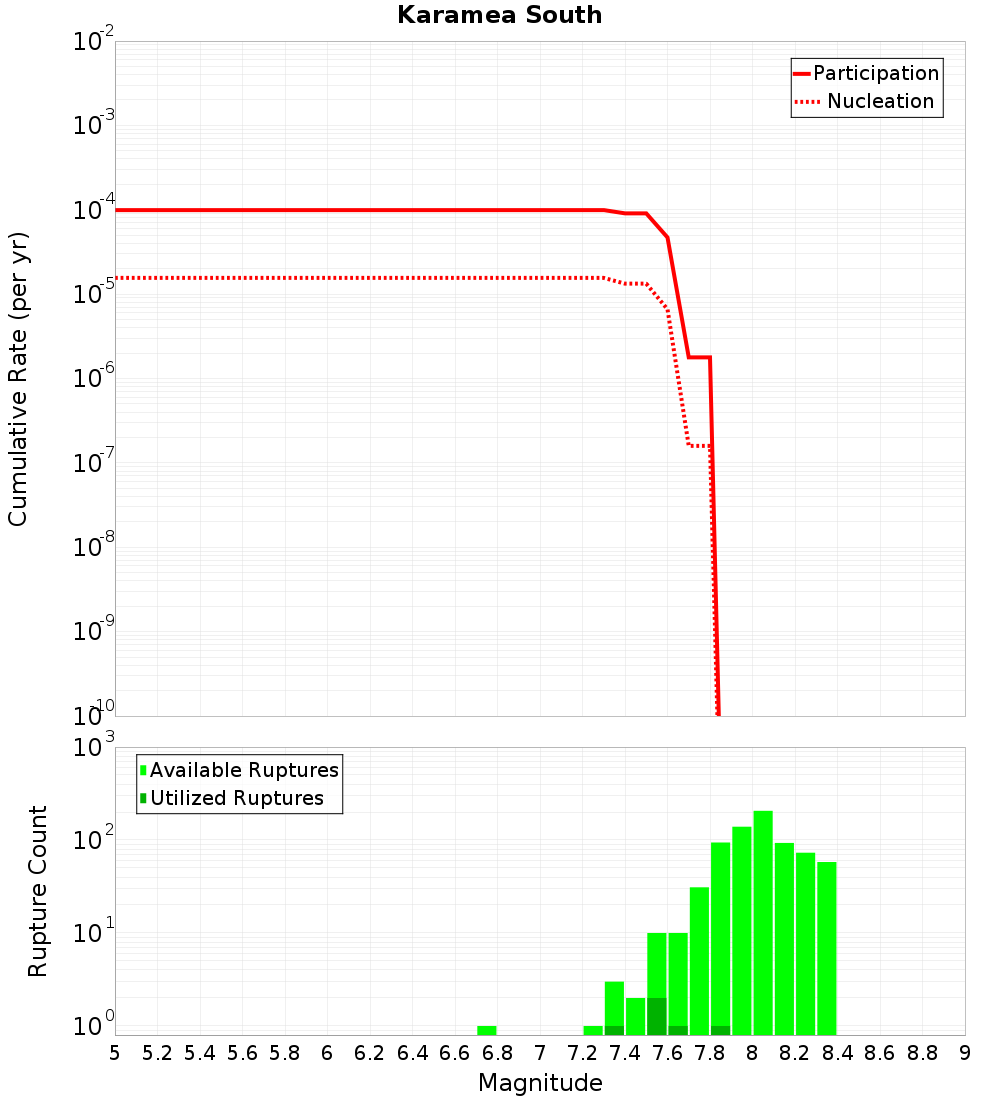

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

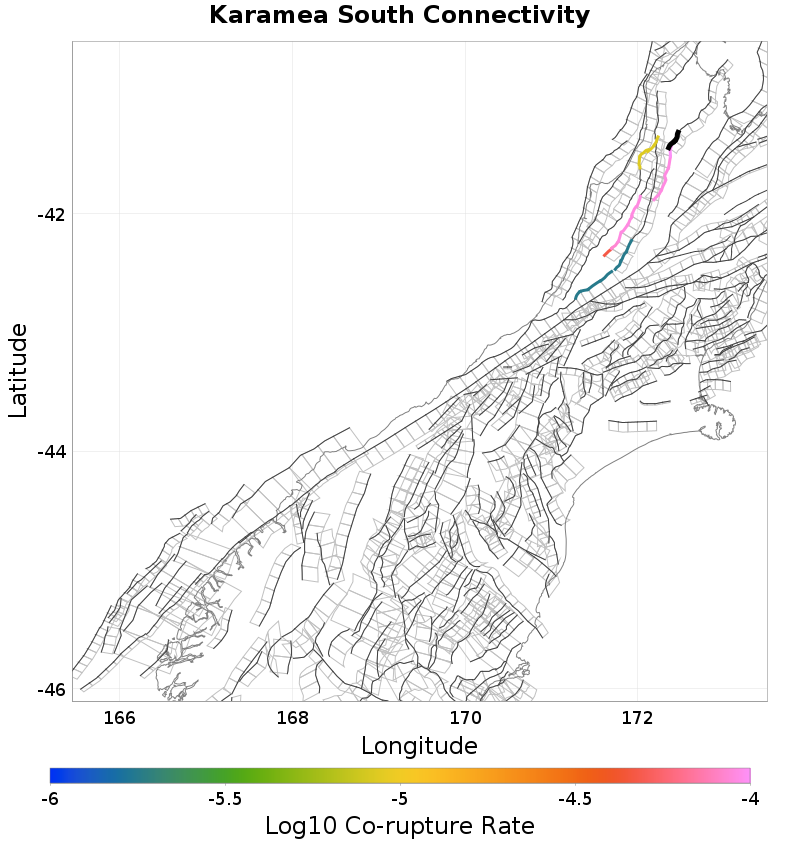

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Karamea, 0 km away |
| Matiri West, 0.33 km away |
| White Creek, 10.55 km away |
| Kohaihai South, 12.43 km away |
| Glasgow, 14.11 km away |
| Kohaihai, 14.47 km away |
Karamea, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Matiri West, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 720 |
| Co-rupture Rate | 9.910213E-5 |
White Creek, 10.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 693 |
| Co-rupture Rate | 1.7798003E-6 |
Kohaihai South, 12.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 8.4743915E-6 |
Glasgow, 14.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 16 |
| Co-rupture Rate | 8.4743915E-6 |
Kohaihai, 14.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
