Lake Heron Details

PropertyValue
Rupture Count540
Ruptures Above Sect Min Mag535
Ruptures w/ Nonzero Rates22
Magnitude Range[6.69, 7.91]
Length Range[18, 271] km
Total Rate1.8521713E-4 /yr
Multi-Fault Rate1.8521713E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults38

Table Of Contents

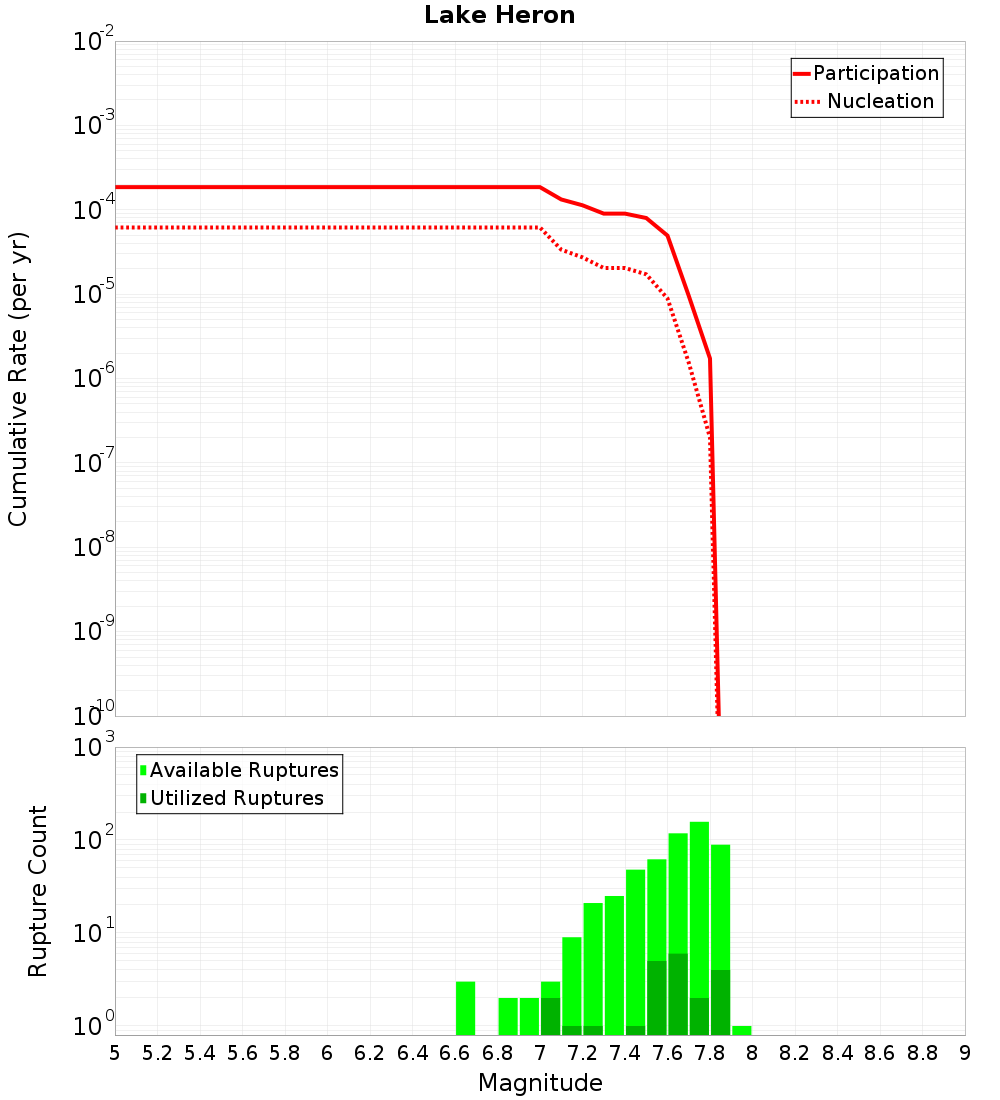

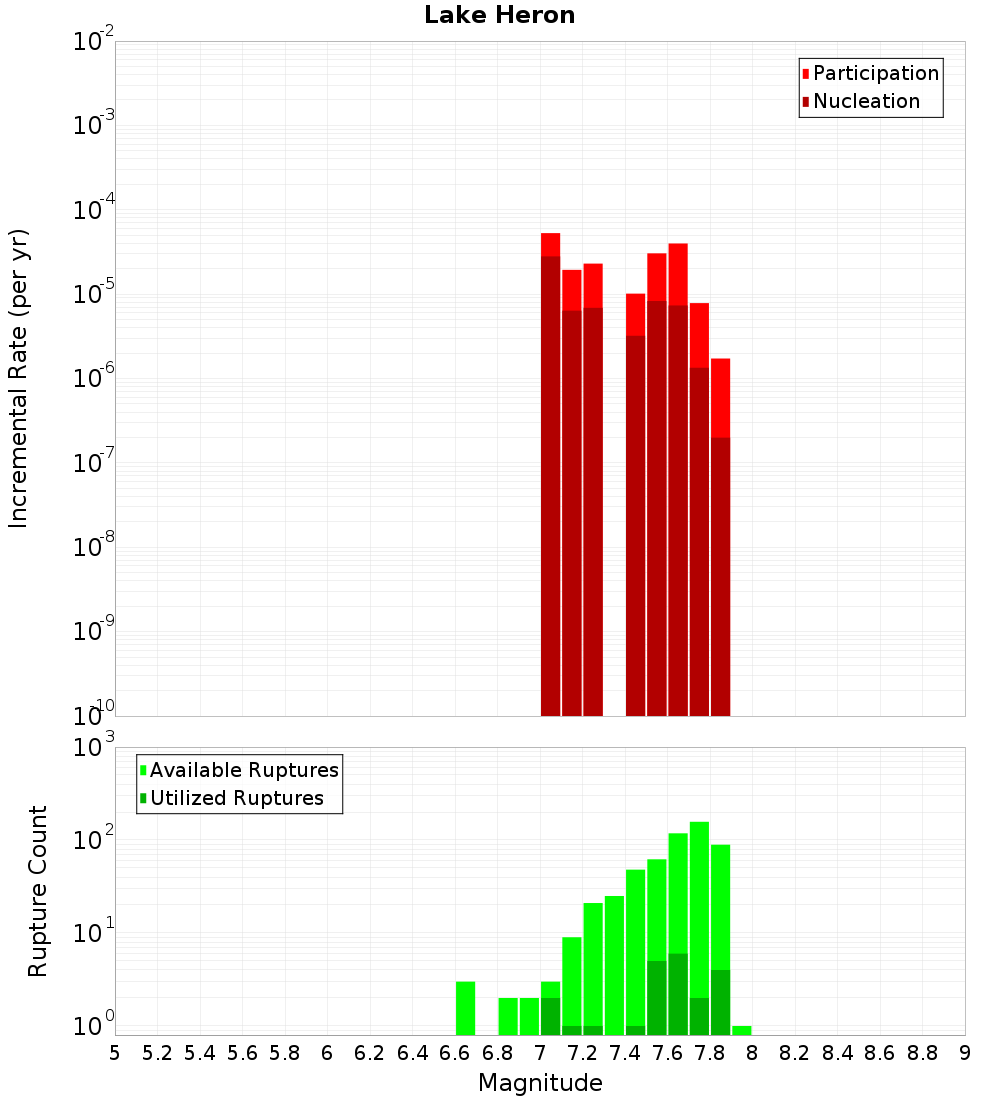

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

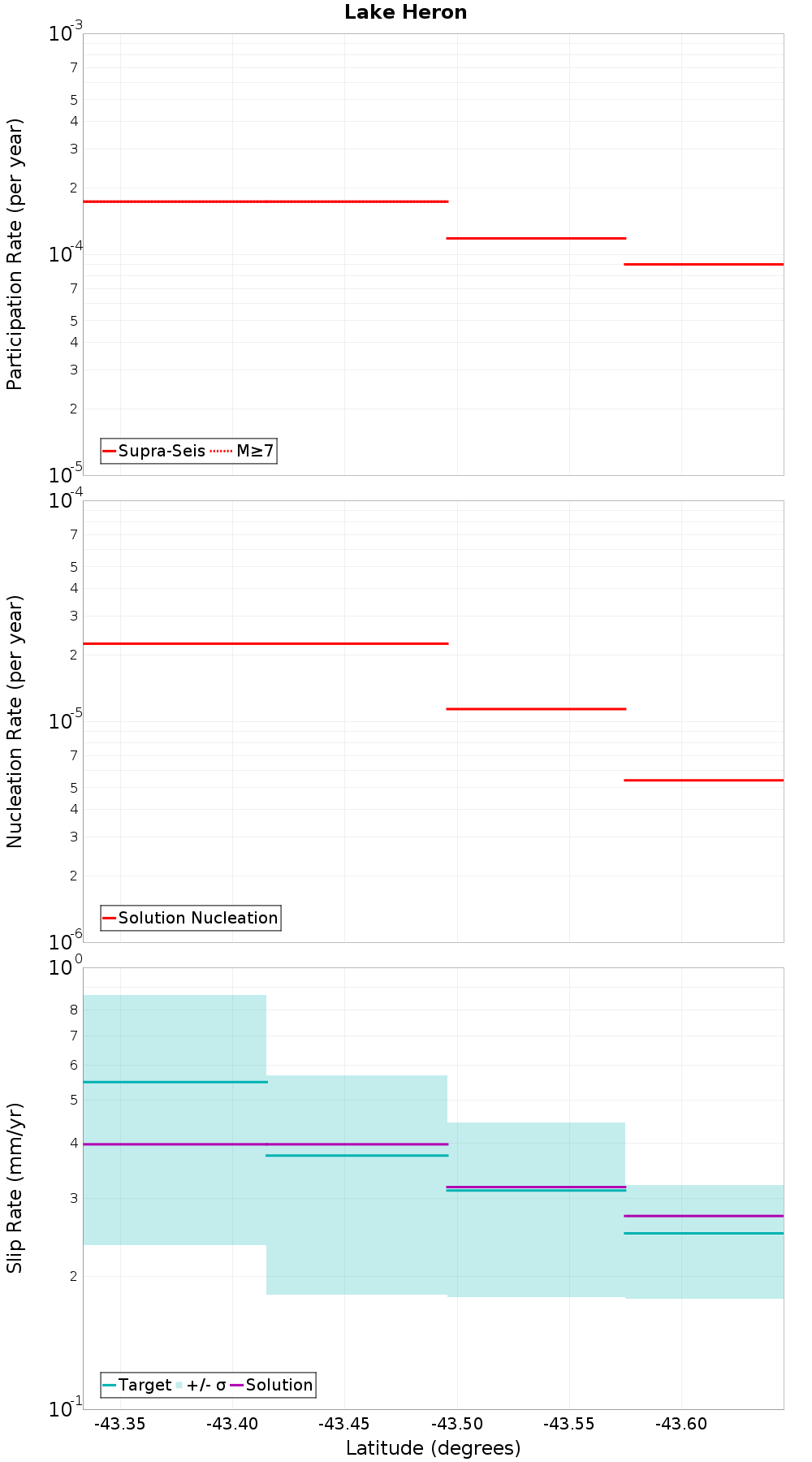

Along-Strike Values

(top)

Along-strike plot

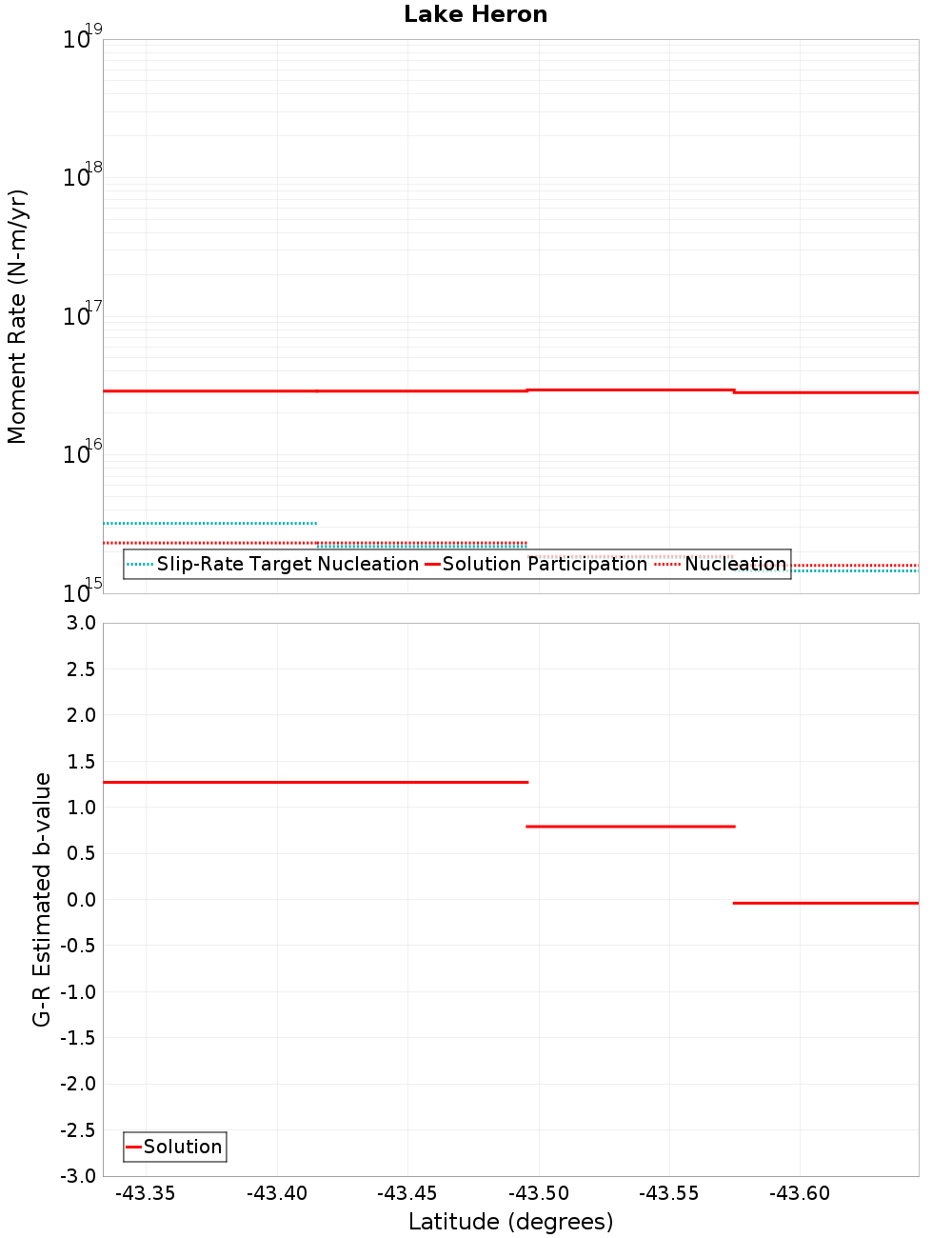

Moment-Rates and b-Values

(top)

Along-strike plot

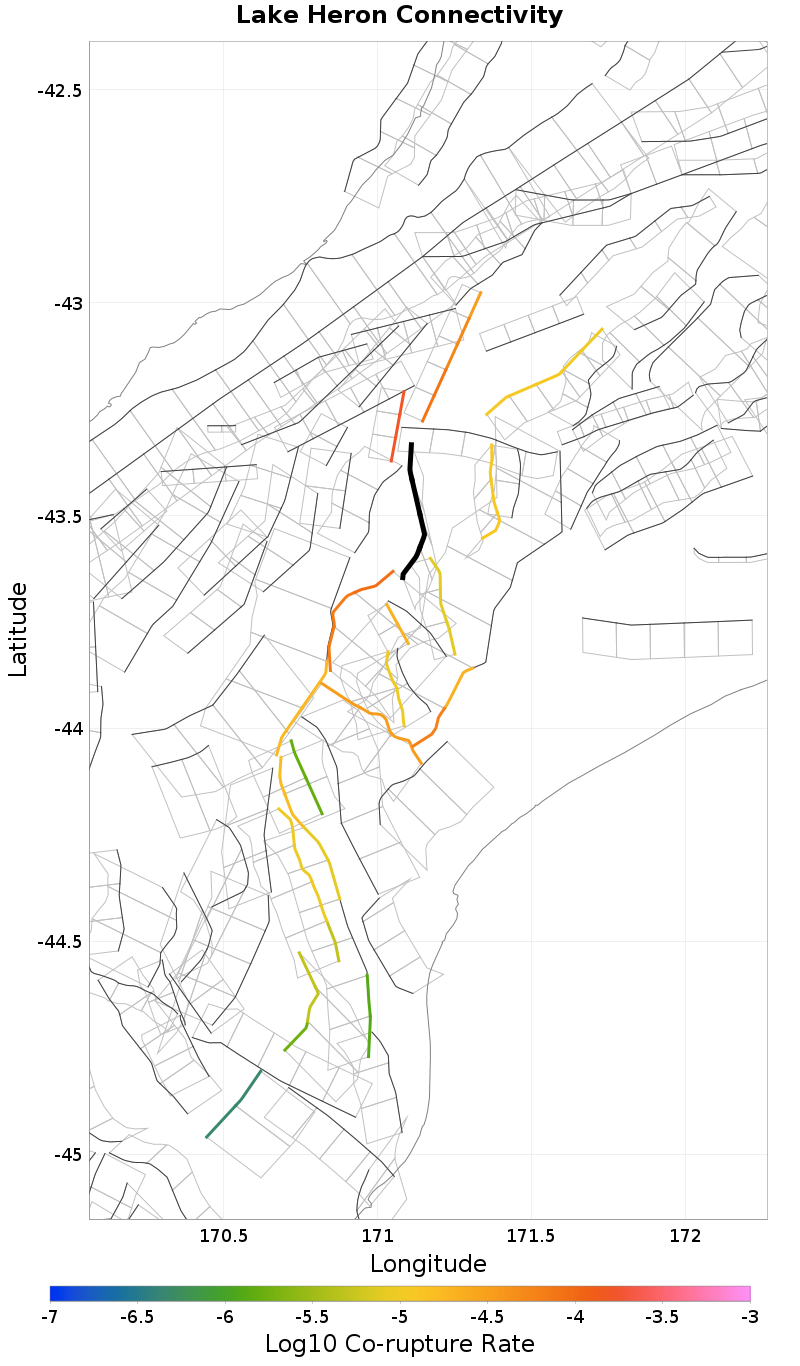

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Klondyke Moor, 0.18 km away
Hutt Peel, 0.26 km away
Ben McLeod, 0.29 km away
Potts River, 2.13 km away
Double Hill, 4.17 km away
Jagged, 4.43 km away
Mistake - Rolleston, 6.85 km away
Coal Creek, 6.87 km away
North Branch, 7.84 km away
Quartz Creek, 7.89 km away
Observation, 13.33 km away
Fox Peak, 14.6 km away

Klondyke Moor, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate7.884982E-6

Hutt Peel, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count62
Co-rupture Rate6.290943E-5

Ben McLeod, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count456
Co-rupture Rate8.9961E-5

Potts River, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Double Hill, 4.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Jagged, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count170
Co-rupture Rate1.627211E-4

Mistake - Rolleston, 6.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate7.8087345E-5

Coal Creek, 6.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

North Branch, 7.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count223
Co-rupture Rate1.21751755E-5

Quartz Creek, 7.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count20
Co-rupture Rate2.0941961E-5

Observation, 13.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fox Peak, 14.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count337
Co-rupture Rate1.7737972E-5
