Marlborough Slope 2 Details

Property	Value
Rupture Count	3,934
Ruptures Above Sect Min Mag	3,928
Ruptures w/ Nonzero Rates	24
Magnitude Range	[6.68, 8.39]
Length Range	[17, 761] km
Total Rate	3.0710737E-4 /yr
Multi-Fault Rate	3.0710737E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	80

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

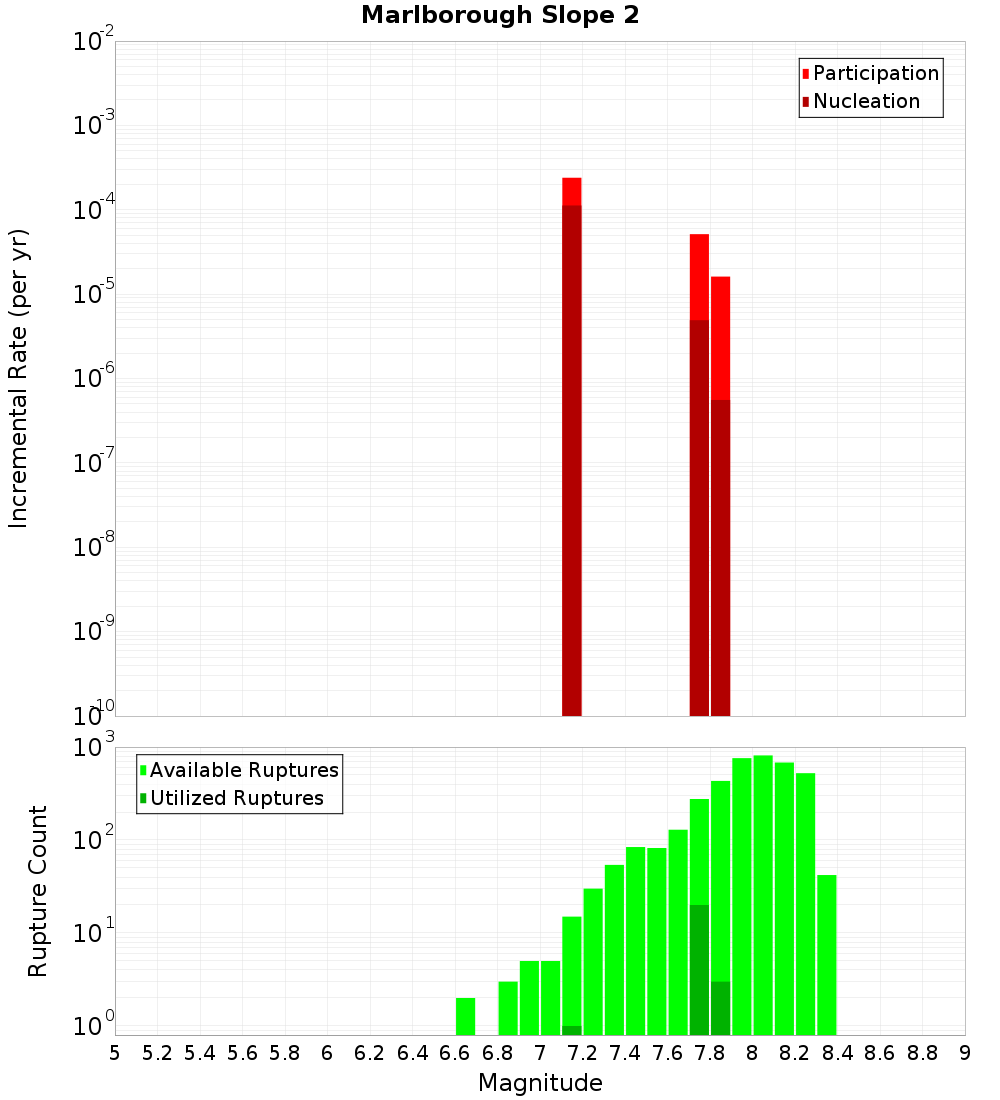

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

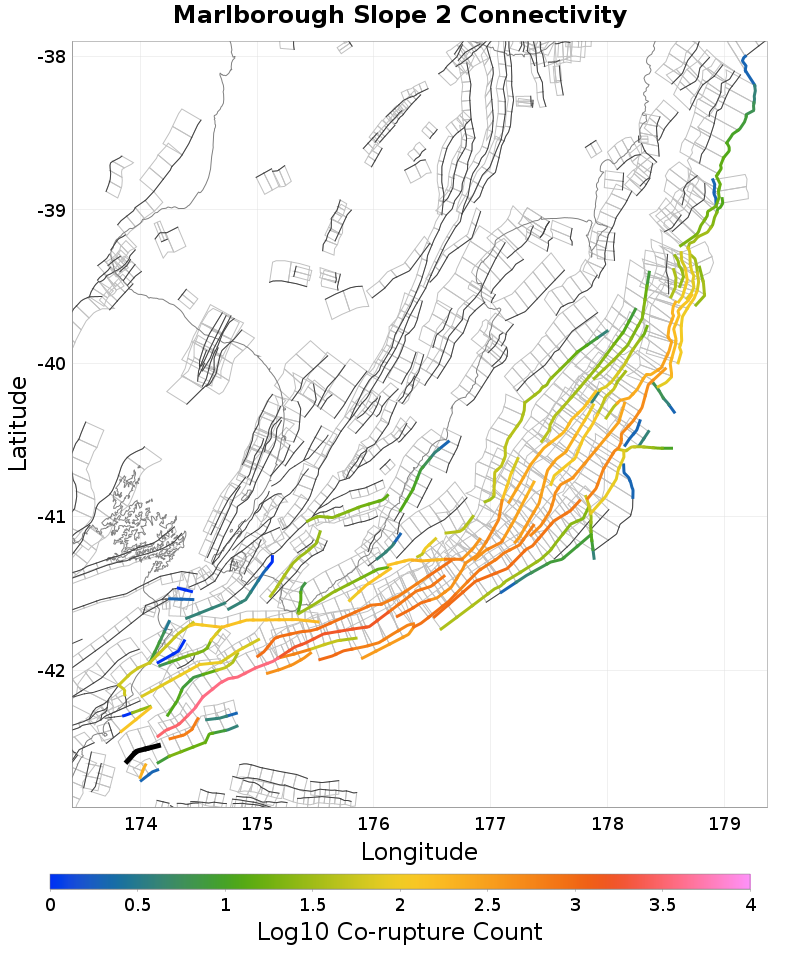

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 4.37 km away
Marlborough Slope 4, 6.6 km away
Marlborough Slope 10, 7.44 km away
Marlborough Slope 11, 9.5 km away
Kaikoura 2, 10.44 km away
Kaikoura - Mangamaunu, 11.74 km away
Conway Trough West, 12.27 km away
Offshore Splay Thrust, 13.04 km away
Conway Trough East, 13.56 km away
Marlborough Slope 9, 13.95 km away

Kekerengu Bank, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	3,762
Co-rupture Rate	6.7512614E-5

Marlborough Slope 4, 6.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	685
Co-rupture Rate	2.4924683E-4

Marlborough Slope 10, 7.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	0.0

Marlborough Slope 11, 9.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	221
Co-rupture Rate	2.995638E-7

Kaikoura 2, 10.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kaikoura - Mangamaunu, 11.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	27
Co-rupture Rate	2.4667384E-5

Conway Trough West, 12.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Offshore Splay Thrust, 13.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	126
Co-rupture Rate	0.0

Conway Trough East, 13.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Marlborough Slope 9, 13.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0
