Ohiwa 1 Details

PropertyValue
Rupture Count3,835
Ruptures Above Sect Min Mag3,828
Ruptures w/ Nonzero Rates288
Magnitude Range[6.43, 8.34]
Length Range[9, 761] km
Total Rate2.843972E-4 /yr
Multi-Fault Rate2.843972E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults88

Table Of Contents

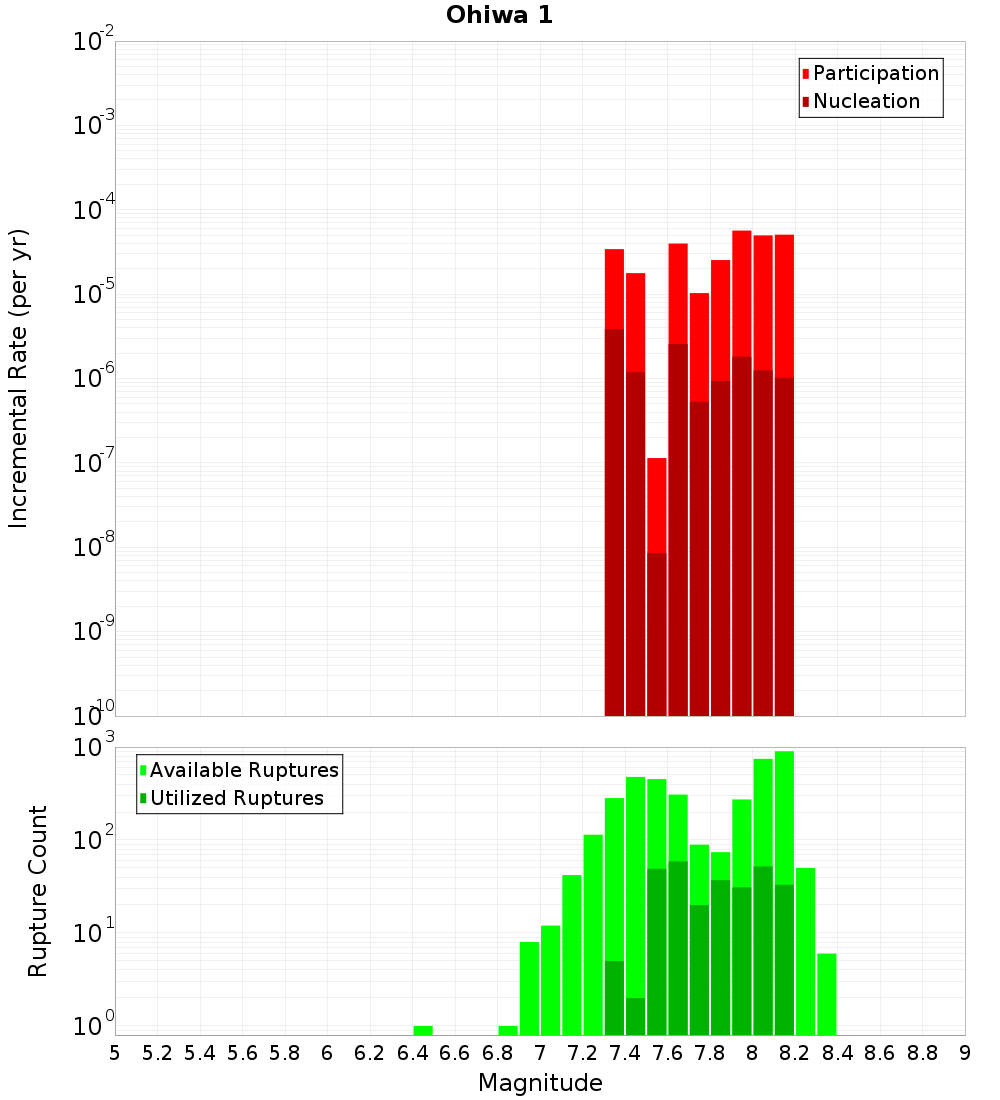

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

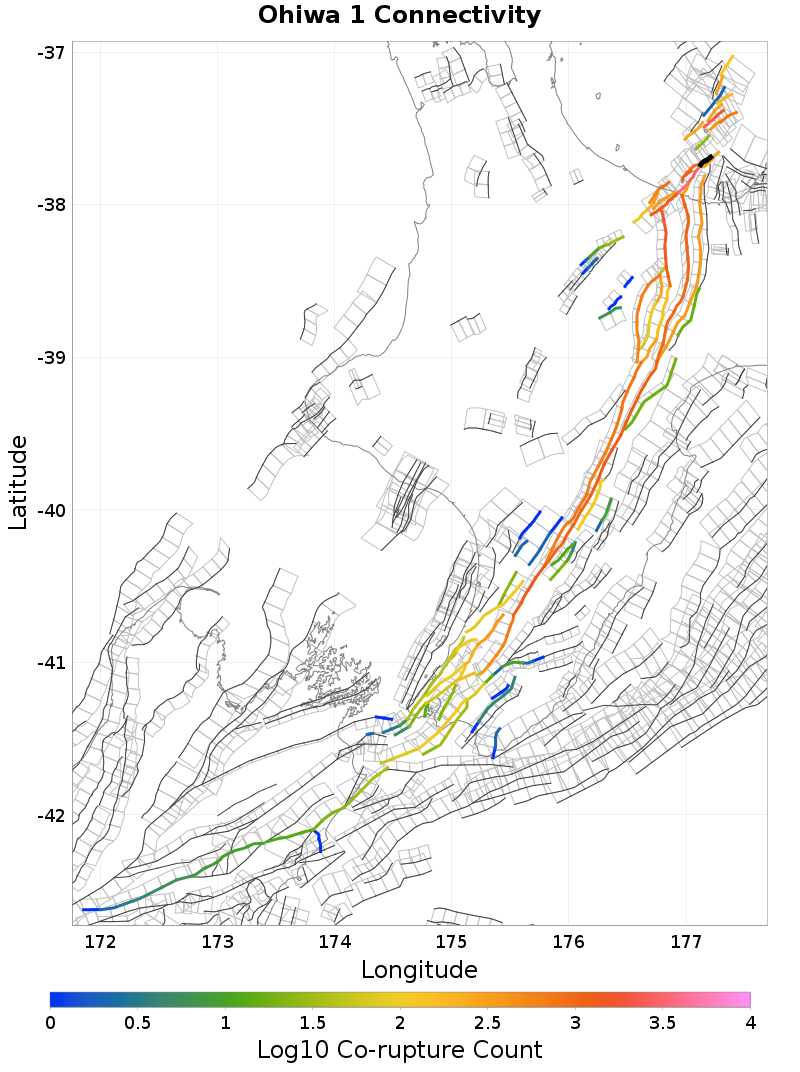

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Whakaari 4, 0.14 km away
White Island 1, 0.16 km away
Rangitaiki 2, 0.42 km away
White Island 2, 0.88 km away
Waimanawa - Waikaremoana, 4.13 km away
Calypso 2, 8.32 km away
Opotiki 3, 8.42 km away
Waimana: North, 8.64 km away
Te Arawa 1, 8.65 km away
Rangitaiki 1, 8.72 km away
Ohae 1, 8.74 km away
Tuatoru 1, 11.29 km away
Ohae 2, 14.04 km away
Waiotahi: North, 14.51 km away
Te Arawa 2, 14.86 km away

Whakaari 4, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count279
Co-rupture Rate2.6009453E-5

White Island 1, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count4,218
Co-rupture Rate3.456793E-4

Rangitaiki 2, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count890
Co-rupture Rate3.7018162E-5

White Island 2, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count298
Co-rupture Rate1.2903699E-5

Waimanawa - Waikaremoana, 4.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0

Opotiki 3, 8.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: North, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count363
Co-rupture Rate1.15433446E-4

Te Arawa 1, 8.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count2,473
Co-rupture Rate1.5666611E-4

Rangitaiki 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count1,257
Co-rupture Rate9.830027E-5

Ohae 1, 8.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 1, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count381
Co-rupture Rate1.3064691E-5

Ohae 2, 14.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 14.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 2, 14.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count297
Co-rupture Rate4.1526546E-5
