Pahaua Details

PropertyValue
Rupture Count52,113
Ruptures Above Sect Min Mag52,083
Ruptures w/ Nonzero Rates39
Magnitude Range[6.68, 8.42]
Length Range[19, 855] km
Total Rate1.8398391E-4 /yr
Multi-Fault Rate1.8398391E-4 /yr (100.00%)
Directly-Connected Faults11
All Co-Rupturing Faults109

Table Of Contents

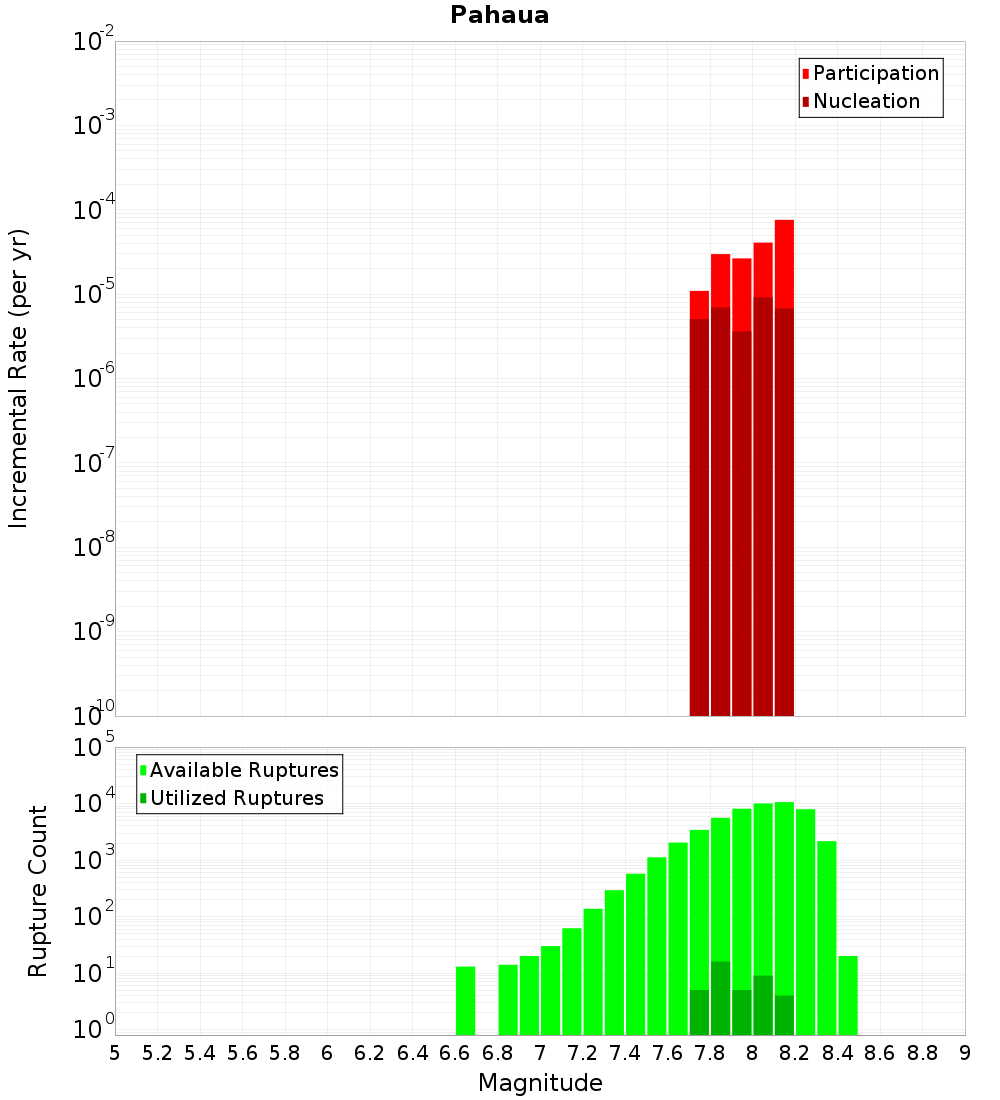

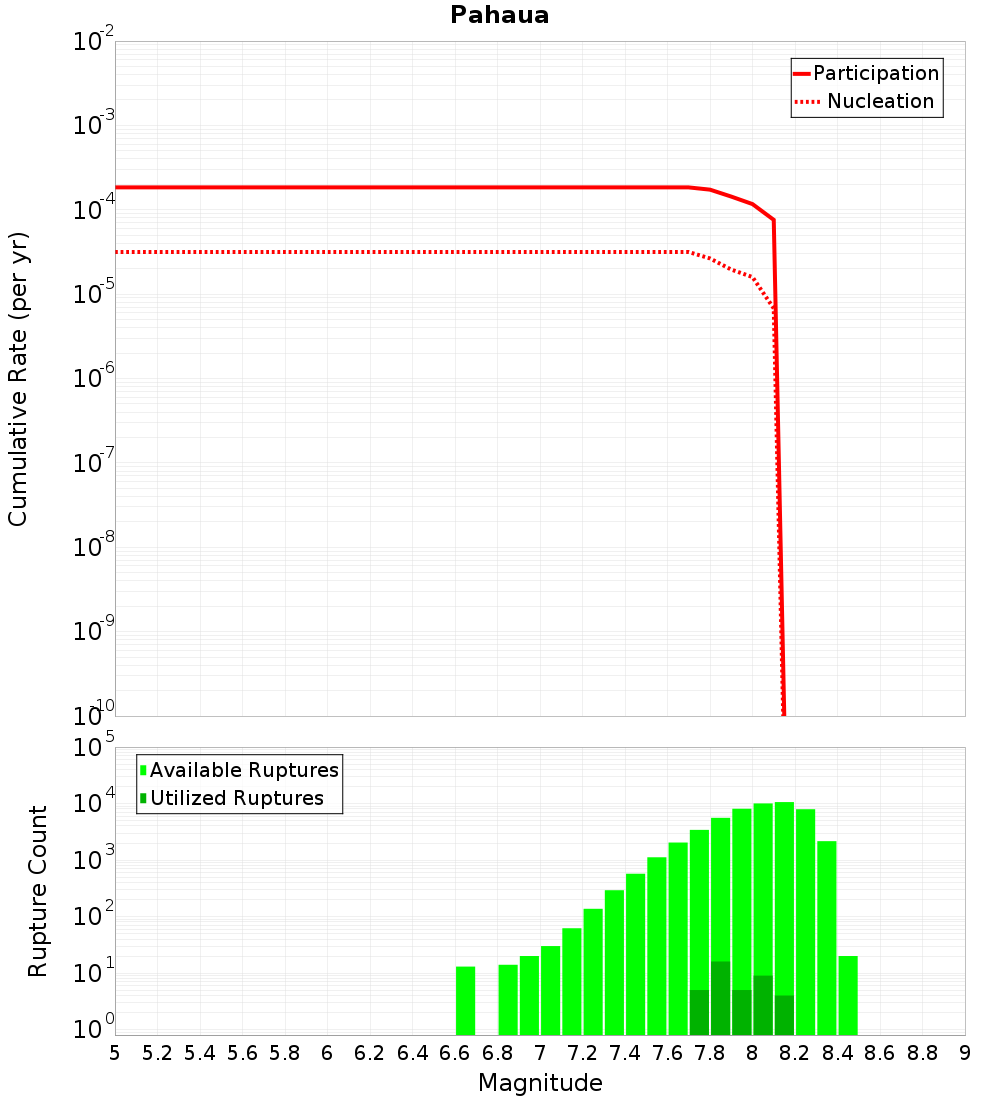

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

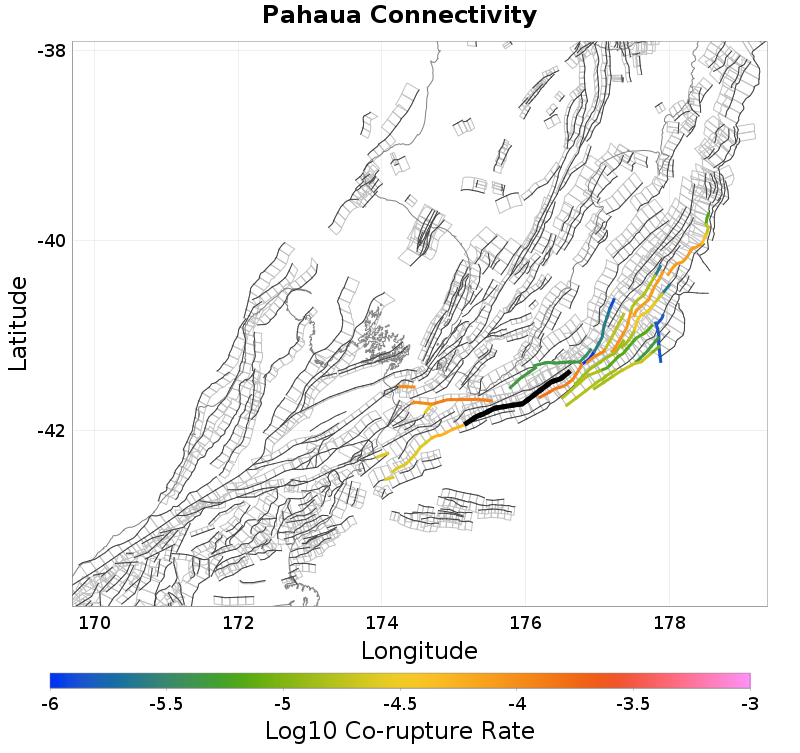

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Kekerengu Bank, 0 km awayAorangi Trough, 6.21 km away
Pahaua SE1, 0 km awayHoneycomb Ridge, 6.75 km away
Pukeroro 2, 0.1 km awayUruti East - PorWest 1, 7.45 km away
Uruti Basin 2, 0.14 km awayTe Rapa 2, 10.36 km away
BooBoo, 0.16 km awayUruti Ridge 2, 12.1 km away
Uruti Basin, 0.28 km awayNgapotiki, 12.75 km away
Pahaua SE2, 2.07 km awayHoneycomb, 13.47 km away
Opouawe - Uruti, 2.68 km awayPalliser - Kaiwhata, 13.63 km away
Glendhu Ridge, 3.55 km awayAorangi Ridge, 13.7 km away
Pukeroro Ridge, 4.31 km away

Kekerengu Bank, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count15,771
Co-rupture Rate5.4355216E-5

Pahaua SE1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count1,305
Co-rupture Rate0.0

Pukeroro 2, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count33,147
Co-rupture Rate1.5722805E-4

Uruti Basin 2, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count1,572
Co-rupture Rate0.0

BooBoo, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count22,815
Co-rupture Rate1.2962868E-4

Uruti Basin, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count7,226
Co-rupture Rate4.493316E-6

Pahaua SE2, 2.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count1,377
Co-rupture Rate0.0

Opouawe - Uruti, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count6,849
Co-rupture Rate0.0

Glendhu Ridge, 3.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count391
Co-rupture Rate0.0

Pukeroro Ridge, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count5,897
Co-rupture Rate1.3736883E-5

Aorangi Trough, 6.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count18,165
Co-rupture Rate1.5919371E-5

Honeycomb Ridge, 6.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Uruti East - PorWest 1, 7.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count5,736
Co-rupture Rate2.5623438E-6

Te Rapa 2, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count243
Co-rupture Rate0.0

Uruti Ridge 2, 12.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count2,803
Co-rupture Rate3.4524044E-6

Ngapotiki, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Honeycomb, 13.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count4,851
Co-rupture Rate4.493316E-6

Palliser - Kaiwhata, 13.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count245
Co-rupture Rate0.0

Aorangi Ridge, 13.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count6,979
Co-rupture Rate1.6396147E-5
