Te Whaiti South Details

Property	Value
Rupture Count	7,688
Ruptures Above Sect Min Mag	7,678
Ruptures w/ Nonzero Rates	182
Magnitude Range	[6.75, 8.41]
Length Range	[20, 854] km
Total Rate	6.7057903E-4 /yr
Multi-Fault Rate	6.7057903E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	102

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

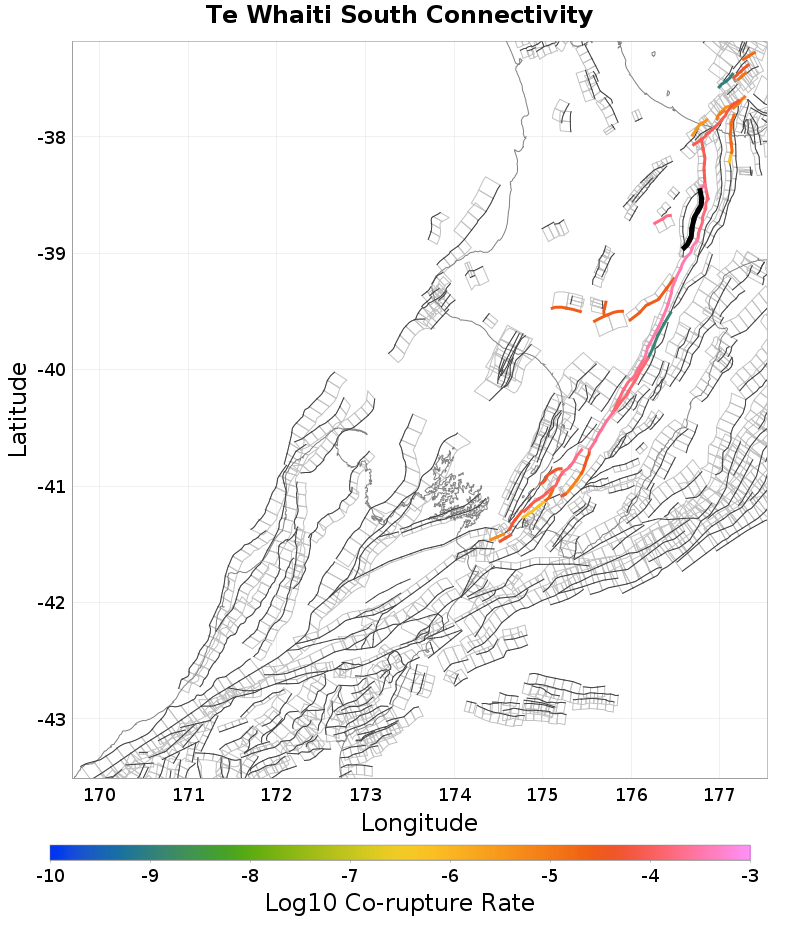

Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

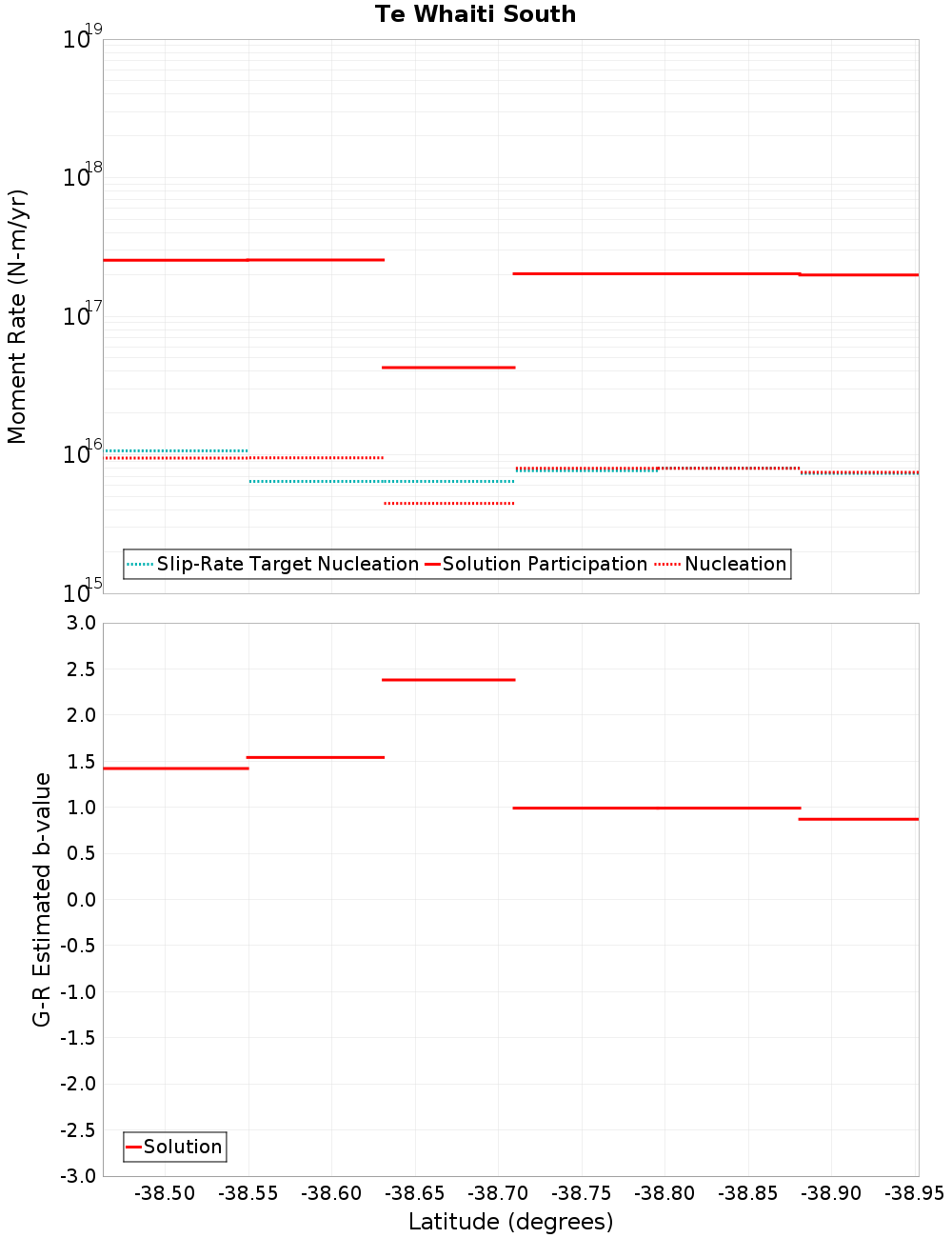

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Te Whaiti North, 0 km away
Wheao: North, 0 km away
Wheao: South, 0.47 km away
Waiohau: South, 0.75 km away
Waiohau: North, 1.85 km away
Ruahine: North, 9.12 km away
Whakatane: South, 11.9 km away
Kaingaroa 1, 13.72 km away
Waimana: South, 14.59 km away

Te Whaiti North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	555
Co-rupture Rate	2.8879888E-4

Wheao: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	465
Co-rupture Rate	0.0

Wheao: South, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	413
Co-rupture Rate	0.0

Waiohau: South, 0.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	6,780
Co-rupture Rate	3.5878716E-4

Waiohau: North, 1.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	2,927
Co-rupture Rate	1.9329593E-4

Ruahine: North, 9.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	7,167
Co-rupture Rate	3.5878716E-4

Whakatane: South, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	92
Co-rupture Rate	0.0

Kaingaroa 1, 13.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	68
Co-rupture Rate	1.7194566E-4

Waimana: South, 14.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	74
Co-rupture Rate	0.0
