Vernon 1 Details

Property	Value
Rupture Count	877
Ruptures Above Sect Min Mag	869
Ruptures w/ Nonzero Rates	15
Magnitude Range	[6.18, 8.40]
Length Range	[6, 888] km
Total Rate	5.8393704E-4 /yr
Multi-Fault Rate	5.8393704E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	50

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

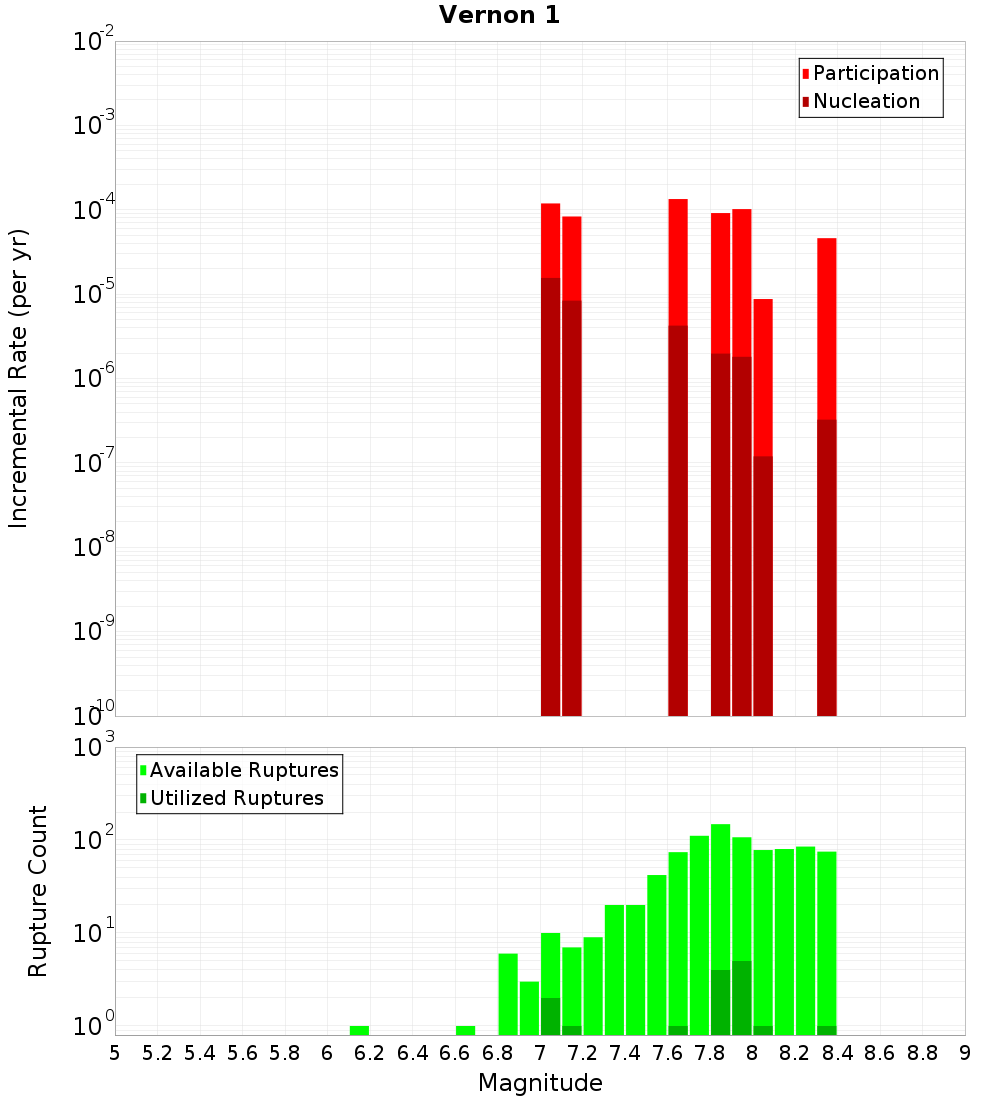

Magnitude-Frequency Distribution

Incremental	Cumulative

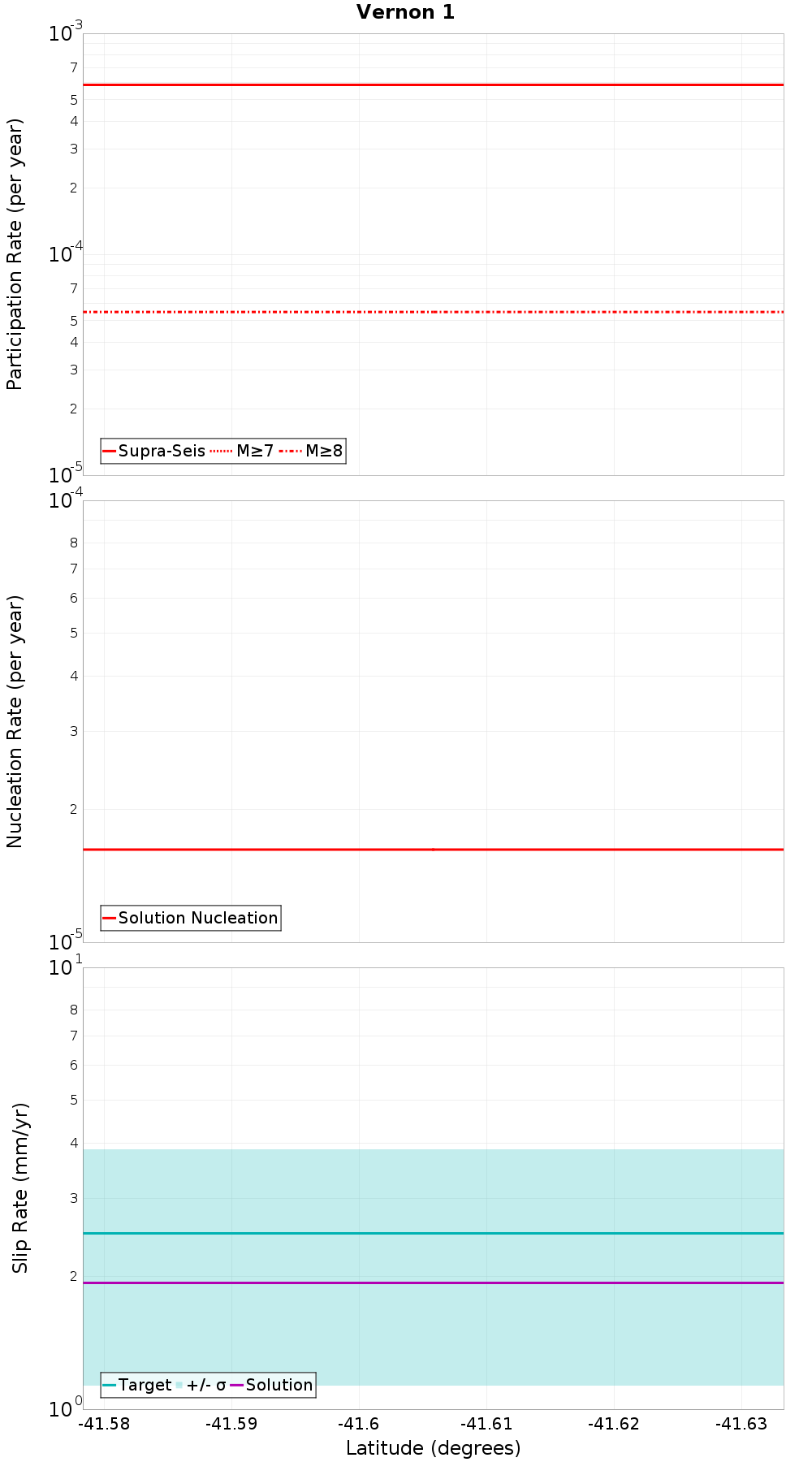

Along-Strike Values

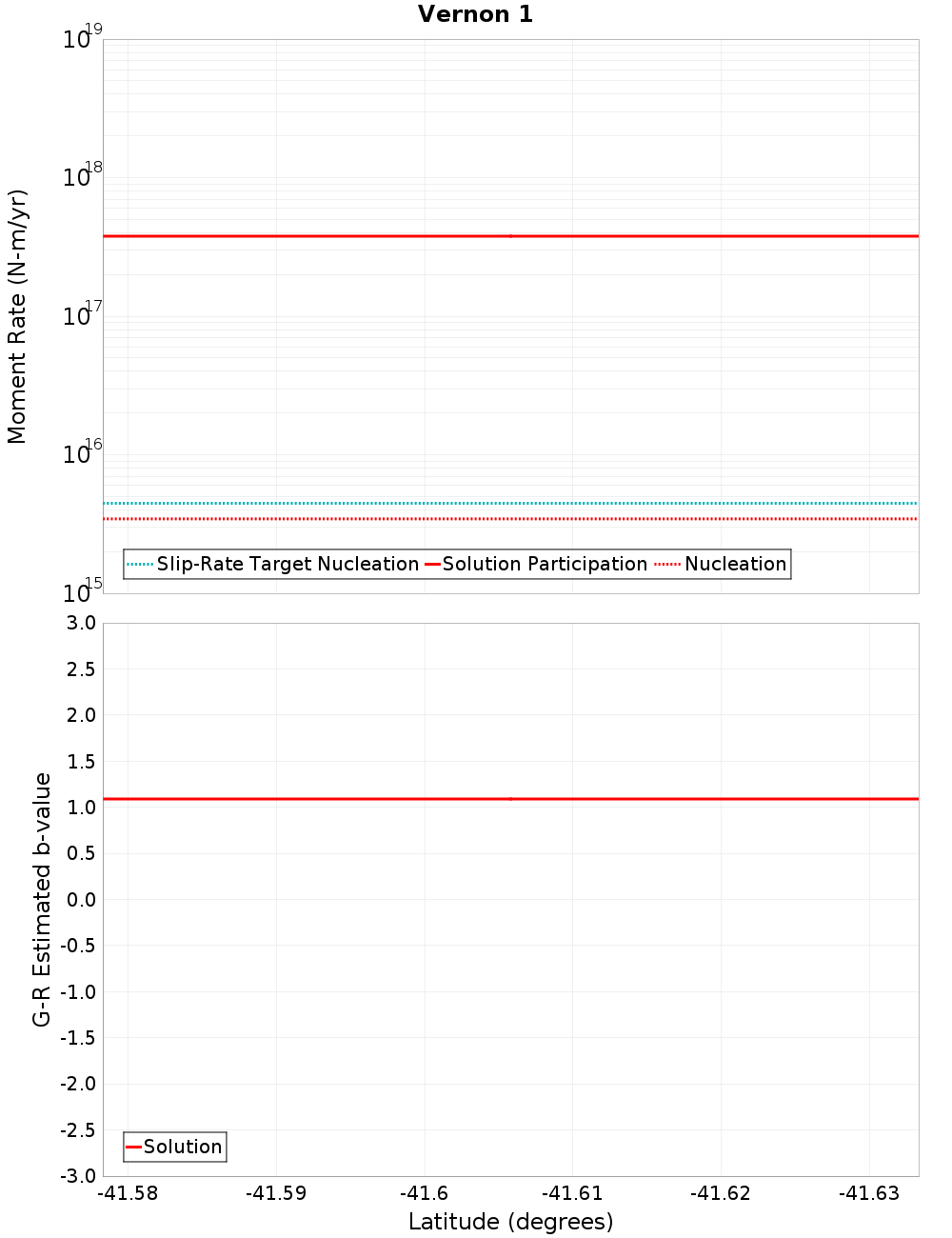

Moment-Rates and b-Values

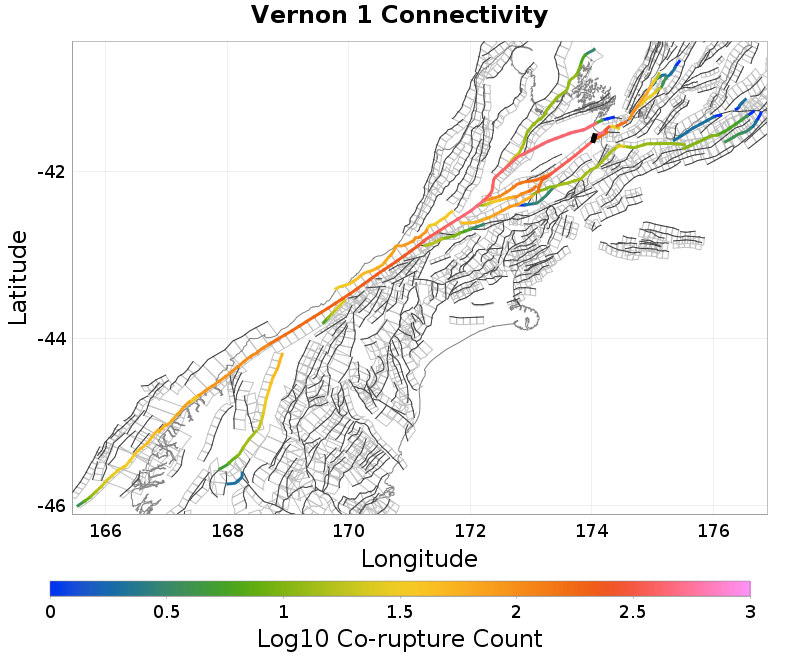

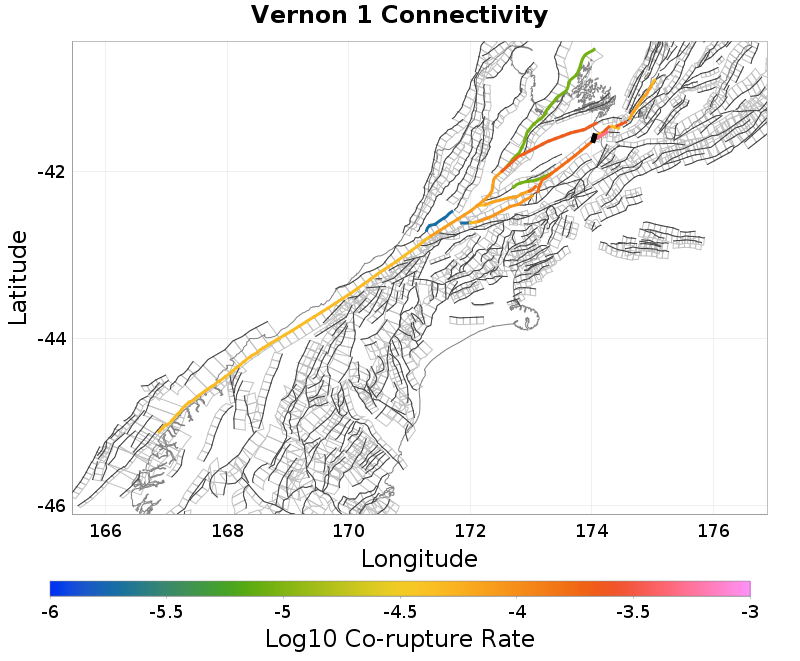

Connectivity

Nearby Sections

Fault Section
Awatere: Northeast 1, 0 km away
Awatere: Northeast 2, 0 km away
Vernon 2, 0 km away
Vernon 3, 4.6 km away
Cloudy 1, 7.79 km away
Vernon 4, 9.49 km away
Needles East 2, 10.47 km away
Cloudy 3, 13.54 km away
Wairau, 14 km away

Awatere: Northeast 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	393
Co-rupture Rate	1.691695E-4

Awatere: Northeast 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	5.043015E-4

Vernon 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	493
Co-rupture Rate	7.088855E-5

Vernon 3, 4.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 1, 7.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	286
Co-rupture Rate	2.234614E-4

Vernon 4, 9.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Needles East 2, 10.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cloudy 3, 13.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	false
Co-rupture Count	27
Co-rupture Rate	4.9460323E-5

Wairau, 14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?	true
Directly Connected?	true
Co-rupture Count	430
Co-rupture Rate	2.127344E-4
