Whakaari 4 Details

PropertyValue
Rupture Count5,803
Ruptures Above Sect Min Mag5,800
Ruptures w/ Nonzero Rates199
Magnitude Range[6.70, 8.35]
Length Range[18, 789] km
Total Rate2.1049358E-4 /yr
Multi-Fault Rate2.1049358E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults77

Table Of Contents

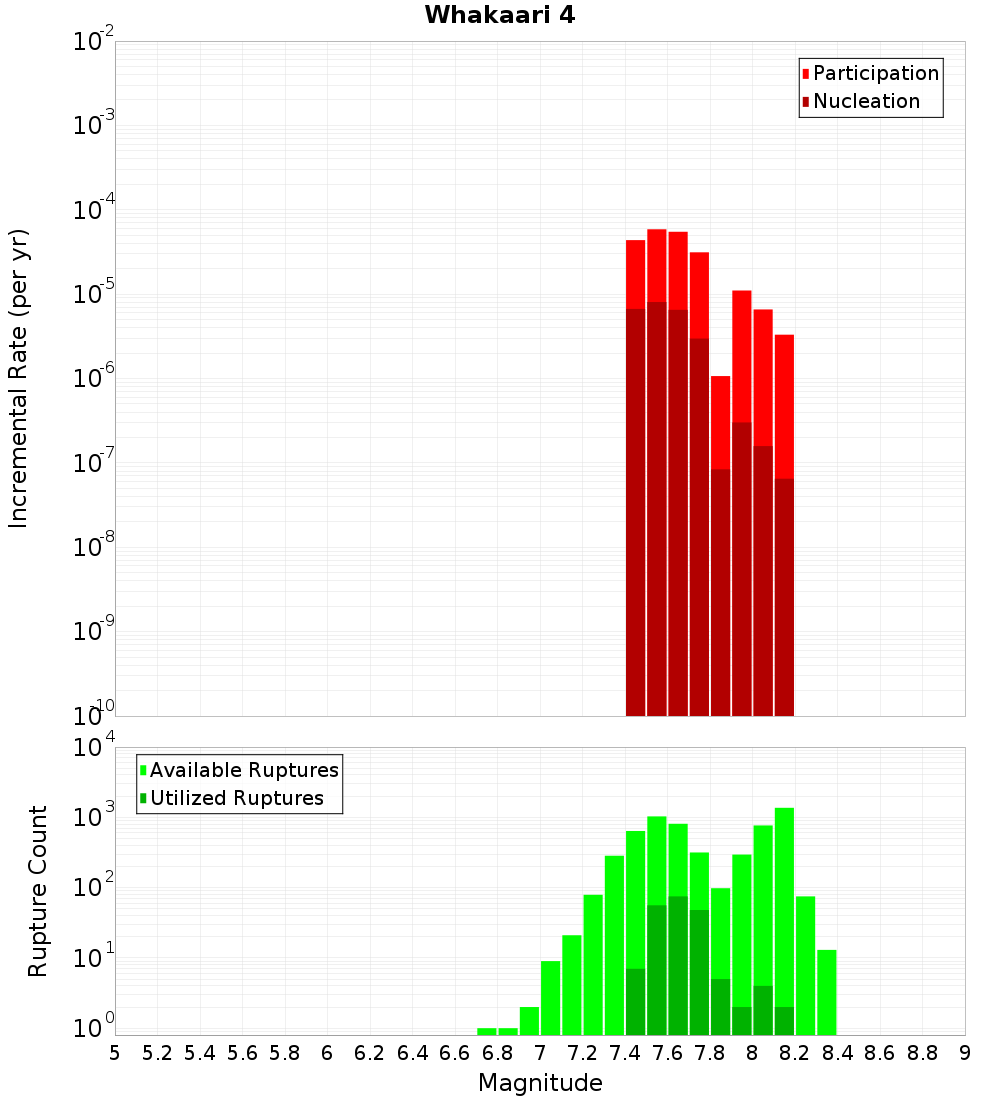

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

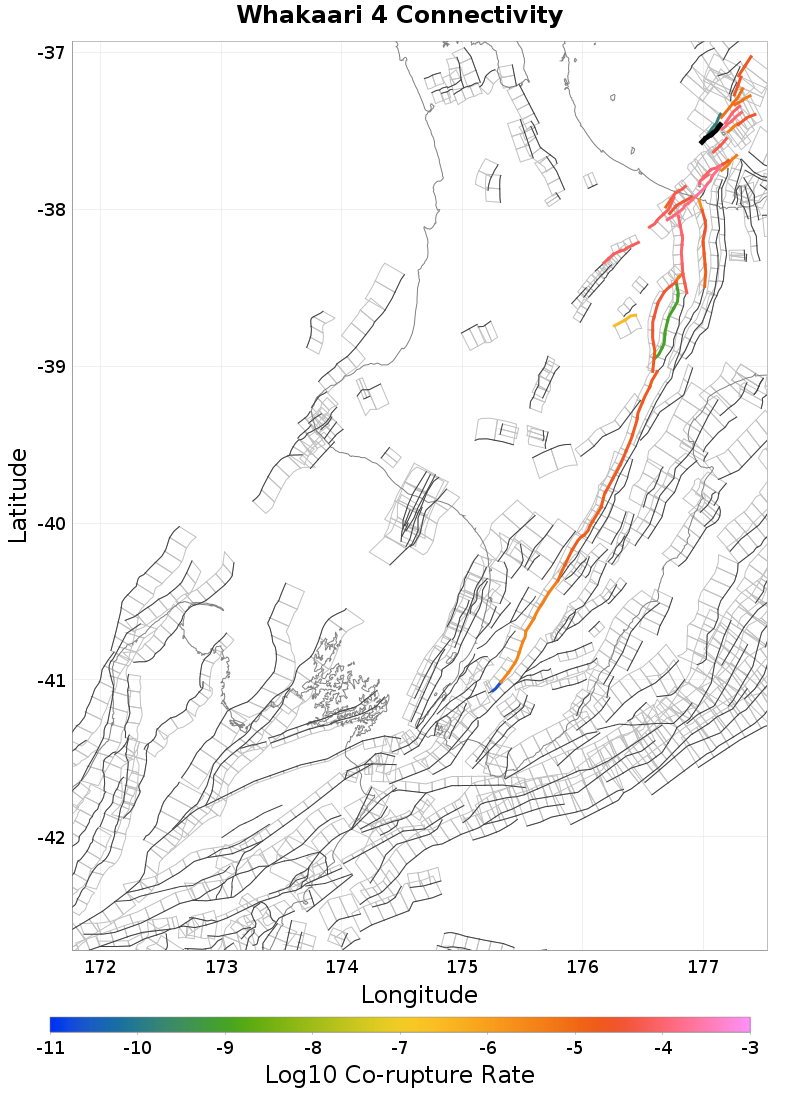

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ohiwa 1, 0.14 km away
Calypso 2, 0.2 km away
Rangitaiki 2, 0.45 km away
White Island 2, 0.45 km away
White Island 1, 1.47 km away
Volkner 3, 1.58 km away
Te Arawa 1, 2.25 km away
Te Arawa 2, 3.86 km away
Volkner 4, 5.31 km away
Tuatoru 1, 5.84 km away
Waimanawa - Waikaremoana, 6.93 km away
Opotiki 3, 8.03 km away
Rangitaiki 1, 10.86 km away
Tuatoru 2, 11.04 km away
Te Arawa 3, 14.7 km away

Ohiwa 1, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count279
Co-rupture Rate2.6009453E-5

Calypso 2, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate5.7214722E-5

Rangitaiki 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count1,965
Co-rupture Rate1.0002865E-4

White Island 2, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count500
Co-rupture Rate4.5873253E-6

White Island 1, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count6,652
Co-rupture Rate2.4917893E-4

Volkner 3, 1.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count33
Co-rupture Rate1.4220775E-10

Te Arawa 1, 2.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count3,842
Co-rupture Rate1.07817155E-4

Te Arawa 2, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count1,574
Co-rupture Rate1.0871202E-4

Volkner 4, 5.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate7.658752E-6

Tuatoru 1, 5.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?true
Co-rupture Count1,081
Co-rupture Rate4.130186E-6

Waimanawa - Waikaremoana, 6.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count2,561
Co-rupture Rate9.5378055E-5

Tuatoru 2, 11.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count1,160
Co-rupture Rate3.066405E-5

Te Arawa 3, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDMuMFQzZnRC
Connected?true
Directly Connected?false
Co-rupture Count629
Co-rupture Rate8.26485E-6
