Two Thumb Stream Details

PropertyValue
Rupture Count5,256
Ruptures Above Sect Min Mag5,255
Ruptures w/ Nonzero Rates83
Magnitude Range[7.01, 8.44]
Length Range[21, 640] km
Total Rate1.7736512E-4 /yr
Multi-Fault Rate1.3529298E-4 /yr (76.28%)
Directly-Connected Faults4
All Co-Rupturing Faults147

Table Of Contents

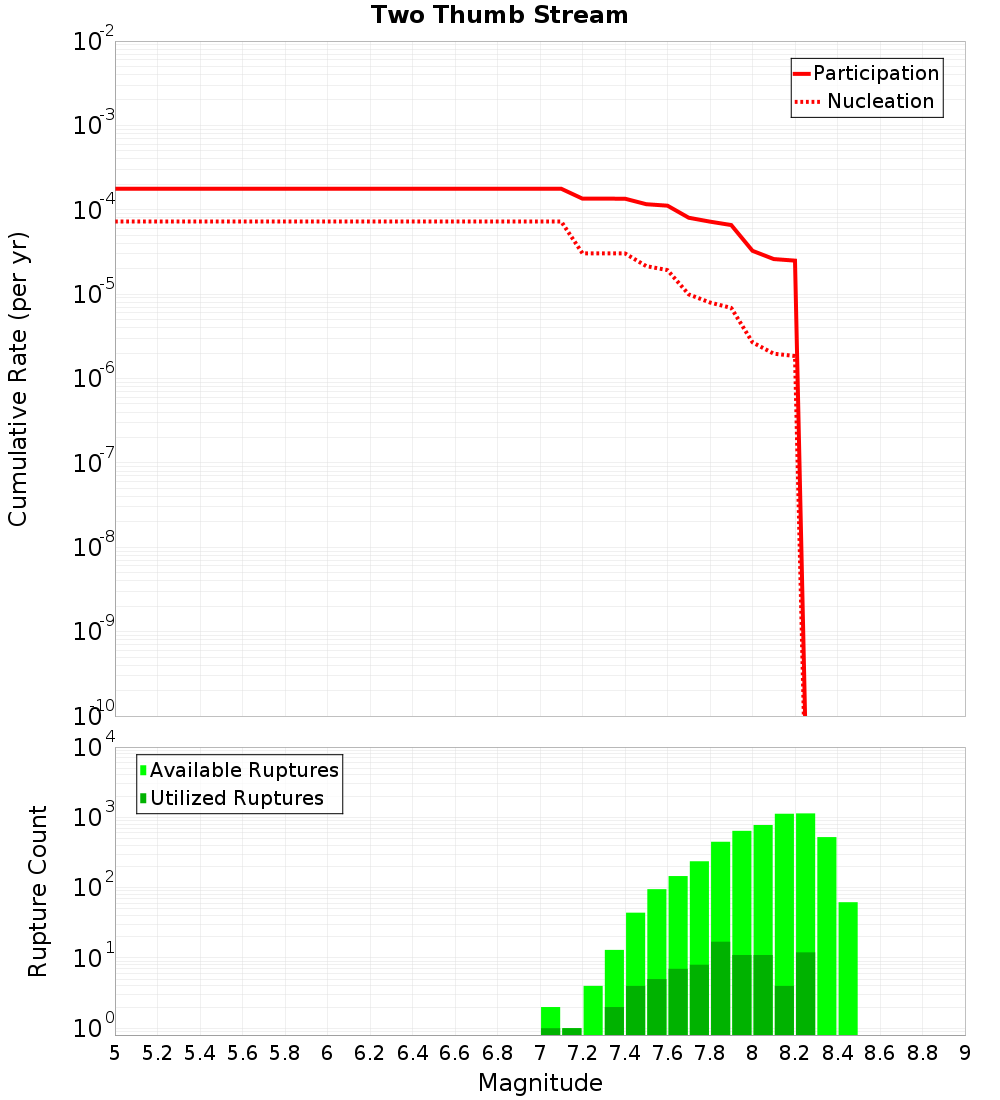

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

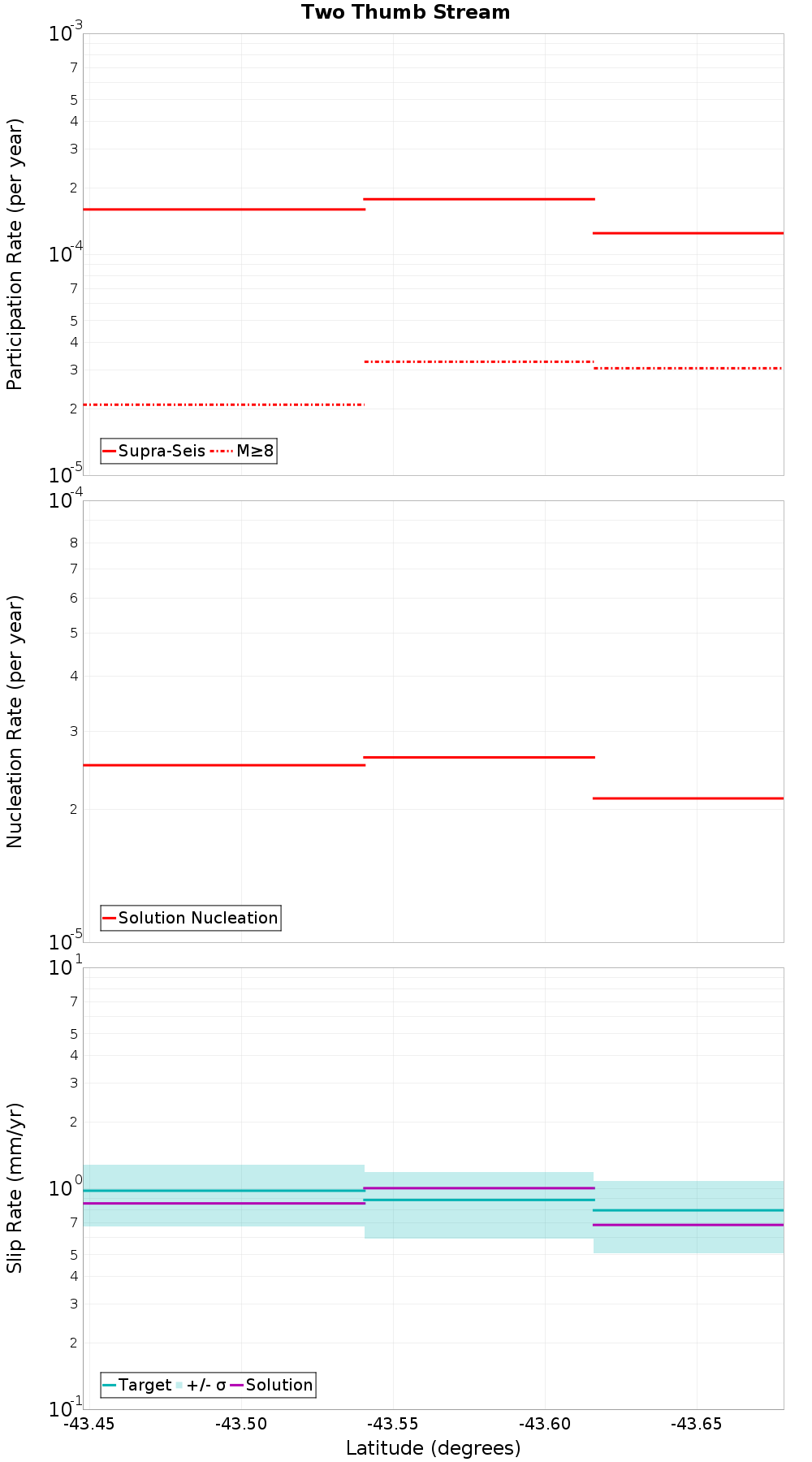

Along-Strike Values

(top)

Along-strike plot

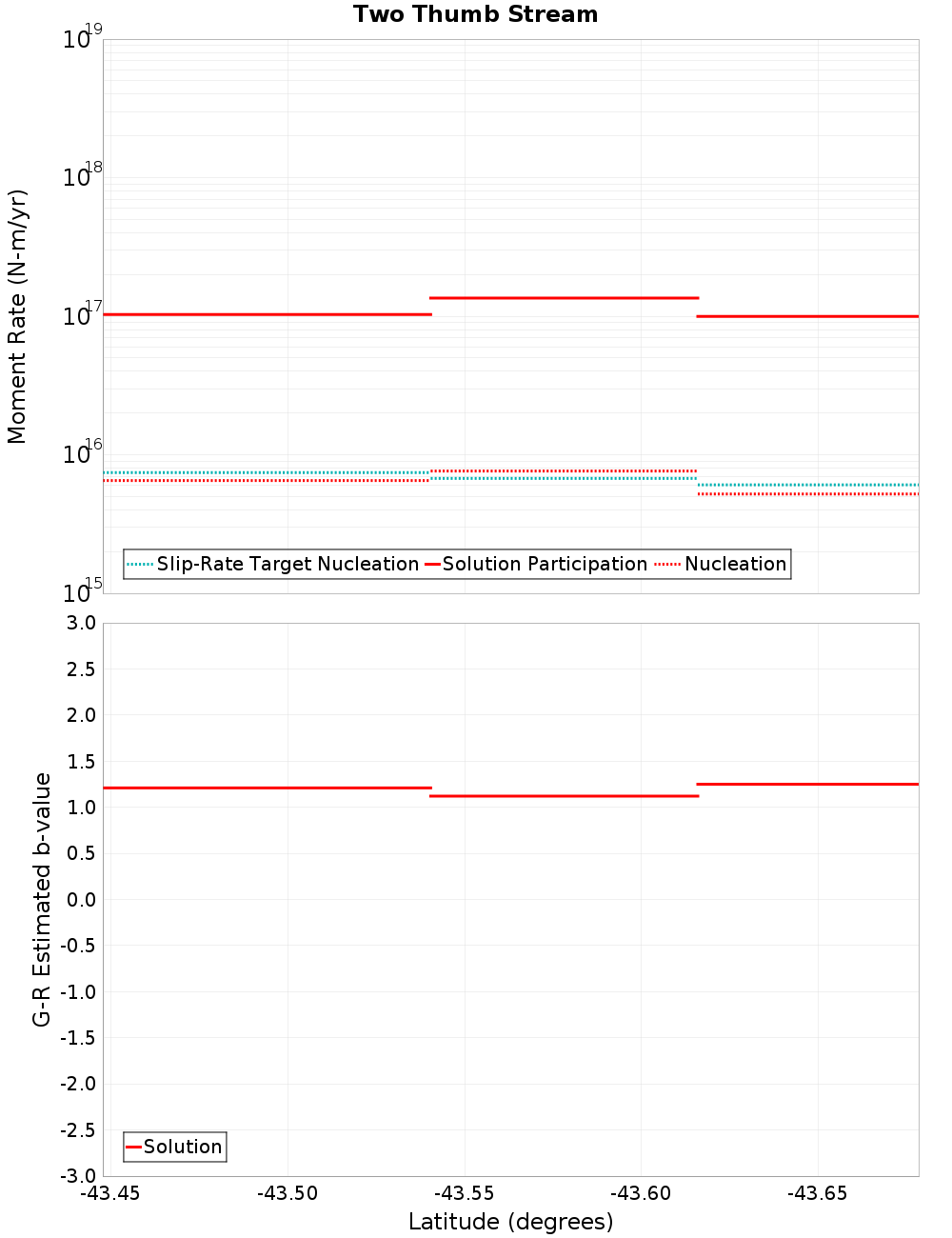

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lilybank, 0.1 km away
Fox Peak, 3.33 km away
Gunn Glacier, 3.49 km away
Macaulay 2, 5.09 km away
Veil Stream, 5.35 km away
Potts Range, 6.08 km away
Jollie Range, 6.87 km away
Alpine: Jacksons to Kaniere, 7.31 km away
Hohonu South, 10.18 km away
Potts River, 10.32 km away
Observation, 10.58 km away
Irishman Creek, 11.36 km away
Mt Adams, 12.98 km away
Lord Range, 13.9 km away

Lilybank, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?true
Co-rupture Count3,316
Co-rupture Rate7.087525E-5

Fox Peak, 3.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?true
Co-rupture Count765
Co-rupture Rate3.4014527E-5

Gunn Glacier, 3.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Macaulay 2, 5.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?true
Co-rupture Count158
Co-rupture Rate4.0688677E-10

Veil Stream, 5.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?true
Co-rupture Count5,114
Co-rupture Rate6.549158E-5

Potts Range, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Jollie Range, 6.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Alpine: Jacksons to Kaniere, 7.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?false
Co-rupture Count2,169
Co-rupture Rate3.0462272E-5

Hohonu South, 10.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?false
Co-rupture Count2,338
Co-rupture Rate1.0932991E-5

Potts River, 10.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Observation, 10.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?false
Co-rupture Count823
Co-rupture Rate1.4042132E-12

Irishman Creek, 11.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?false
Co-rupture Count138
Co-rupture Rate4.199093E-5

Mt Adams, 12.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate0.0

Lord Range, 13.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MDcuMHBhZm9O
Connected?true
Directly Connected?false
Co-rupture Count1,164
Co-rupture Rate7.1519675E-9
