Awanui 2 Details
| Property | Value |
|---|---|
| Rupture Count | 973 |
| Ruptures Above Sect Min Mag | 946 |
| Ruptures w/ Nonzero Rates | 37 |
| Magnitude Range | [6.51, 8.00] |
| Length Range | [16, 356] km |
| Total Rate | 4.99874E-4 /yr |
| Multi-Fault Rate | 4.6931495E-4 /yr (93.89%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 11 |
Table Of Contents

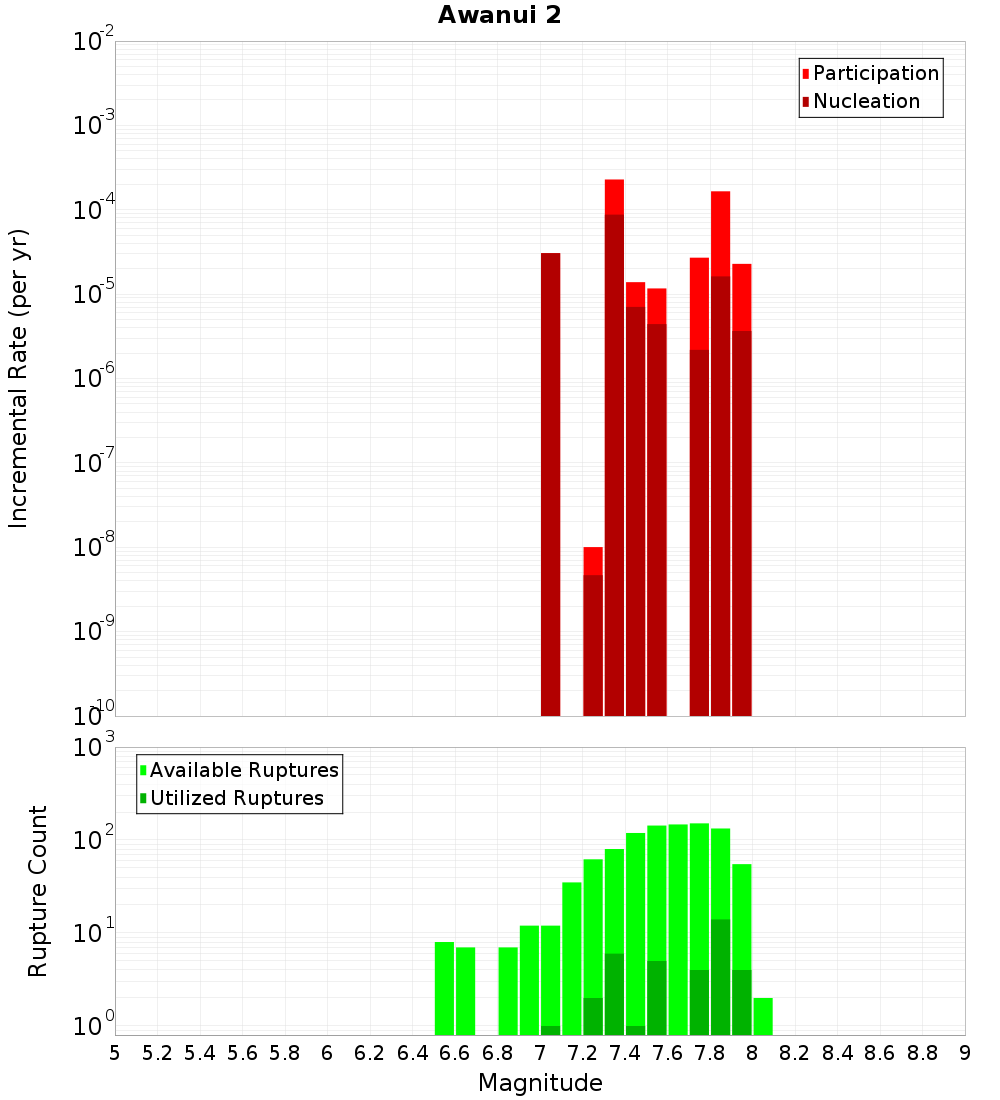

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

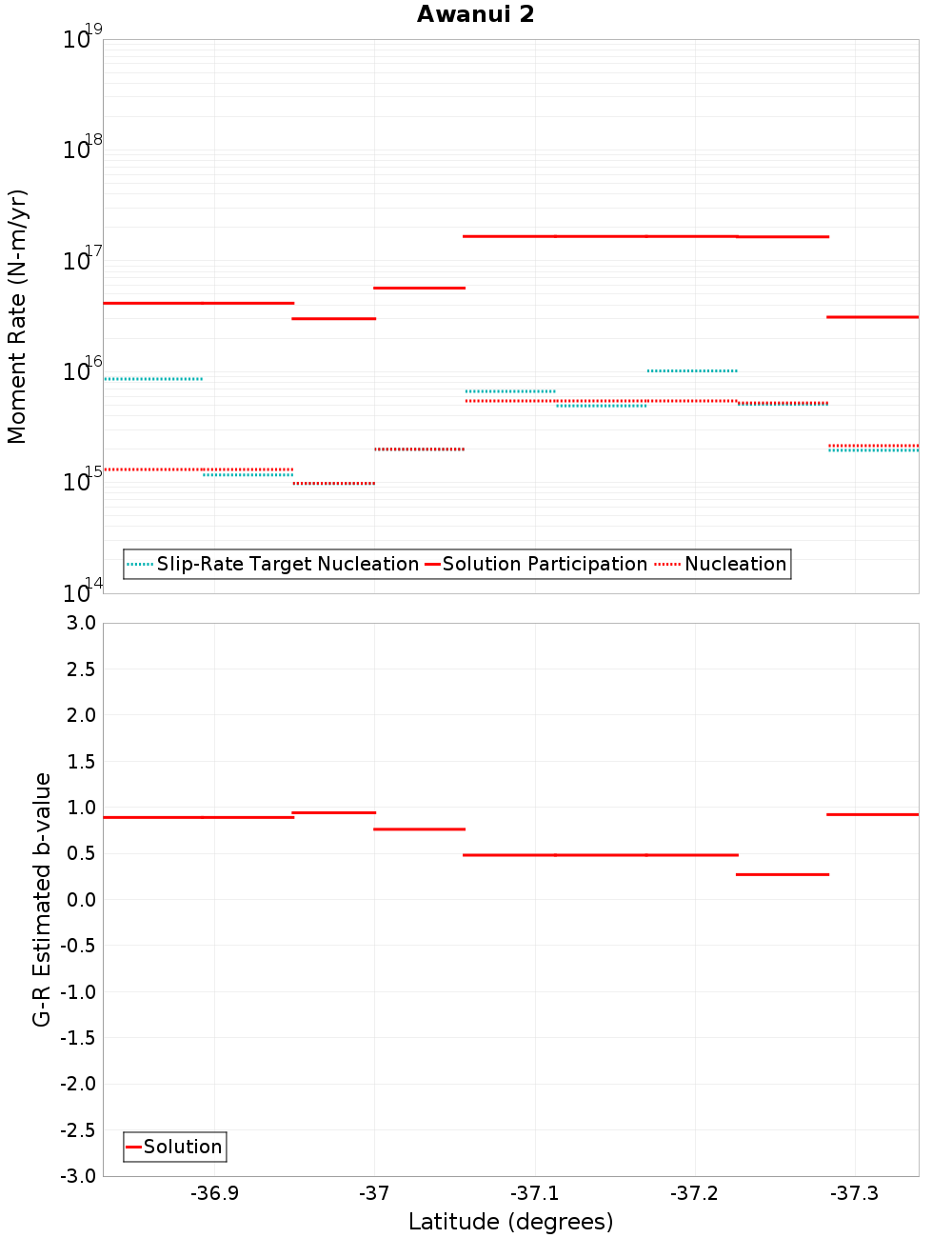

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kermadec Trench slope1, 3.49 km away |
| Awanui 3, 4.72 km away |
| Awanui 1, 4.86 km away |
| Kermadec Trench, 4.91 km away |
Kermadec Trench slope1, 3.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 325 |
| Co-rupture Rate | 1.9858991E-4 |
Awanui 3, 4.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 548 |
| Co-rupture Rate | 2.7862538E-5 |
Awanui 1, 4.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 363 |
| Co-rupture Rate | 2.6480458E-4 |
Kermadec Trench, 4.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 208 |
| Co-rupture Rate | 2.3614455E-5 |
