Wairarapa: Needles Details

PropertyValue
Rupture Count46,895
Ruptures Above Sect Min Mag46,891
Ruptures w/ Nonzero Rates111
Magnitude Range[6.75, 8.47]
Length Range[19, 1,083] km
Total Rate0.0016906876 /yr
Multi-Fault Rate0.0016906876 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults222

Table Of Contents

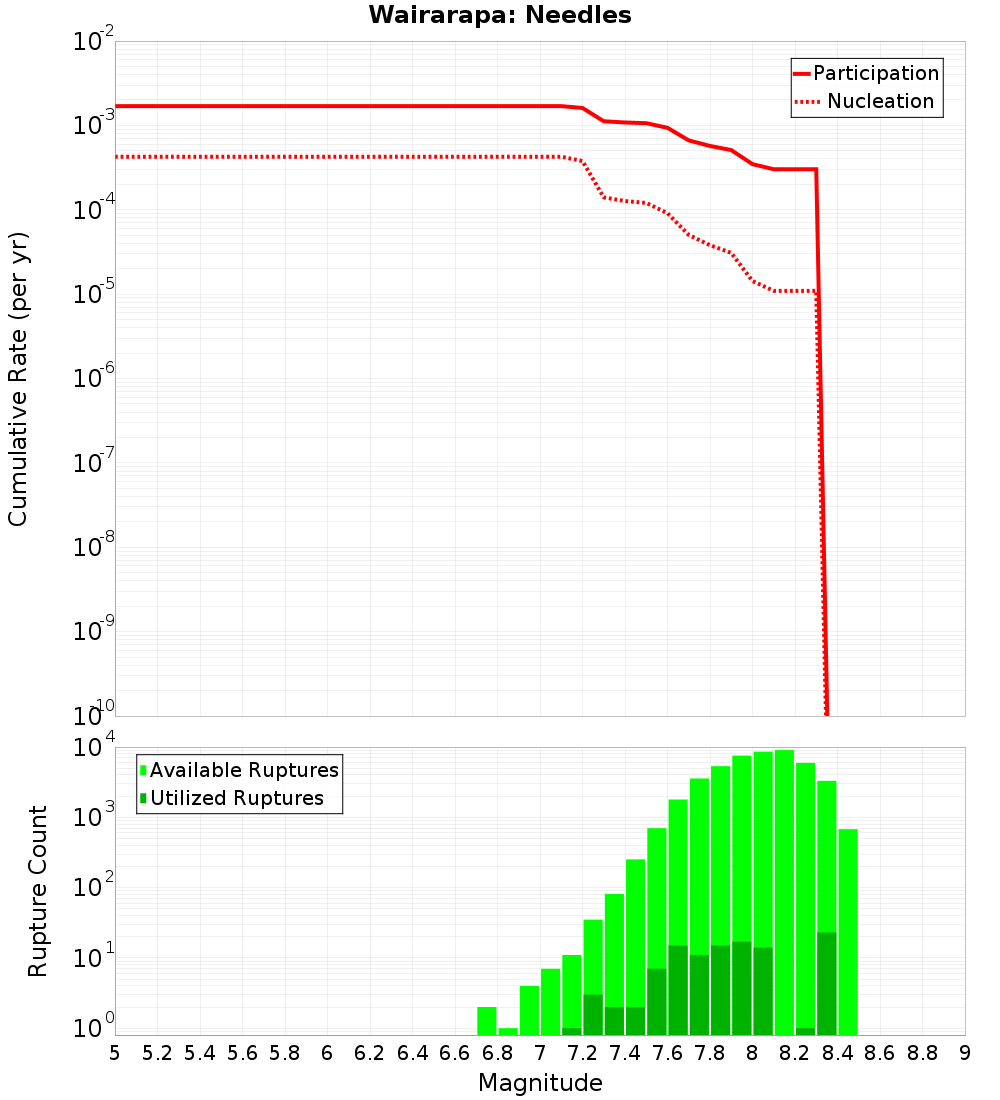

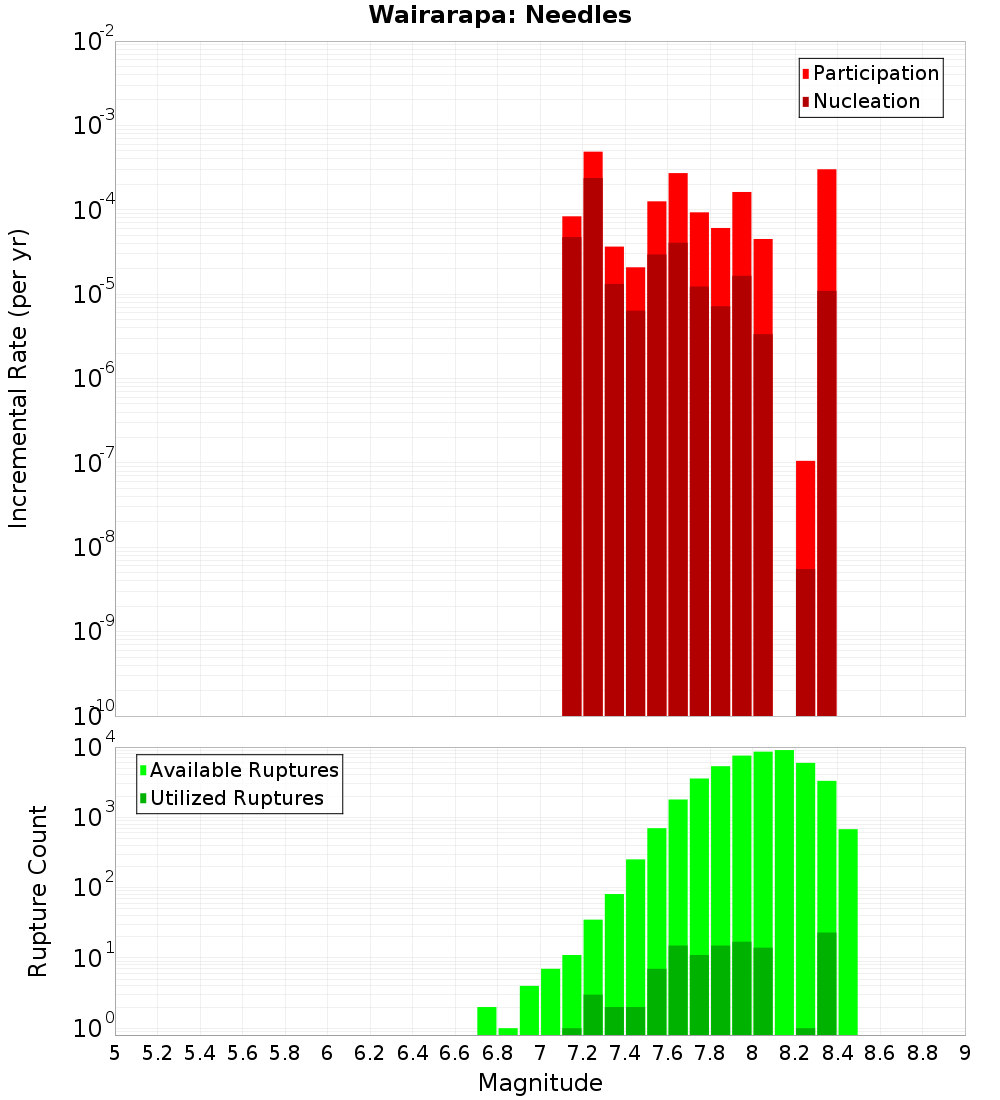

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

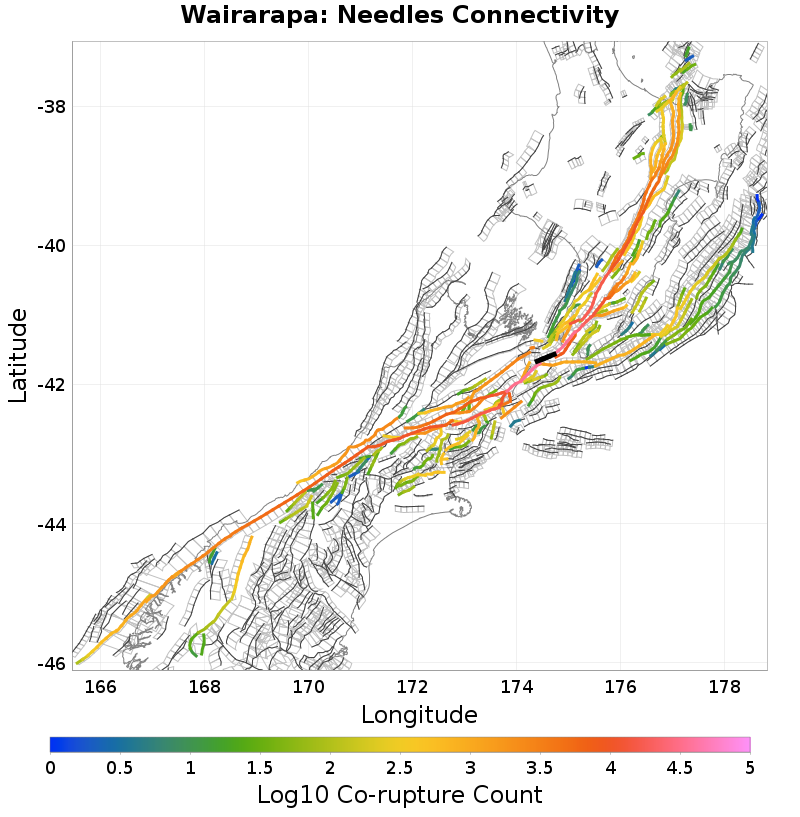

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 1, 0 km awayWairau 3, 9.87 km away
Cloudy 3, 0.29 km awayCloudy 1, 10.84 km away
Wharekauhau, 0.4 km awayWellington Hutt Valley: 2, 12.47 km away
Vernon 4, 0.42 km awayNeedles East 2, 12.75 km away
Needles, 4.57 km awayVernon 2, 14.03 km away
BooBoo, 5.6 km awayWellington Hutt Valley: 1, 14.52 km away
Cloudy 2, 6.58 km awayAwatere: Northeast 2, 14.79 km away
Vernon 3, 9.01 km awayOhariu, 14.92 km away
London Hill, 9.47 km away

Wairarapa: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?true
Co-rupture Count36,768
Co-rupture Rate0.0013147696

Cloudy 3, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wharekauhau, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?true
Co-rupture Count8,513
Co-rupture Rate2.1009946E-4

Vernon 4, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Needles, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?true
Co-rupture Count38,614
Co-rupture Rate6.277205E-4

BooBoo, 5.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?true
Co-rupture Count1,549
Co-rupture Rate0.0

Cloudy 2, 6.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?true
Co-rupture Count3,340
Co-rupture Rate3.6750824E-4

Vernon 3, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

London Hill, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?false
Co-rupture Count1,447
Co-rupture Rate6.0156686E-5

Wairau 3, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?true
Co-rupture Count344
Co-rupture Rate4.9744523E-4

Cloudy 1, 10.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 12.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?false
Co-rupture Count90
Co-rupture Rate8.9687645E-5

Needles East 2, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate0.0

Vernon 2, 14.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?true
Co-rupture Count205
Co-rupture Rate1.9801361E-4

Awatere: Northeast 2, 14.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?false
Co-rupture Count2,949
Co-rupture Rate2.3532857E-4

Ohariu, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMDN5RXcz
Connected?true
Directly Connected?false
Co-rupture Count328
Co-rupture Rate1.6814524E-4
