Alpine: George landward Details

PropertyValue
Rupture Count41,528
Ruptures Above Sect Min Mag41,526
Ruptures w/ Nonzero Rates200
Magnitude Range[6.63, 8.48]
Length Range[16, 1,083] km
Total Rate0.0015115157 /yr
Multi-Fault Rate0.0015115157 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults197

Table Of Contents

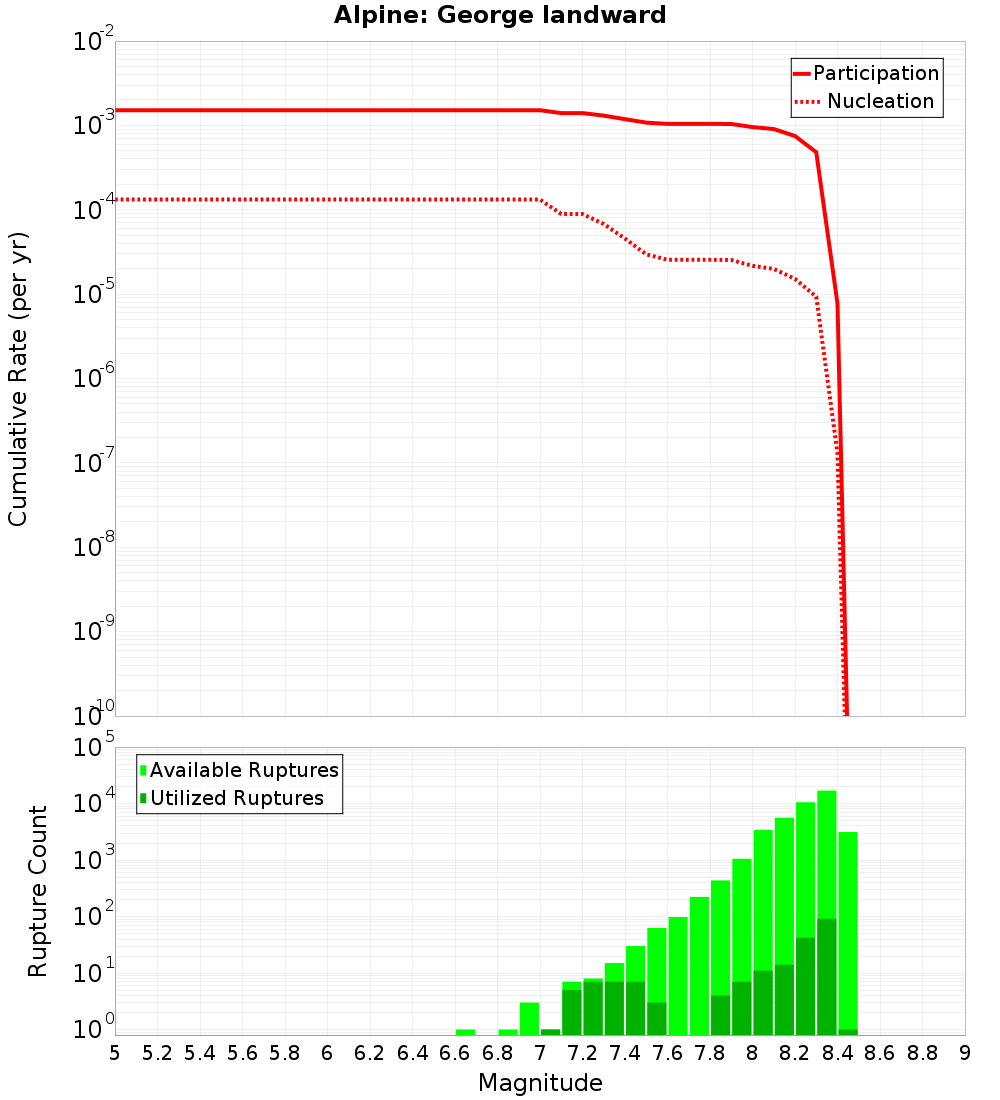

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

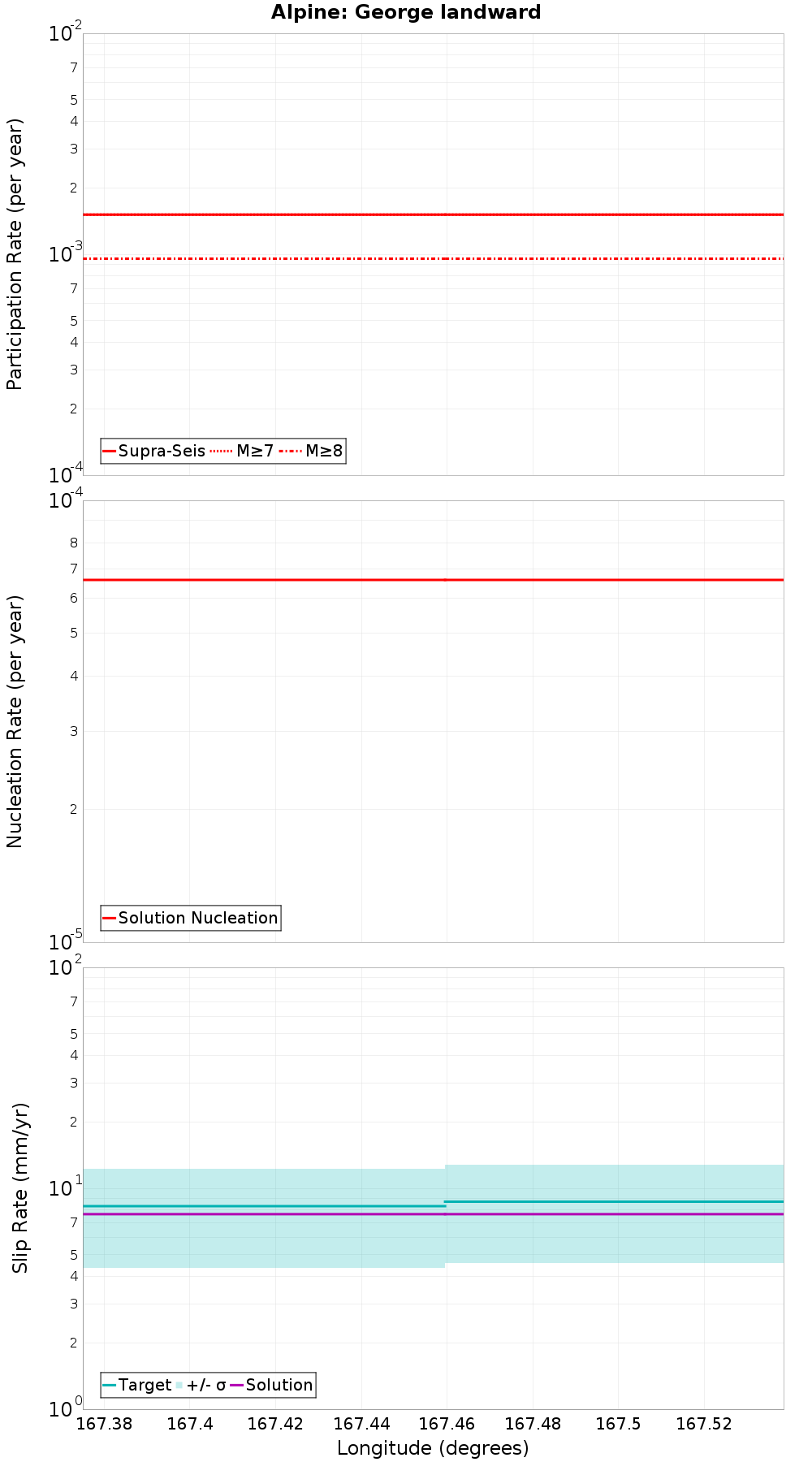

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

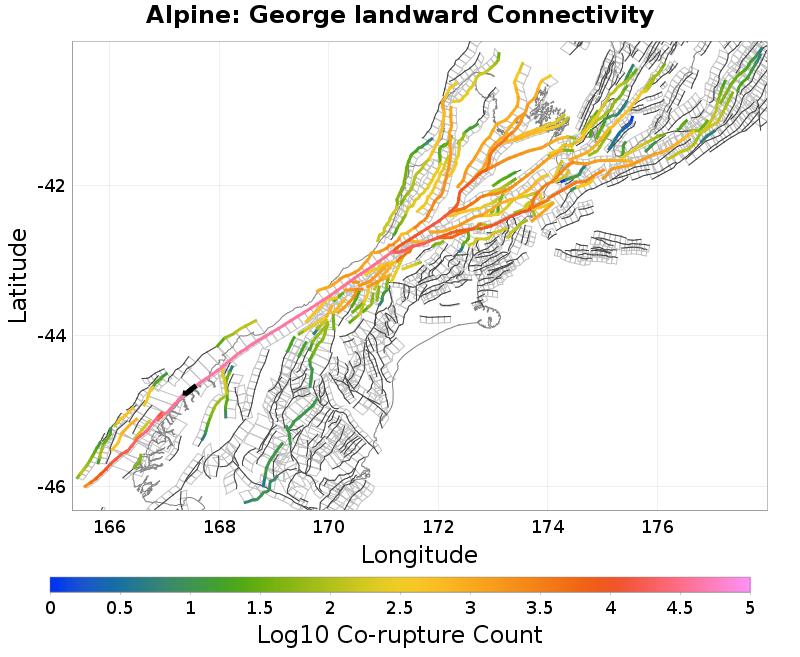

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: George seaward, 0 km away
Alpine: George to Jacksons, 0 km away
Alpine: Caswell - South George, 0.03 km away
Madagascar, 0.41 km away
Central Wedge 1 & 2 & 3, 7.52 km away

Alpine: George seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count395
Co-rupture Rate1.8851027E-4

Alpine: George to Jacksons, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count41,451
Co-rupture Rate0.0014740205

Alpine: Caswell - South George, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count39,021
Co-rupture Rate0.0013979877

Madagascar, 0.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Central Wedge 1 & 2 & 3, 7.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count330
Co-rupture Rate3.8702005E-5
