Edith Details

Property	Value
Rupture Count	40
Ruptures Above Sect Min Mag	39
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.78, 7.88]
Length Range	[19, 243] km
Total Rate	1.0247461E-4 /yr
Multi-Fault Rate	1.0247461E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	16

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

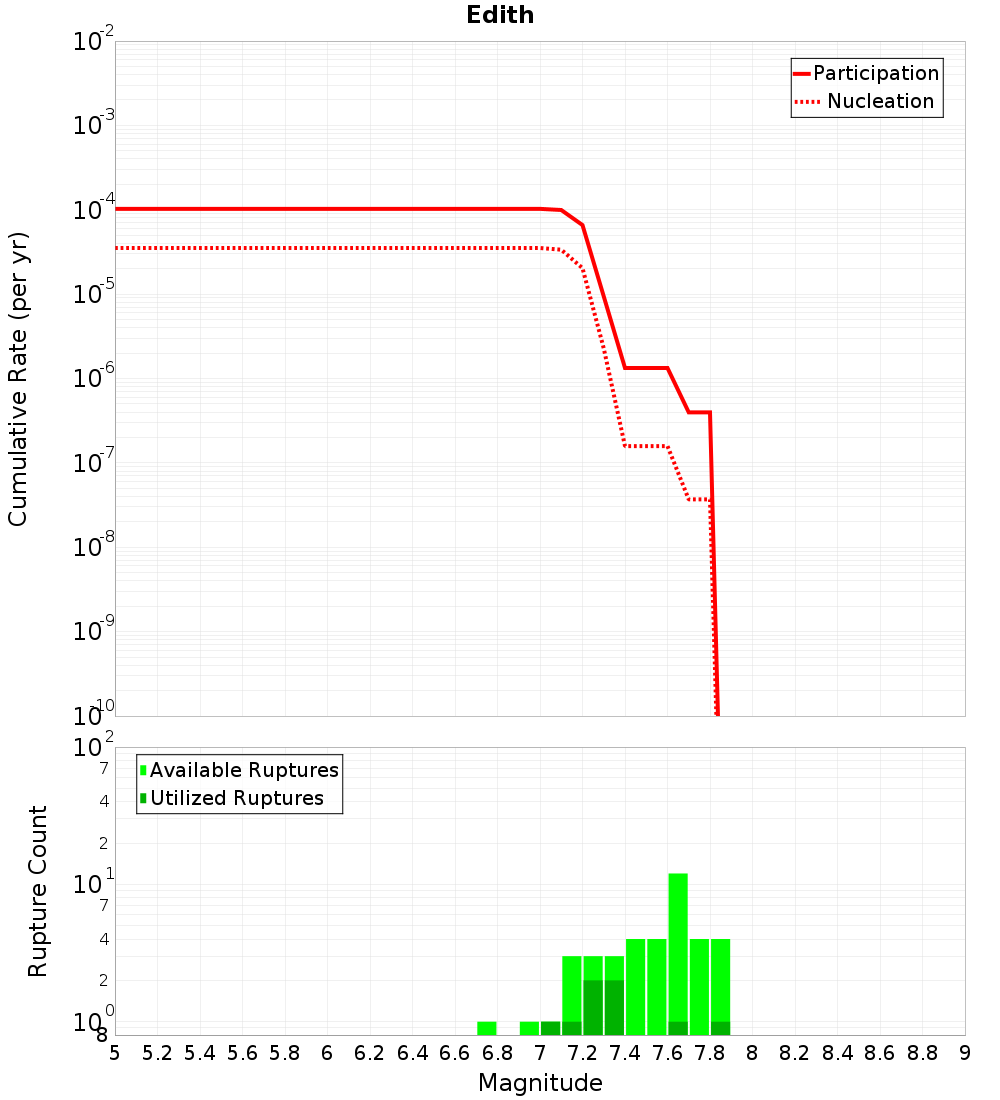

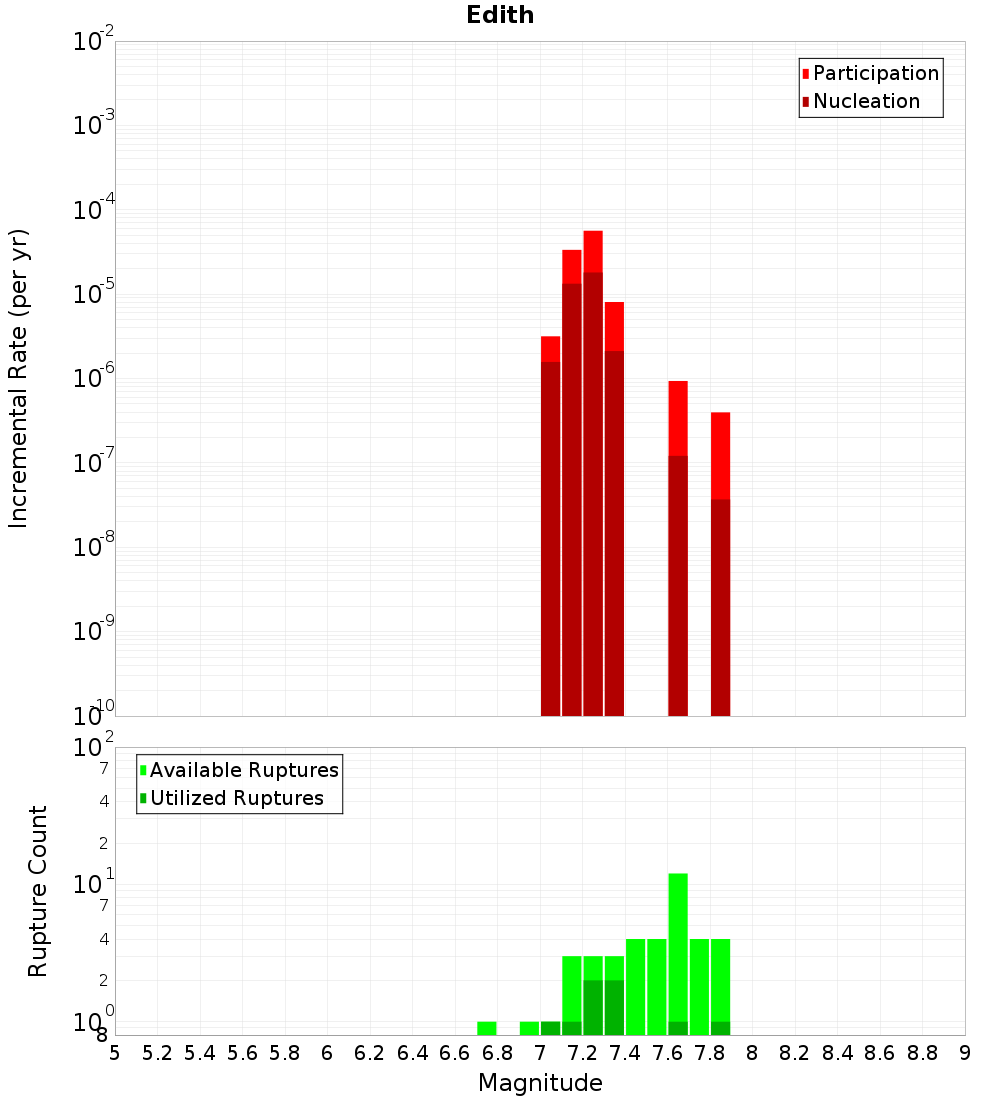

Magnitude-Frequency Distribution

Incremental	Cumulative

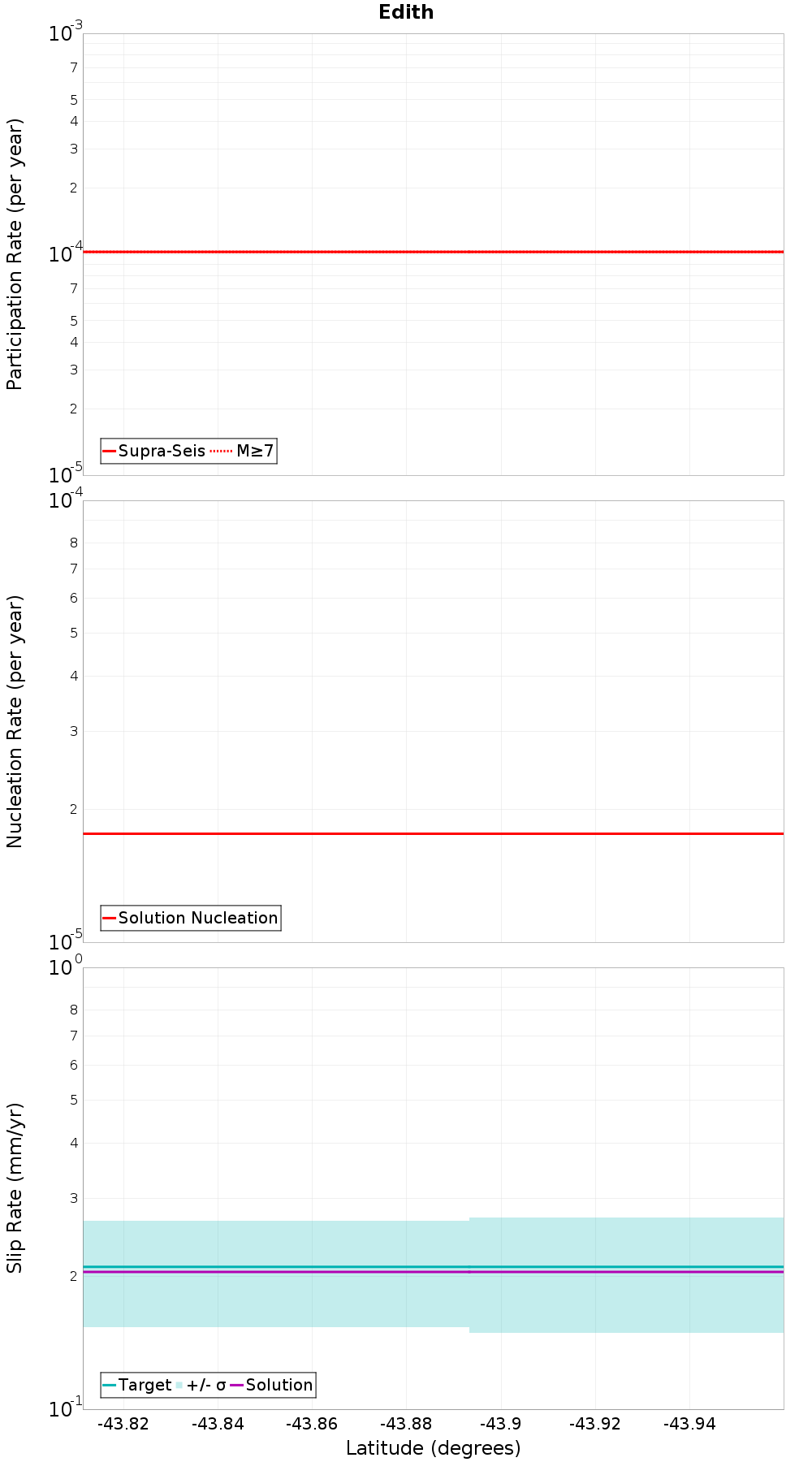

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ben McLeod, 0.15 km away
Hutt Peel, 0.23 km away
Coal Creek, 0.36 km away
Catherine, 2.21 km away
Brothers, 2.5 km away
Quartz Creek, 2.94 km away
Sugarloaf, 8.41 km away
Rapuwai, 8.93 km away
Irishman Creek, 11.95 km away
Klondyke Moor, 13.75 km away
Opawa, 14.05 km away

Ben McLeod, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	2.8574098E-6

Hutt Peel, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	1.3316613E-6

Coal Creek, 0.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Catherine, 2.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Brothers, 2.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Quartz Creek, 2.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	true
Co-rupture Count	26
Co-rupture Rate	1.6115118E-5

Sugarloaf, 8.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rapuwai, 8.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	9.828554E-5

Irishman Creek, 11.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Klondyke Moor, 13.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opawa, 14.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
