Hawke Bay 1 Details
| Property | Value |
|---|---|
| Rupture Count | 222 |
| Ruptures Above Sect Min Mag | 220 |
| Ruptures w/ Nonzero Rates | 15 |
| Magnitude Range | [6.85, 7.80] |
| Length Range | [21, 205] km |
| Total Rate | 8.877076E-5 /yr |
| Multi-Fault Rate | 8.877076E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 13 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

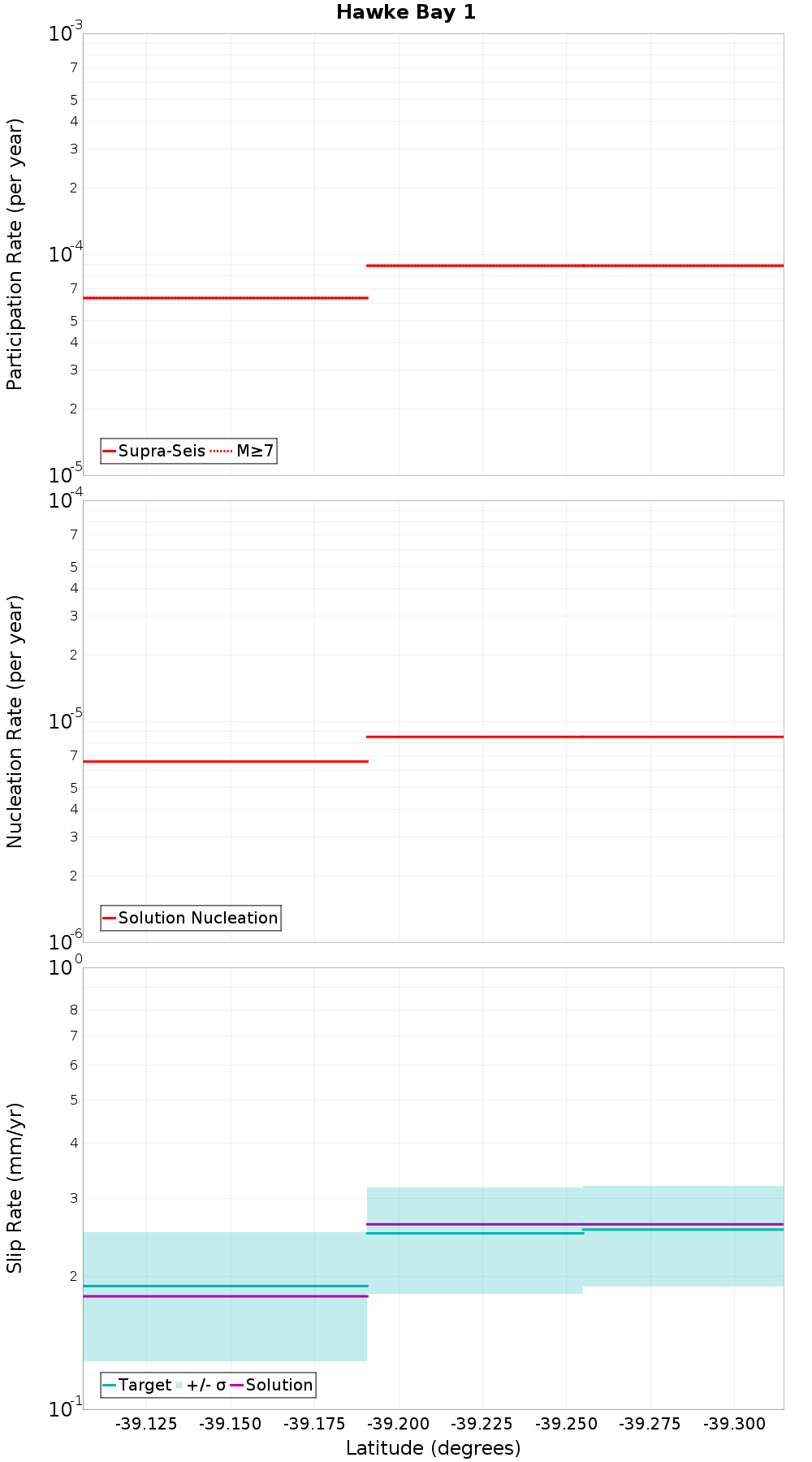

Along-Strike Values

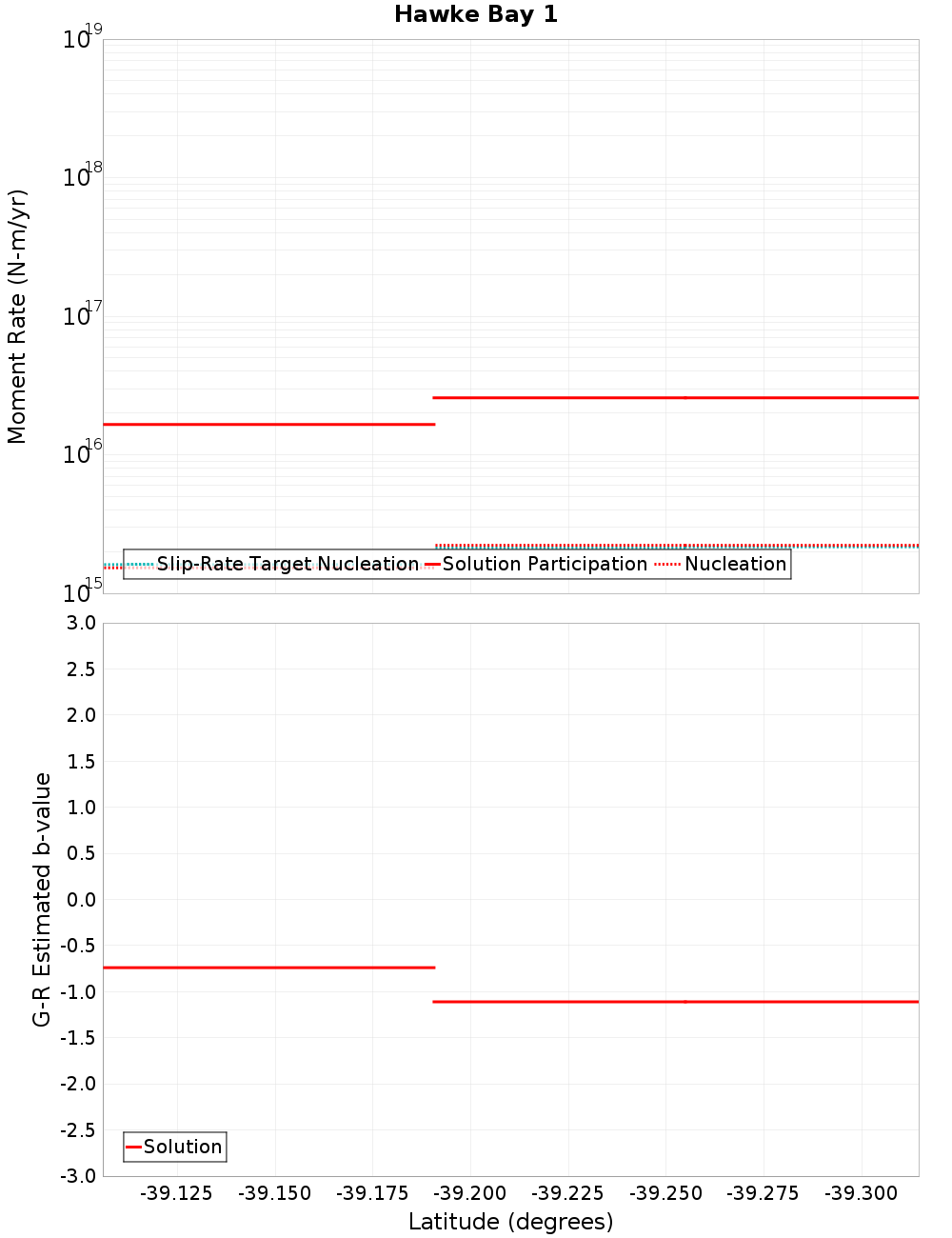

Moment-Rates and b-Values

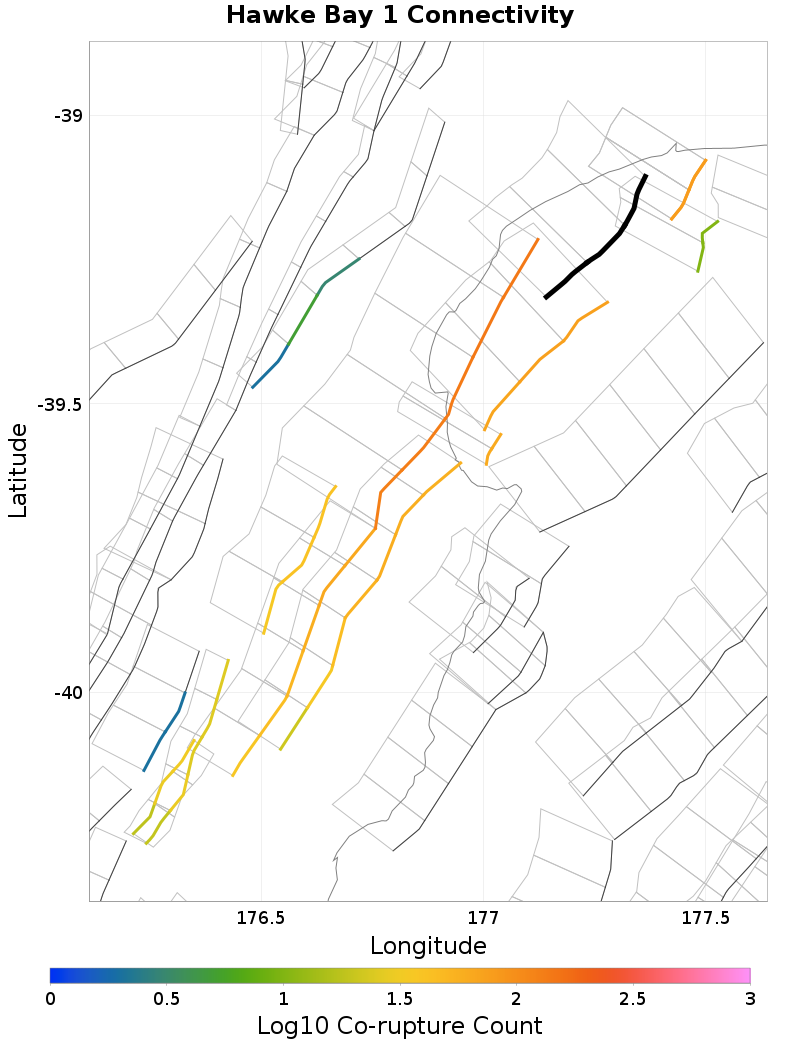

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 4, 4.42 km away |
| Awanui, 4.66 km away |
| Hawke Bay 2, 4.77 km away |
| Hawke Bay 5 & 11, 8.71 km away |
| Patoka - Rangiora, 13.16 km away |
Hawke Bay 4, 4.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 79 |
| Co-rupture Rate | 2.5382182E-5 |
Awanui, 4.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 141 |
| Co-rupture Rate | 4.803973E-5 |
Hawke Bay 2, 4.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 74 |
| Co-rupture Rate | 4.0731033E-5 |
Hawke Bay 5 & 11, 8.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 10 |
| Co-rupture Rate | 2.5382182E-5 |
Patoka - Rangiora, 13.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 5.5033593E-6 |
