Jagged Details

PropertyValue
Rupture Count7,280
Ruptures Above Sect Min Mag7,266
Ruptures w/ Nonzero Rates167
Magnitude Range[6.44, 8.23]
Length Range[12, 608] km
Total Rate2.2278338E-4 /yr
Multi-Fault Rate2.2278338E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults153

Table Of Contents

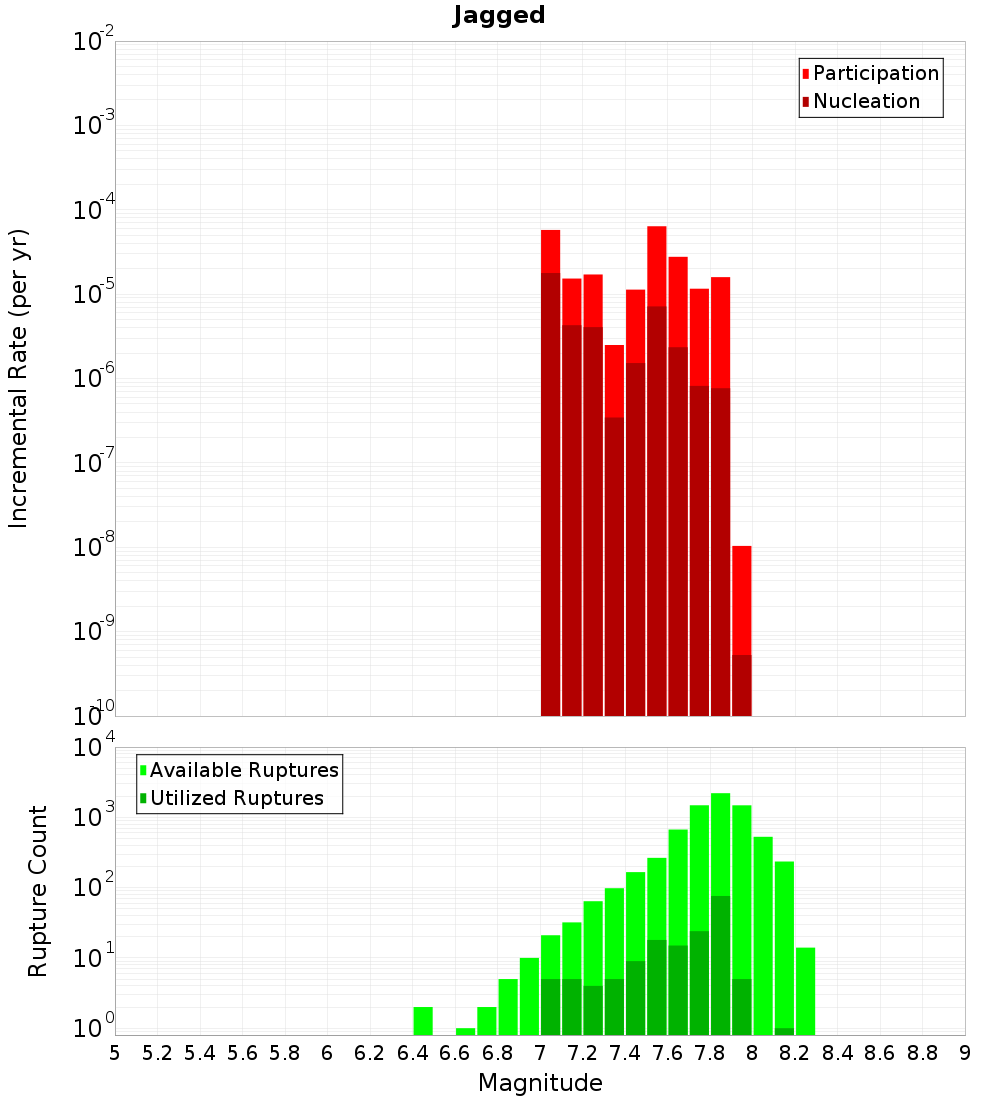

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

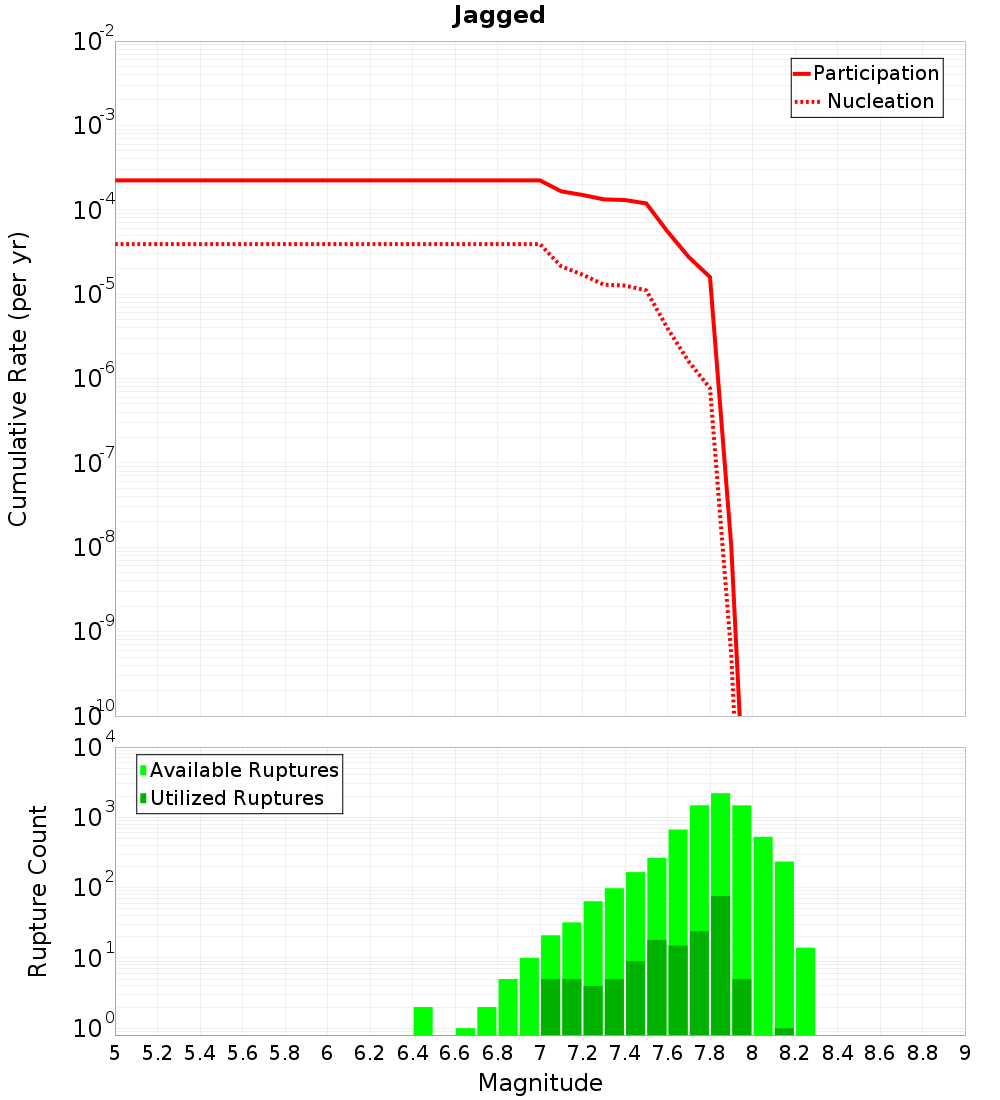

Incremental PlotCumulative Plot

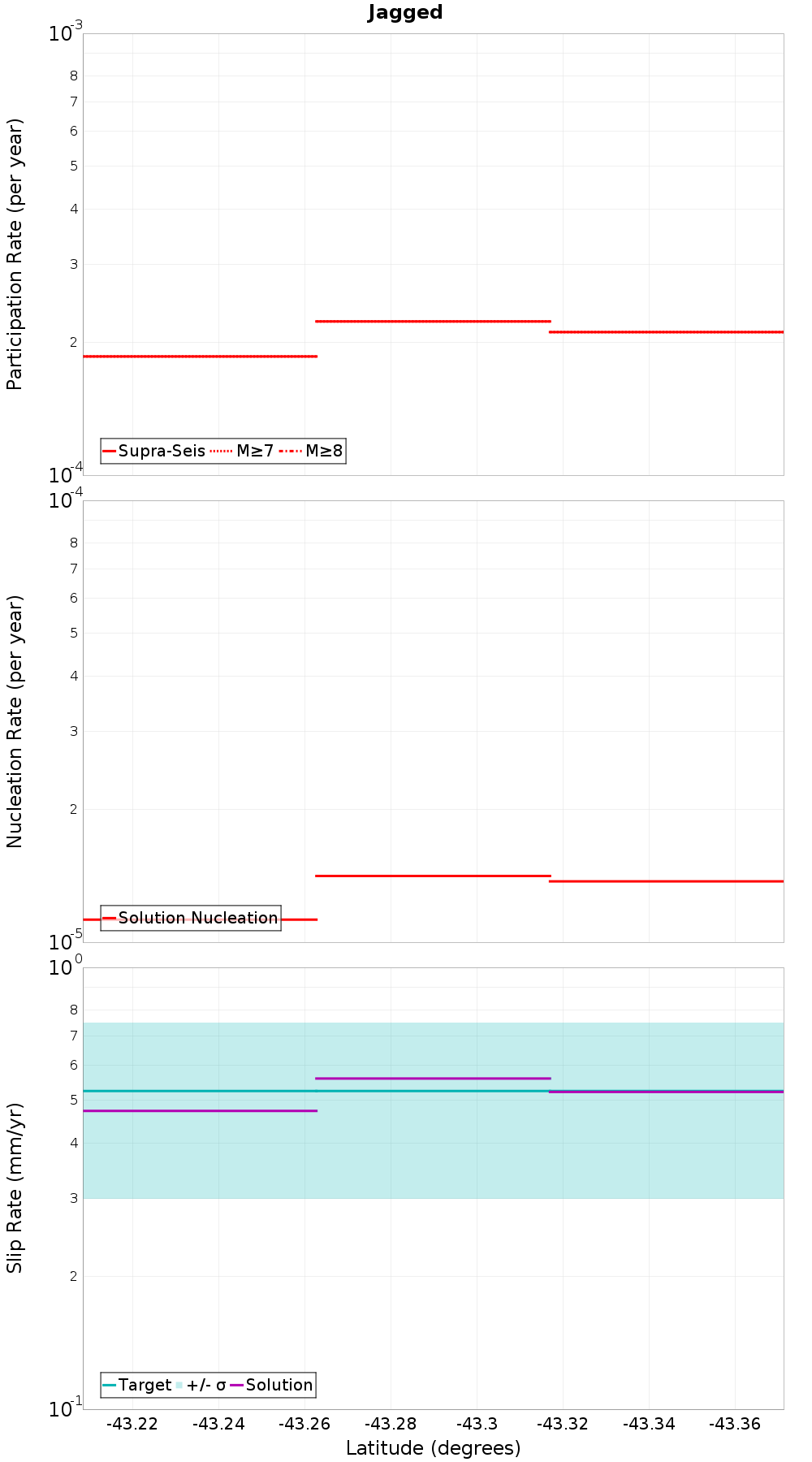

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Potts River, 0.23 km away
Observation, 0.34 km away
Double Hill, 1.2 km away
Lake Heron, 4.43 km away
Mistake - Rolleston, 5.86 km away
Mathias, 6.29 km away
Alpine: Jacksons to Kaniere, 6.5 km away
Mungo, 7.15 km away
Waitaha, 7.89 km away
Potts Range, 10.1 km away
Jollie Range, 12.18 km away
Lord Range, 12.78 km away
Hohonu South, 14.95 km away

Potts River, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count5,212
Co-rupture Rate2.9333449E-5

Observation, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count1,396
Co-rupture Rate1.03702945E-7

Double Hill, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count798
Co-rupture Rate3.1887525E-5

Lake Heron, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count170
Co-rupture Rate1.5525952E-4

Mistake - Rolleston, 5.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count5,166
Co-rupture Rate8.8962326E-5

Mathias, 6.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count374
Co-rupture Rate0.0

Alpine: Jacksons to Kaniere, 6.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count1,373
Co-rupture Rate1.0351838E-7

Mungo, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count231
Co-rupture Rate1.845574E-10

Waitaha, 7.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Potts Range, 10.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate1.9112604E-11

Jollie Range, 12.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Lord Range, 12.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count124
Co-rupture Rate0.0

Hohonu South, 14.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count1,730
Co-rupture Rate0.0
