Needles East 2 Details

PropertyValue
Rupture Count4,134
Ruptures Above Sect Min Mag4,133
Ruptures w/ Nonzero Rates71
Magnitude Range[6.92, 8.43]
Length Range[25, 895] km
Total Rate1.9599369E-4 /yr
Multi-Fault Rate1.9599369E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults219

Table Of Contents

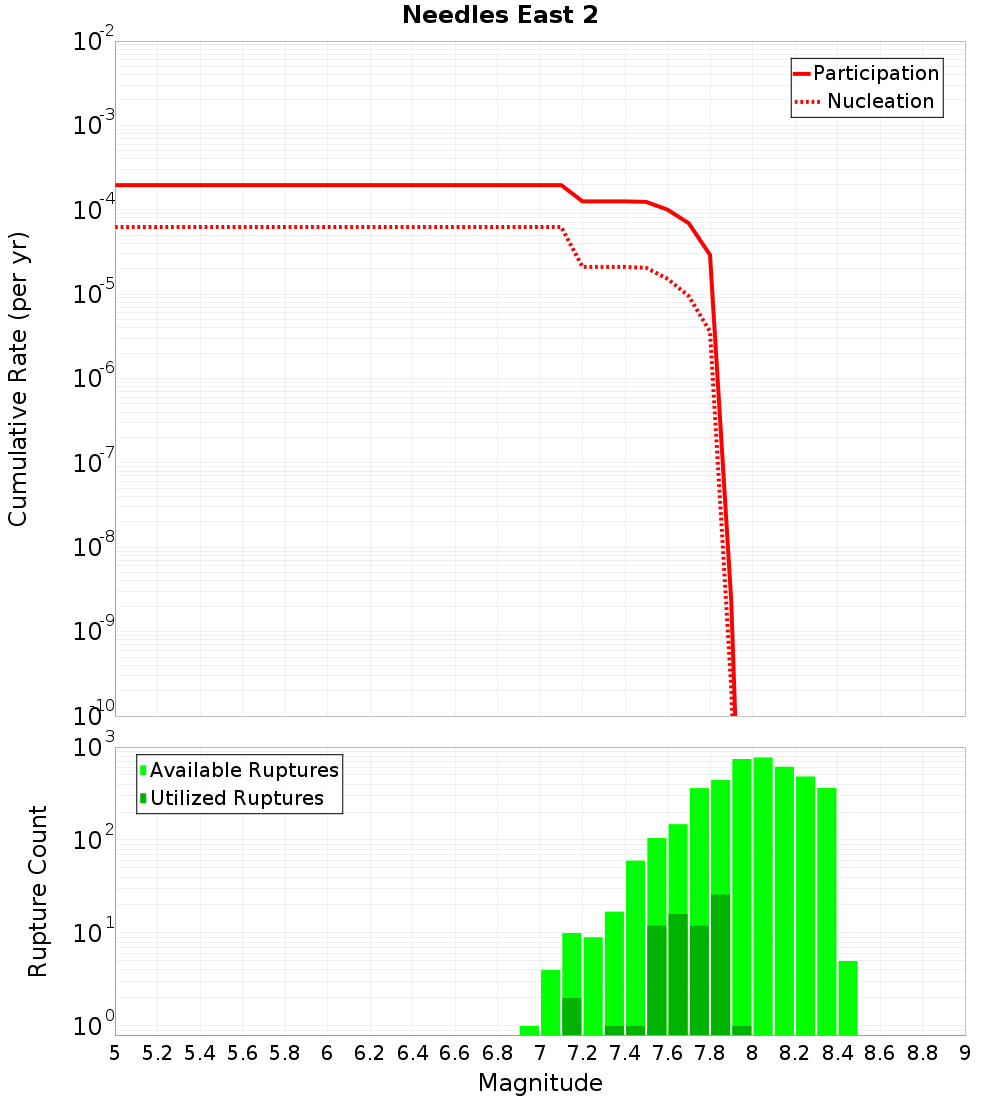

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

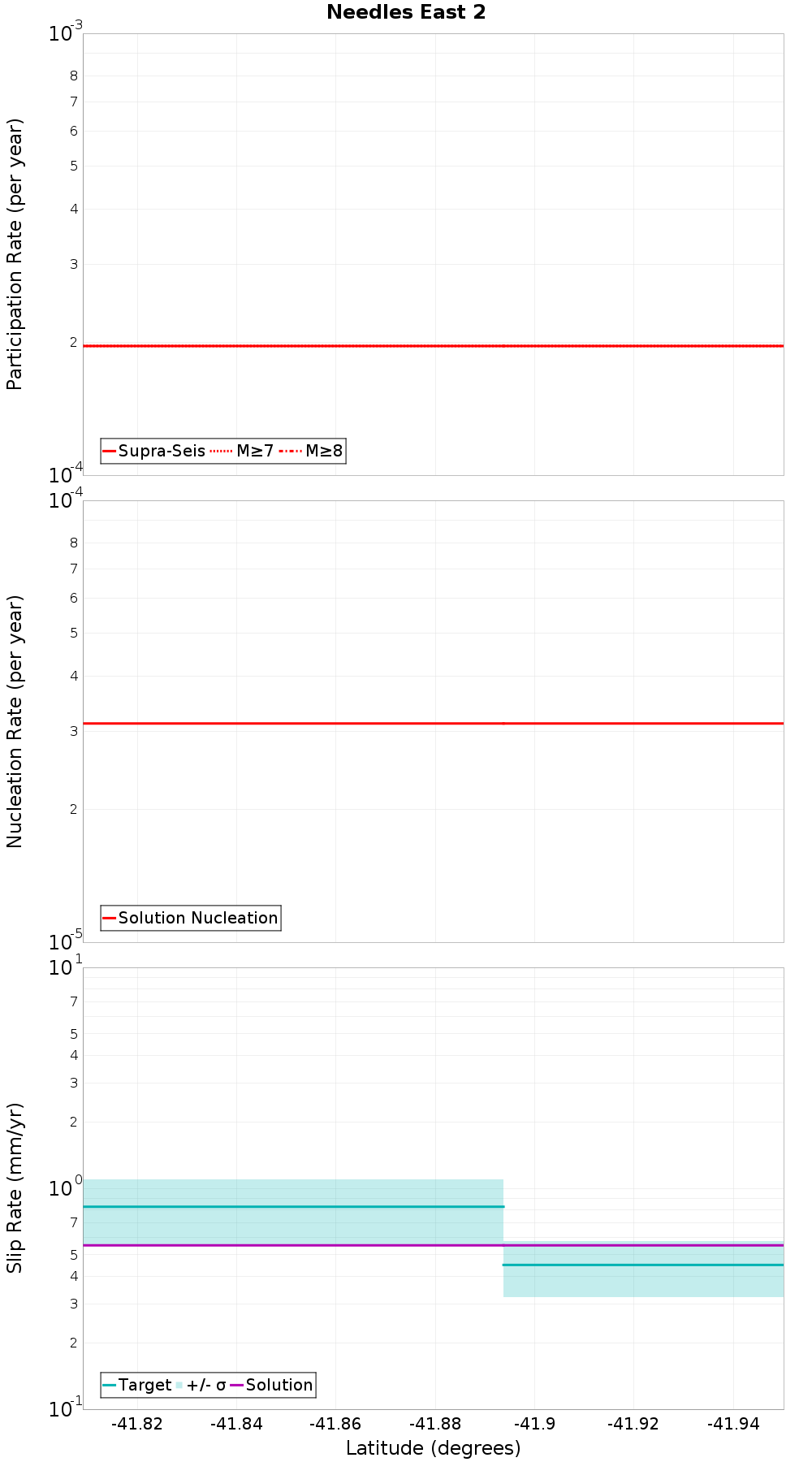

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Needles, 0.22 km away
London Hill, 0.29 km away
Chancet, 2.61 km away
Vernon 4, 4.12 km away
Kekerengu 1, 4.78 km away
Vernon 3, 8.28 km away
Clarence: Northeast, 8.38 km away
Wharanui, 9.25 km away
Vernon 1, 10.47 km away
BooBoo, 10.51 km away
Cloudy 3, 11.74 km away
Vernon 2, 12.36 km away
Wairarapa: Needles, 12.75 km away
Cloudy 1, 12.81 km away
Upper Slope, 13.52 km away

Needles, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count1,520
Co-rupture Rate0.0

London Hill, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count496
Co-rupture Rate4.2152033E-9

Chancet, 2.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate0.0

Vernon 4, 4.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu 1, 4.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?true
Co-rupture Count2,601
Co-rupture Rate1.9599369E-4

Vernon 3, 8.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Northeast, 8.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wharanui, 9.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 1, 10.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

BooBoo, 10.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count1,298
Co-rupture Rate0.0

Cloudy 3, 11.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 2, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate0.0

Cloudy 1, 12.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Upper Slope, 13.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
