Pahiatua Details

Property	Value
Rupture Count	1,797
Ruptures Above Sect Min Mag	1,791
Ruptures w/ Nonzero Rates	19
Magnitude Range	[6.64, 8.11]
Length Range	[16, 458] km
Total Rate	7.141279E-5 /yr
Multi-Fault Rate	7.141279E-5 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	70

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

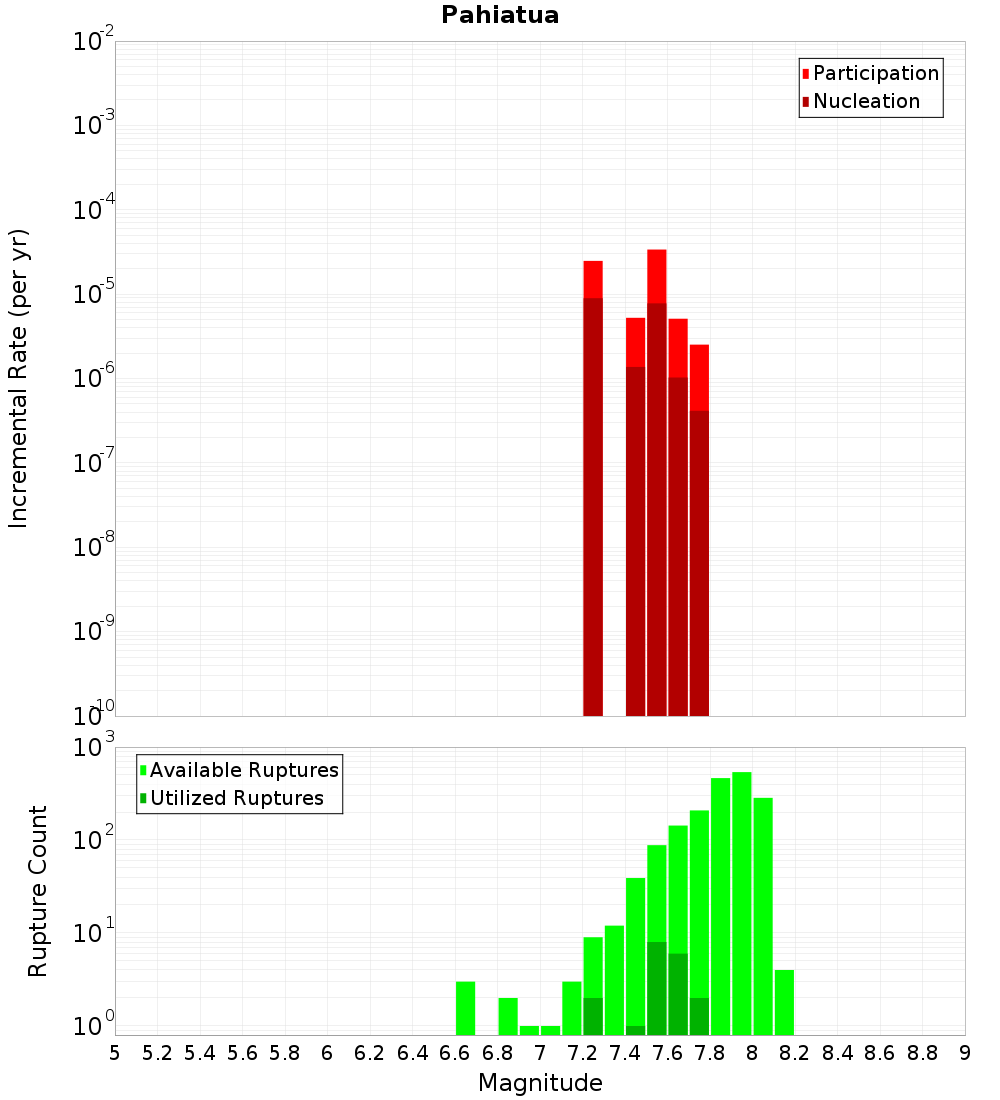

Magnitude-Frequency Distribution

Incremental	Cumulative

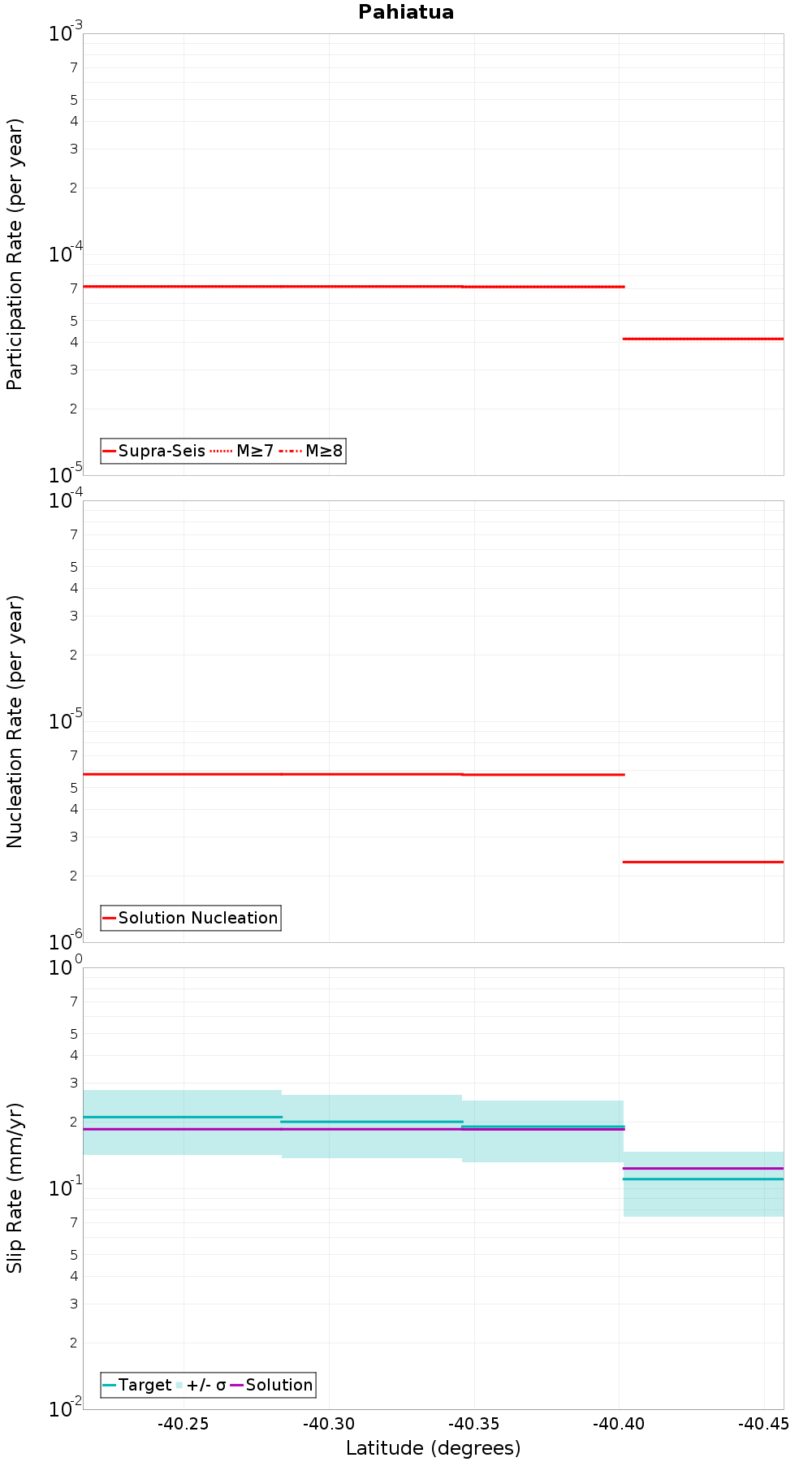

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Woodville, 1.03 km away
Maunga, 3.34 km away
Mohaka: South, 4.27 km away
Wellington: Pahiatua, 5.57 km away
Ruahine: South, 5.96 km away
Tokomaru, 9.69 km away
Rangefront, 9.78 km away
Waewaepa, 11.54 km away
Makuri - Waewaepa, 12.66 km away
Alfredton North, 12.96 km away
Clear Hills - Waikopiro, 13.79 km away
Pa Valley, 14.33 km away
Ruataniwha, 14.8 km away

Woodville, 1.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maunga, 3.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	true
Co-rupture Count	479
Co-rupture Rate	3.0018347E-5

Mohaka: South, 4.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	true
Co-rupture Count	1,495
Co-rupture Rate	4.083245E-5

Wellington: Pahiatua, 5.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	124
Co-rupture Rate	0.0

Ruahine: South, 5.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	true
Co-rupture Count	755
Co-rupture Rate	1.1845824E-5

Tokomaru, 9.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangefront, 9.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	212
Co-rupture Rate	5.2427563E-6

Waewaepa, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Makuri - Waewaepa, 12.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alfredton North, 12.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clear Hills - Waikopiro, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pa Valley, 14.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 14.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	243
Co-rupture Rate	3.0018347E-5
