Rangitaiki 1 Details

Property	Value
Rupture Count	6,095
Ruptures Above Sect Min Mag	6,089
Ruptures w/ Nonzero Rates	741
Magnitude Range	[6.42, 8.34]
Length Range	[9, 761] km
Total Rate	3.8575867E-4 /yr
Multi-Fault Rate	3.8575867E-4 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	81

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

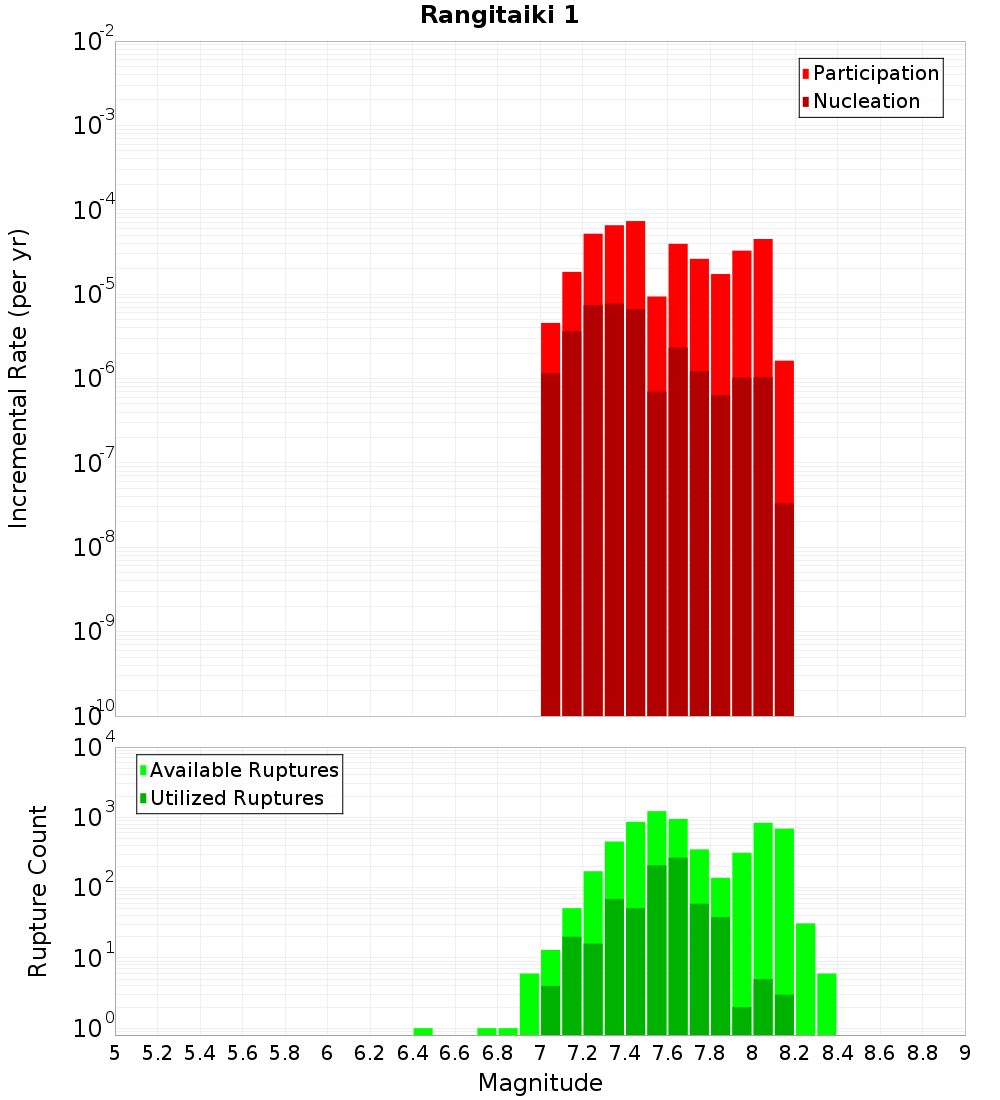

Magnitude-Frequency Distribution

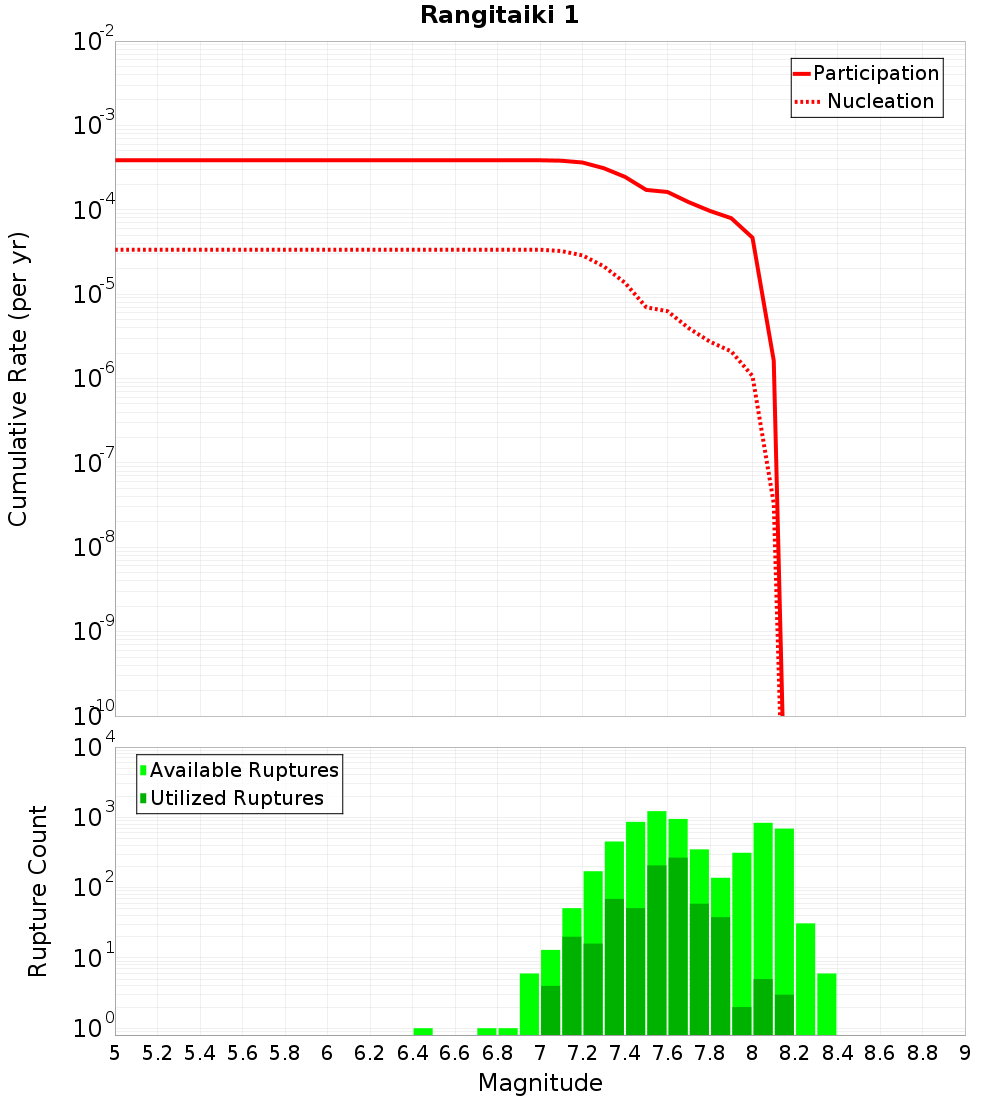

Incremental	Cumulative

Along-Strike Values

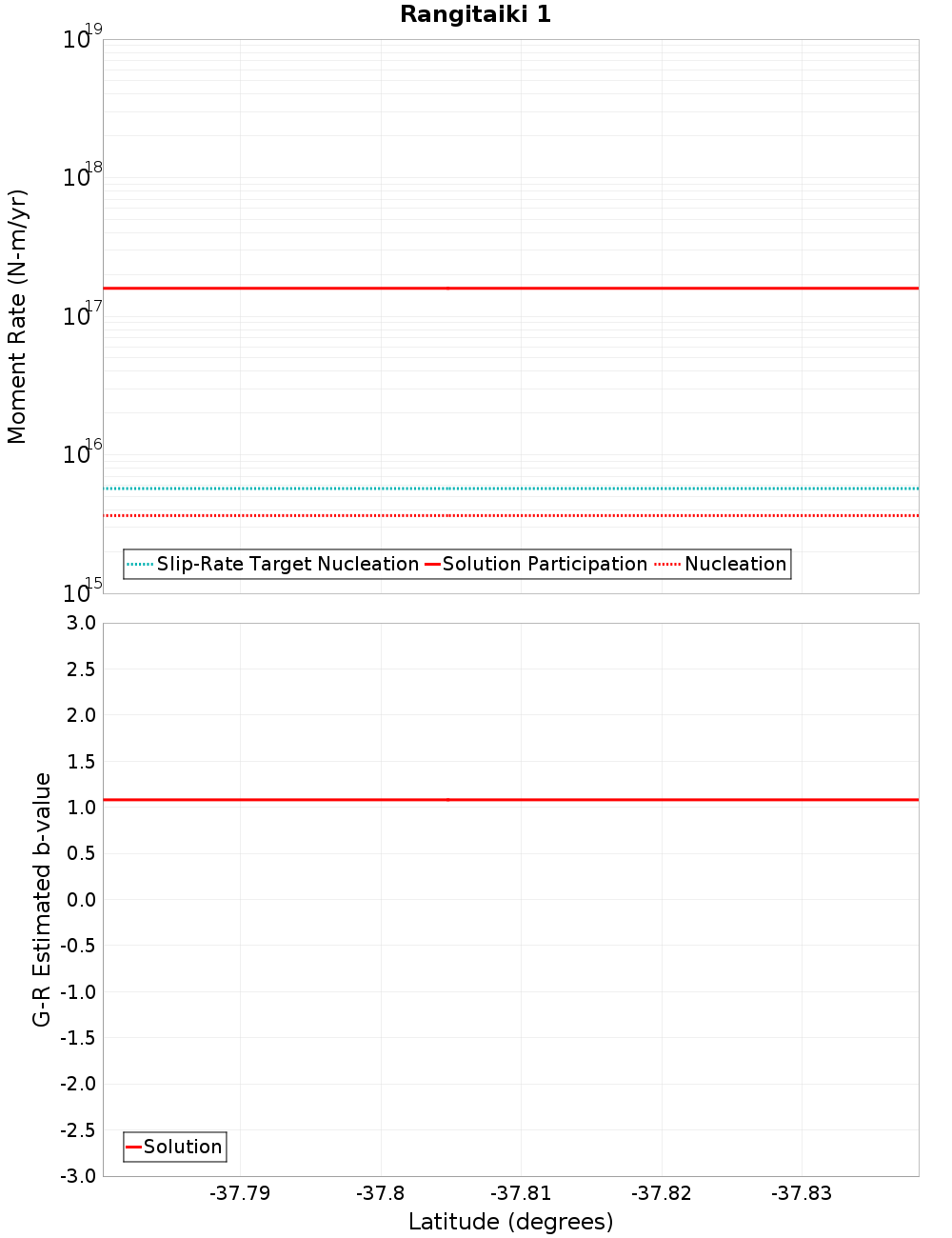

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Keepa, 4.88 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.7 km away
Calypso 2, 14.65 km away

Rangitaiki 2, 0.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	true
Co-rupture Count	3,163
Co-rupture Rate	2.1312453E-4

White Island 1, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	true
Co-rupture Count	8,177
Co-rupture Rate	5.322127E-4

Keepa, 4.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	376
Co-rupture Rate	4.7665544E-5

Ohiwa 1, 8.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	1,257
Co-rupture Rate	1.5150243E-4

Edgecumbe Coastal, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	2,594
Co-rupture Rate	4.4573415E-5

Matata, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	1,845
Co-rupture Rate	1.936755E-4

White Island 2, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	1,597
Co-rupture Rate	1.2301697E-4

Waimana: North, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	796
Co-rupture Rate	9.050721E-5

Whakaari 4, 10.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	2,561
Co-rupture Rate	6.113439E-5

Otakiri, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	731
Co-rupture Rate	1.0242968E-4

Whakatane: North, 11.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	547
Co-rupture Rate	9.107099E-6

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 13.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 14.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE
Connected?	true
Directly Connected?	false
Co-rupture Count	149
Co-rupture Rate	3.1497188E-5
