Waimea Offshore Details
| Property | Value |
|---|---|
| Rupture Count | 16,178 |
| Ruptures Above Sect Min Mag | 16,175 |
| Ruptures w/ Nonzero Rates | 103 |
| Magnitude Range | [7.06, 8.51] |
| Length Range | [29, 1,002] km |
| Total Rate | 2.752408E-4 /yr |
| Multi-Fault Rate | 1.4320921E-4 /yr (52.03%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 139 |
Table Of Contents

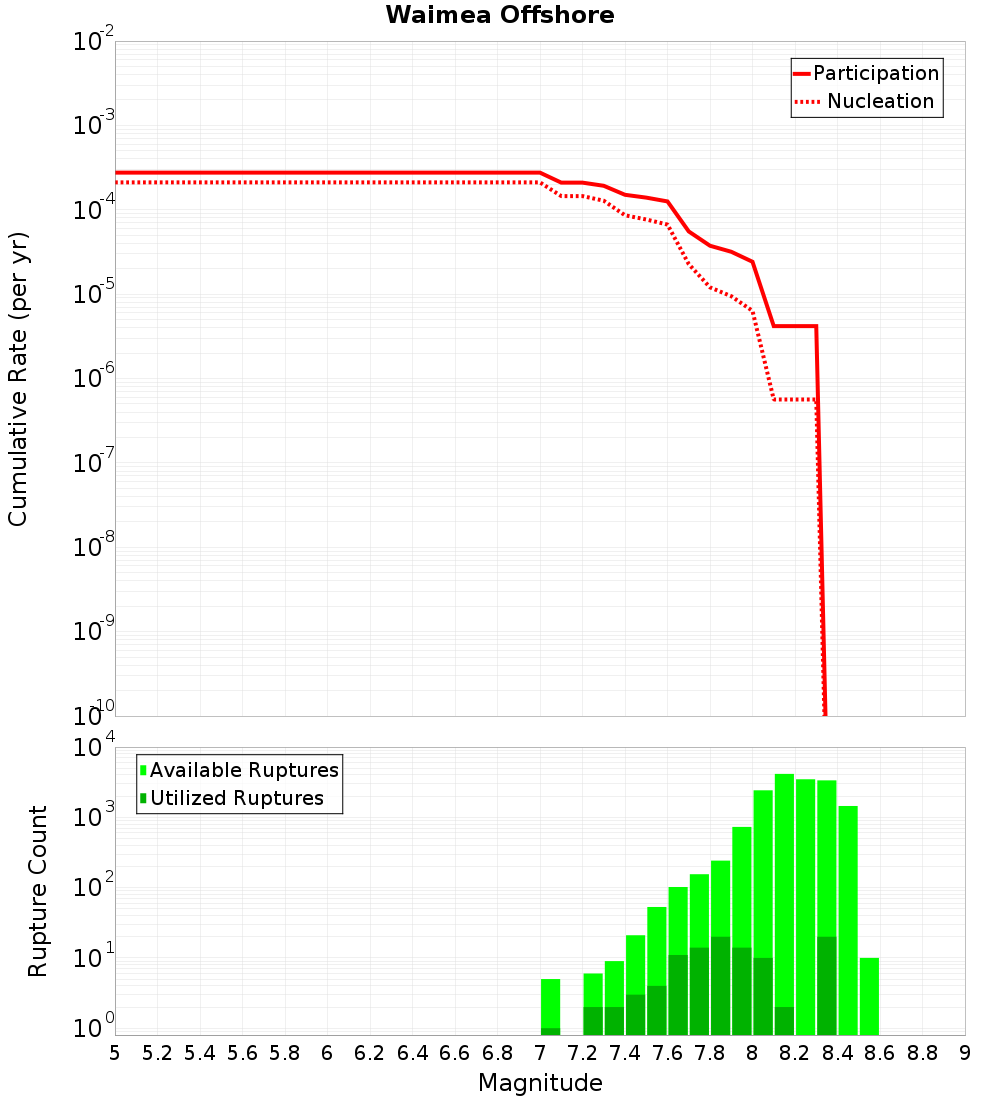

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

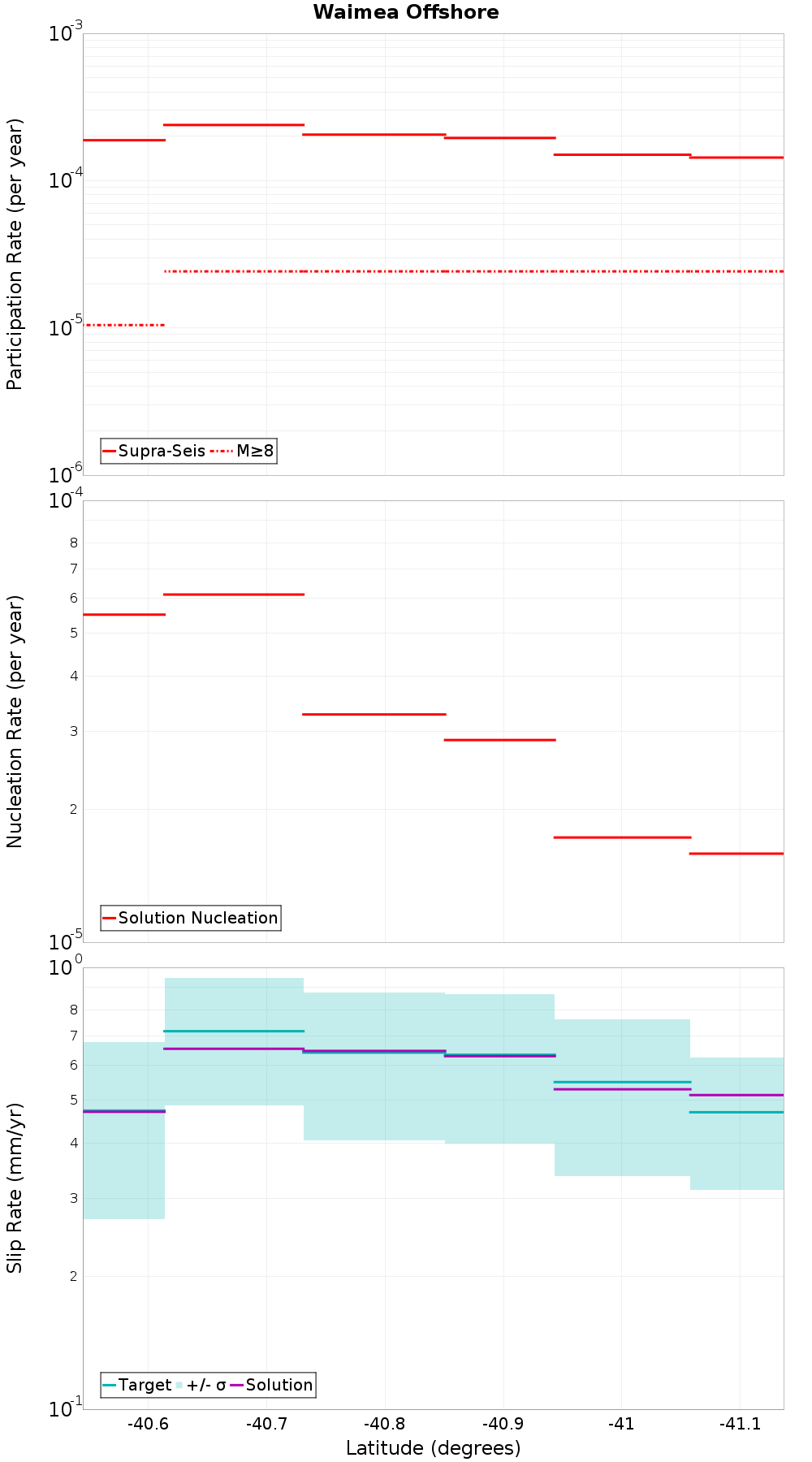

Along-Strike Values
Moment-Rates and b-Values

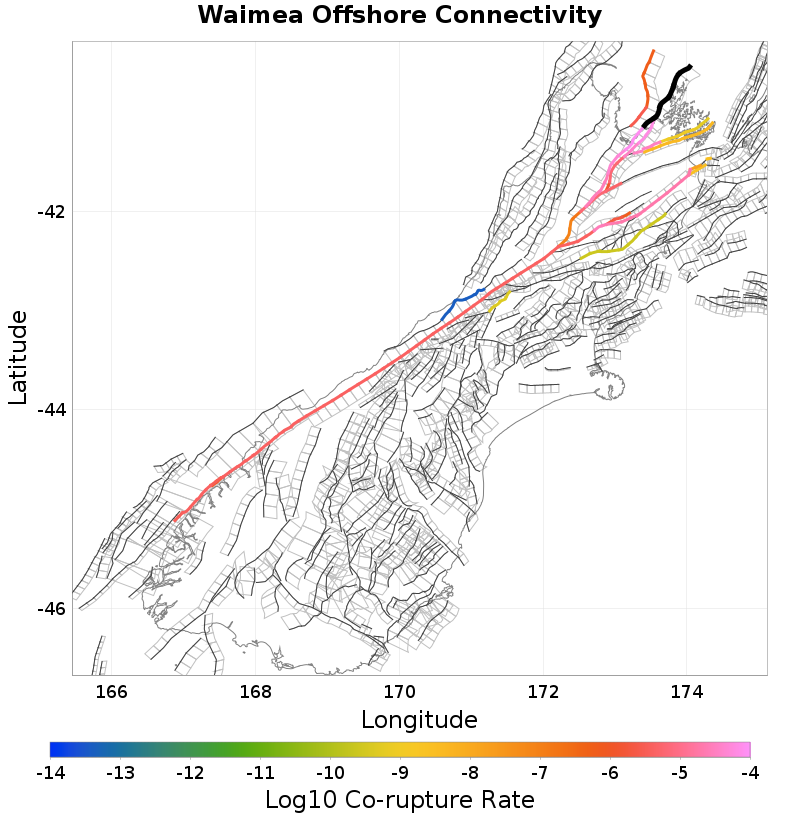

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Flaxmore - Waimea - Tahunanui, 0 km away |
| Whangamoa, 0.81 km away |
| Surville, 9.67 km away |
Flaxmore - Waimea - Tahunanui, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,028 |
| Co-rupture Rate | 9.3419156E-5 |
Whangamoa, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 13,044 |
| Co-rupture Rate | 6.396113E-5 |
Surville, 9.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTQuMERYZUpE | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 478 |
| Co-rupture Rate | 2.7951196E-6 |
