Lyell Details

Property	Value
Rupture Count	6,543
Ruptures Above Sect Min Mag	6,540
Ruptures w/ Nonzero Rates	74
Magnitude Range	[6.88, 8.47]
Length Range	[20, 817] km
Total Rate	6.389266E-4 /yr
Multi-Fault Rate	6.389266E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	82

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

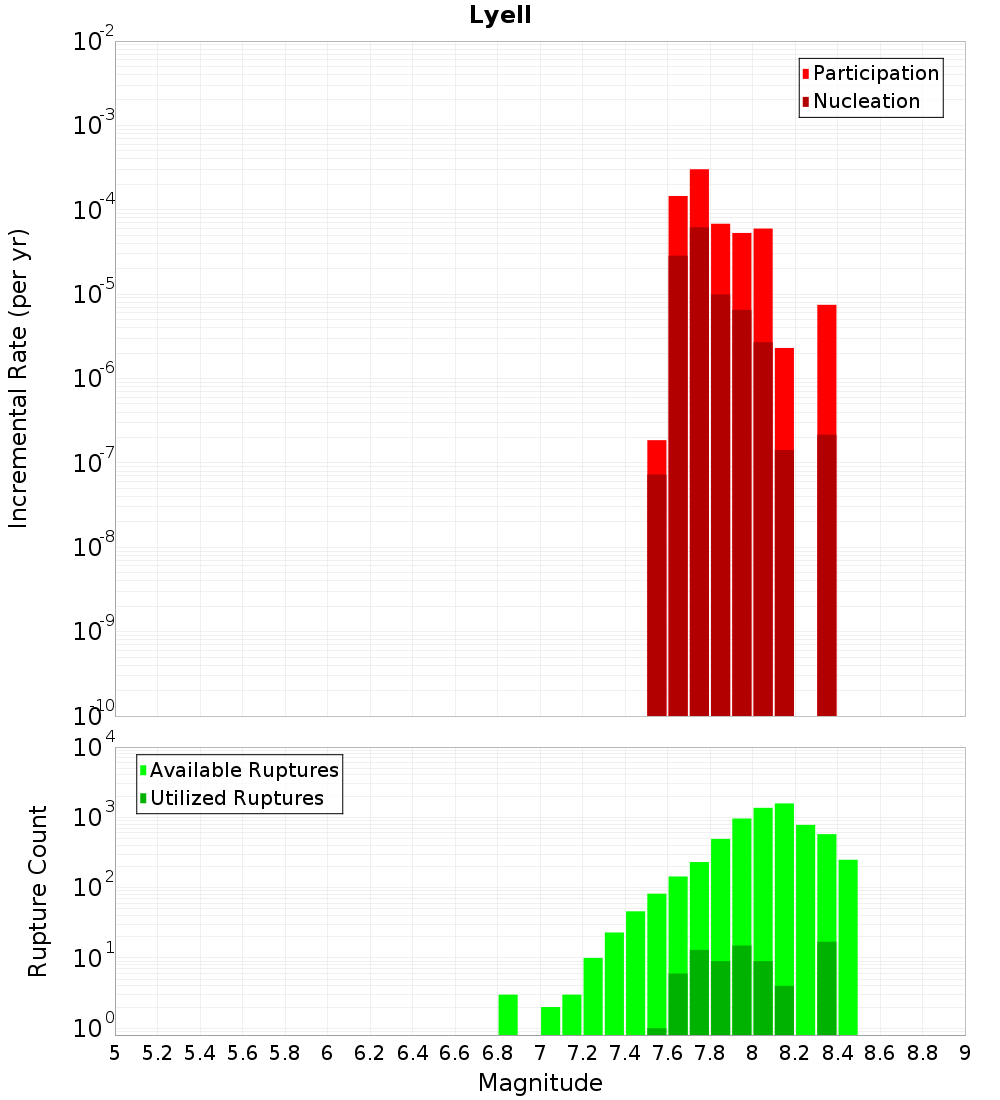

Magnitude-Frequency Distribution

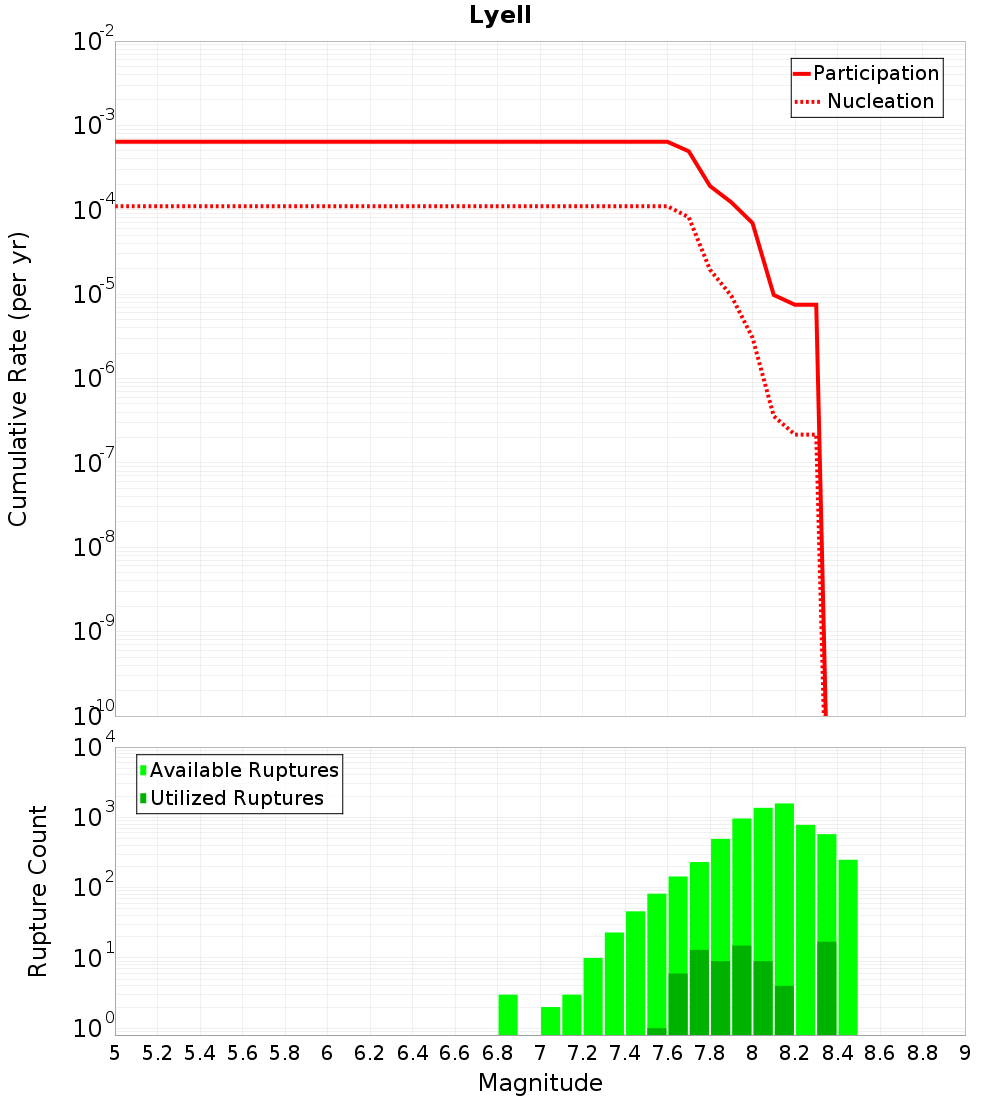

Incremental	Cumulative

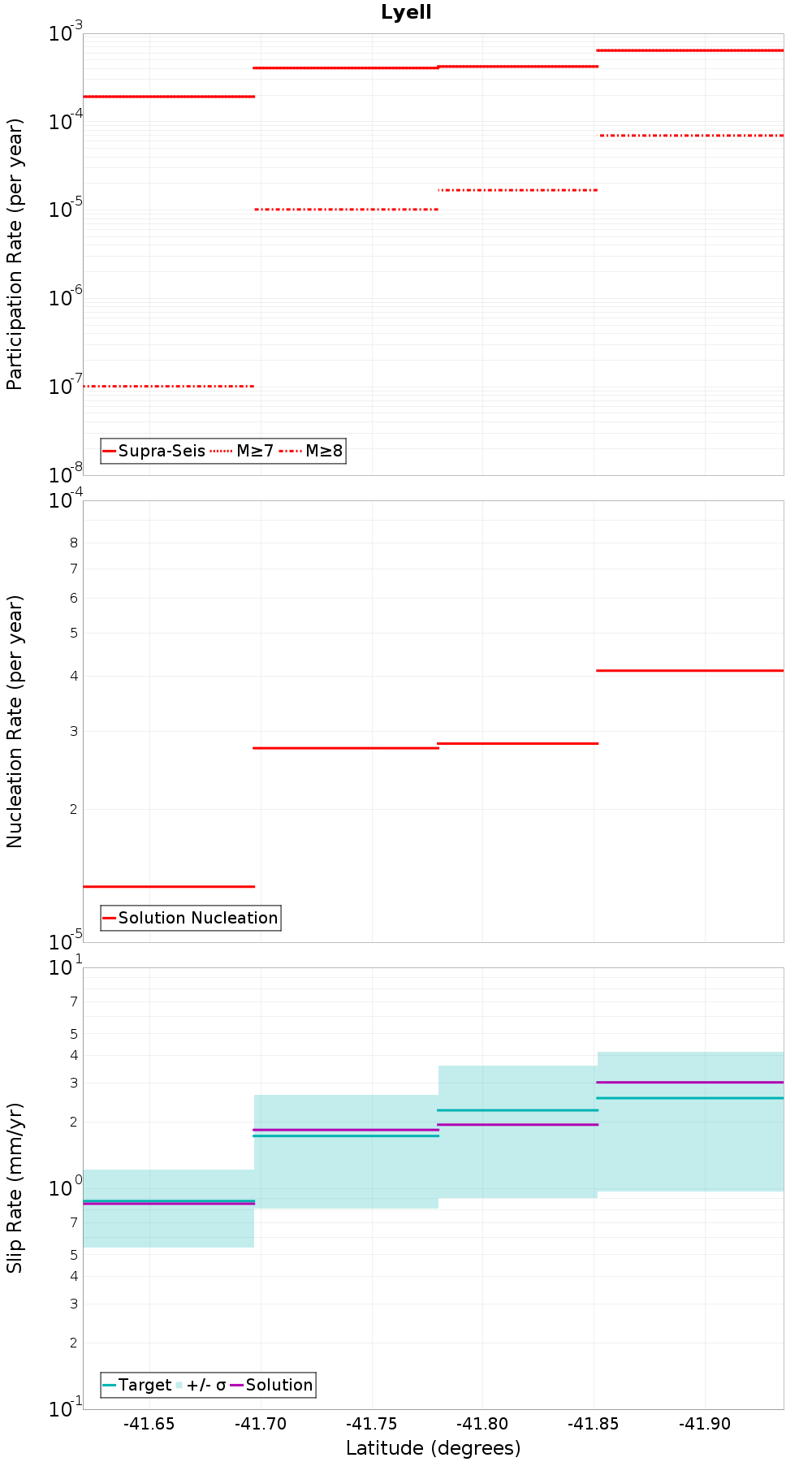

Along-Strike Values

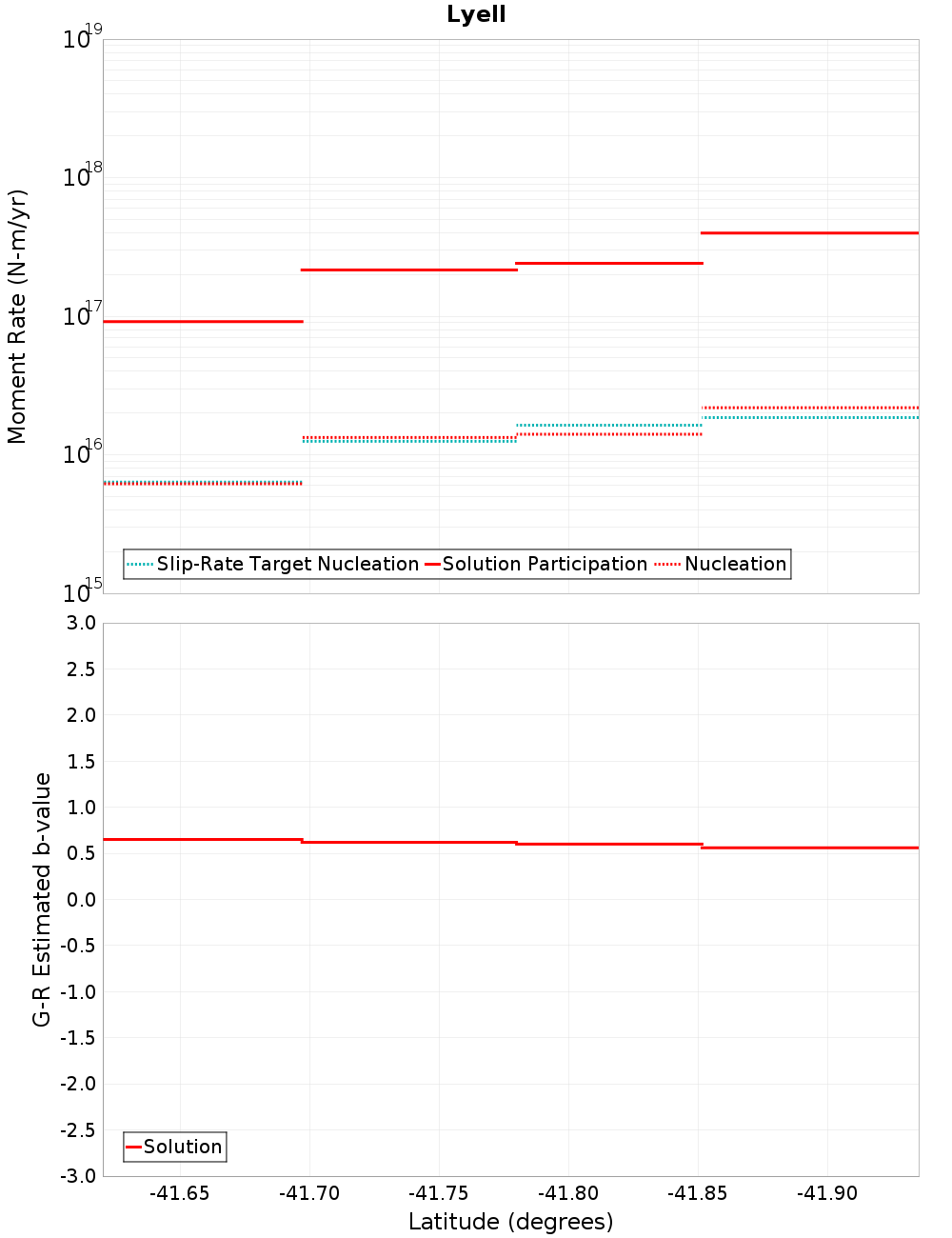

Moment-Rates and b-Values

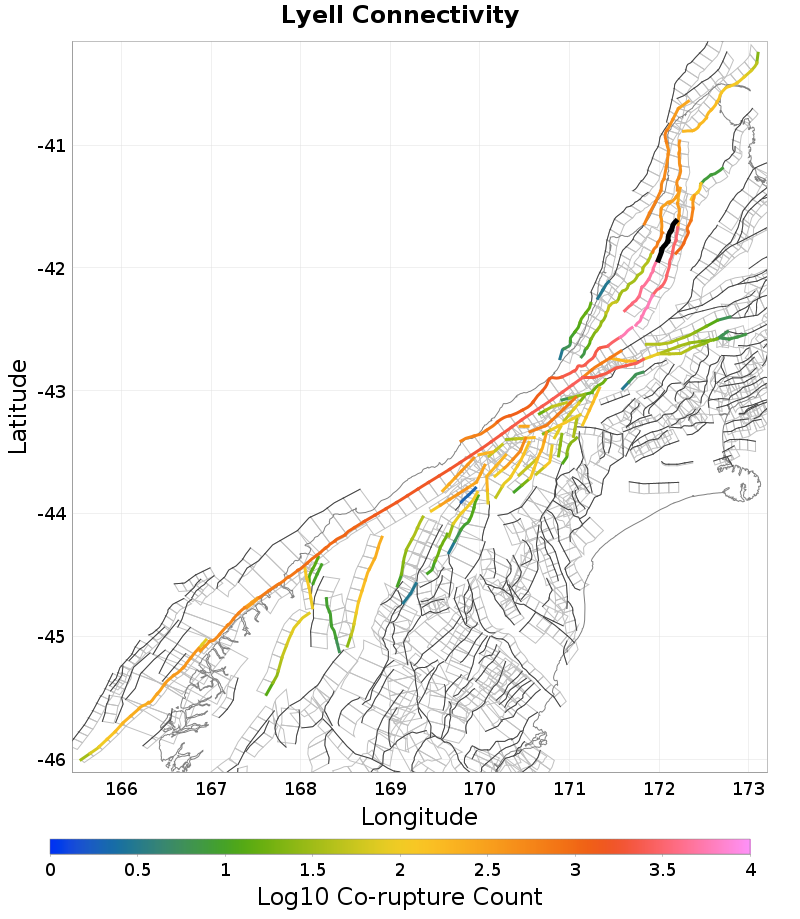

Connectivity

Nearby Sections

Fault Section
White Creek, 0.08 km away
Matiri West, 0.19 km away
Lyell South, 1.51 km away
Inangahua, 5.51 km away
Glasgow, 6.15 km away
Maimai: North, 7.56 km away

White Creek, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB
Connected?	true
Directly Connected?	true
Co-rupture Count	6,142
Co-rupture Rate	2.2116506E-4

Matiri West, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB
Connected?	true
Directly Connected?	true
Co-rupture Count	1,026
Co-rupture Rate	1.1526513E-4

Lyell South, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB
Connected?	true
Directly Connected?	true
Co-rupture Count	4,887
Co-rupture Rate	6.389266E-4

Inangahua, 5.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB
Connected?	true
Directly Connected?	true
Co-rupture Count	669
Co-rupture Rate	1.1598387E-4

Glasgow, 6.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB
Connected?	true
Directly Connected?	true
Co-rupture Count	405
Co-rupture Rate	2.1274727E-4

Maimai: North, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	0.0
