Waimate Details
| Property | Value |
|---|---|
| Rupture Count | 697 |
| Ruptures Above Sect Min Mag | 694 |
| Ruptures w/ Nonzero Rates | 38 |
| Magnitude Range | [6.75, 8.16] |
| Length Range | [19, 352] km |
| Total Rate | 8.0386046E-5 /yr |
| Multi-Fault Rate | 8.0386046E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 35 |
Table Of Contents

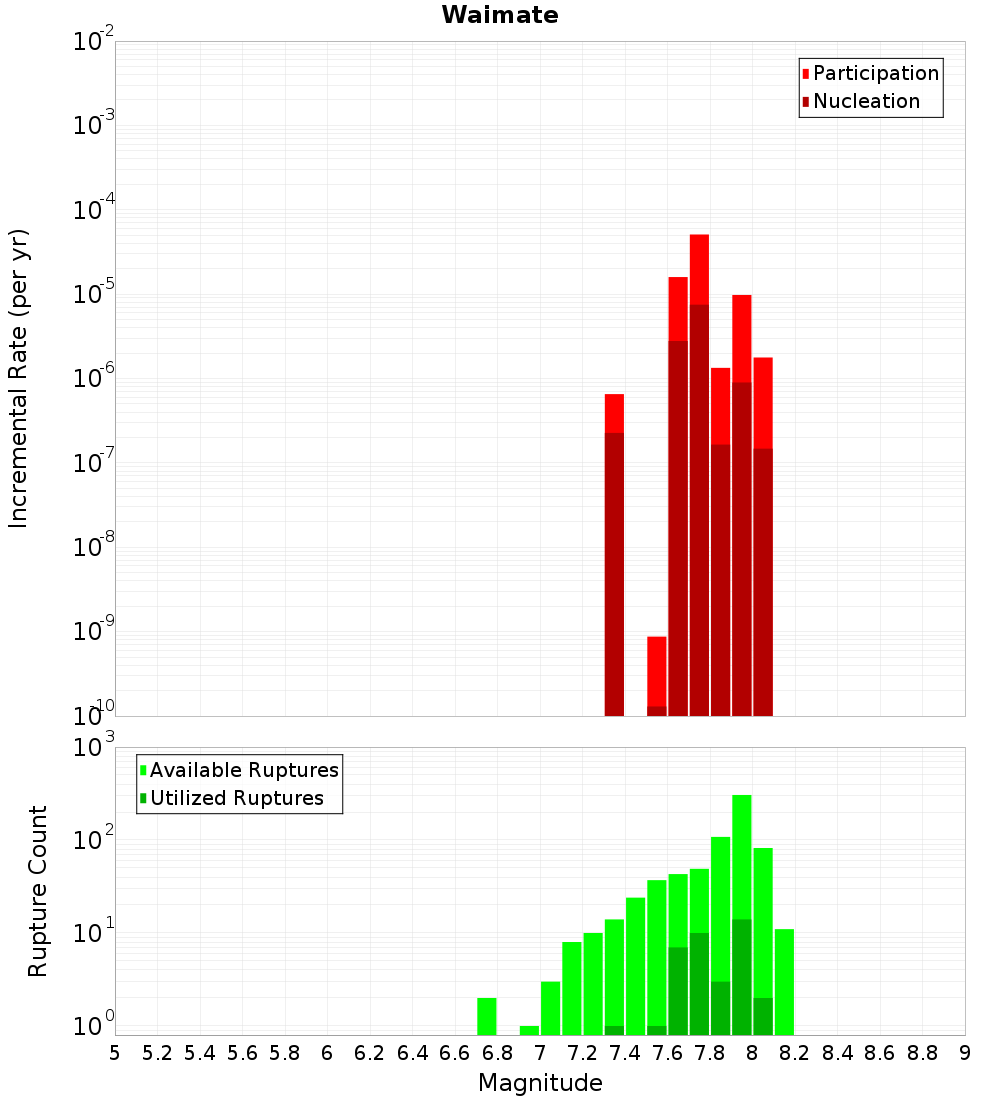

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

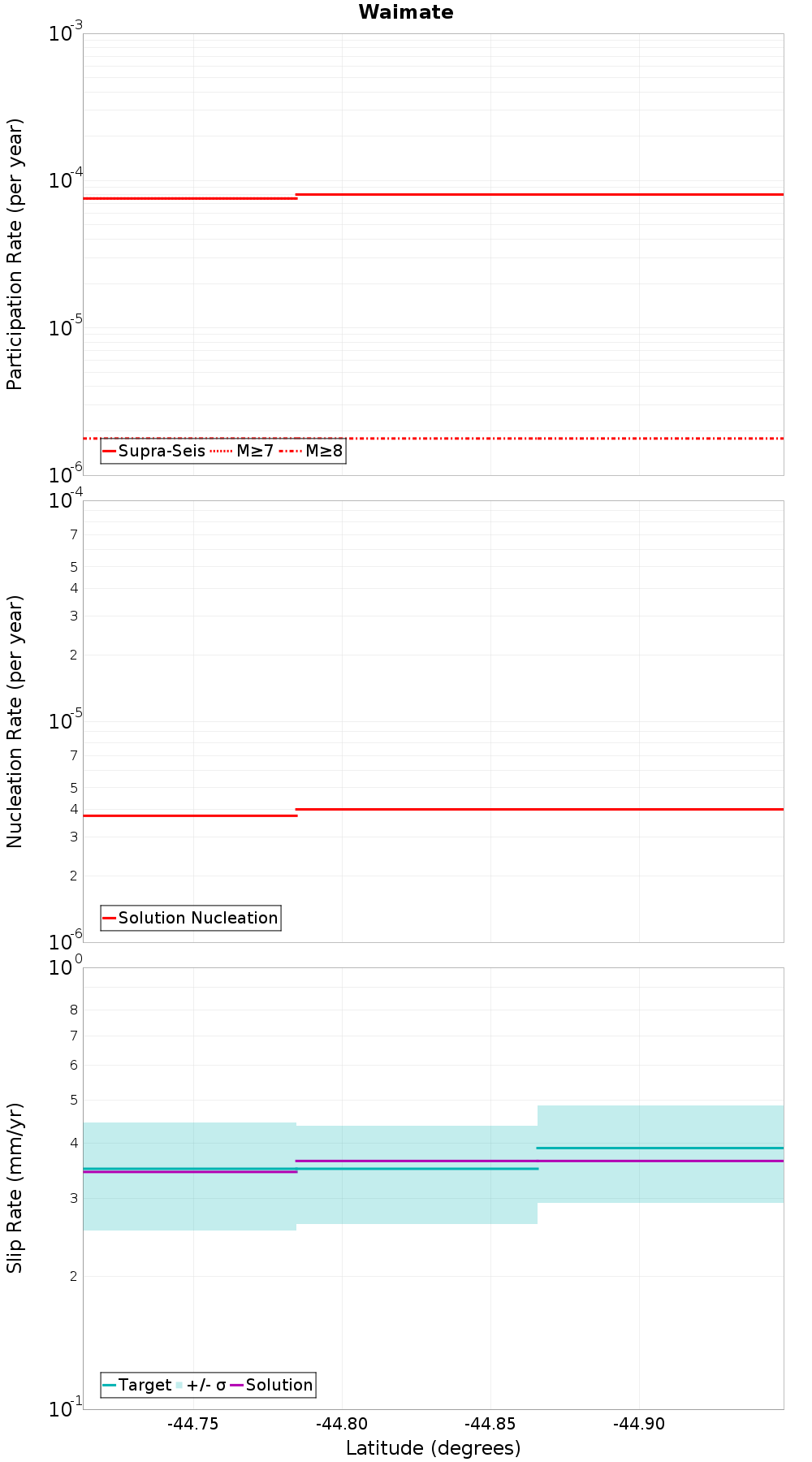

Along-Strike Values
Moment-Rates and b-Values

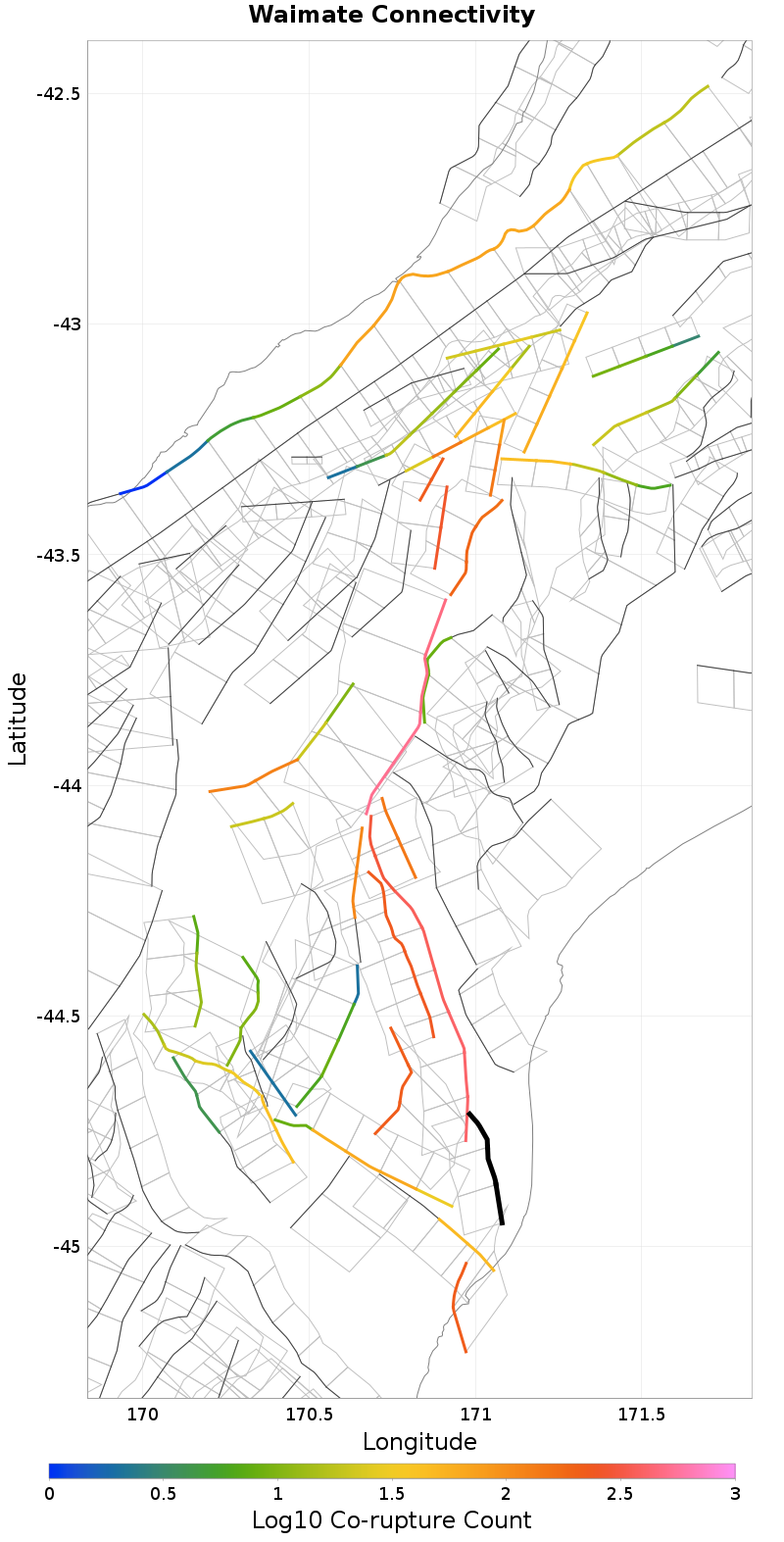

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Campbell Hills, 0.29 km away |
| Stonewall, 0.45 km away |
| Hunters, 0.6 km away |
| Awamoa, 1.76 km away |
| Waitaki, 8.21 km away |
| Black Hill, 11.86 km away |
| Maungati, 13.4 km away |
Campbell Hills, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 220 |
| Co-rupture Rate | 2.5050213E-5 |
Stonewall, 0.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 65 |
| Co-rupture Rate | 4.7928806E-6 |
Hunters, 0.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 405 |
| Co-rupture Rate | 5.0542953E-5 |
Awamoa, 1.76 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 218 |
| Co-rupture Rate | 6.4090345E-5 |
Waitaki, 8.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 48 |
| Co-rupture Rate | 1.1468772E-5 |
Black Hill, 11.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maungati, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MTYuMHNxVWRB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
