Boby Stream Details

PropertyValue
Rupture Count19,074
Ruptures Above Sect Min Mag19,074
Ruptures w/ Nonzero Rates194
Magnitude Range[7.00, 8.48]
Length Range[18, 732] km
Total Rate1.7978775E-4 /yr
Multi-Fault Rate1.7978775E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults95

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

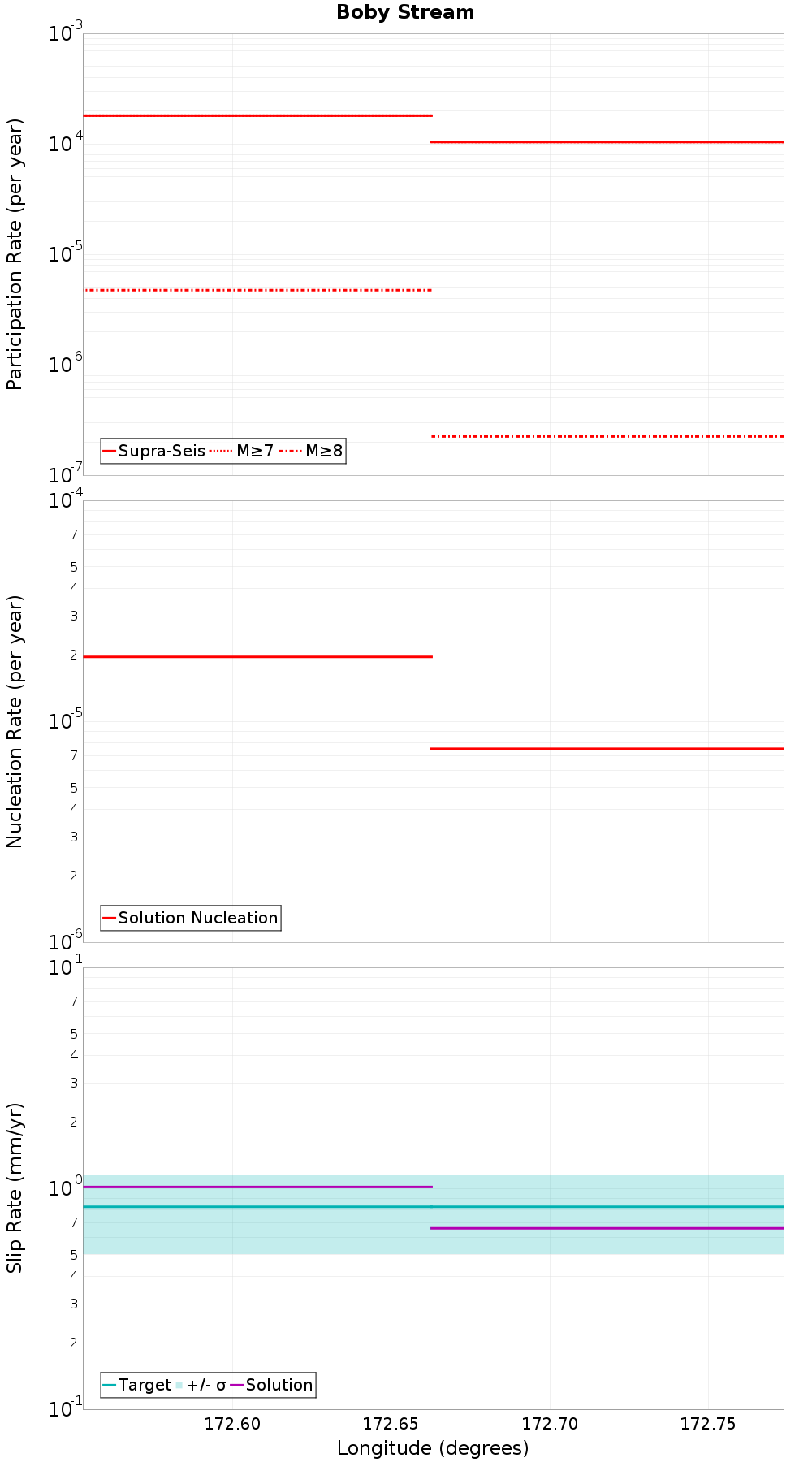

Along-Strike Values

(top)

Along-strike plot

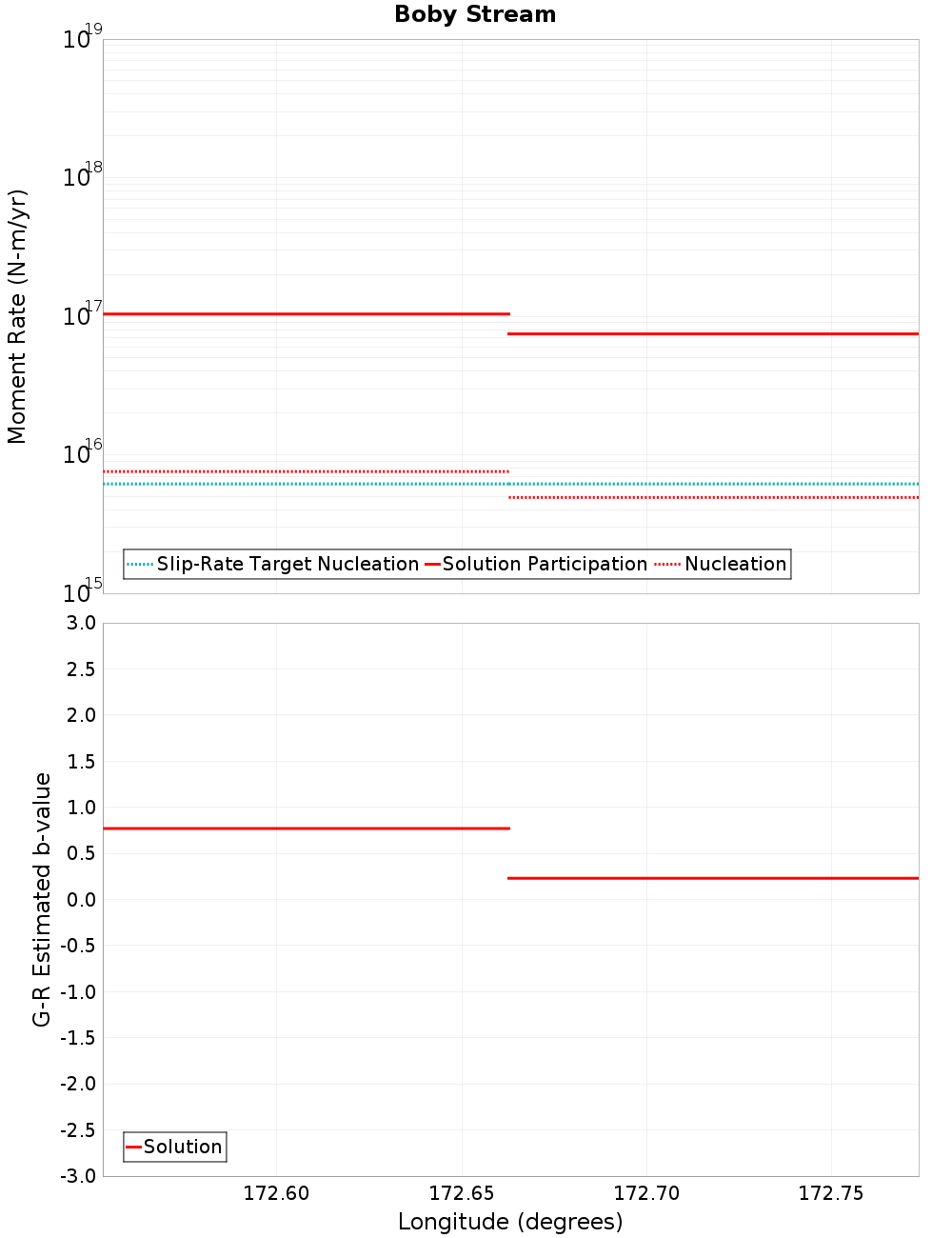

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Doctors, 0.13 km awayPancake, 9.69 km away
Starvation - Ashley, 0.62 km awayLees Valley, 10.27 km away
OmihiLwrHuru, 0.79 km awayLowry, 10.33 km away
AmberBlyth, 3.76 km awayAlexander, 10.71 km away
Mt Lawry, 4.87 km awayMotunau, 13.14 km away
Kaiwara South, 6.33 km awayKnowles Top, 13.88 km away
Mt Arden, 6.78 km awayNorth Canterbury Shelf 2, 14.97 km away
Springbank, 9.36 km awayLeithfield - NCVI - NCVII, 14.97 km away

Doctors, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count14,486
Co-rupture Rate8.7904875E-5

Starvation - Ashley, 0.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count18,318
Co-rupture Rate1.6782794E-4

OmihiLwrHuru, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count3,628
Co-rupture Rate7.631643E-5

AmberBlyth, 3.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count1,556
Co-rupture Rate2.3420504E-5

Mt Lawry, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count343
Co-rupture Rate4.9350493E-9

Kaiwara South, 6.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count1,147
Co-rupture Rate7.0854265E-5

Mt Arden, 6.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count493
Co-rupture Rate5.47803E-9

Pancake, 9.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 10.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count3,755
Co-rupture Rate8.05139E-5

Lowry, 10.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count8,731
Co-rupture Rate7.49415E-5

Alexander, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count740
Co-rupture Rate1.2492932E-5

Motunau, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count265
Co-rupture Rate1.2520663E-5

Knowles Top, 13.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count47
Co-rupture Rate0.0

North Canterbury Shelf 2, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leithfield - NCVI - NCVII, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count55
Co-rupture Rate5.232745E-6
