Kekerengu Bank Details

Property	Value
Rupture Count	34,700
Ruptures Above Sect Min Mag	34,689
Ruptures w/ Nonzero Rates	72
Magnitude Range	[6.80, 8.59]
Length Range	[17, 761] km
Total Rate	4.9465895E-4 /yr
Multi-Fault Rate	4.9465895E-4 /yr (100.00%)
Directly-Connected Faults	11
All Co-Rupturing Faults	100

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

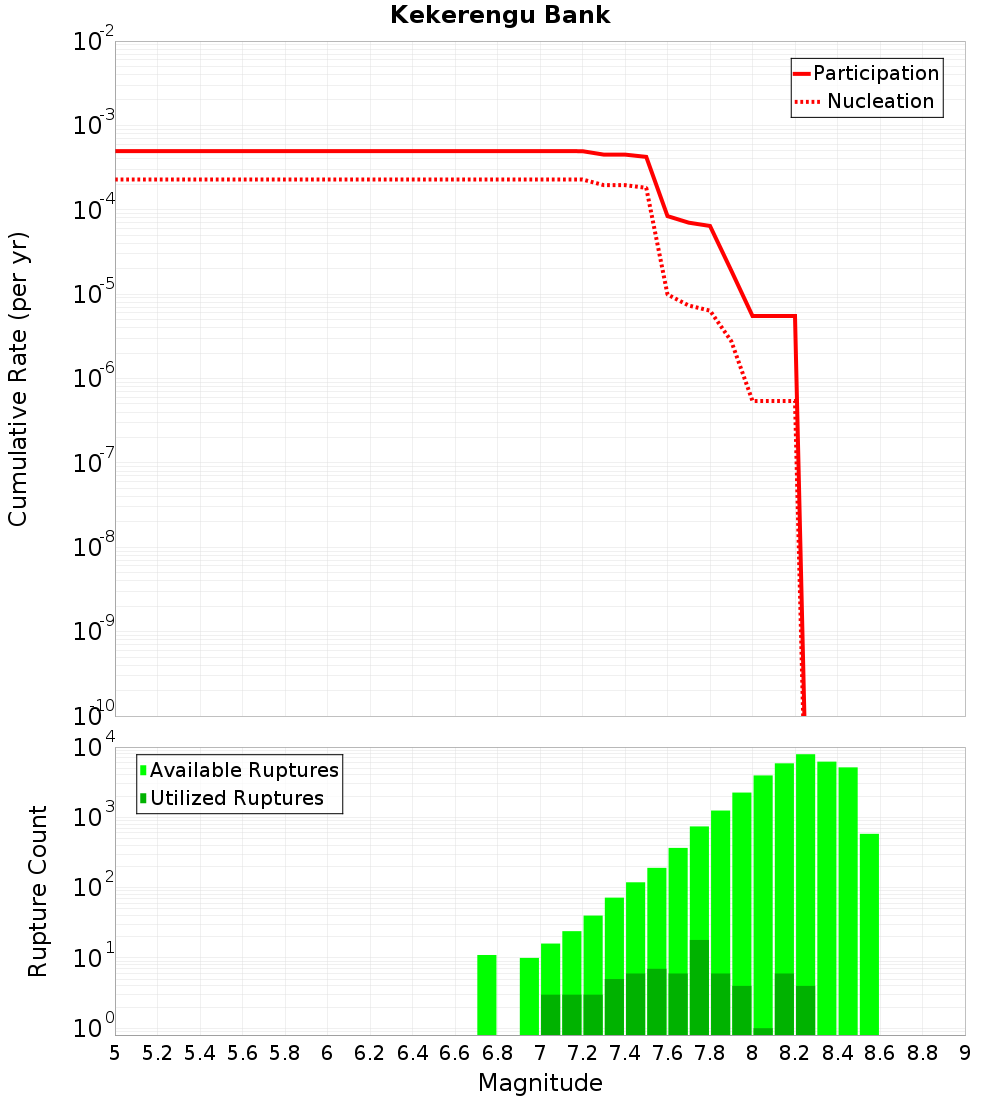

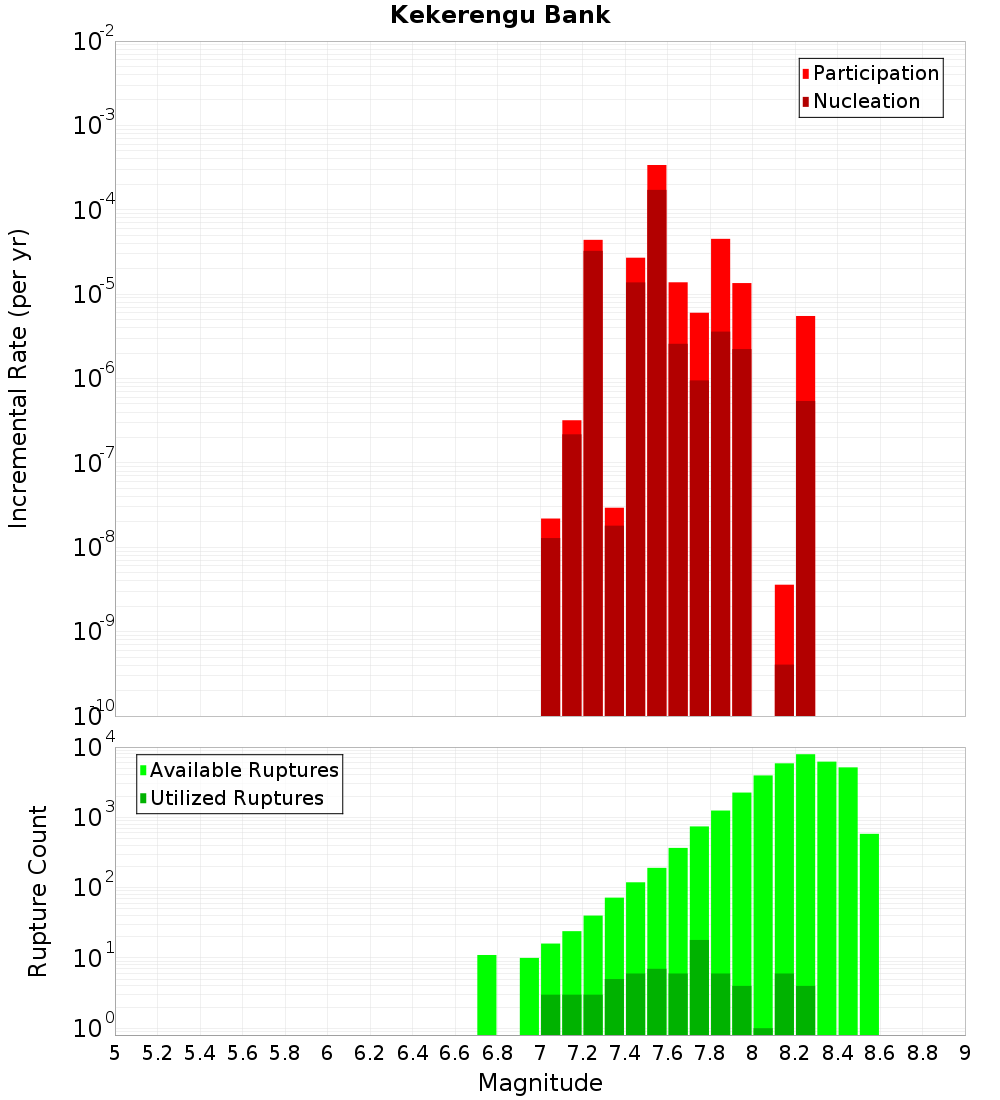

Magnitude-Frequency Distribution

Incremental	Cumulative

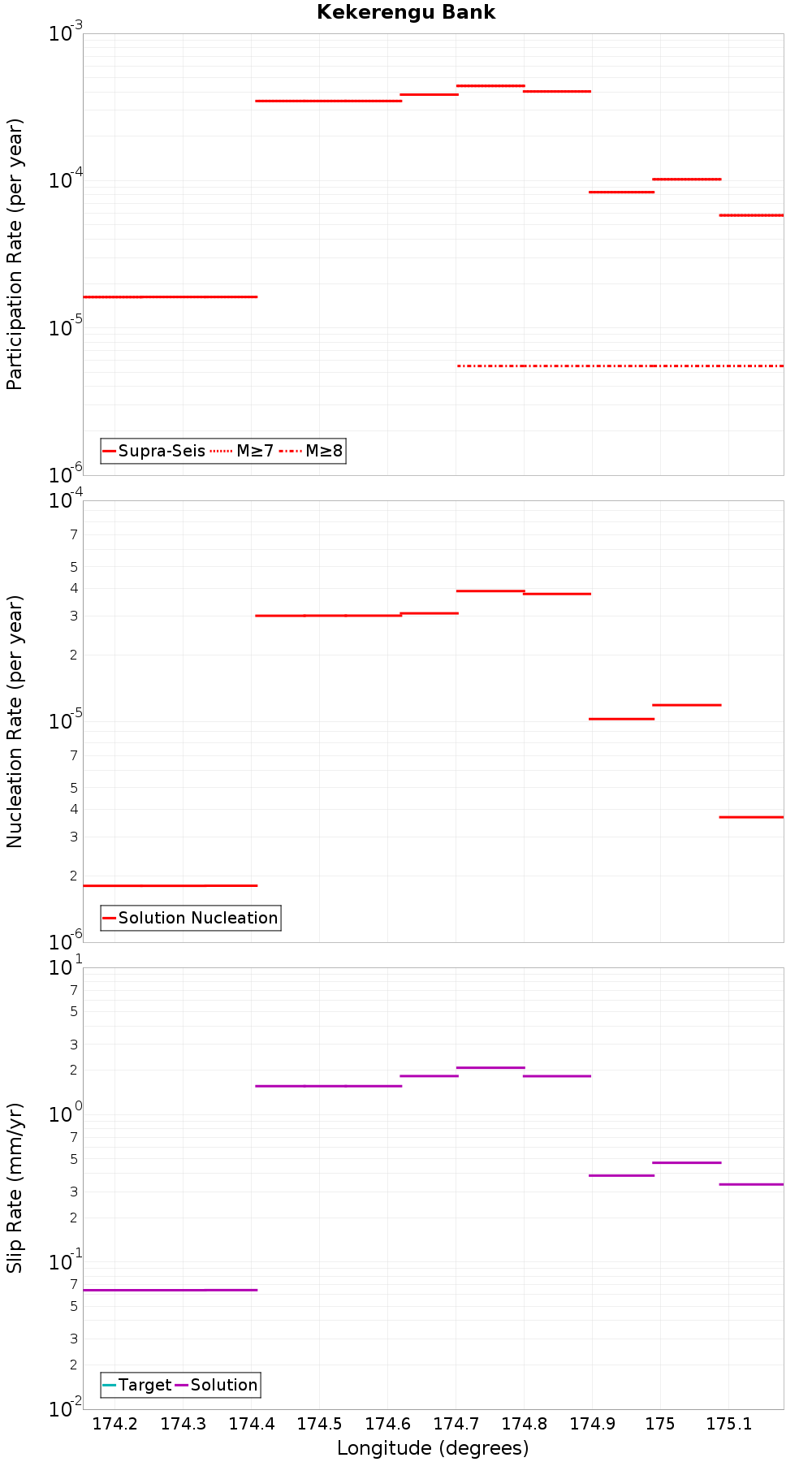

Along-Strike Values

Moment-Rates and b-Values

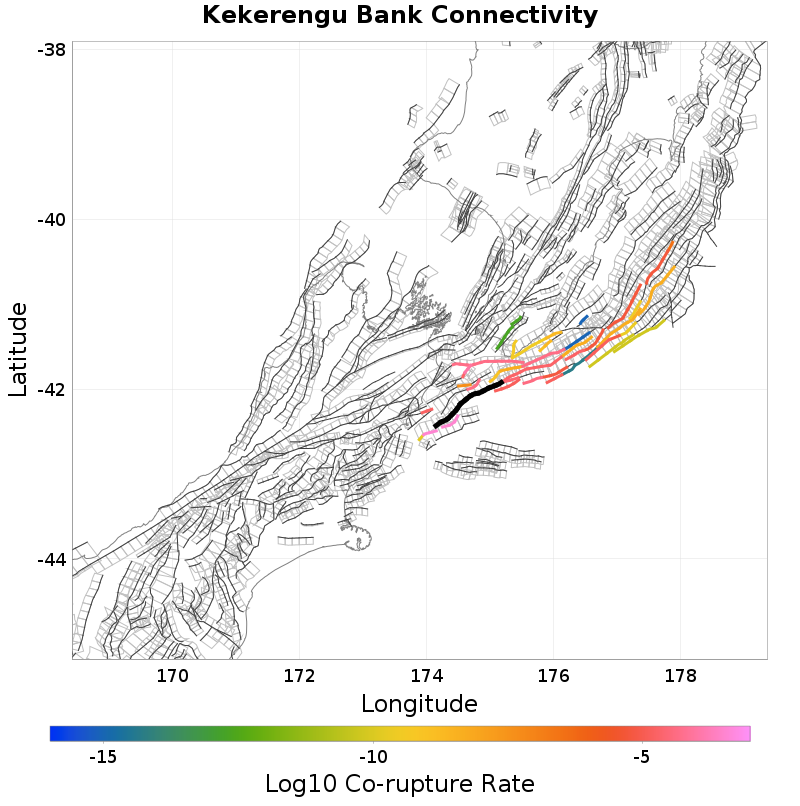

Connectivity

Nearby Sections

Fault Section
Pahaua, 0 km away
Pahaua SE1, 0 km away
Pahaua SE2, 0.17 km away
Te Rapa 1, 3.06 km away
Marlborough Slope 2, 4.37 km away
Marlborough Slope 4, 4.72 km away
Te Rapa 2, 4.95 km away
Opouawe - Uruti, 5.25 km away
Upper Slope, 5.98 km away
Kaikoura - Mangamaunu, 7.75 km away
Campbell Bank, 8.04 km away
Hope: Te Rapa, 8.98 km away
Marlborough Slope 3, 10.31 km away
Marlborough Slope 10, 11.7 km away
Offshore Splay Thrust, 13.64 km away

Pahaua, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	15,771
Co-rupture Rate	1.9047355E-5

Pahaua SE1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	5,054
Co-rupture Rate	2.5530262E-5

Pahaua SE2, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	3,506
Co-rupture Rate	1.3510562E-5

Te Rapa 1, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	118
Co-rupture Rate	4.3924157E-8

Marlborough Slope 2, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	3,762
Co-rupture Rate	3.469704E-4

Marlborough Slope 4, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	2,843
Co-rupture Rate	3.3079274E-4

Te Rapa 2, 4.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	57
Co-rupture Rate	0.0

Opouawe - Uruti, 5.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	12,574
Co-rupture Rate	4.5225705E-5

Upper Slope, 5.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	313
Co-rupture Rate	4.522537E-5

Kaikoura - Mangamaunu, 7.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	1.6197057E-5

Campbell Bank, 8.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	1,925
Co-rupture Rate	1.0859646E-4

Hope: Te Rapa, 8.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	300
Co-rupture Rate	0.0

Marlborough Slope 3, 10.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Marlborough Slope 10, 11.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	false
Co-rupture Count	269
Co-rupture Rate	0.0

Offshore Splay Thrust, 13.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	0.0
