Ohena 2 Details

PropertyValue
Rupture Count89
Ruptures Above Sect Min Mag87
Ruptures w/ Nonzero Rates8
Magnitude Range[7.00, 7.85]
Length Range[20, 126] km
Total Rate5.162627E-8 /yr
Multi-Fault Rate5.0124566E-8 /yr (97.09%)
Directly-Connected Faults5
All Co-Rupturing Faults11

Table Of Contents

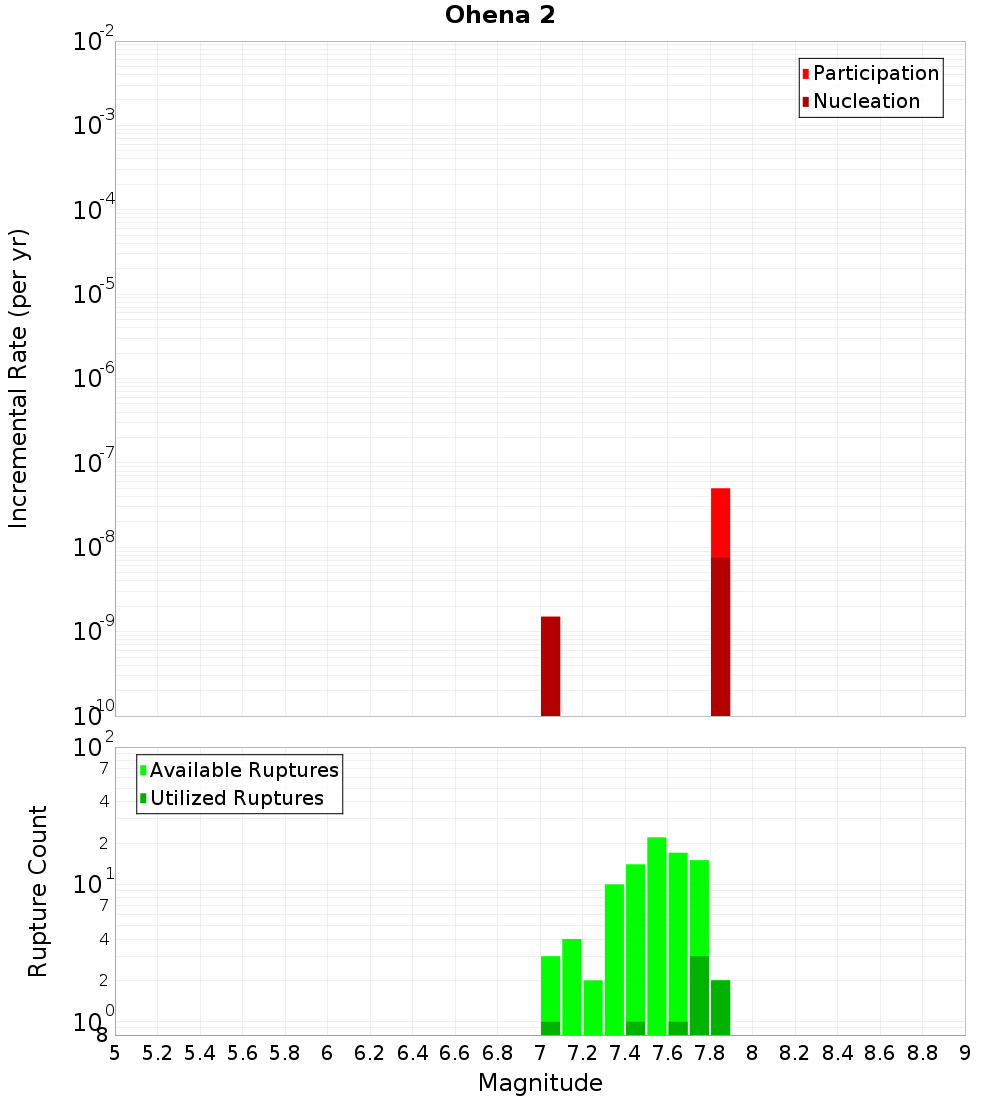

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

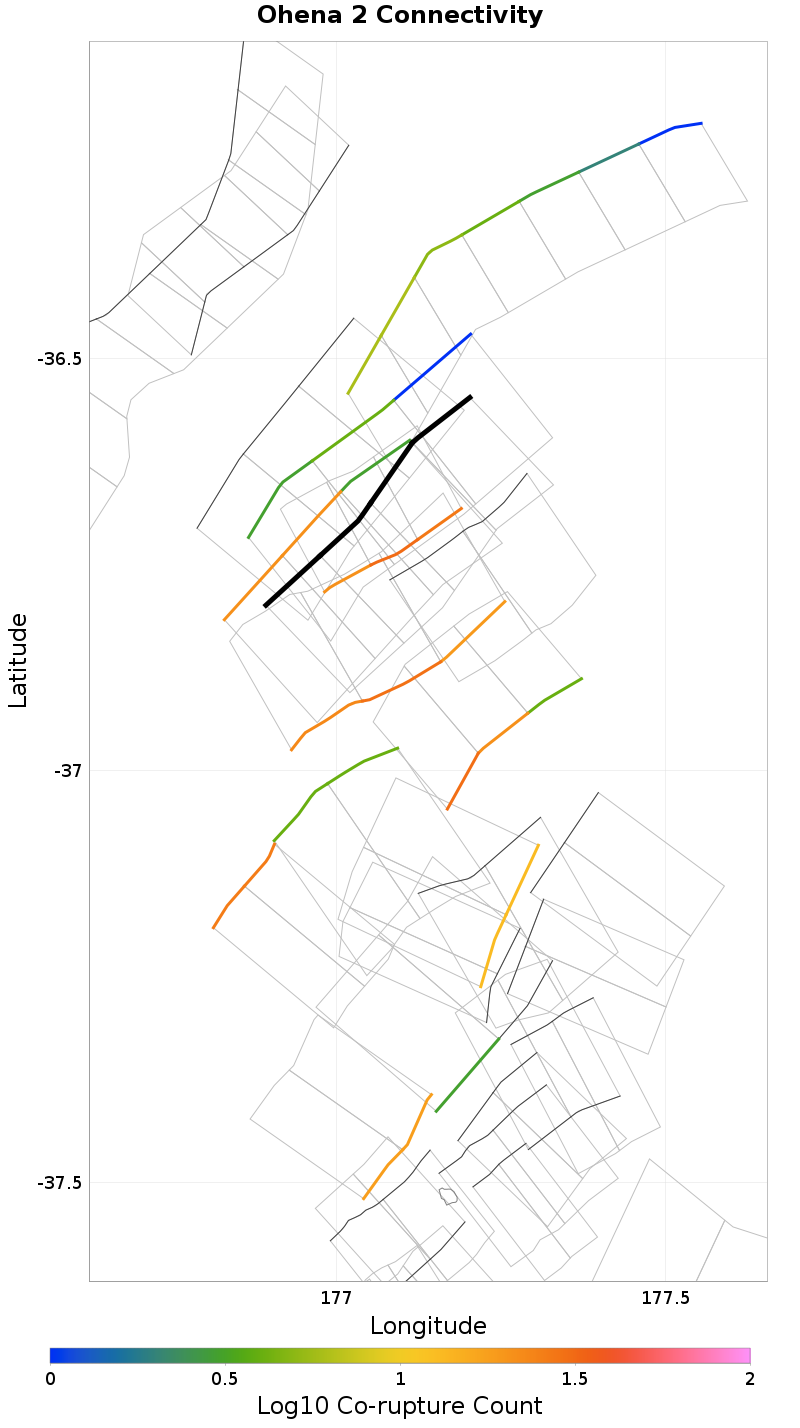

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tauranga Trough West 2, 0.13 km away
Ngatoro South 5, 0.16 km away
Ohena 3, 0.49 km away
Tauranga Trough East 2, 2.52 km away
Ohena 4, 4.59 km away
Ngatoro South 2, 6.63 km away
Ngatoro West 1, 8.71 km away
Ohena 5, 10.74 km away
Otara West 2, 14.31 km away

Tauranga Trough West 2, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate9.350871E-12

Ngatoro South 5, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count31
Co-rupture Rate2.4486123E-8

Ohena 3, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate5.007201E-8

Tauranga Trough East 2, 2.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate5.0119457E-8

Ohena 4, 4.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate0.0

Ngatoro South 2, 6.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ngatoro West 1, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Ohena 5, 10.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otara West 2, 14.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuME5Yak1Q
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate5.003051E-8
