Kowhai Details

PropertyValue
Rupture Count7,456
Ruptures Above Sect Min Mag7,443
Ruptures w/ Nonzero Rates44
Magnitude Range[6.58, 8.49]
Length Range[15, 806] km
Total Rate2.9551008E-4 /yr
Multi-Fault Rate2.9551008E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults209

Table Of Contents

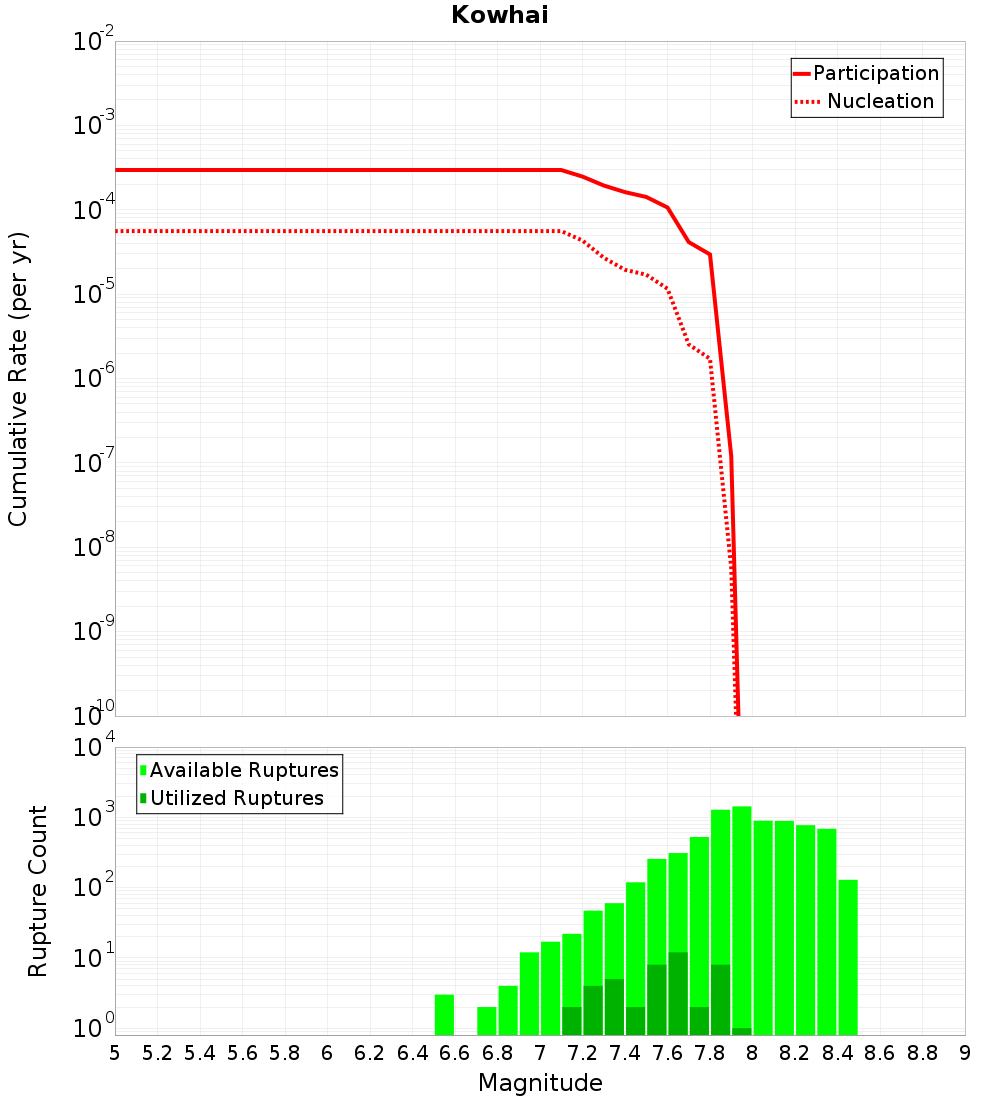

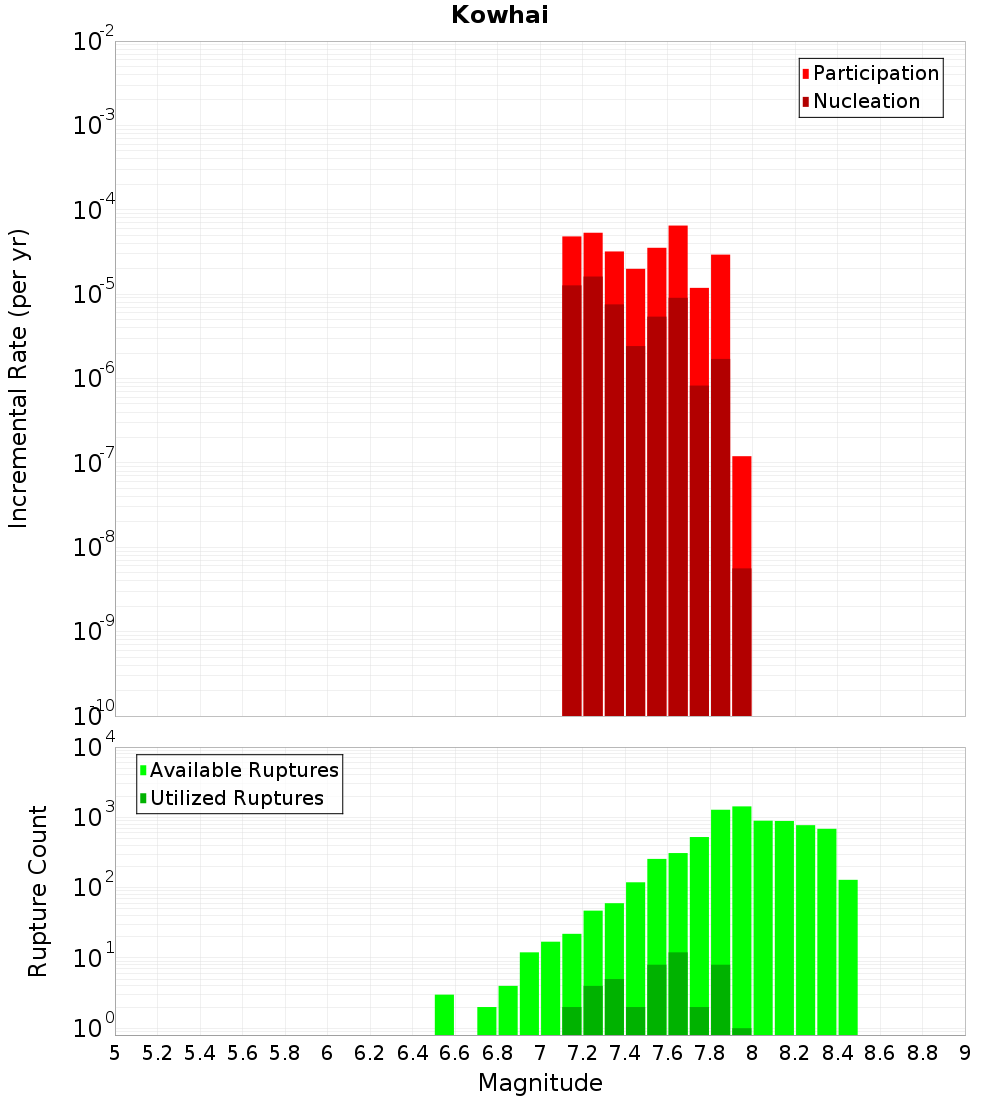

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

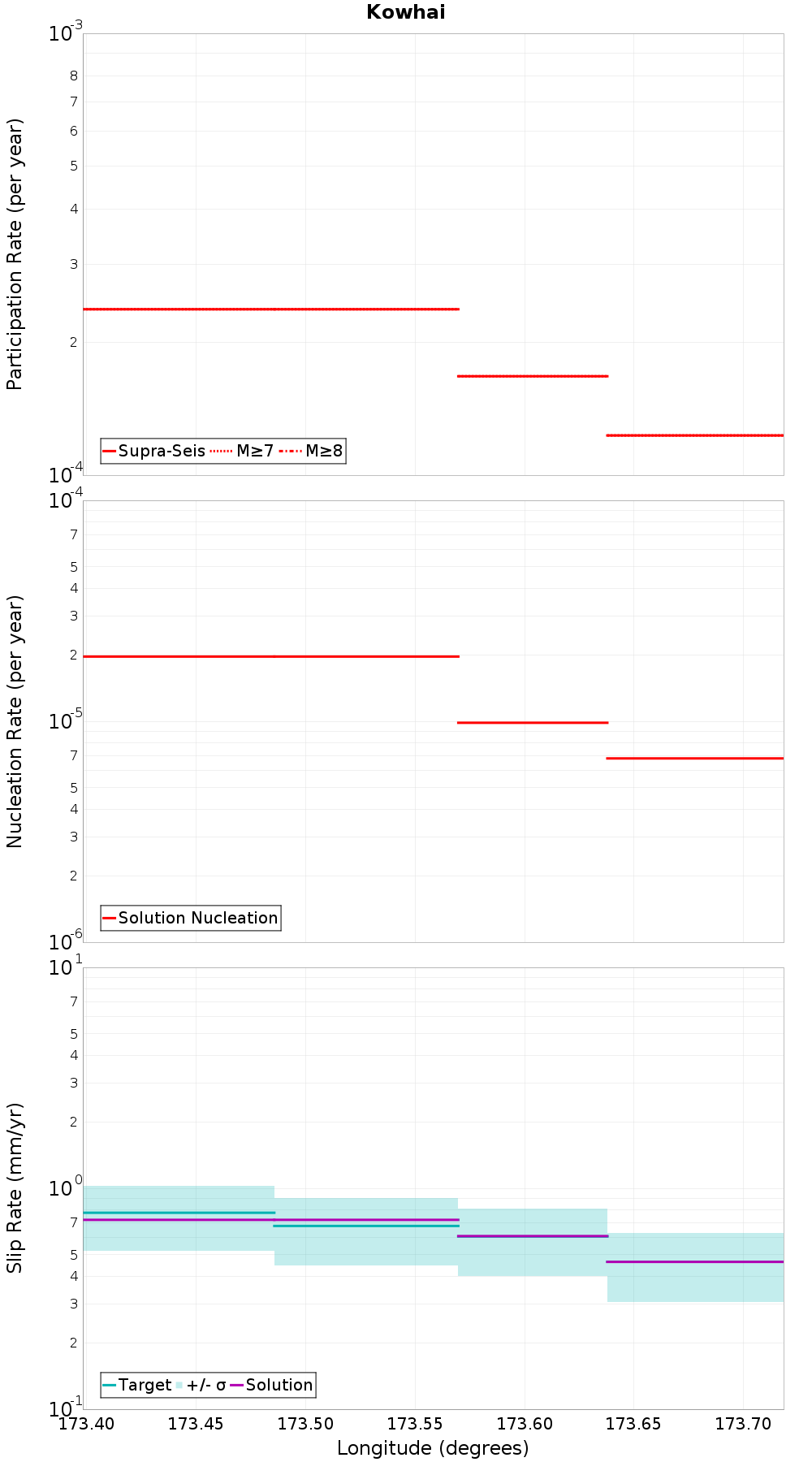

Along-Strike Values

(top)

Along-strike plot

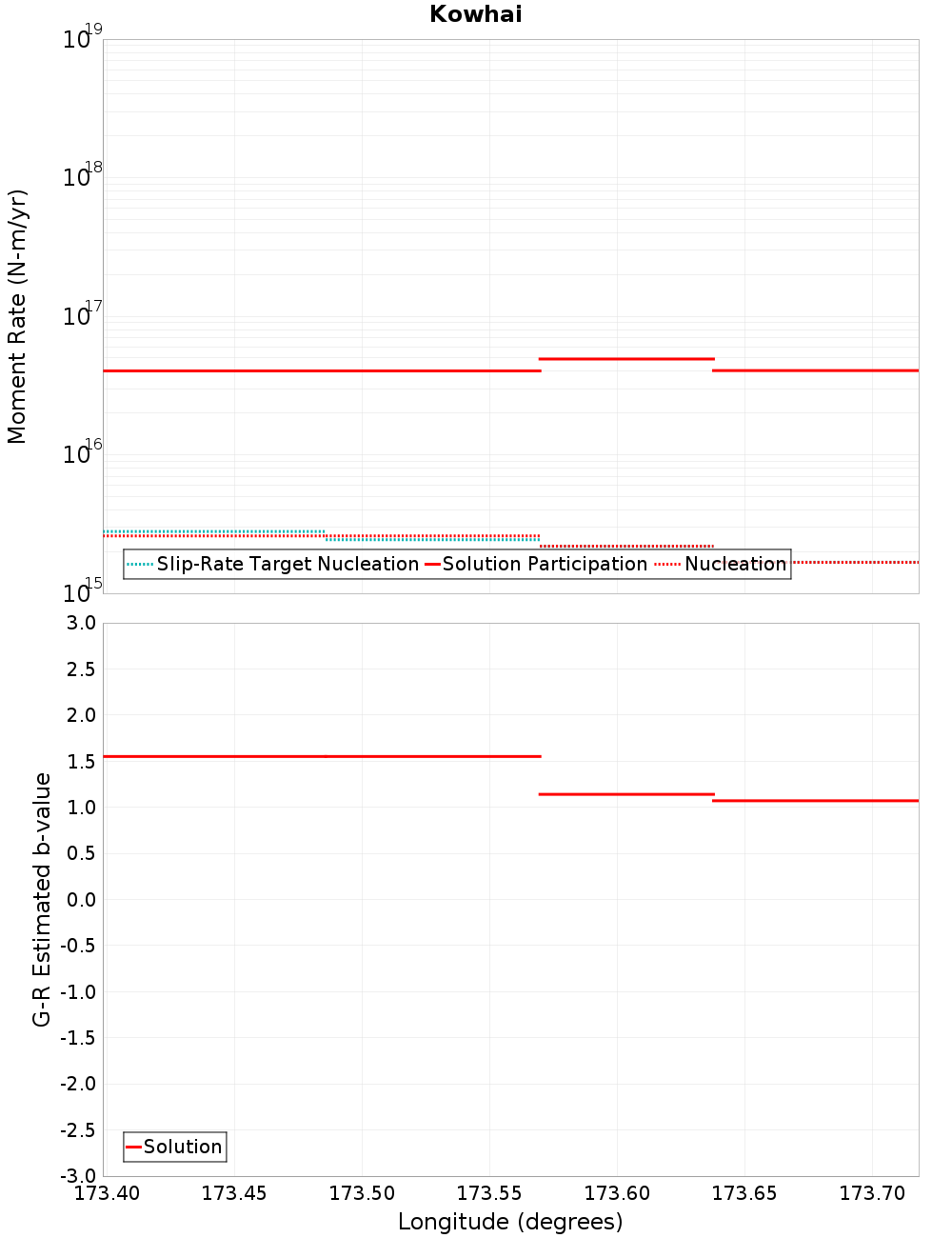

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Jordan, 0.03 km away
Upper Kowhai - Manakau, 0.06 km away
Offshore Splay Thrust, 0.18 km away
Hope: Conway, 0.31 km away
Hope: Seaward, 1.7 km away
Papatea, 4.46 km away
Kaikoura - Mangamaunu, 5.92 km away
Hundalee, 7.44 km away
Kaikoura 2, 7.44 km away
StoneJug, 7.51 km away
Leader: North, 9.28 km away
Fidget, 13.39 km away
Elliott, 14.44 km away

Jordan, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate0.0

Upper Kowhai - Manakau, 0.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?true
Co-rupture Count641
Co-rupture Rate7.3262985E-5

Offshore Splay Thrust, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?true
Co-rupture Count249
Co-rupture Rate0.0

Hope: Conway, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?true
Co-rupture Count1,913
Co-rupture Rate5.818352E-5

Hope: Seaward, 1.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?true
Co-rupture Count693
Co-rupture Rate0.0

Papatea, 4.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?true
Co-rupture Count2,532
Co-rupture Rate0.0

Kaikoura - Mangamaunu, 5.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hundalee, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?true
Co-rupture Count2,404
Co-rupture Rate2.3732657E-4

Kaikoura 2, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

StoneJug, 7.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?false
Co-rupture Count107
Co-rupture Rate0.0

Leader: North, 9.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate0.0

Fidget, 13.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?true
Co-rupture Count552
Co-rupture Rate0.0

Elliott, 14.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1
Connected?true
Directly Connected?false
Co-rupture Count50
Co-rupture Rate0.0
