Solander Details
| Property | Value |
|---|---|
| Rupture Count | 32 |
| Ruptures Above Sect Min Mag | 30 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.97, 8.15] |
| Length Range | [23, 342] km |
| Total Rate | 2.3201818E-4 /yr |
| Multi-Fault Rate | 3.718186E-5 /yr (16.03%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

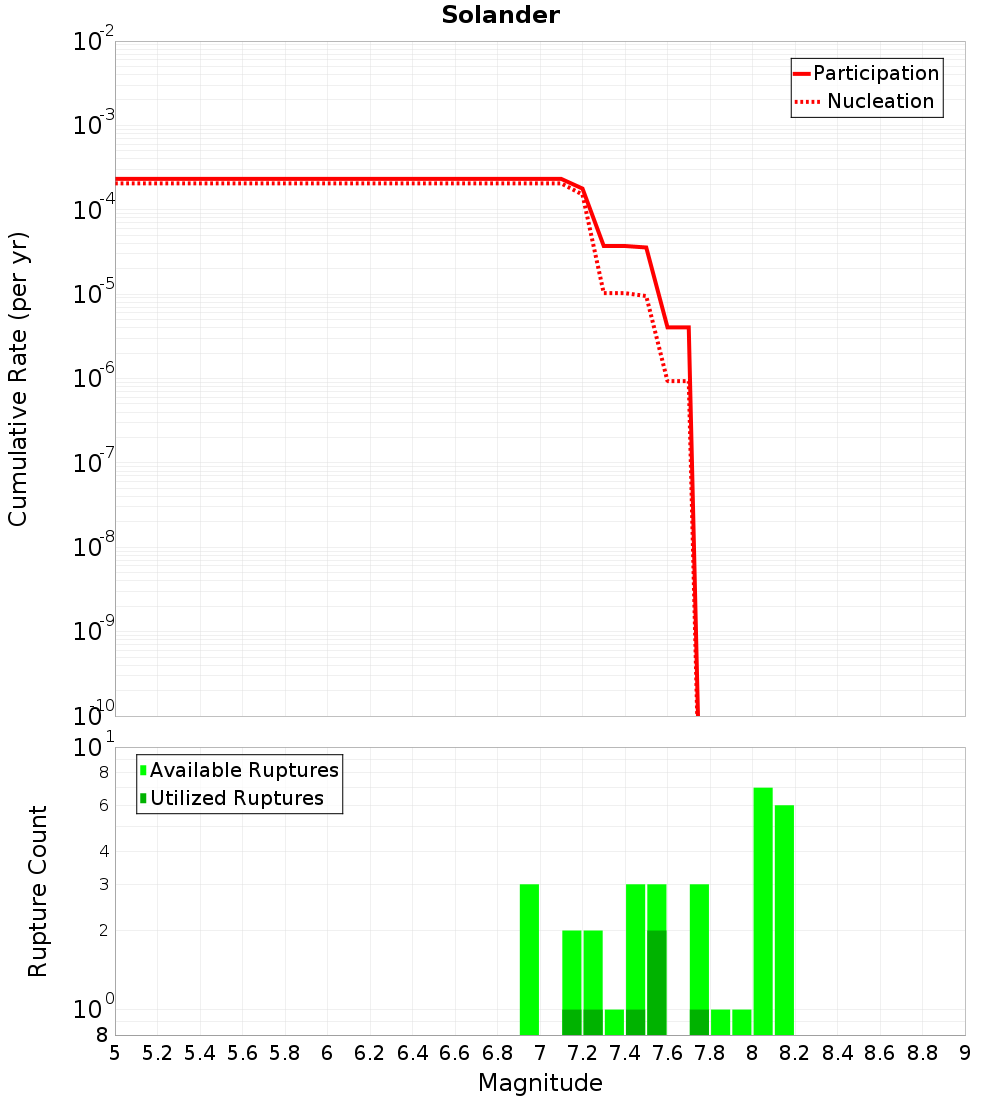

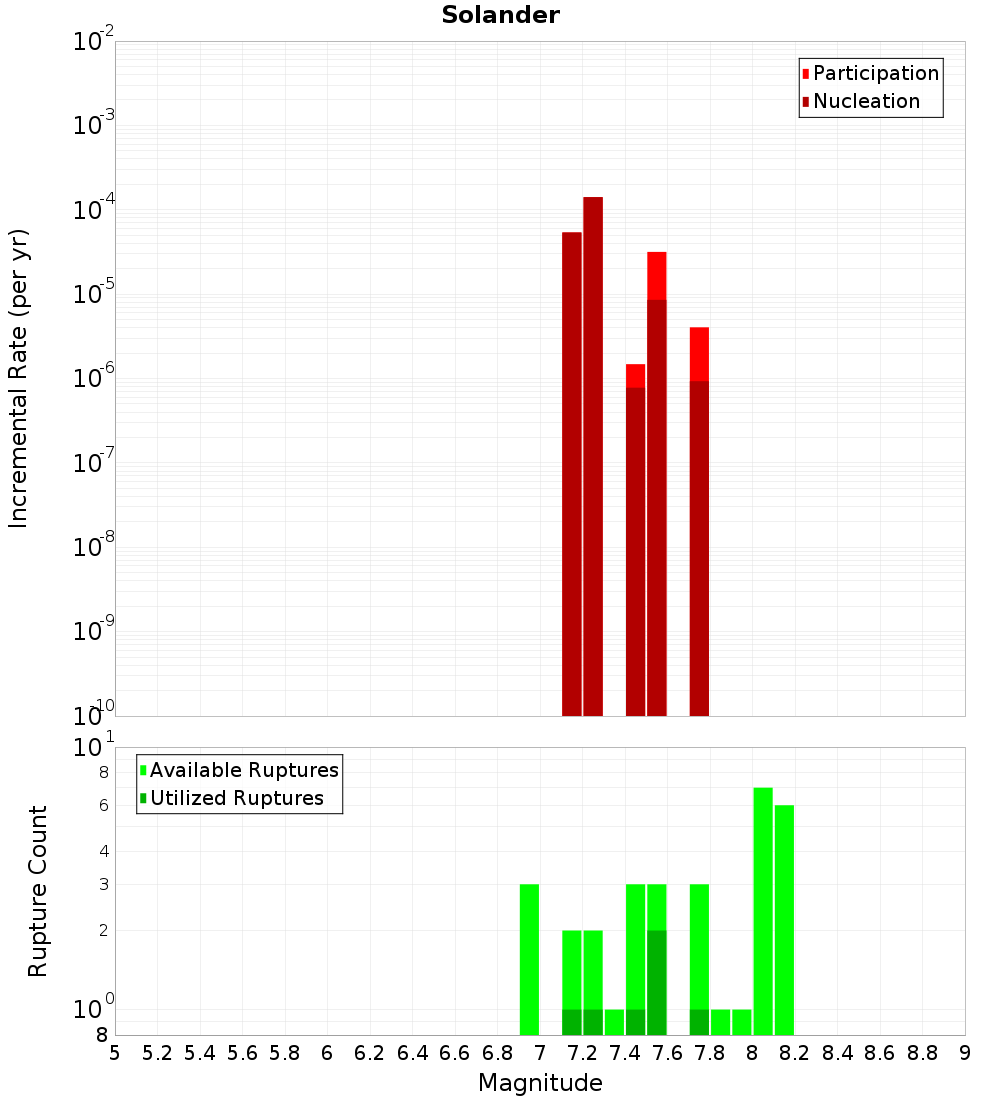

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

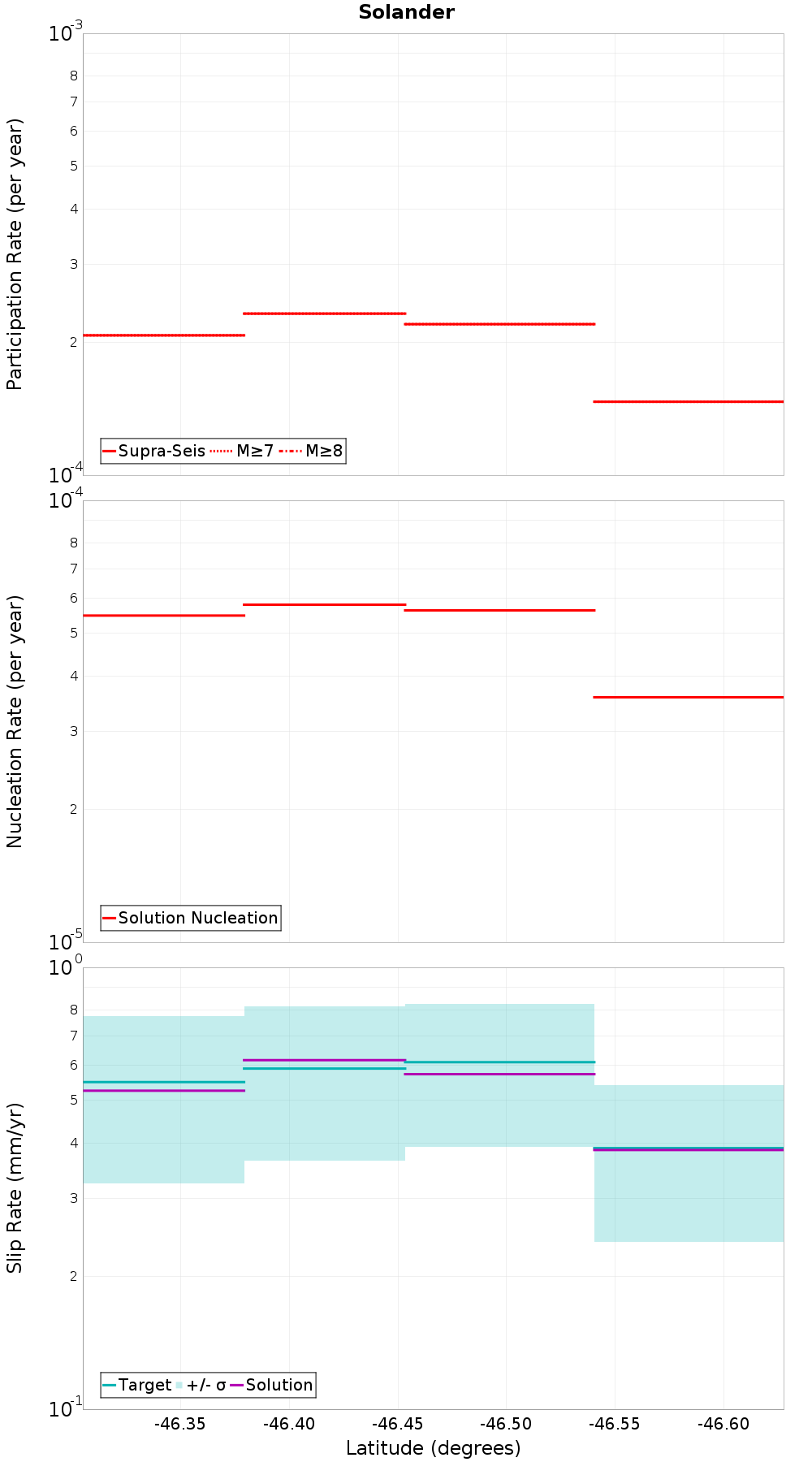

Along-Strike Values
Moment-Rates and b-Values

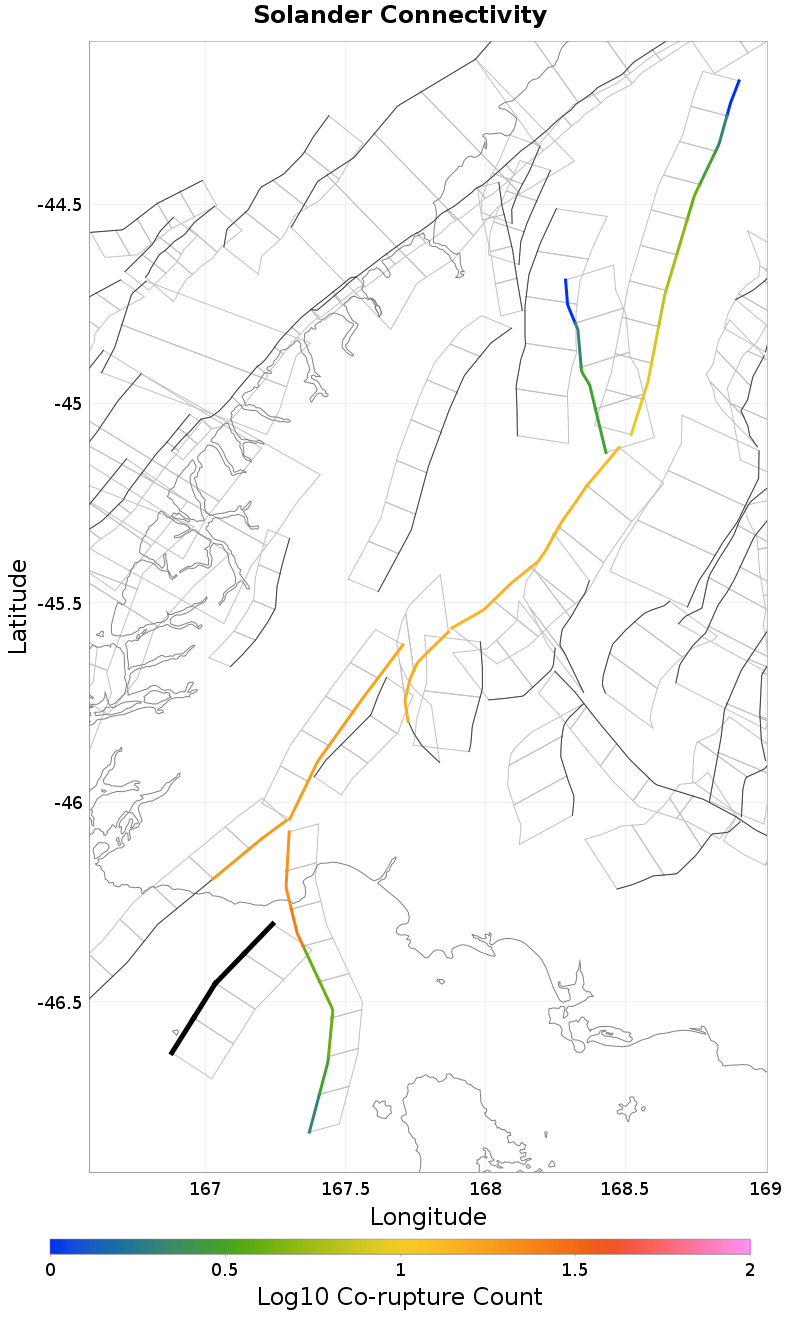

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hump Ridge, 5.34 km away |
Hump Ridge, 5.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFM2M0h1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 26 |
| Co-rupture Rate | 3.718186E-5 |
