Braemar Details

Property	Value
Rupture Count	3,361
Ruptures Above Sect Min Mag	3,338
Ruptures w/ Nonzero Rates	493
Magnitude Range	[6.59, 8.32]
Length Range	[14, 574] km
Total Rate	4.894869E-4 /yr
Multi-Fault Rate	4.894869E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	72

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

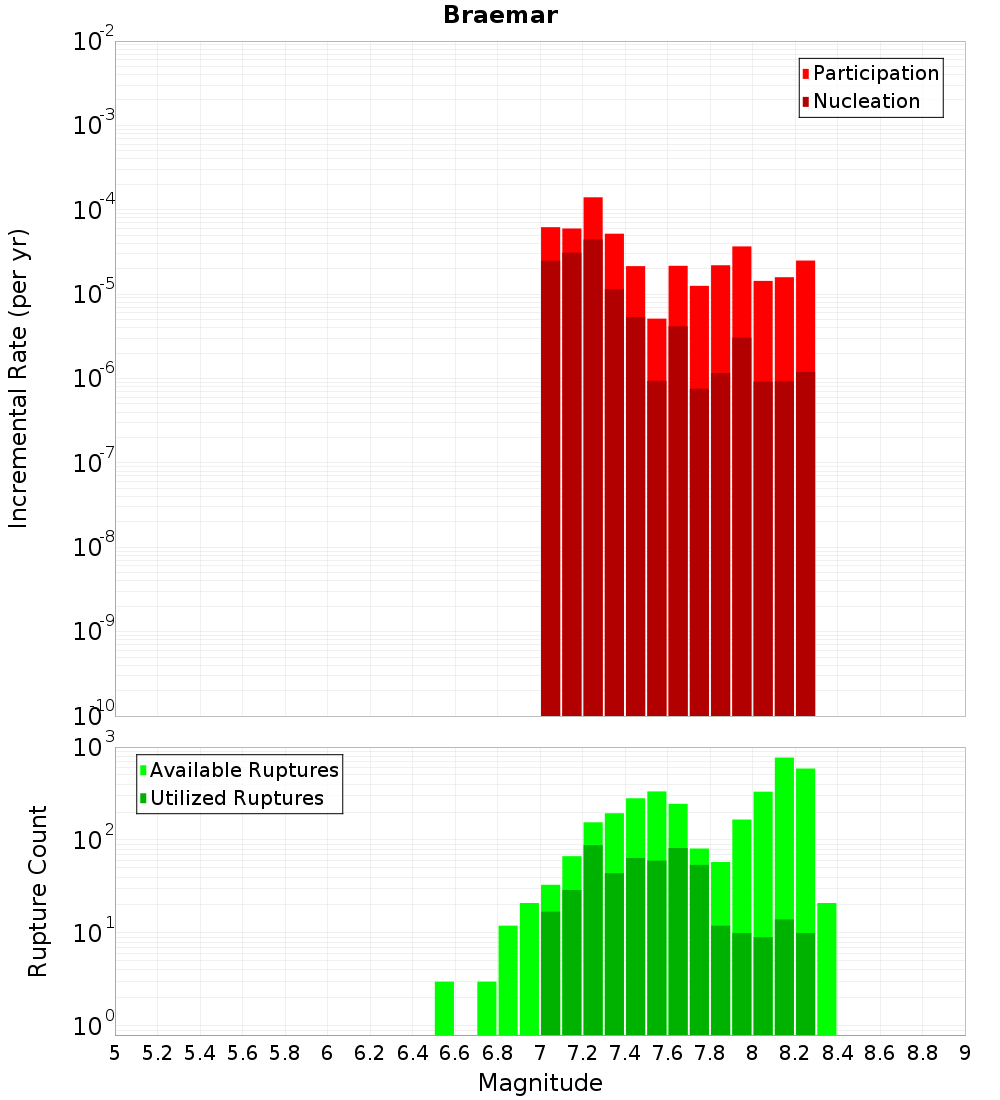

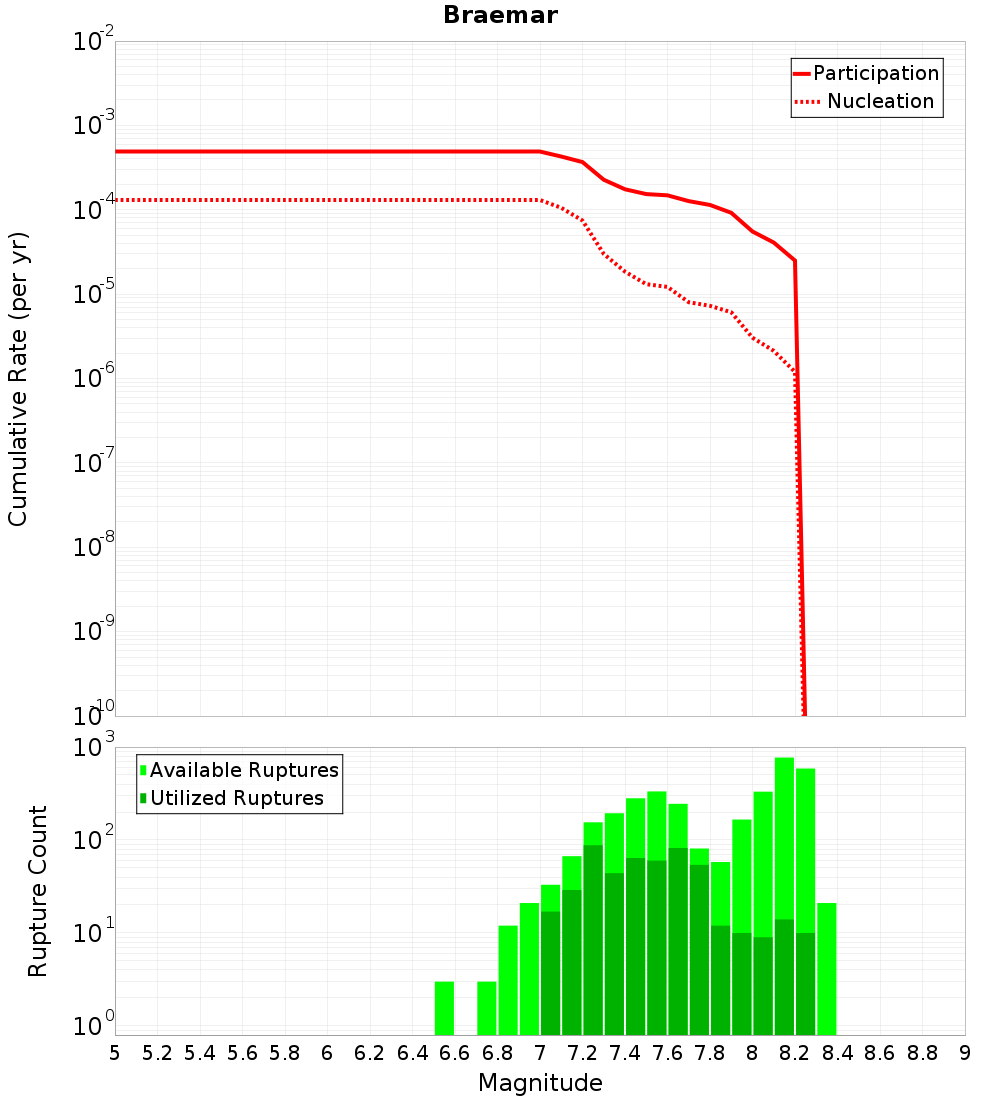

Magnitude-Frequency Distribution

Incremental	Cumulative

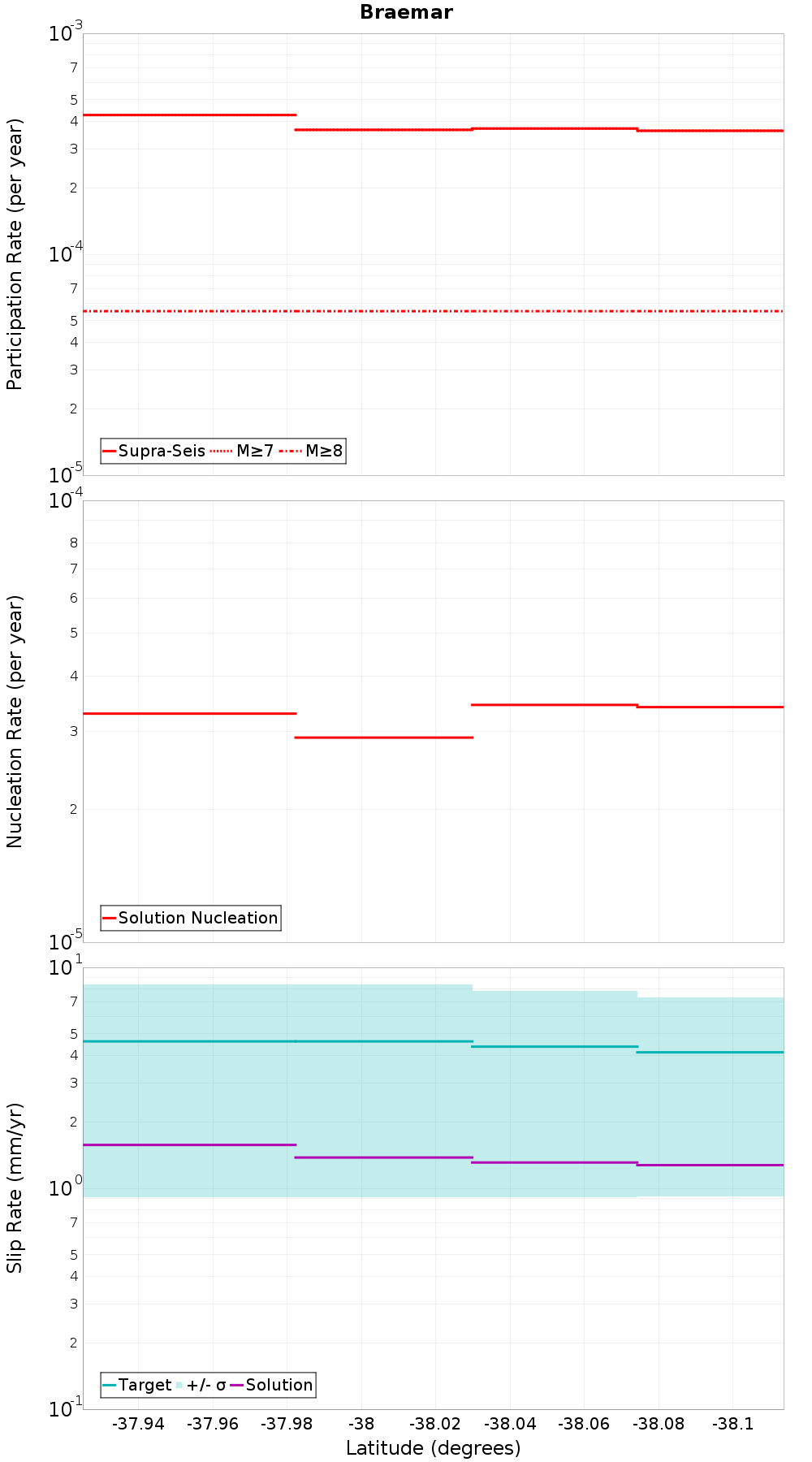

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waiohau: North, 0.3 km away
Otakiri, 0.31 km away
Edgecumbe 1987, 0.35 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.71 km away
Whakatane: North, 6.06 km away
Keepa, 10.8 km away
White Island 1, 11.34 km away
EarthquakeFlat - Tumunui, 12.78 km away

Waiohau: North, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFRrSkZY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,126
Co-rupture Rate	1.443645E-4

Otakiri, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFRrSkZY
Connected?	true
Directly Connected?	true
Co-rupture Count	942
Co-rupture Rate	5.7963614E-5

Edgecumbe 1987, 0.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFRrSkZY
Connected?	true
Directly Connected?	true
Co-rupture Count	378
Co-rupture Rate	4.848709E-5

Matata, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFRrSkZY
Connected?	true
Directly Connected?	true
Co-rupture Count	1,222
Co-rupture Rate	1.3338782E-4

Edgecumbe Coastal, 4.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFRrSkZY
Connected?	true
Directly Connected?	true
Co-rupture Count	578
Co-rupture Rate	1.7135427E-4

Whakatane: North, 6.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFRrSkZY
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	4.99958E-7

Keepa, 10.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFRrSkZY
Connected?	true
Directly Connected?	false
Co-rupture Count	601
Co-rupture Rate	2.5287061E-5

White Island 1, 11.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFRrSkZY
Connected?	true
Directly Connected?	false
Co-rupture Count	1,924
Co-rupture Rate	2.1963166E-4

EarthquakeFlat - Tumunui, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MjMuMFRrSkZY
Connected?	true
Directly Connected?	true
Co-rupture Count	427
Co-rupture Rate	2.4445917E-4
