Cape Foulwind 2 Details

Property	Value
Rupture Count	3,849
Ruptures Above Sect Min Mag	3,840
Ruptures w/ Nonzero Rates	345
Magnitude Range	[6.93, 8.44]
Length Range	[20, 631] km
Total Rate	3.4453583E-4 /yr
Multi-Fault Rate	2.8267858E-4 /yr (82.05%)
Directly-Connected Faults	5
All Co-Rupturing Faults	43

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

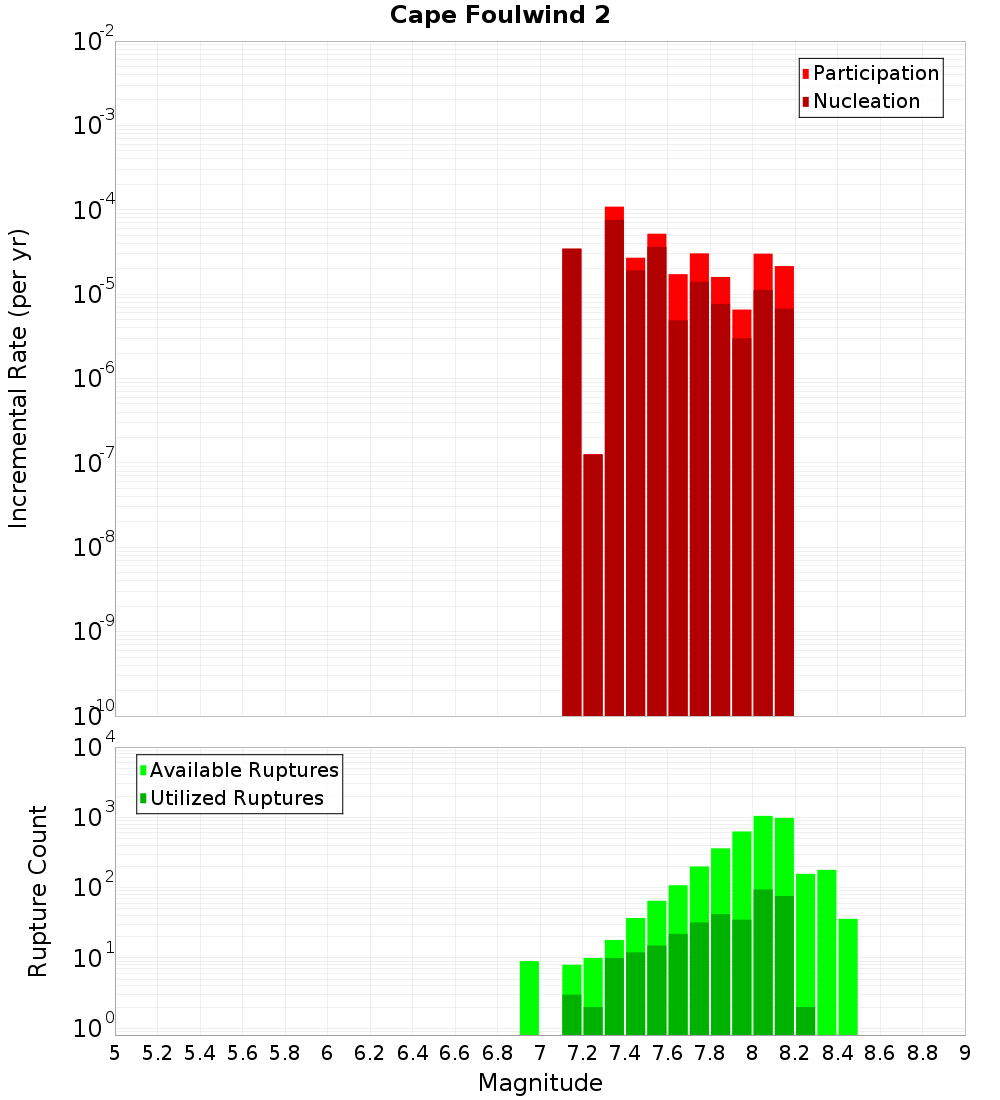

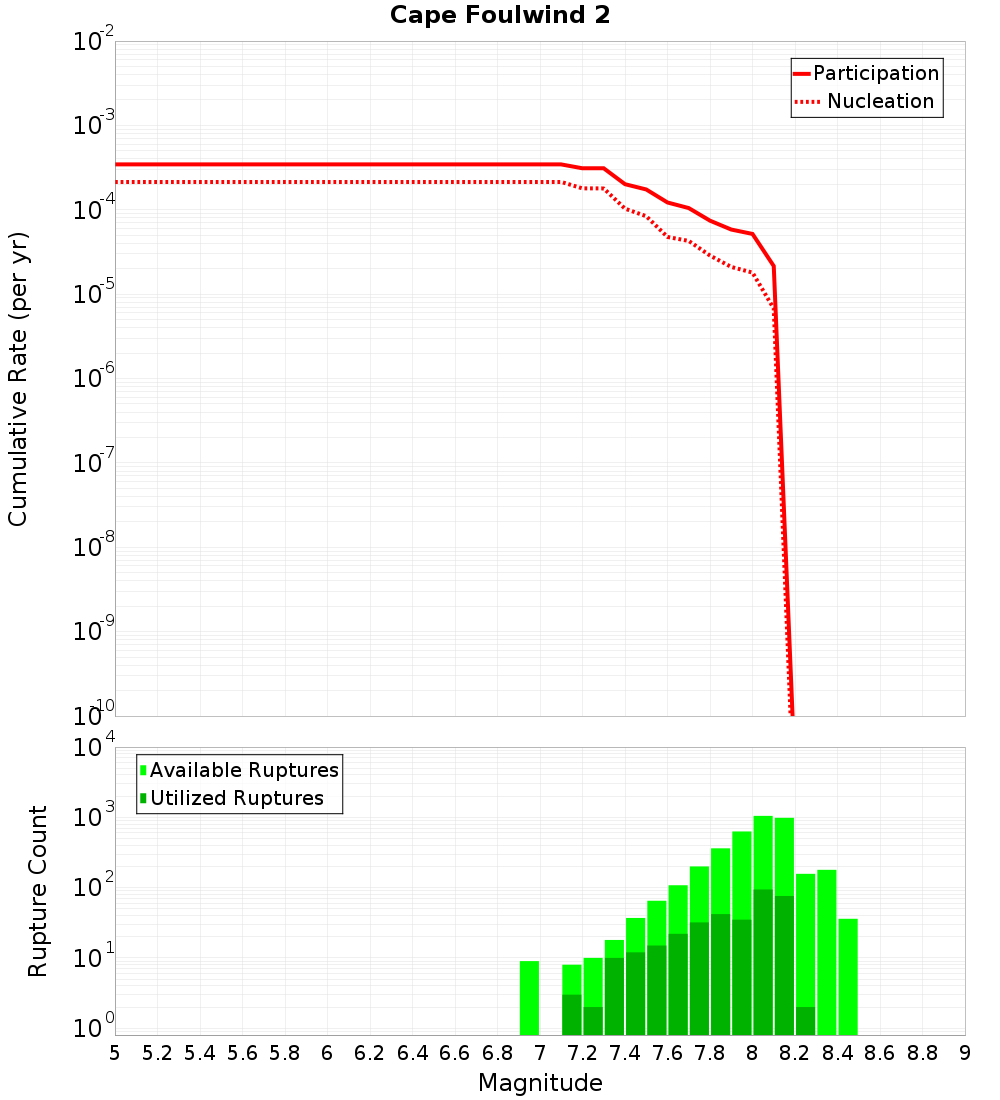

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

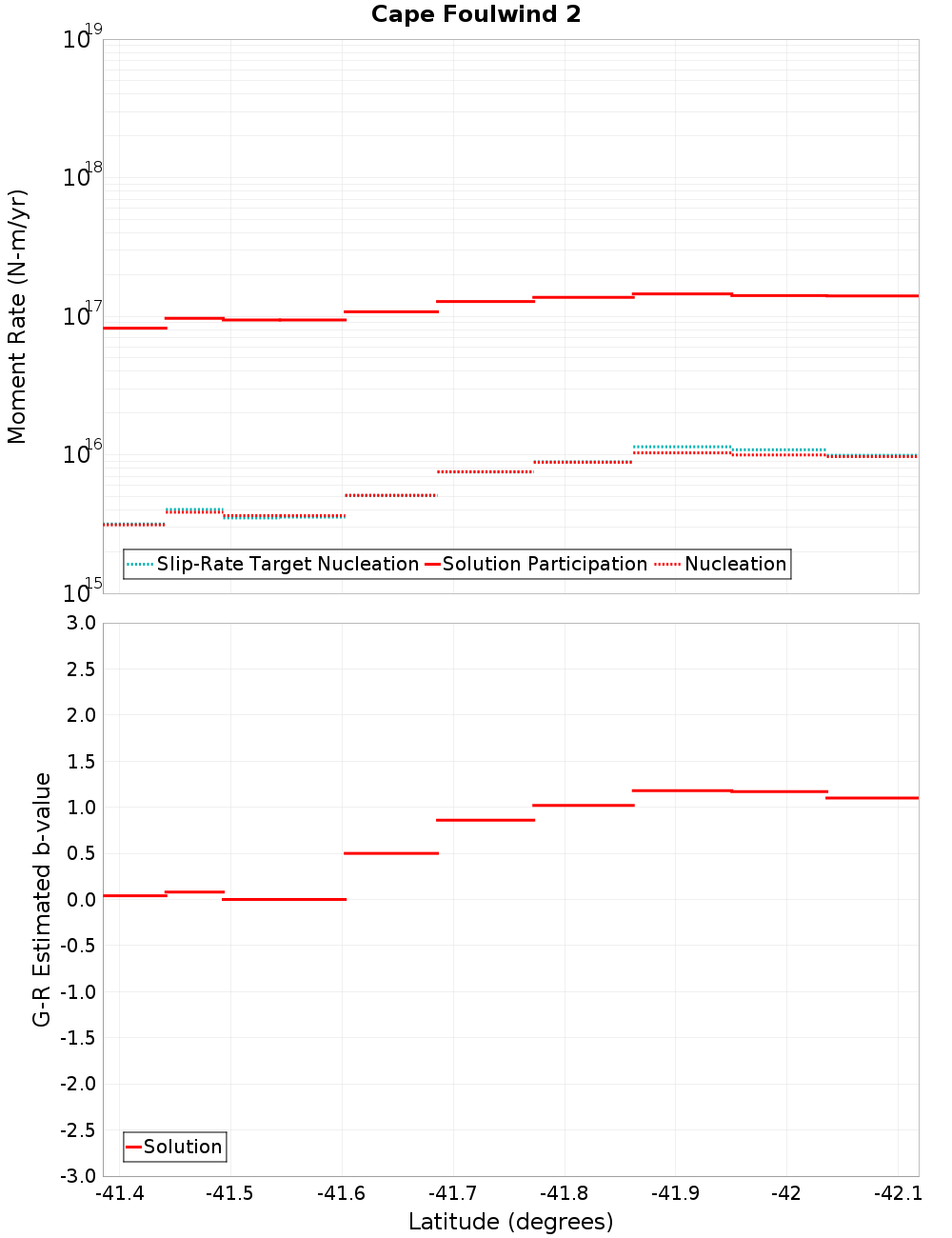

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Cape Foulwind 1, 0 km away
Maimai, 0.22 km away
Maimai: South, 4.96 km away
Paparoa West, 8.1 km away
Cape Foulwind 4, 8.22 km away
Kongahau, 8.65 km away

Cape Foulwind 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	2,723
Co-rupture Rate	2.1496585E-4

Maimai, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	634
Co-rupture Rate	1.2944686E-5

Maimai: South, 4.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	1,218
Co-rupture Rate	4.029087E-5

Paparoa West, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	false
Co-rupture Count	70
Co-rupture Rate	2.4688676E-5

Cape Foulwind 4, 8.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	1,676
Co-rupture Rate	5.1209696E-5

Kongahau, 8.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	272
Co-rupture Rate	2.1887232E-5
