Esk South Details

PropertyValue
Rupture Count14
Ruptures Above Sect Min Mag12
Ruptures w/ Nonzero Rates9
Magnitude Range[7.06, 7.52]
Length Range[22, 76] km
Total Rate3.031449E-4 /yr
Multi-Fault Rate7.5369775E-5 /yr (24.86%)
Directly-Connected Faults1
All Co-Rupturing Faults1

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

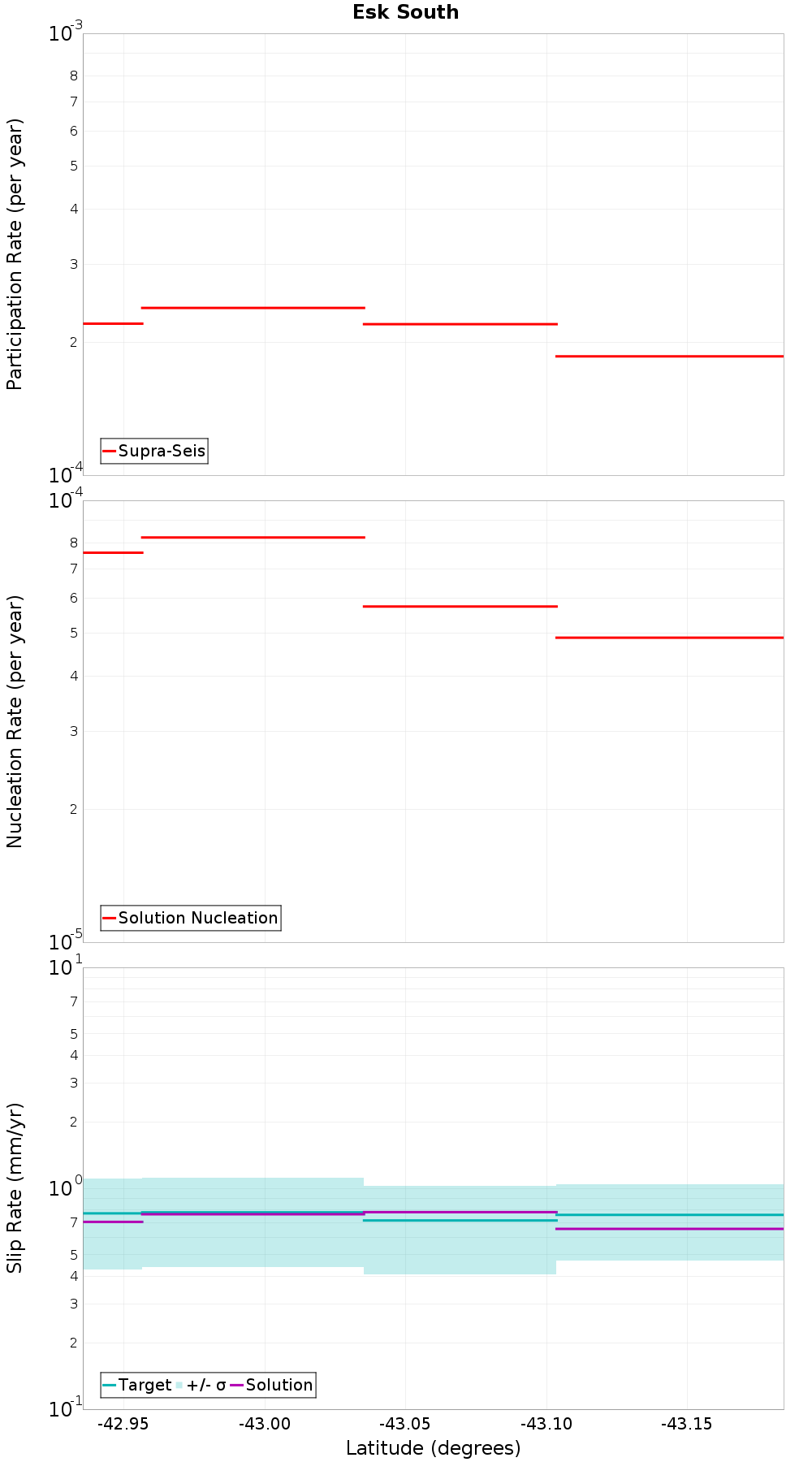

Along-Strike Values

(top)

Along-strike plot

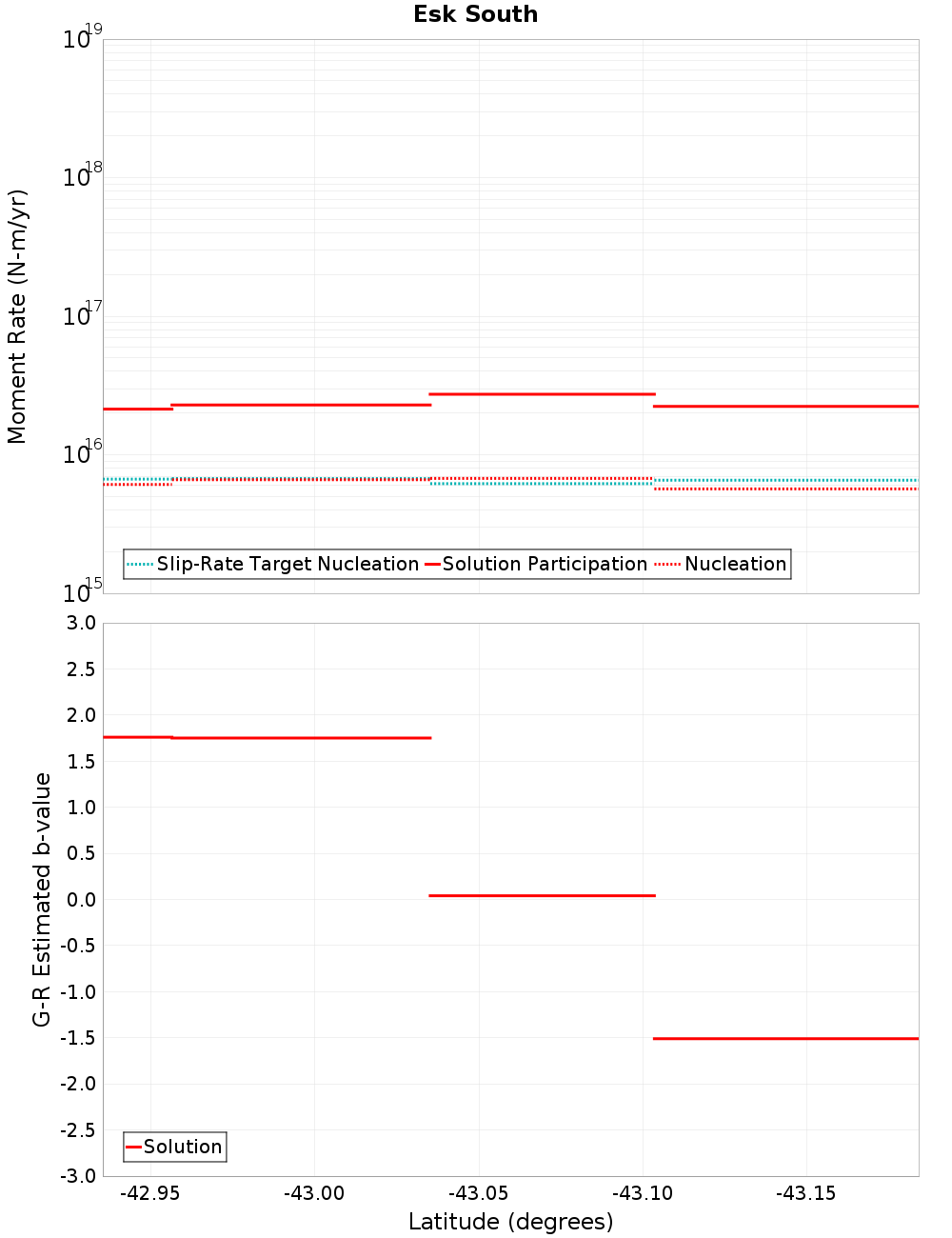

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Knowles Top, 0.16 km awayLees Valley, 4.37 km away
Mt Arden, 0.31 km awayMt White, 5.23 km away
Porters Pass, 0.31 km awaySpringbank, 5.54 km away
Torlesse, 0.32 km awayHororata, 6.31 km away
Sailor, 0.7 km awayKowai - View Hill, 9.83 km away
Starvation - Ashley, 0.81 km awayCheeseman, 10.29 km away
Esk North, 1.09 km awayHigh Peak - Sheffield, 12.55 km away
Pancake, 3.72 km awayHarper, 14.2 km away
Virginia, 3.79 km away

Knowles Top, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Arden, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Torlesse, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 0.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 0.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk North, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 3.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Virginia, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lees Valley, 4.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt White, 5.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Springbank, 5.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 6.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate7.5369775E-5

Kowai - View Hill, 9.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 10.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

High Peak - Sheffield, 12.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Harper, 14.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
