Livingstone Details
| Property | Value |
|---|---|
| Rupture Count | 600 |
| Ruptures Above Sect Min Mag | 597 |
| Ruptures w/ Nonzero Rates | 26 |
| Magnitude Range | [7.18, 8.58] |
| Length Range | [26, 776] km |
| Total Rate | 2.5350714E-4 /yr |
| Multi-Fault Rate | 1.2504507E-4 /yr (49.33%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 56 |
Table Of Contents

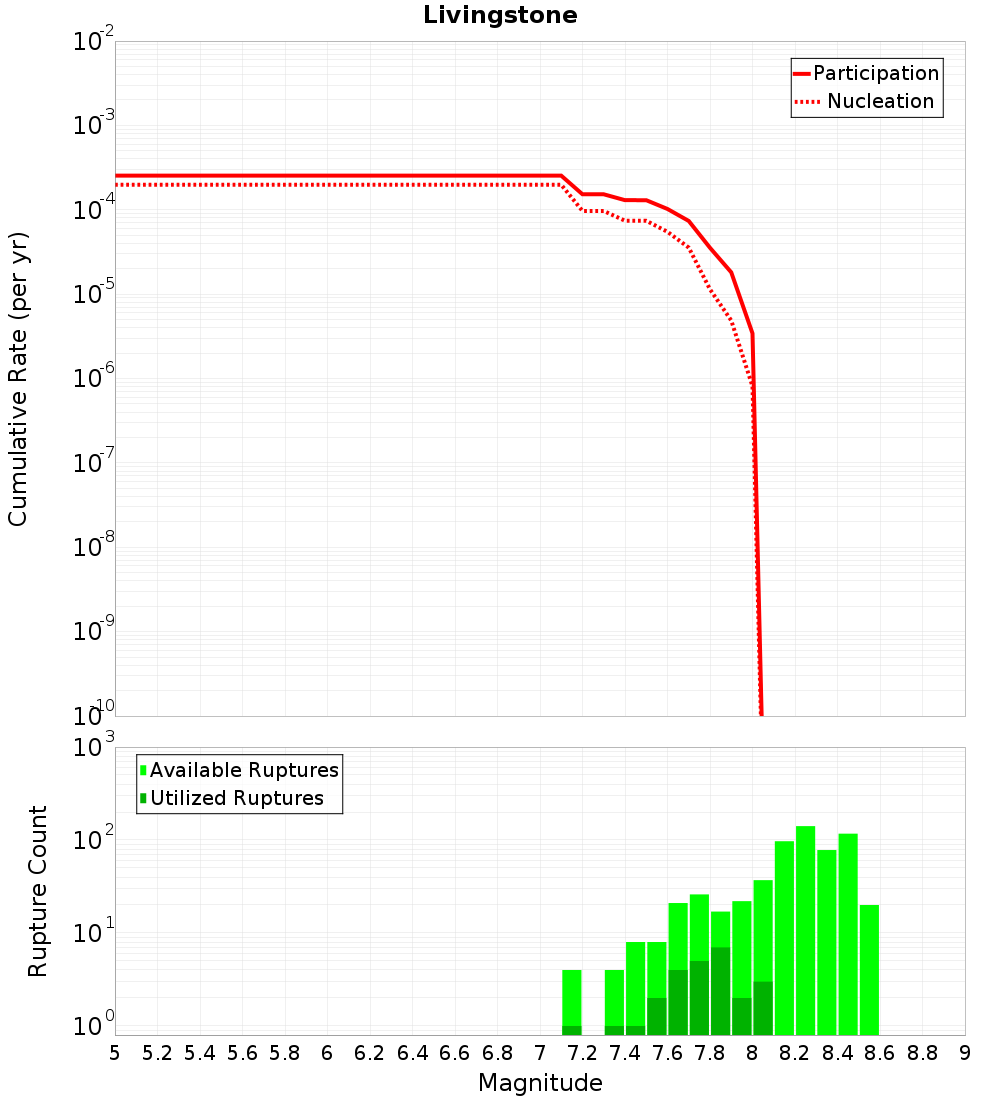

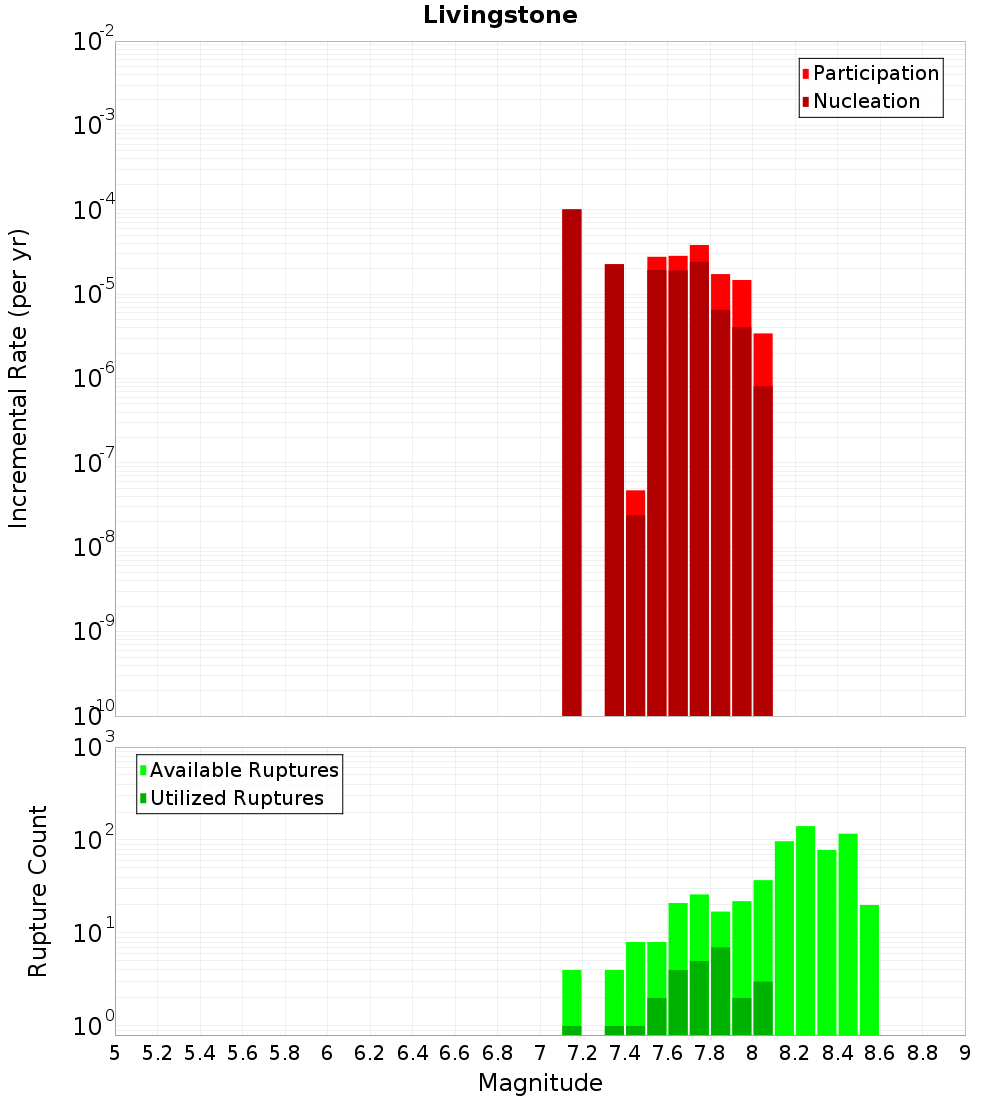

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

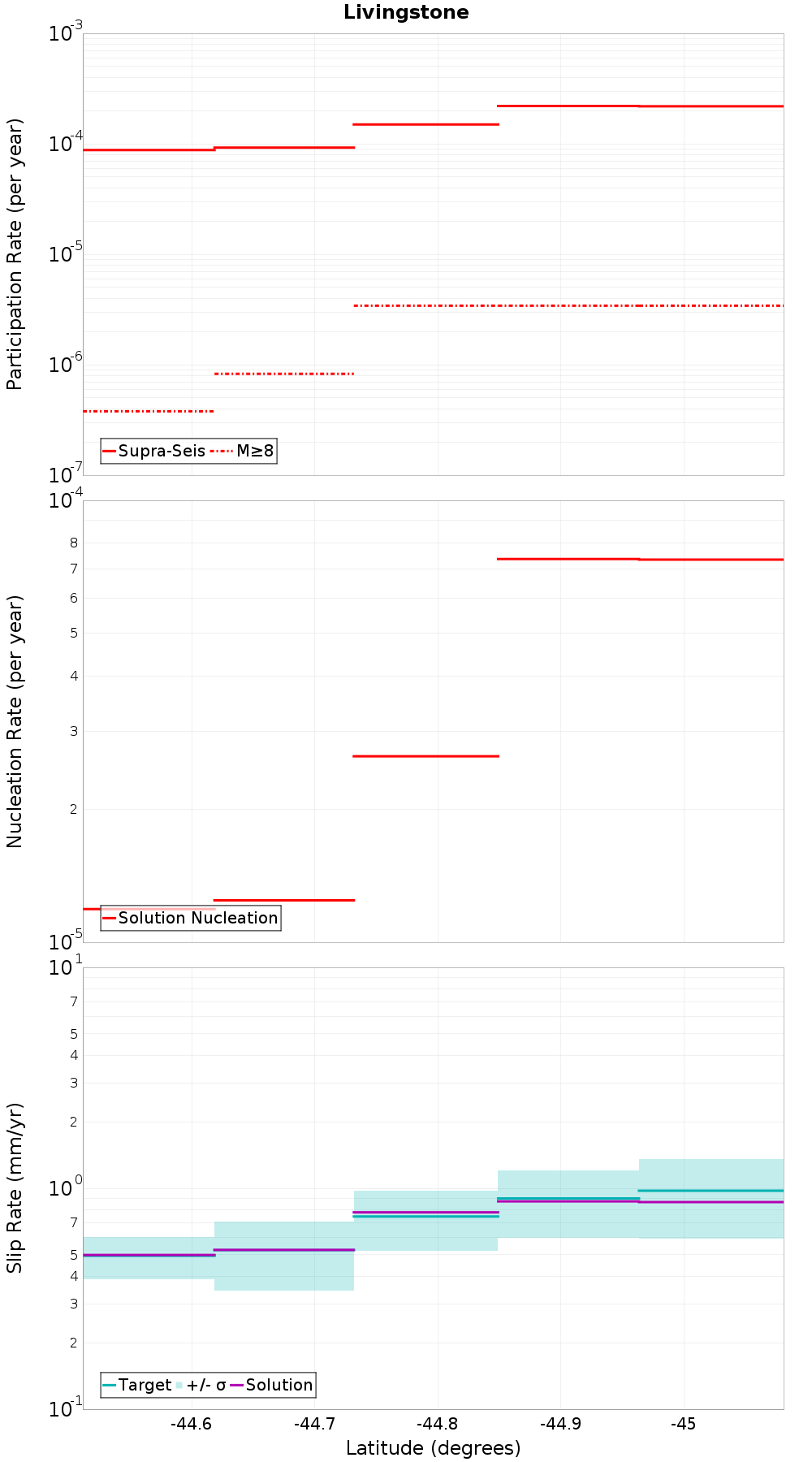

Along-Strike Values

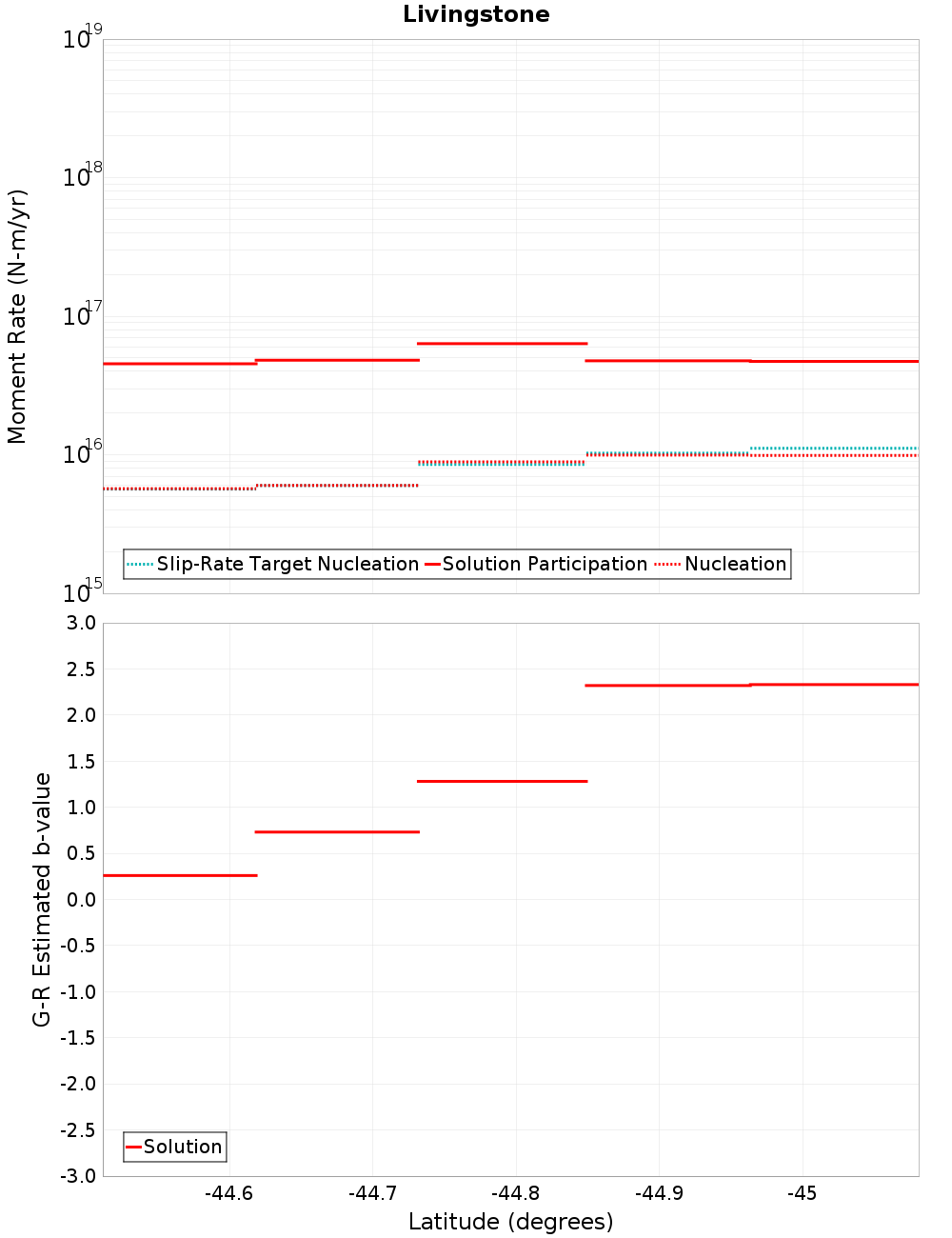

Moment-Rates and b-Values

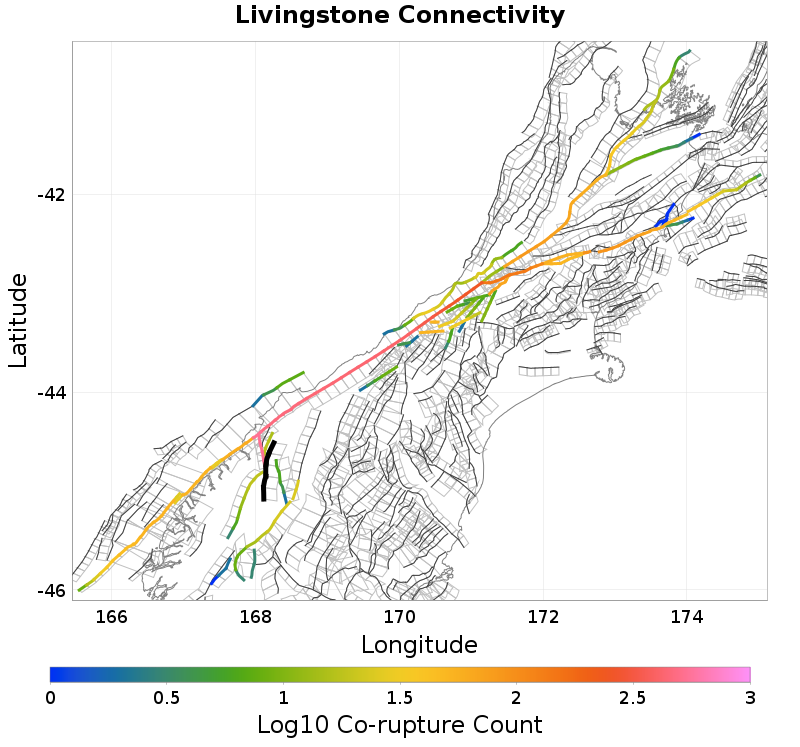

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Darran, 0.78 km away |
| Hollyford, 3.63 km away |
| Te Anau, 3.81 km away |
| West Wakatipu, 6.89 km away |
| Skippers, 9.56 km away |
| Moonlight North, 9.78 km away |
Darran, 0.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 536 |
| Co-rupture Rate | 2.5230474E-5 |
Hollyford, 3.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 7.718276E-5 |
Te Anau, 3.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 18 |
| Co-rupture Rate | 3.1040327E-5 |
West Wakatipu, 6.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 2.8894733E-6 |
Skippers, 9.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight North, 9.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 1.6906453E-5 |
