Long Valley Details

PropertyValue
Rupture Count2,786
Ruptures Above Sect Min Mag2,786
Ruptures w/ Nonzero Rates50
Magnitude Range[7.05, 8.41]
Length Range[21, 474] km
Total Rate6.4360705E-5 /yr
Multi-Fault Rate6.4360705E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults57

Table Of Contents

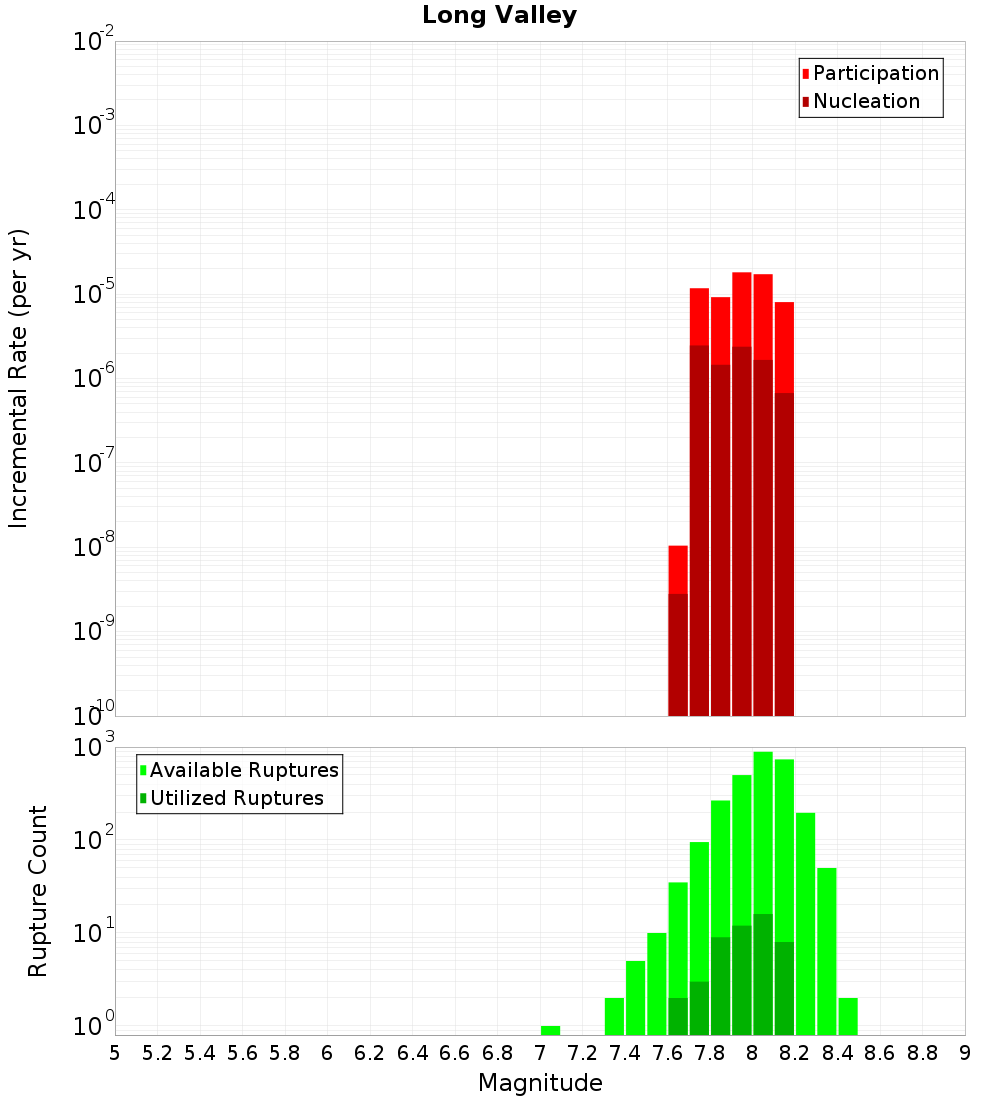

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

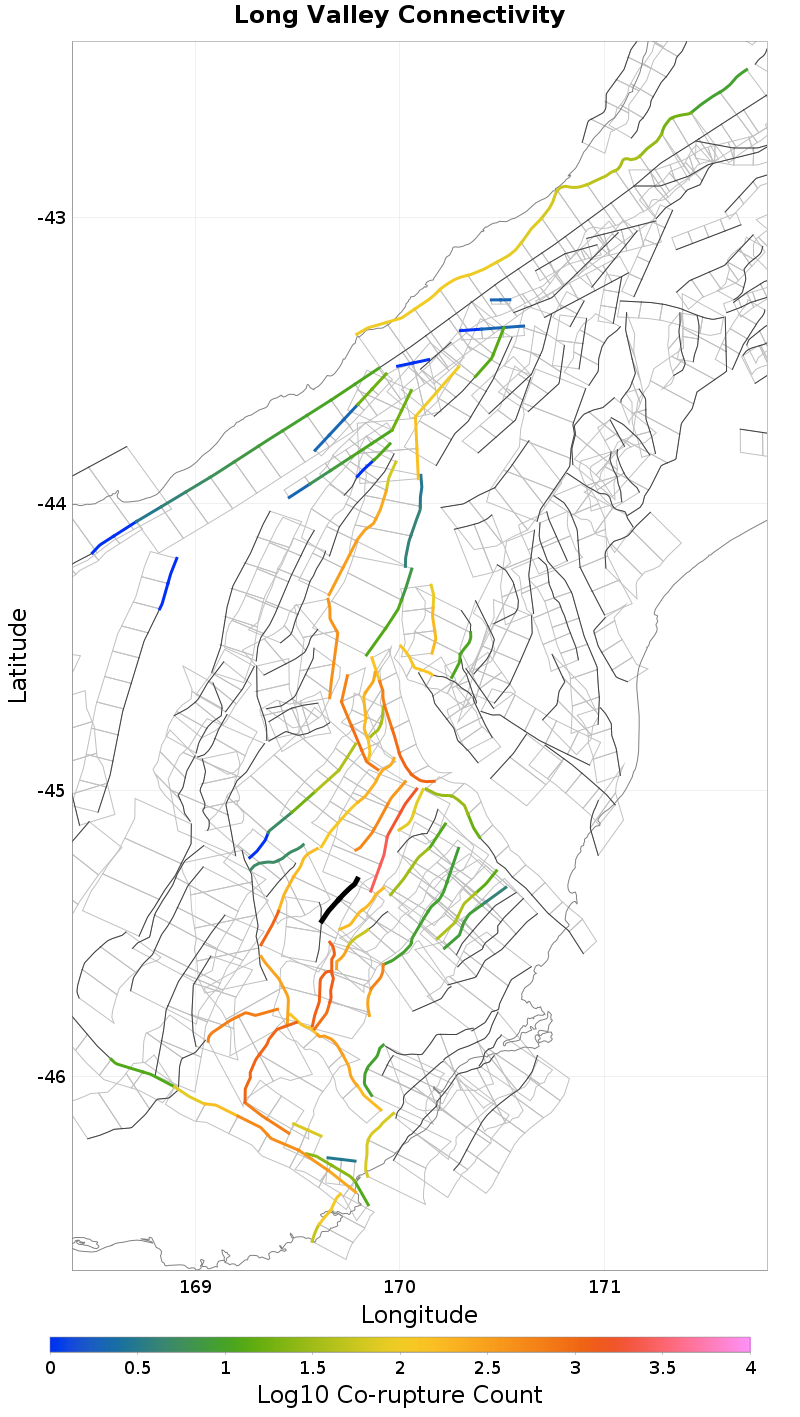

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hyde North, 0.26 km away
Gimmerburn, 0.38 km away
Lake Onslow, 0.52 km away
Hyde South - The Twins, 4.04 km away
Little Valley, 5.17 km away
Beaumont River, 5.68 km away
Pylap, 6.52 km away
Horse Flat, 7.21 km away
Billys Ridge, 11.26 km away
Garibaldi, 11.29 km away
Logan Burn, 12 km away
Waipiata, 12.31 km away
Galloway, 13.99 km away
Nichols Rock, 14.93 km away

Hyde North, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count9
Co-rupture Rate1.5782744E-5

Gimmerburn, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count2,525
Co-rupture Rate3.7391914E-5

Lake Onslow, 0.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde South - The Twins, 4.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count569
Co-rupture Rate2.72238E-6

Little Valley, 5.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count1,068
Co-rupture Rate4.2198288E-5

Beaumont River, 5.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count1,365
Co-rupture Rate2.4084336E-6

Pylap, 6.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count180
Co-rupture Rate7.656273E-10

Horse Flat, 7.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate1.8306875E-10

Billys Ridge, 11.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Garibaldi, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count539
Co-rupture Rate1.7470413E-5

Logan Burn, 12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count277
Co-rupture Rate2.7223798E-6

Waipiata, 12.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate5.825585E-10

Galloway, 13.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate5.130048E-6

Nichols Rock, 14.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
