North Mernoo K3 Details

PropertyValue
Rupture Count175
Ruptures Above Sect Min Mag164
Ruptures w/ Nonzero Rates6
Magnitude Range[6.70, 7.81]
Length Range[15, 187] km
Total Rate8.464146E-5 /yr
Multi-Fault Rate3.527837E-9 /yr (0.00%)
Directly-Connected Faults4
All Co-Rupturing Faults5

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

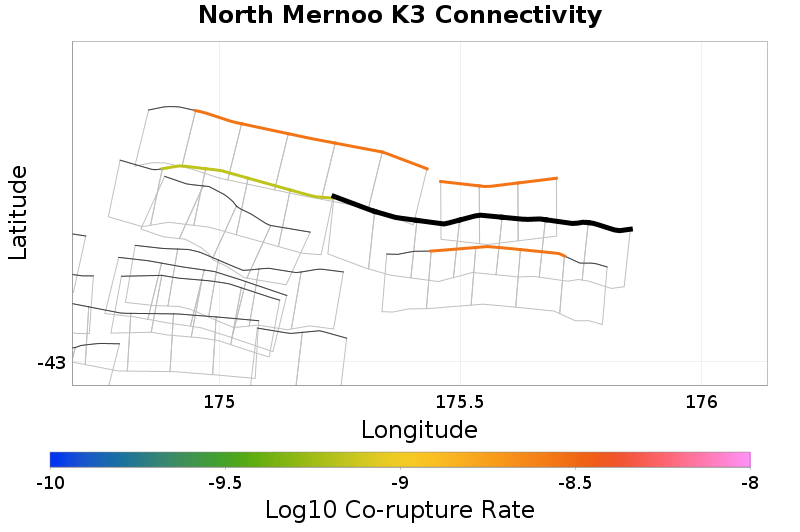

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
North Mernoo K2, 0.35 km away
North Mernoo 26, 3.66 km away
North Mernoo L, 4.05 km away
North Mernoo J, 6.27 km away
North Mernoo M, 7.3 km away
North Mernoo I, 9.48 km away

North Mernoo K2, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count106
Co-rupture Rate6.8462075E-10

North Mernoo 26, 3.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count53
Co-rupture Rate2.8360232E-9

North Mernoo L, 4.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate2.843216E-9

North Mernoo J, 6.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate0.0

North Mernoo M, 7.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?true
Directly Connected?false
Co-rupture Count96
Co-rupture Rate2.8360232E-9

North Mernoo I, 9.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
