Offshore Splay Thrust Details

Property	Value
Rupture Count	25,974
Ruptures Above Sect Min Mag	25,973
Ruptures w/ Nonzero Rates	132
Magnitude Range	[7.18, 8.63]
Length Range	[27, 988] km
Total Rate	1.2064225E-4 /yr
Multi-Fault Rate	1.09247056E-4 /yr (90.55%)
Directly-Connected Faults	11
All Co-Rupturing Faults	244

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

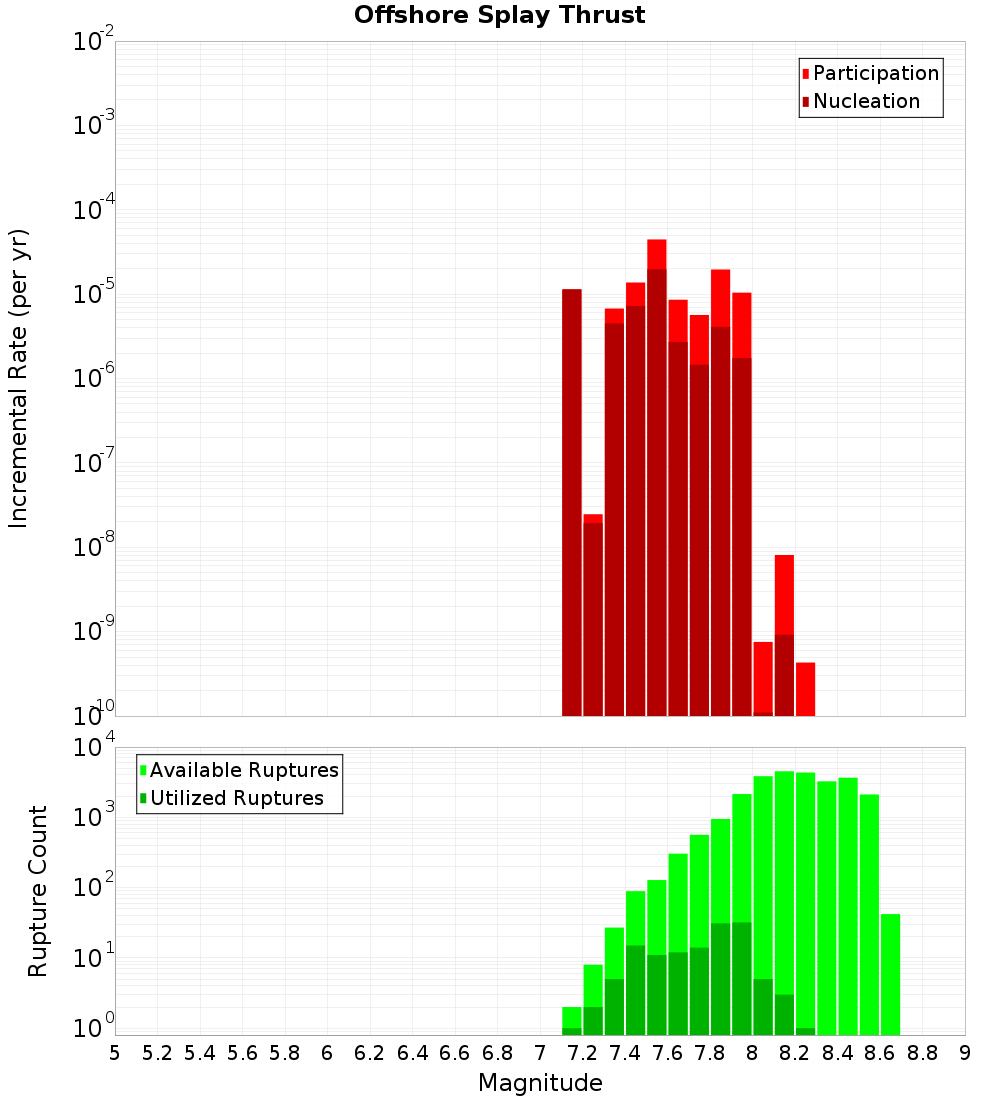

Magnitude-Frequency Distribution

Incremental	Cumulative

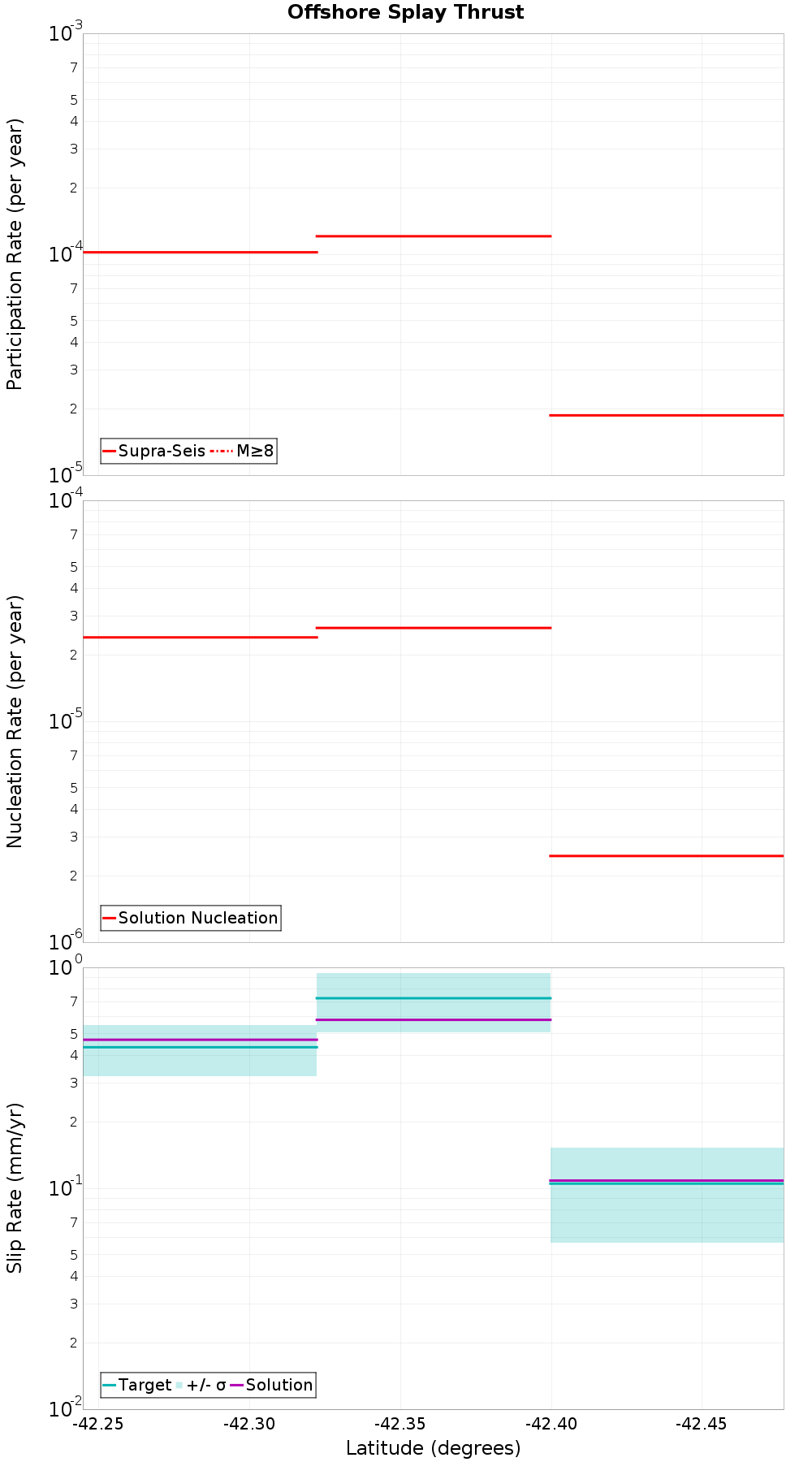

Along-Strike Values

Moment-Rates and b-Values

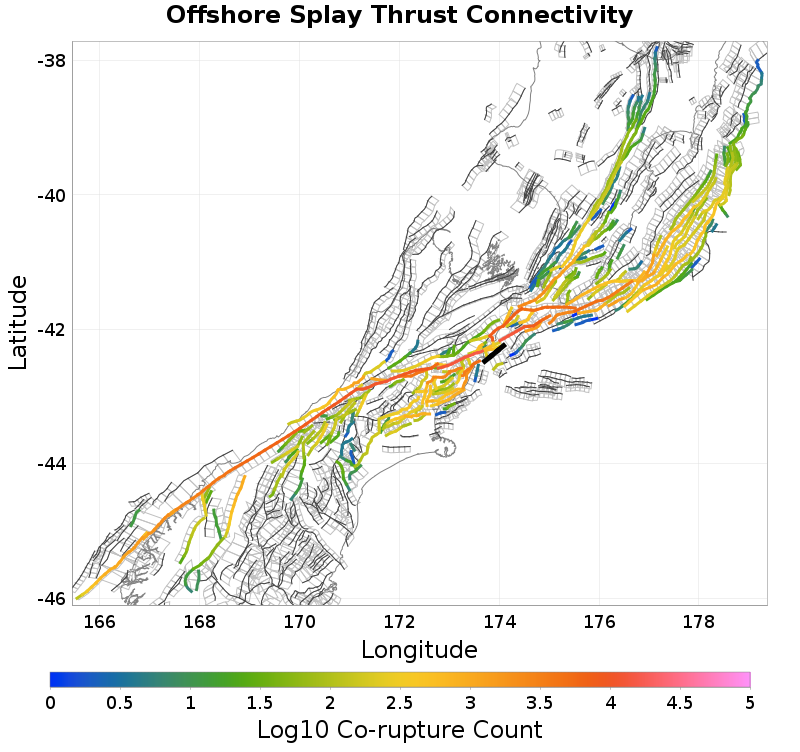

Connectivity

Nearby Sections

Fault Section	Fault Section
Kaikoura - Mangamaunu, 0.05 km away	Fidget, 4.12 km away
Hope: Seaward, 0.12 km away	Hundalee, 6.67 km away
Kowhai, 0.18 km away	Jordan, 7.78 km away
Hope: Conway, 0.19 km away	Upper Slope, 9.95 km away
Papatea, 0.19 km away	Conway Trough West, 10.93 km away
Kaikoura 2, 0.24 km away	Kekerengu 1, 11.54 km away
Upper Kowhai - Manakau, 0.29 km away	Marlborough Slope 2, 13.04 km away
Hope: Te Rapa, 0.86 km away	Kekerengu Bank, 13.64 km away

Kaikoura - Mangamaunu, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	697
Co-rupture Rate	2.1030012E-8

Hope: Seaward, 0.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	618
Co-rupture Rate	3.4058872E-10

Kowhai, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	249
Co-rupture Rate	1.5354215E-6

Hope: Conway, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	15,131
Co-rupture Rate	5.3413833E-6

Papatea, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	8,303
Co-rupture Rate	4.6721216E-6

Kaikoura 2, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	211
Co-rupture Rate	1.04843075E-5

Upper Kowhai - Manakau, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	592
Co-rupture Rate	9.759194E-15

Hope: Te Rapa, 0.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	14,389
Co-rupture Rate	3.343193E-5

Fidget, 4.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	240
Co-rupture Rate	3.525818E-5

Hundalee, 6.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	5,382
Co-rupture Rate	1.3307853E-5

Jordan, 7.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Upper Slope, 9.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	false
Co-rupture Count	1,435
Co-rupture Rate	8.2428136E-7

Conway Trough West, 10.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	1.0464928E-5

Kekerengu 1, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	false
Co-rupture Count	8,205
Co-rupture Rate	3.9930303E-5

Marlborough Slope 2, 13.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	true
Co-rupture Count	126
Co-rupture Rate	1.6523018E-5

Kekerengu Bank, 13.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjE4MzcuMEd6eTht
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	1.5372553E-12
